8-21 — METER ASM (#75087) — 84 parça

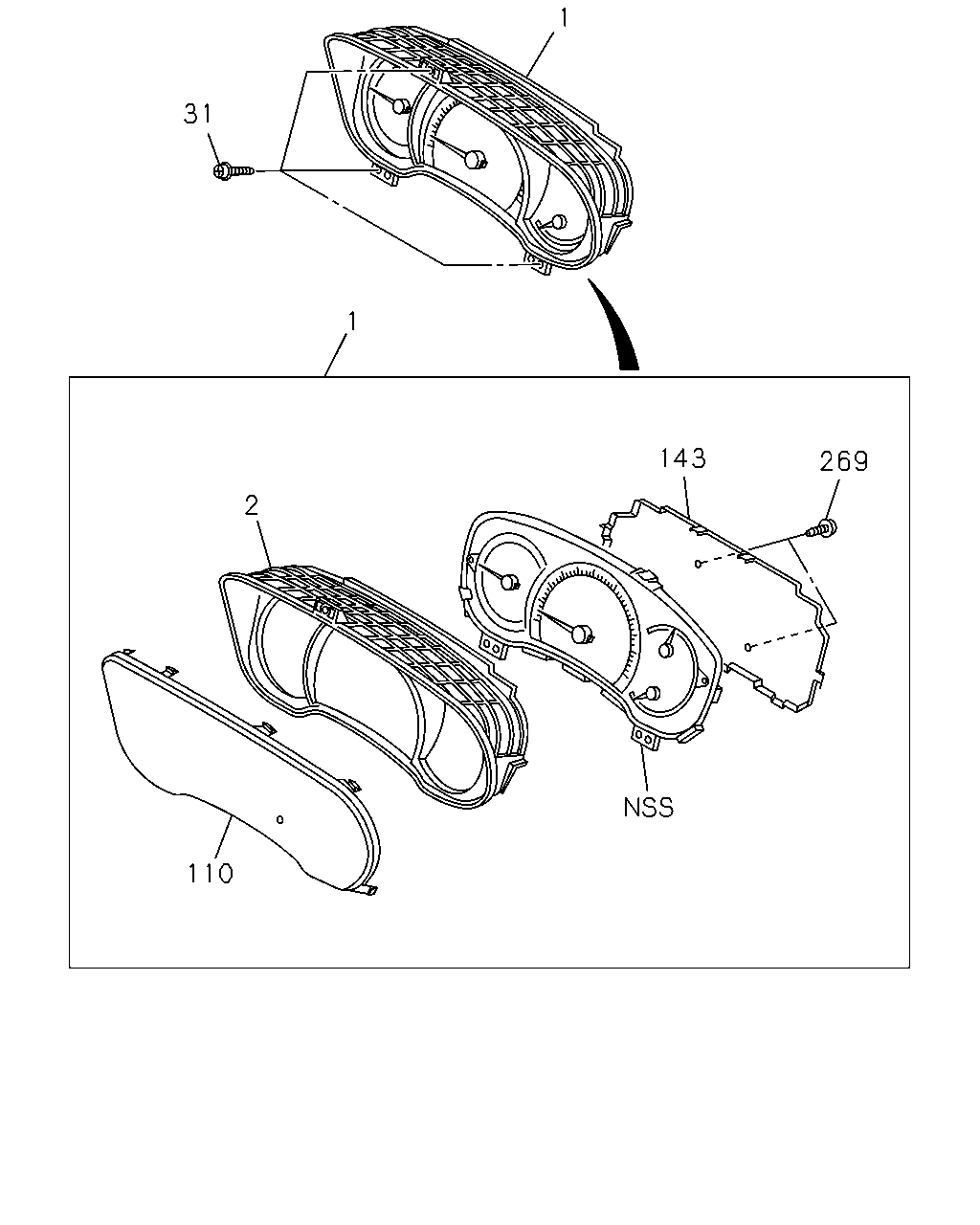

1 31 1 143 269 2 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97376-965-0	01	1	0503-0508	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97387-960-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98046-258-0	01	1	0607-1001	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98152-711-0	01	1	1002-	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G(RSP)	8-97376-963-0	01	1	0503-0508	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G(RSP)	8-97387-958-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H(MWQ)	8-98046-251-0	01	1	0607-1001	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H(MWQ)	8-98152-710-0	01	1	1002-	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97387-961-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98046-257-0	01	1	0607-1001		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98152-706-0	01	1	1002-		●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-575-0	01	1	0503-0508	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-575-0	01	1	0509-0606	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97305-575-0	01	1	0509-0606		●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-112-0	01	1	0607-1001	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98047-112-0	01	1	0607-1001		●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98153-332-0	01	1	1002-	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98153-332-0	01	1	1002-		●
31	SCREW; METER,INST PANEL M5X16 TAPPING	9-09829-323-1	03	1	0503-0508	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	9-09829-323-1	03	1	0509-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	8-98167-449-0	03	1	1006-	●	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-572-0	01	1	0503-0508	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-572-0	01	1	0509-0606	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97305-572-0	01	1	0509-0606		●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-110-0	01	1	0607-	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-98047-110-0	01	1	0607-		●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-577-0	01	1	0503-0508	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-577-0	01	1	0509-0606	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97305-577-0	01	1	0509-0606		●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-114-0	01	1	0607-	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-98047-114-0	01	1	0607-		●
269	SCREW; METER CLUSTER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-116-0	03	1	0607-	●
269	SCREW; METER CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98047-116-0	03	1	0607-		●

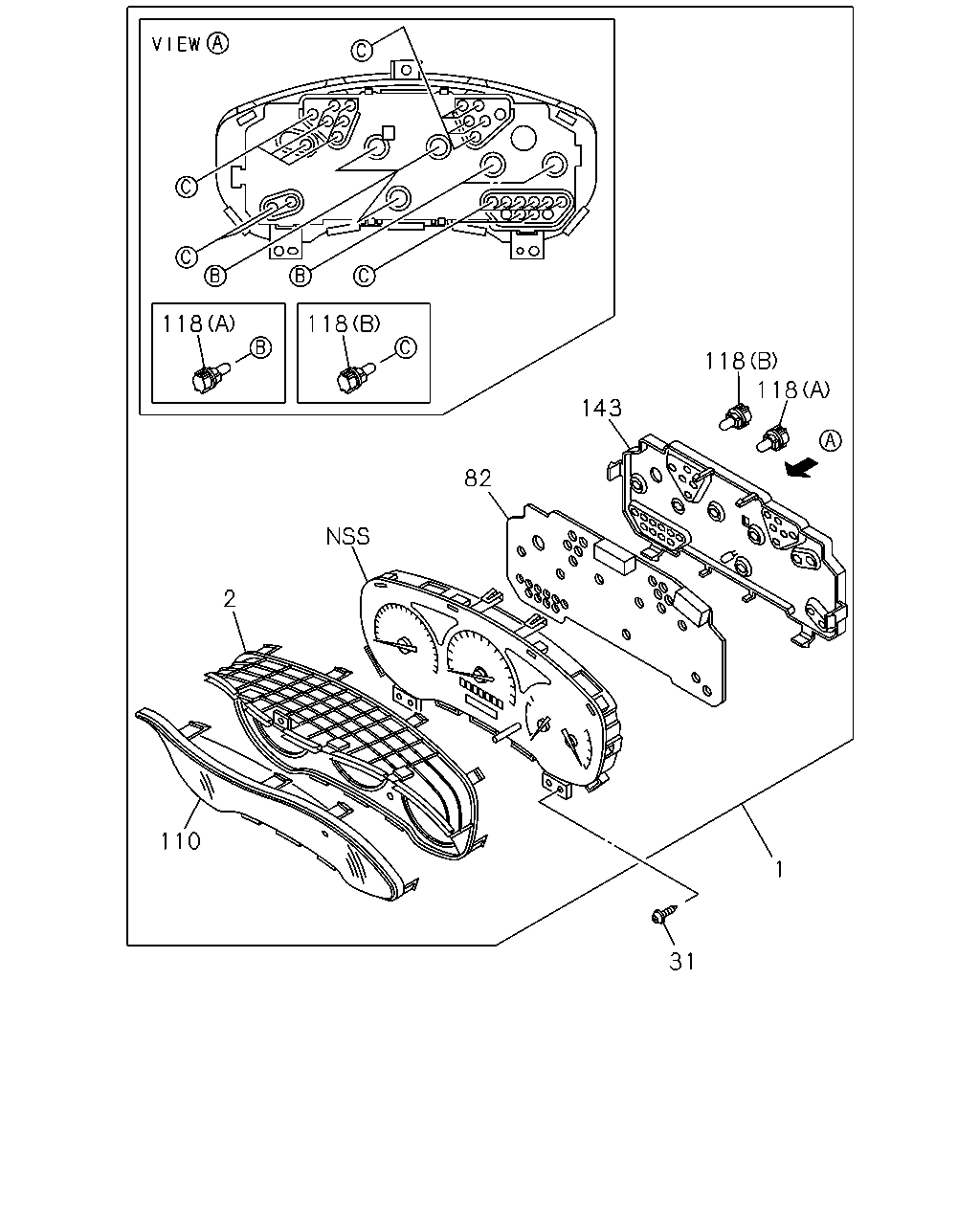

118 118 118 118 143 82 2 110 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97376-965-0	01	1	0503-0508	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97387-960-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98046-258-0	01	1	0607-1001	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98152-711-0	01	1	1002-	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G(RSP)	8-97376-963-0	01	1	0503-0508	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G(RSP)	8-97387-958-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H(MWQ)	8-98046-251-0	01	1	0607-1001	●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5H(MWQ)	8-98152-710-0	01	1	1002-	●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97387-961-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98046-257-0	01	1	0607-1001		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98152-706-0	01	1	1002-		●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-575-0	01	1	0503-0508	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-575-0	01	1	0509-0606	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-97305-575-0	01	1	0509-0606		●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-112-0	01	1	0607-1001	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98047-112-0	01	1	0607-1001		●
2	PANEL; CLUSTER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98153-332-0	01	1	1002-	●
2	PANEL; CLUSTER A/T 4 SPEED-JATCO(RMK)	8-98153-332-0	01	1	1002-		●
31	SCREW; METER,INST PANEL M5X16 TAPPING	9-09829-323-1	03	1	0503-0508	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	9-09829-323-1	03	1	0509-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	8-98167-449-0	03	1	1006-	●	●
82	CASE ASM; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97379-816-0	01	1	0503-0508	●
82	CASE ASM; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97389-955-0	01	1	0509-0606	●	●
82	CASE ASM; CLUSTER METER M/T MUA 5 SPEED 5G(RSP)	8-97379-819-0	01	1	0503-0508	●
82	CASE ASM; CLUSTER METER M/T MUA 5 SPEED 5G(RSP)	8-97389-958-0	01	1	0509-0606	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-572-0	01	1	0503-0508	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-572-0	01	1	0509-0606	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97305-572-0	01	1	0509-0606		●
110	GLASS; CLUSTER METER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-110-0	01	1	0607-	●
110	GLASS; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-98047-110-0	01	1	0607-		●
118	BULB; CLUSTER METER A/T 4 SPEED-JATCO(RMK) (B) 14V 1.12W	8-97305-600-0	18	1	0503-0606	●
118	BULB; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 14V 2W	8-97305-590-0	07	1	0503-0508	●
118	BULB; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 14V 2W	8-97305-590-0	07	1	0509-0606	●
118	BULB; CLUSTER METER A/T 4 SPEED-JATCO(RMK) (A) 14V 2W	8-97305-590-0	07	1	0509-0606		●
118	BULB; CLUSTER METER M/T MUA 5 SPEED 5G(RSP) (B) 14V 1.12W	8-97305-600-0	14	1	0503-0606	●
118	BULB; CLUSTER METER A/T 4 SPEED-JATCO(RMK) (B) 14V 1.12W	8-97305-600-0	21	1	0509-0606		●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-577-0	01	1	0503-0508	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97305-577-0	01	1	0509-0606	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-97305-577-0	01	1	0509-0606		●
143	COVER; CLUSTER METER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98047-114-0	01	1	0607-	●
143	COVER; CLUSTER METER A/T 4 SPEED-JATCO(RMK)	8-98047-114-0	01	1	0607-		●

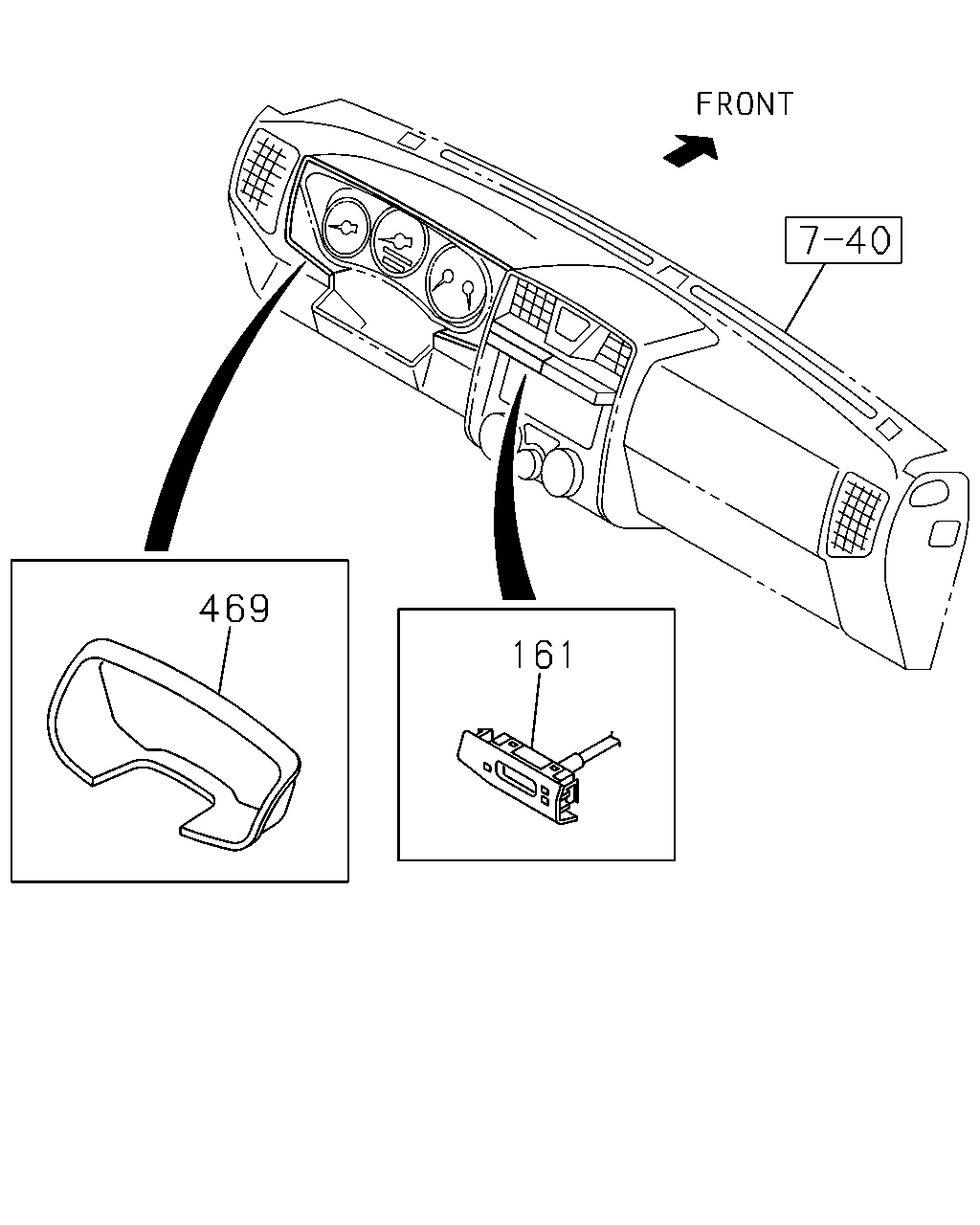

469 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	CLOCK; CLUSTER METER LIGHT GRAY	8-97396-393-0	01	1	0503-0508	●
161	CLOCK; CLUSTER METER LIGHT GRAY	8-97396-393-0	01	1	0509-0606	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY	8-97407-360-0	01	1	0607-1001	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY	8-97418-483-0	01	1	1002-	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY	8-97294-069-0	01	1	0503-0508	●
469	PLATE; INSTRUMENT PANEL DARK GRAY	8-97404-874-0	01	1	0509-0606	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY	8-97404-875-0	01	1	0607-0612	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY	8-97409-178-0	01	1	0701-	●	●
