8-15 — FIXING PARTS; WIRING HARNESS (#75086) — 63 parça

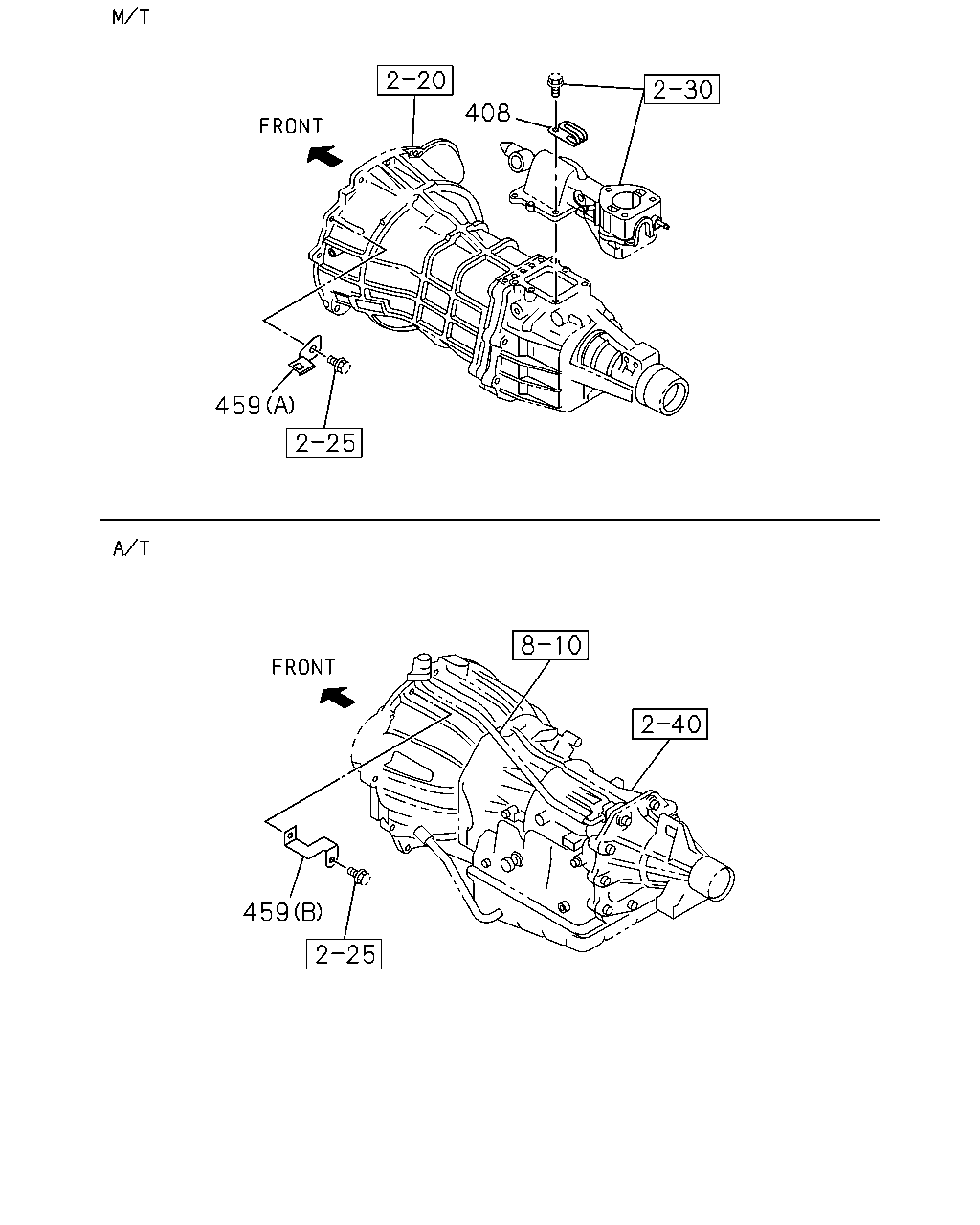

çizim 118662
408 459 459
BalonParca AdiParca NoAdetTipApplied Date A B
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0503-0604 ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0605-0606 ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H(MWQ) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0607- ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 		8-97307-524-1 01 1 0503-0508 ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 		8-97307-524-1 01 1 0509- ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0503-0606 ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-94315-284-0 01 1 0607-0608 ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 0609- ●

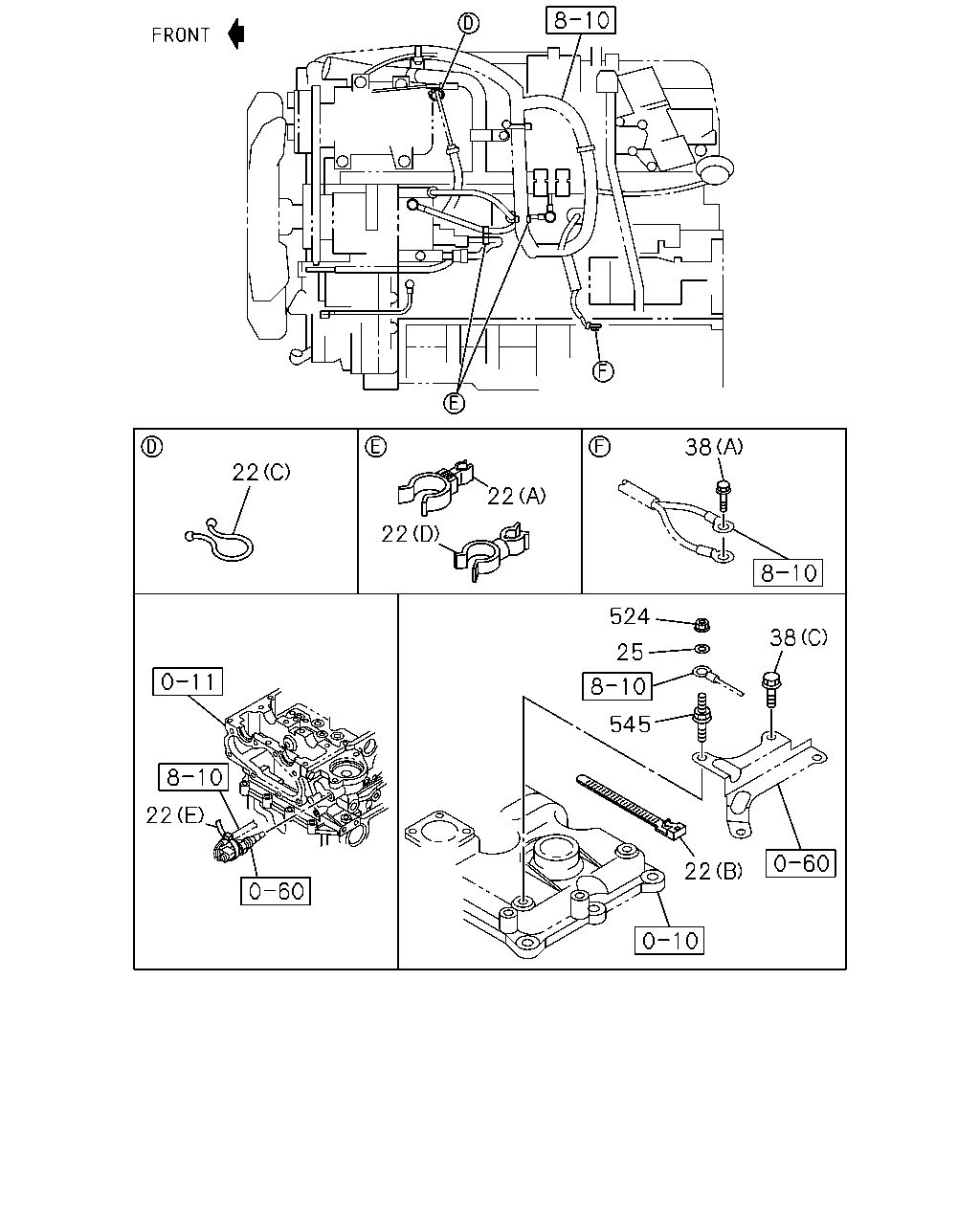

çizim 118671
38 22 22 22 524 38 25 545 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 		8-94486-835-0 01 1 0503-0508 ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 		8-94486-835-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
(D) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
(B) L=158.7 		8-97922-209-0 01 1 0503-0508 ●
22 CLIP; ENG HARNESS
(B) L=158.7 		8-97922-209-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
(C) ID=15 		1-09709-003-0 01 1 0503-0508 ●
22 CLIP; ENG HARNESS
(D) ID=6 & 8.3 		8-94167-742-0 01 1 0503-0508 ●
22 CLIP; ENG HARNESS
(E) L=140 		8-97920-656-0 01 1 0503-0508 ●
22 CLIP; ENG HARNESS
(C) ID=15 		1-09709-003-0 01 1 0509- ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 8.3 		8-94167-742-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 10 		8-94154-844-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
(E) L=140 		8-97920-656-0 01 1 0509- ● ●
25 WASHER; PL,ENG HARNESS
ID=8.4 		9-09164-508-0 01 1 0503-0508 ●
25 WASHER; PL,ENG HARNESS
ID=8.4 		9-09164-508-0 01 1 0509-0606 ● ●
25 WASHER; PL,ENG HARNESS
ID=8.4 OD=16 		0-91614-508-0 01 1 0607-0607 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE 		0-28650-616-0 05 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE 		0-28650-616-0 05 1 0509- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0509- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0607- ● ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0503-0508 ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0509-0606 ● ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
545 STUD; HARNESS
M8X15 M8X17 L=40 		8-97366-633-0 01 1 0503-0508 ●
545 STUD; HARNESS
M8X15 M8X17 L=40 		8-97945-023-0 01 1 0509-0606 ● ●

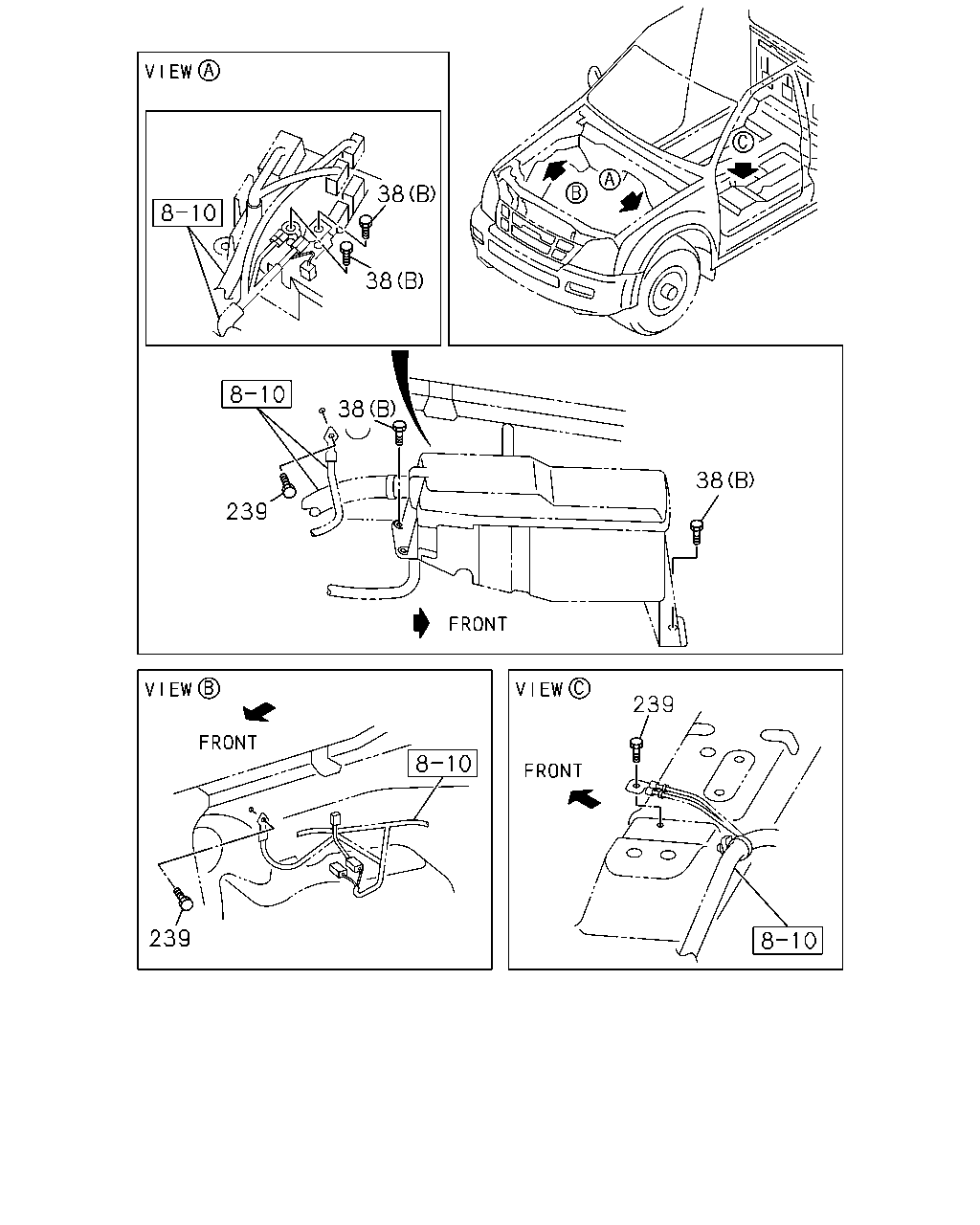

çizim 118679
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE 		0-28650-616-0 05 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE 		0-28650-616-0 05 1 0509- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0509- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0503-0508 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0607- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 0503-0508 ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 0509- ● ●

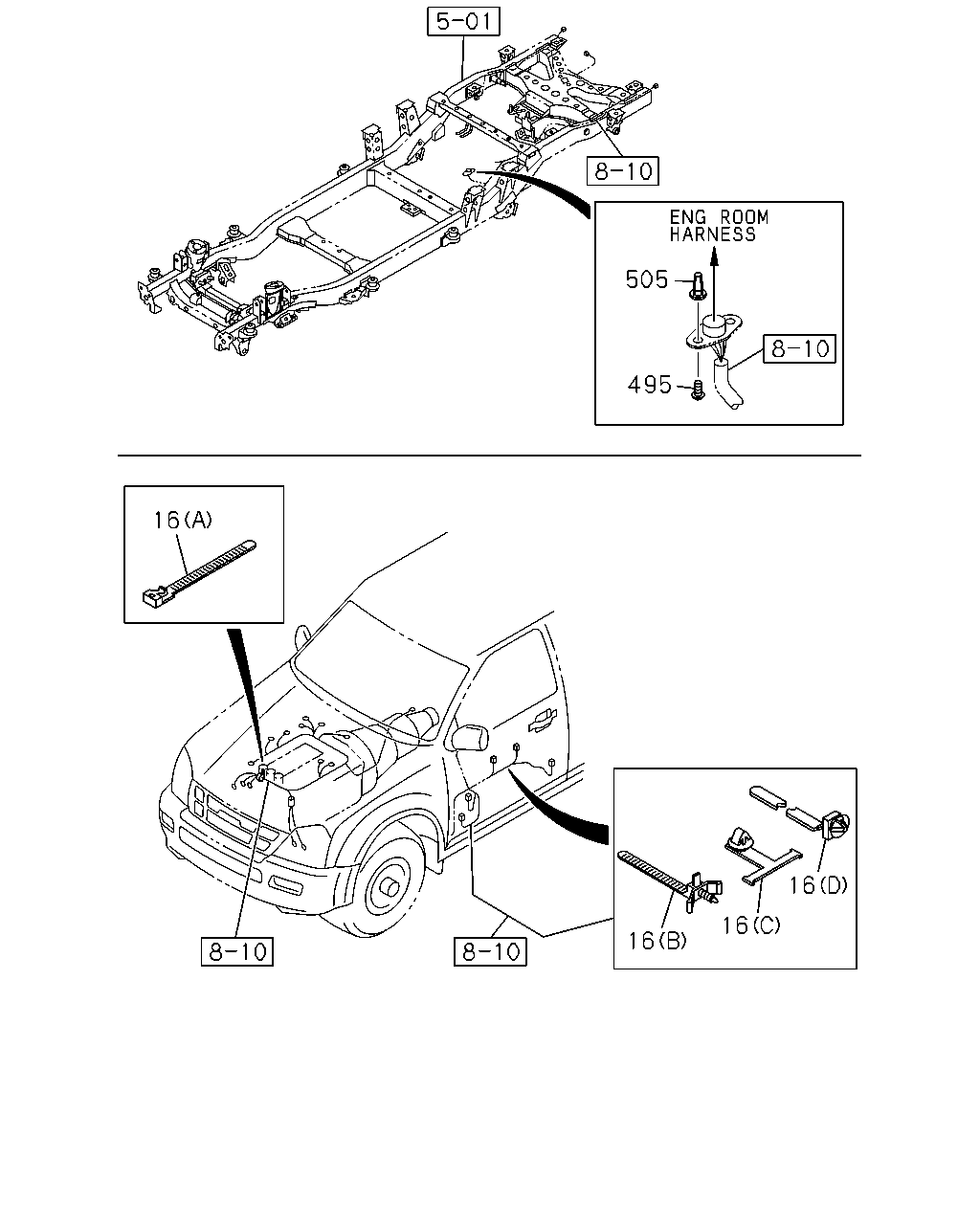

çizim 118682
505 495 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=135 		8-94473-399-0 02 1 0503-0508 ●
16 CLIP; HARNESS
(B) L=135 		8-94473-399-0 02 1 0509- ● ●
16 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0503-0508 ●
16 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 0509- ● ●
16 CLIP; HARNESS
(D) L=155 		8-97173-307-0 06 1 0503-0508 ●
16 CLIP; HARNESS
(D) L=155 		8-97173-307-0 06 1 0509-0708 ● ●
16 CLIP; HARNESS
(D) L=155 		8-97173-307-0 08 1 0709- ● ●
16 CLIP; HARNESS
(A) L=197 		1-83574-032-0 01 1 0503-0508 ●
16 CLIP; HARNESS
(A) L=197 		1-83574-032-0 01 1 0509-0606 ● ●
495 BOLT; CABLE TO BODY
M5X14 		8-94120-095-0 02 1 0503-0508 ●
495 BOLT; CABLE TO BODY
M5X14 		8-94120-095-0 02 1 0509- ● ●
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0503-0508 ●
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0509- ● ●

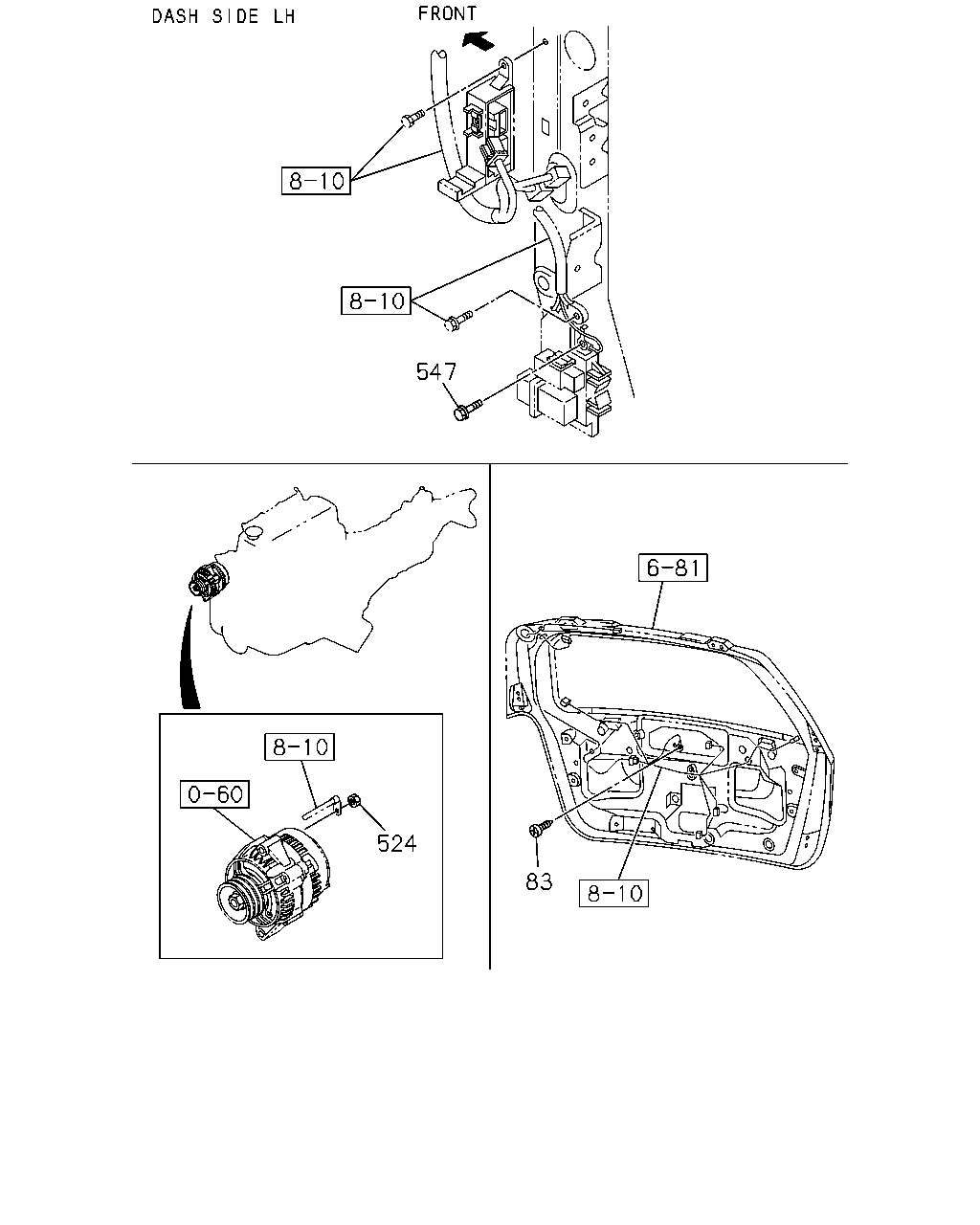

çizim 118686
547 524 83
BalonParca AdiParca NoAdetTipApplied Date A B
83 SCREW; HARNESS
M5X14 		8-94120-095-0 01 1 0509- ● ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0503-0508 ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0509-0606 ● ●
524 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
547 BOLT
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0503-0508 ●
547 BOLT
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509- ● ●
