◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#75085) — 249 parça

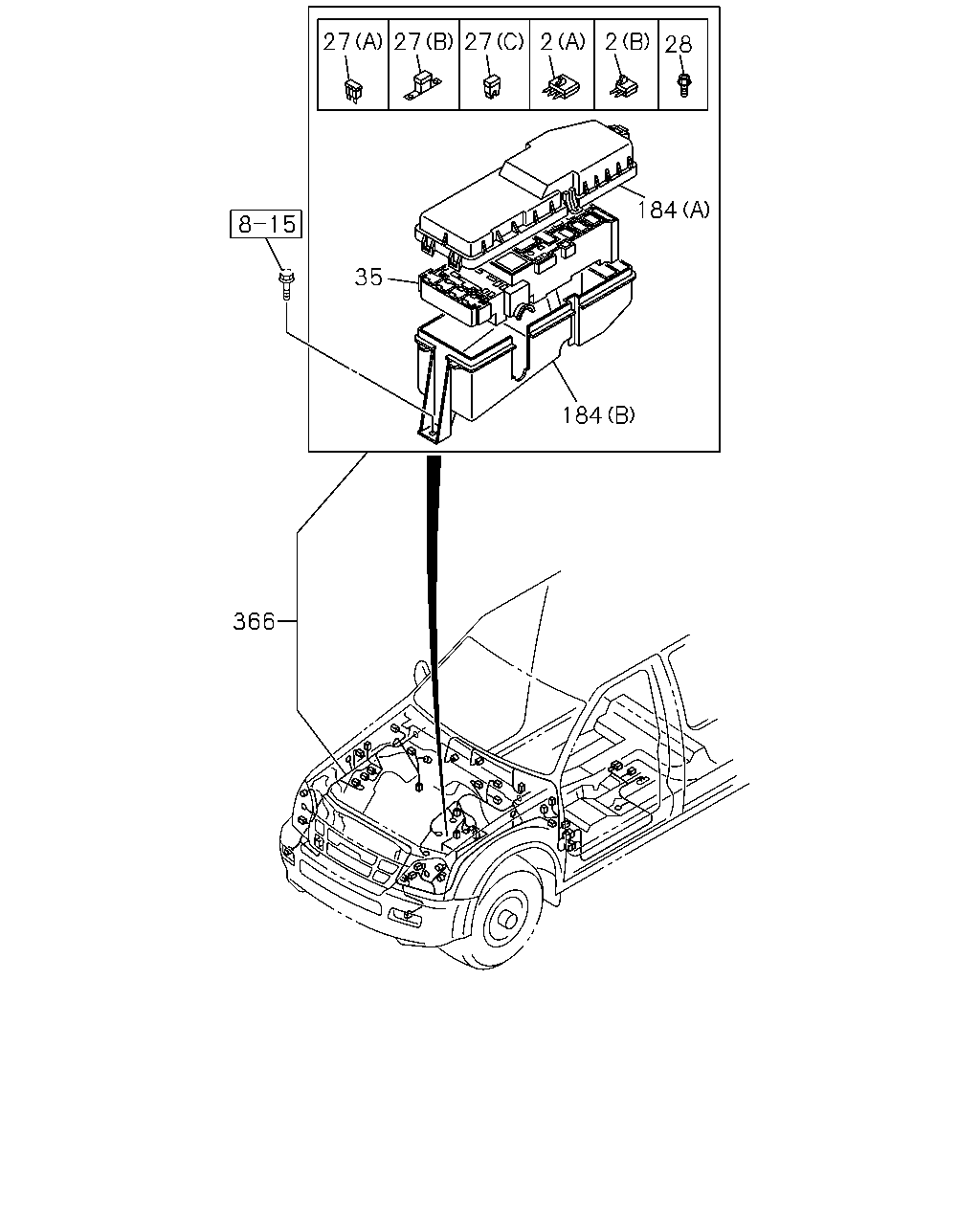

çizim 118660
27 27 27 2 2 28 184 35 184 366
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0503-0508 ●
2 DIODE; CABLE HARNESS
A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0509-0606 ● ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0607-0808 ● ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0809-1008 ●
2 DIODE; CABLE HARNESS
A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0809-1008 ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1009- ● ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0709-0808 ● ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-1008 ●
2 DIODE; CABLE HARNESS
A/T 4 SPEED-JATCO(RMK) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-1008 ●
2 DIODE; CABLE HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 120A WHITE 		1-82516-028-1 01 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 120A WHITE 		1-82516-028-1 01 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (B) 120A WHITE 		1-82516-028-1 01 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 120A WHITE 		1-82516-028-1 01 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 120A WHITE 		1-82516-028-1 01 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (B) 120A WHITE 		1-82516-028-1 01 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 120A WHITE 		1-82516-028-1 01 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 10A MINI RED 		8-97062-022-0 11 1 0503-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 13 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 13 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 13 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 13 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 01 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 01 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 20A MINI YELLOW 		8-97062-024-0 01 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 20A MINI YELLOW 		8-97062-024-0 01 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 01 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 30A PINK 		8-97183-643-0 03 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 30A PINK 		8-97183-643-0 03 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 30A PINK 		8-97183-643-0 03 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 30A PINK 		8-97183-643-0 01 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 30A PINK 		8-97183-643-0 01 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 30A PINK 		8-97183-643-0 01 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 30A PINK 		8-97183-643-0 01 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 40A GREEN 		8-97183-644-0 03 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 40A GREEN 		8-97183-644-0 03 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 40A GREEN 		8-97183-644-0 03 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 40A GREEN 		8-97183-644-0 03 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 40A GREEN 		8-97183-644-0 03 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 40A GREEN 		8-97183-644-0 03 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 40A GREEN 		8-97183-644-0 03 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 60A YELLOW 		8-97219-407-0 02 1 0503-0508 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (C) 60A YELLOW 		8-97219-407-0 02 1 0509-0606 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 60A YELLOW 		8-97219-407-0 02 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 60A YELLOW 		8-97219-407-0 02 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 60A YELLOW 		8-97219-407-0 02 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (C) 60A YELLOW 		8-97219-407-0 02 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (C) 60A YELLOW 		8-97219-407-0 02 1 1009- ● ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 12 1 0509-0606 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A LIGHT BLUE 		8-97183-642-0 01 1 0607-0808 ● ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A LIGHT BLUE 		8-97183-642-0 01 1 0809-1008 ●
27 FUSE UNIT
A/T 4 SPEED-JATCO(RMK) (A) 20A LIGHT BLUE 		8-97183-642-0 01 1 0809-1008 ●
27 FUSE UNIT
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A LIGHT BLUE 		8-97183-642-0 01 1 1009- ● ●
28 SCREW; FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97249-192-0 02 1 0503-0508 ●
28 SCREW; FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97249-192-0 02 1 0509-0606 ●
28 SCREW; FUSE BOX
A/T 4 SPEED-JATCO(RMK) 		8-97249-192-0 02 1 0509-0606 ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97249-192-0 02 1 0607-0808 ● ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97249-192-0 02 1 0809-1008 ●
28 SCREW; FUSE BOX
A/T 4 SPEED-JATCO(RMK) 		8-97249-192-0 02 1 0809-1008 ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97249-192-0 02 1 1009- ● ●
35 BOX; RELAY & FUSE
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97251-395-0 01 1 0503-0508 ●
35 BOX; RELAY & FUSE
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97251-395-0 01 1 0509-0606 ●
35 BOX; RELAY & FUSE
A/T 4 SPEED-JATCO(RMK) 		8-97251-395-0 01 1 0509-0606 ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97251-395-0 01 1 0607-0808 ● ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97251-395-0 01 1 0809-1008 ●
35 BOX; RELAY & FUSE
A/T 4 SPEED-JATCO(RMK) 		8-97251-395-0 01 1 0809-1008 ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97251-395-0 01 1 1009- ● ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 		8-97251-393-0 01 1 0503-0508 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 		8-97251-393-0 01 1 0509-0606 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK) (A) 		8-97251-393-0 01 1 0509-0606 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 		8-97251-393-0 01 1 0607-0808 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 		8-97251-393-0 01 1 0809-1008 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK) (A) 		8-97251-393-0 01 1 0809-1008 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 		8-97251-393-0 01 1 1009- ● ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97251-394-0 01 1 0503-0508 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97251-394-0 01 1 0509-0606 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK) (B) 		8-97251-394-0 01 1 0509-0606 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97251-394-0 01 1 0607-0808 ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97251-394-0 01 1 0809-1008 ●
184 COVER; RELAY & FUSE BOX
A/T 4 SPEED-JATCO(RMK) (B) 		8-97251-394-0 01 1 0809-1008 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97251-394-0 01 1 1009- ● ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-97378-387-1 01 1 0503-0606 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98018-470-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98067-842-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98108-498-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 		8-97378-386-1 01 1 0503-0606 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98018-469-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98067-841-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98108-497-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-97378-389-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98018-468-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98067-840-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98108-496-0 01 1 0809- ●

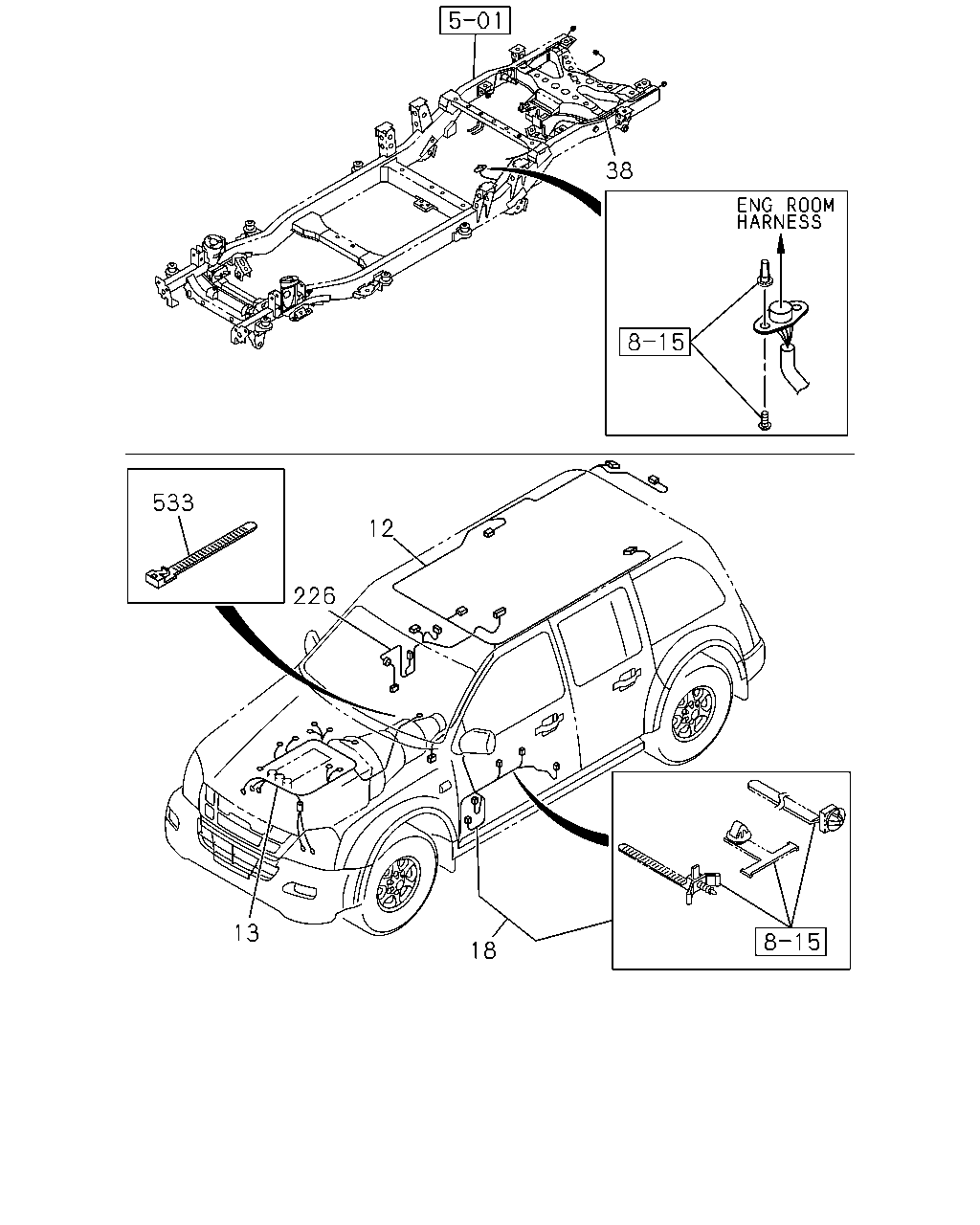

çizim 118665
38 533 12 226 13 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-97377-800-0 01 1 0503-0508 ●
12 HARNESS; ROOF 8-98018-782-1 01 1 0509- ● ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-97375-101-4 01 1 0503-0601 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98038-664-0 01 1 0602-0606 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98011-541-4 01 1 0607-0708 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98045-083-1 01 1 0709- ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5G(RSP) 		8-97375-099-4 01 1 0503-0601 ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5G(RSP) 		8-98038-662-0 01 1 0602-0606 ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98011-539-4 01 1 0607-0708 ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98045-081-1 01 1 0709- ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-97375-102-4 01 1 0509-0601 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98038-665-0 01 1 0602-0606 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98011-542-4 01 1 0607-0708 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98045-084-1 01 1 0709- ●
18 HARNESS; DOOR 8-97377-801-0 01 1 0503-0508 ●
18 HARNESS; DOOR 8-97377-801-0 01 1 0509-0606 ● ●
18 HARNESS; DOOR 8-98033-968-1 01 1 0607-0708 ● ●
18 HARNESS; DOOR 8-98053-933-0 01 1 0709- ● ●
18 HARNESS; DOOR 8-97377-802-0 01 1 0503-0508 ●
18 HARNESS; DOOR 8-97387-008-0 01 1 0509-0606 ● ●
18 HARNESS; DOOR 8-98033-969-1 01 1 0607-0708 ● ●
18 HARNESS; DOOR 8-98053-494-0 01 1 0709- ● ●
38 HARNESS; CHAS 8-97363-406-1 01 1 0503-0508 ●
38 HARNESS; CHAS 8-97363-406-1 01 1 0509-0606 ● ●
38 HARNESS; CHAS 8-98030-458-0 01 1 0607- ● ●
226 HARNESS; RR DOOR 8-97363-401-0 02 1 0503-0508 ●
226 HARNESS; RR DOOR 8-97363-401-0 02 1 0509-0606 ● ●
226 HARNESS; RR DOOR 8-98043-385-0 02 1 0607- ● ●
533 CLIP
L=140 		8-97920-656-0 01 1 0607- ●

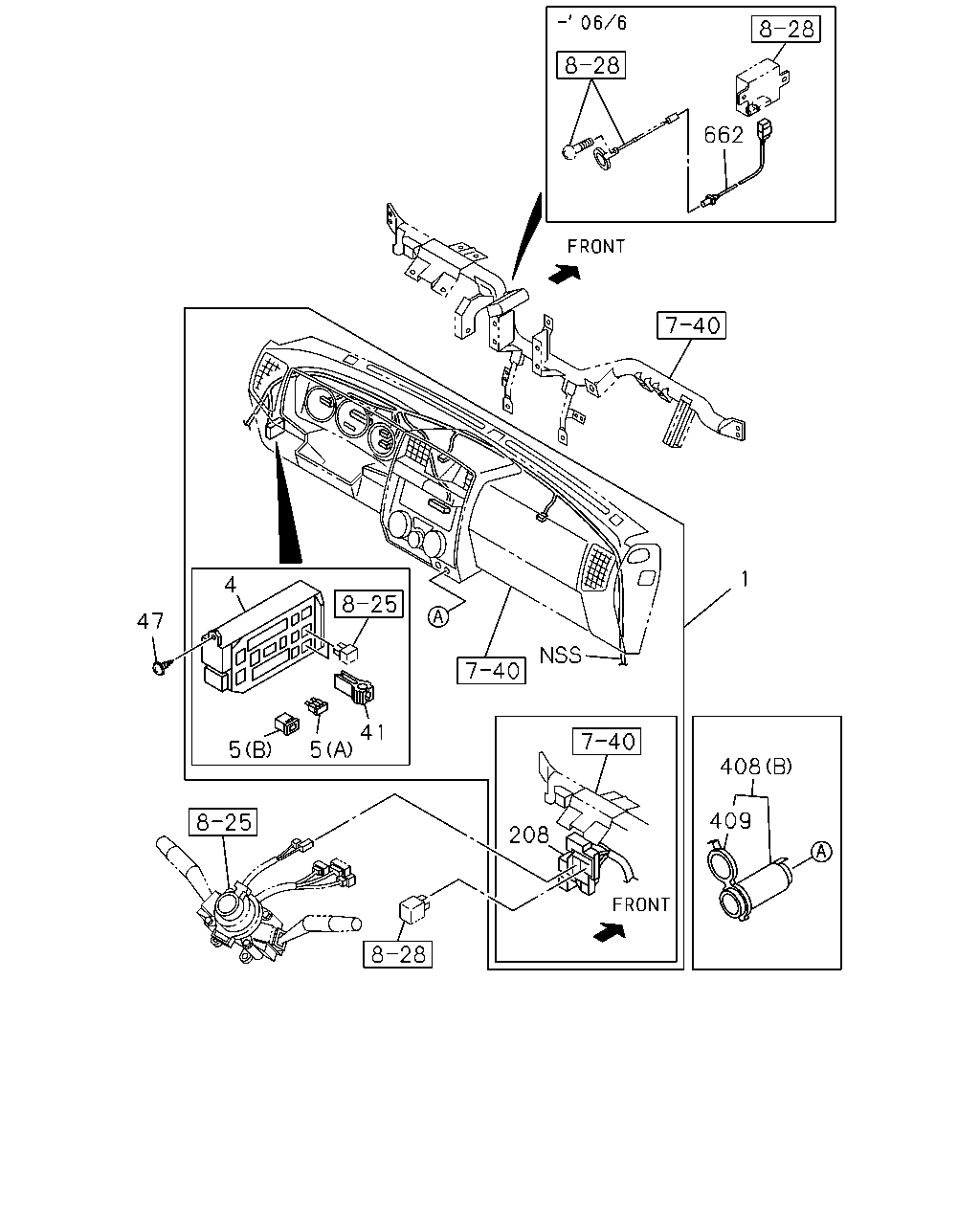

çizim 118672
662 1 4 47 41 5 5 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-97378-383-1 01 1 0503-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-630-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-475-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-930-2 01 1 0709- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-97378-382-1 01 1 0503-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-98023-990-1 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98018-472-3 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98053-928-2 01 1 0709- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-631-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-474-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-929-2 01 1 0709- ●
4 BOX ASM; FUSE,HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97245-602-0 01 1 0503-0508 ●
4 BOX ASM; FUSE,HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97245-602-0 01 1 0509-0606 ●
4 BOX ASM; FUSE,HARNESS
A/T 4 SPEED-JATCO(RMK) 		8-97245-602-0 01 1 0509-0606 ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97245-602-0 01 1 0607- ● ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 10A MINI RED 		8-97062-022-0 14 1 0503-0508 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 10A MINI RED 		8-97062-022-0 14 1 0509-0606 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 14 1 0509-0606 ●
5 FUSE; FACIA HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 10A MINI RED 		8-97062-022-0 13 1 0607- ● ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 15A MINI BLUE 		8-97062-023-0 04 1 0503-0508 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 15A MINI BLUE 		8-97062-023-0 04 1 0509-0606 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 04 1 0509-0606 ●
5 FUSE; FACIA HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 15A MINI BLUE 		8-97062-023-0 05 1 0607- ● ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 20A MINI YELLOW 		8-97062-024-0 04 1 0503-0508 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) 20A MINI YELLOW 		8-97062-024-0 04 1 0509-0606 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 04 1 0509-0606 ●
5 FUSE; FACIA HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (A) 20A MINI YELLOW 		8-97062-024-0 04 1 0607- ● ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 20A LIGHT BLUE 		8-97183-642-0 01 1 0503-0508 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 20A LIGHT BLUE 		8-97183-642-0 01 1 0509-0606 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 20A LIGHT BLUE 		8-97183-642-0 01 1 0509-0606 ●
5 FUSE; FACIA HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 20A LIGHT BLUE 		8-97183-642-0 01 1 0607- ● ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 30A PINK 		8-97183-643-0 01 1 0503-0508 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 30A PINK 		8-97183-643-0 01 1 0509-0606 ●
5 FUSE; FACIA HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 30A PINK 		8-97183-643-0 01 1 0509-0606 ●
5 FUSE; FACIA HARNESS
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 30A PINK 		8-97183-643-0 01 1 0607- ● ●
41 PULLER; FUSE
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97103-388-0 01 1 0503-0508 ●
41 PULLER; FUSE
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97103-388-0 01 1 0509-0606 ●
41 PULLER; FUSE
A/T 4 SPEED-JATCO(RMK) 		8-97103-388-0 01 1 0509-0606 ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97103-388-0 01 1 0607- ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING 		9-09829-323-1 01 1 0503-0508 ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING 		9-09829-323-1 01 1 0509-0702 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING 		8-98061-685-0 01 1 0703-1005 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING 		8-98167-449-0 01 1 1006- ● ●
208 HOLDER; CONNECTOR
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97245-597-0 01 1 0503-0508 ●
208 HOLDER; CONNECTOR
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97245-597-0 01 1 0509-0606 ●
208 HOLDER; CONNECTOR
A/T 4 SPEED-JATCO(RMK) 		8-97245-597-0 01 1 0509-0606 ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97245-597-0 01 1 0607- ● ●
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 0503-0508 ●
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 0509- ● ●
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 0503-0508 ●
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 0509- ● ●
409 CAP; ACCESSORY SOCKET 8-97327-326-0 01 1 0503-0508 ●
409 CAP; ACCESSORY SOCKET 8-97327-326-0 01 1 0509- ● ●
662 HARNESS; IMMOBILIZER 8-97303-923-0 01 1 0503-0508 ●
662 HARNESS; IMMOBILIZER 8-97303-923-0 01 1 0509-0606 ● ●
662 HARNESS; IMMOBILIZER 8-98008-414-0 01 1 0607- ● ●

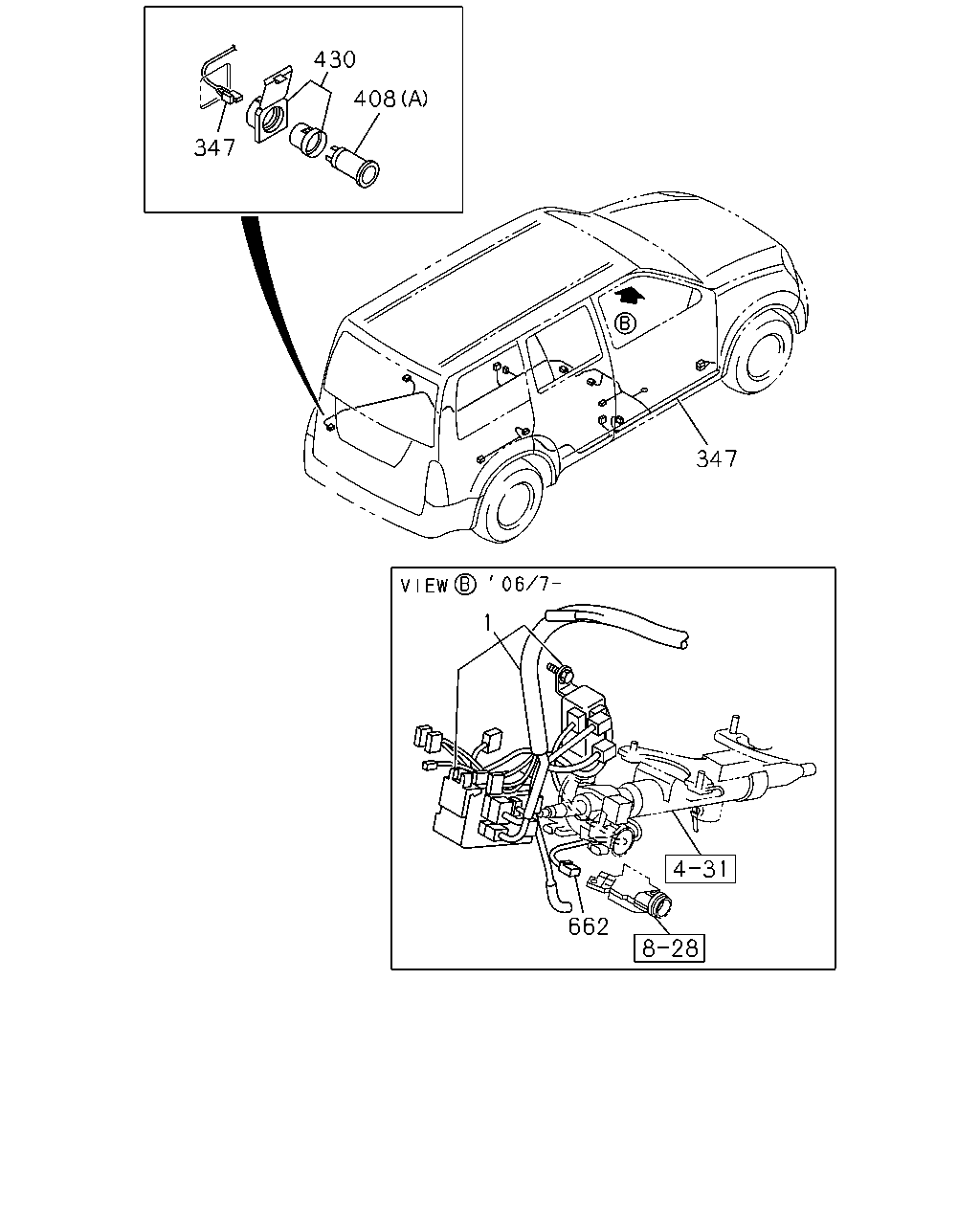

çizim 118683
430 408 347 347 1 662
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-97378-383-1 01 1 0503-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-630-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-475-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-930-2 01 1 0709- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-97378-382-1 01 1 0503-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-98023-990-1 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98018-472-3 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98053-928-2 01 1 0709- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-631-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-474-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-929-2 01 1 0709- ●
347 HARNESS; CABLE,RR BODY 8-97363-397-1 01 1 0503-0508 ●
347 HARNESS; CABLE,RR BODY 8-97363-397-1 01 1 0509-0708 ● ●
347 HARNESS; CABLE,RR BODY 8-98090-745-0 01 1 0709- ● ●
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 0503-0508 ●
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 0509- ● ●
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 0503-0508 ●
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 0509- ● ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-944-0 01 1 1108- ● ●
430 COVER ASM; SOCKET,ACCESSORY
LIGHT GRAY 		8-97399-027-0 01 1 0503-0508 ●
430 COVER ASM; SOCKET,ACCESSORY
LIGHT GRAY 		8-97399-027-0 01 1 0509-0606 ● ●
430 COVER ASM; SOCKET,ACCESSORY
BEIGE 		8-97404-679-0 01 1 0607-1107 ● ●
430 COVER ASM; SOCKET,ACCESSORY
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-679-0 01 1 1108- ● ●
662 HARNESS; IMMOBILIZER 8-97303-923-0 01 1 0503-0508 ●
662 HARNESS; IMMOBILIZER 8-97303-923-0 01 1 0509-0606 ● ●
662 HARNESS; IMMOBILIZER 8-98008-414-0 01 1 0607- ● ●

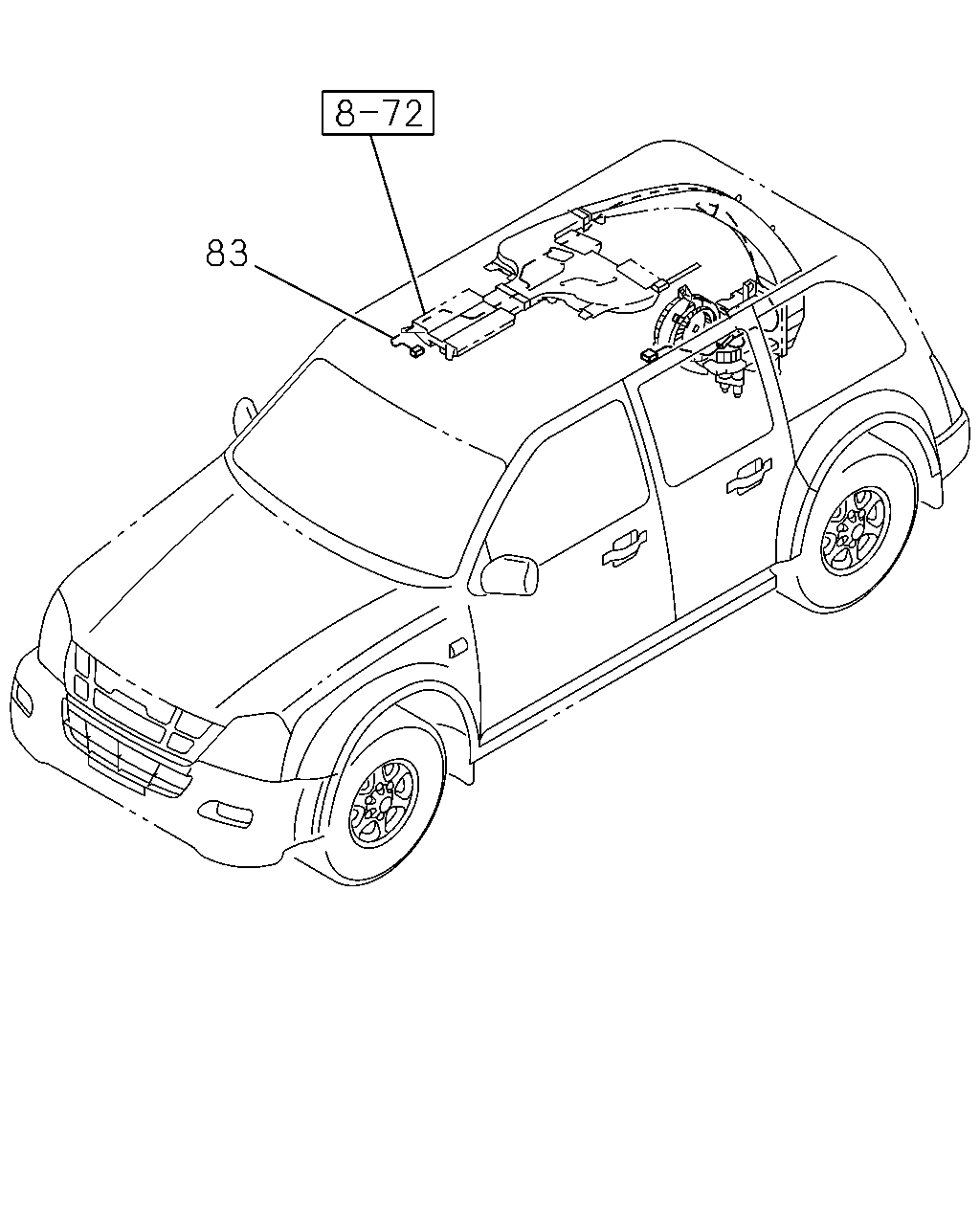

çizim 118688
83
BalonParca AdiParca NoAdetTipApplied Date A B
83 HARNESS; AIR CONDITIONER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-405-2 01 1 0503-0508 ●
83 HARNESS; AIR CONDITIONER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-405-2 01 1 0509- ● ●

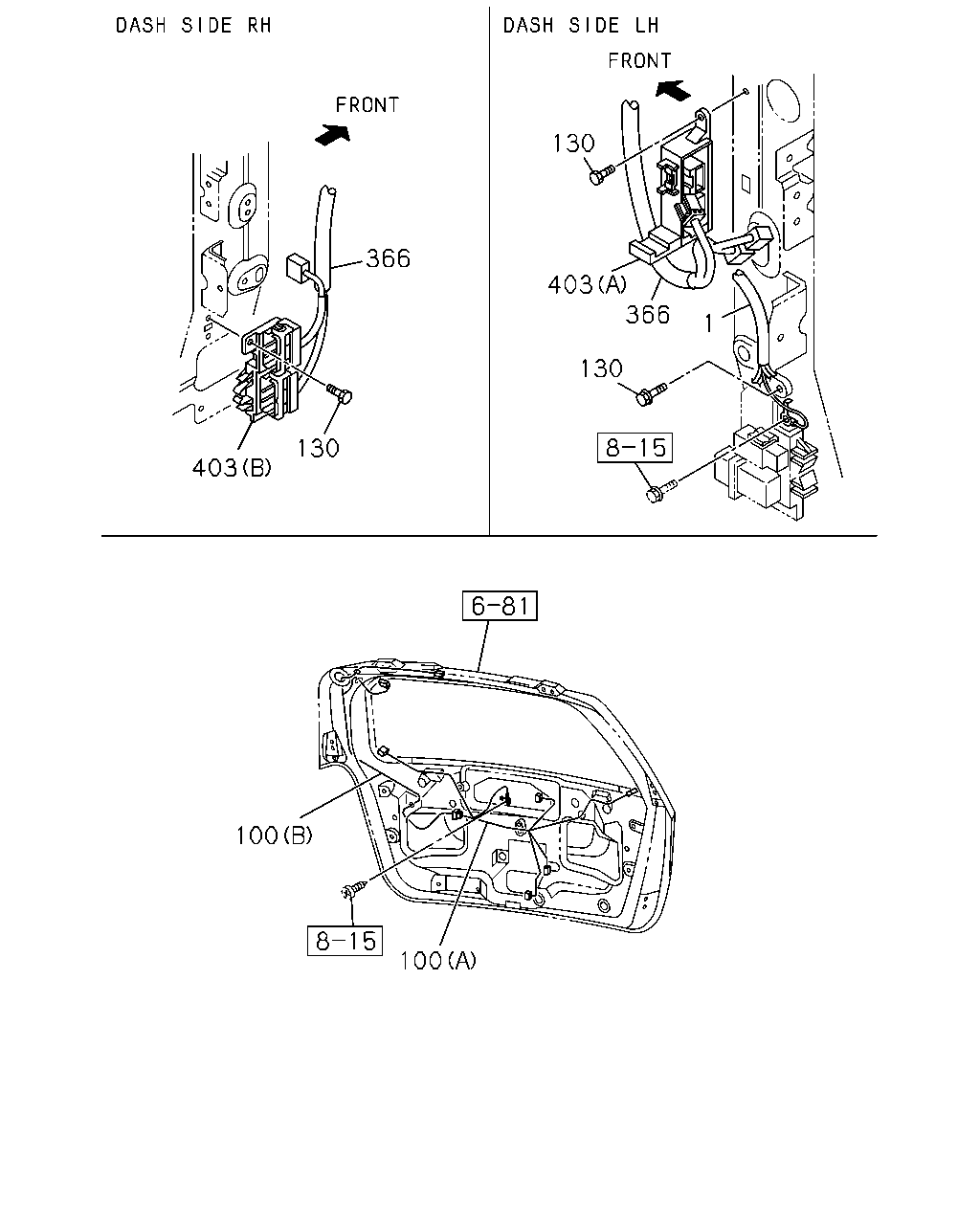

çizim 118729
130 366 403 366 1 130 130 403 100 100
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-97378-383-1 01 1 0503-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-630-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-475-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-930-2 01 1 0709- ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-97378-382-1 01 1 0503-0508 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) 		8-98023-990-1 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98018-472-3 01 1 0607-0708 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) 		8-98053-928-2 01 1 0709- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98023-631-0 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98018-474-3 01 1 0607-0708 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) 		8-98053-929-2 01 1 0709- ●
100 HARNESS; RR GATE
(A) 		8-97363-403-1 01 1 0503-0508 ●
100 HARNESS; RR GATE
(A) 		8-98025-579-0 01 1 0509- ● ●
100 HARNESS; RR GATE
(B) 		8-97363-404-1 01 1 0503-0508 ●
100 HARNESS; RR GATE
(B) 		8-97363-404-1 01 1 0509- ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER 		8-94112-987-1 03 1 0503-0508 ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER 		8-94112-987-1 03 1 0509-0612 ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER 		8-98056-282-0 03 1 0701- ● ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-97378-387-1 01 1 0503-0606 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98018-470-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98067-842-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98108-498-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 		8-97378-386-1 01 1 0503-0606 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98018-469-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98067-841-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 		8-98108-497-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-97378-389-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98018-468-3 01 1 0607-0708 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98067-840-5 01 1 0709-0808 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 		8-98108-496-0 01 1 0809- ●
403 BRACKET; CONNECTOR,HARNESS
(B) 		8-97245-593-0 01 1 0503-0508 ●
403 BRACKET; CONNECTOR,HARNESS
(B) 		8-97245-593-0 01 1 0509- ● ●
403 BRACKET; CONNECTOR,HARNESS
(A) 		8-97323-847-0 01 1 0503-0508 ●
403 BRACKET; CONNECTOR,HARNESS
(A) 		8-97323-847-0 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
