8-05 — INTERIOR LAMP (#75084) — 23 parça

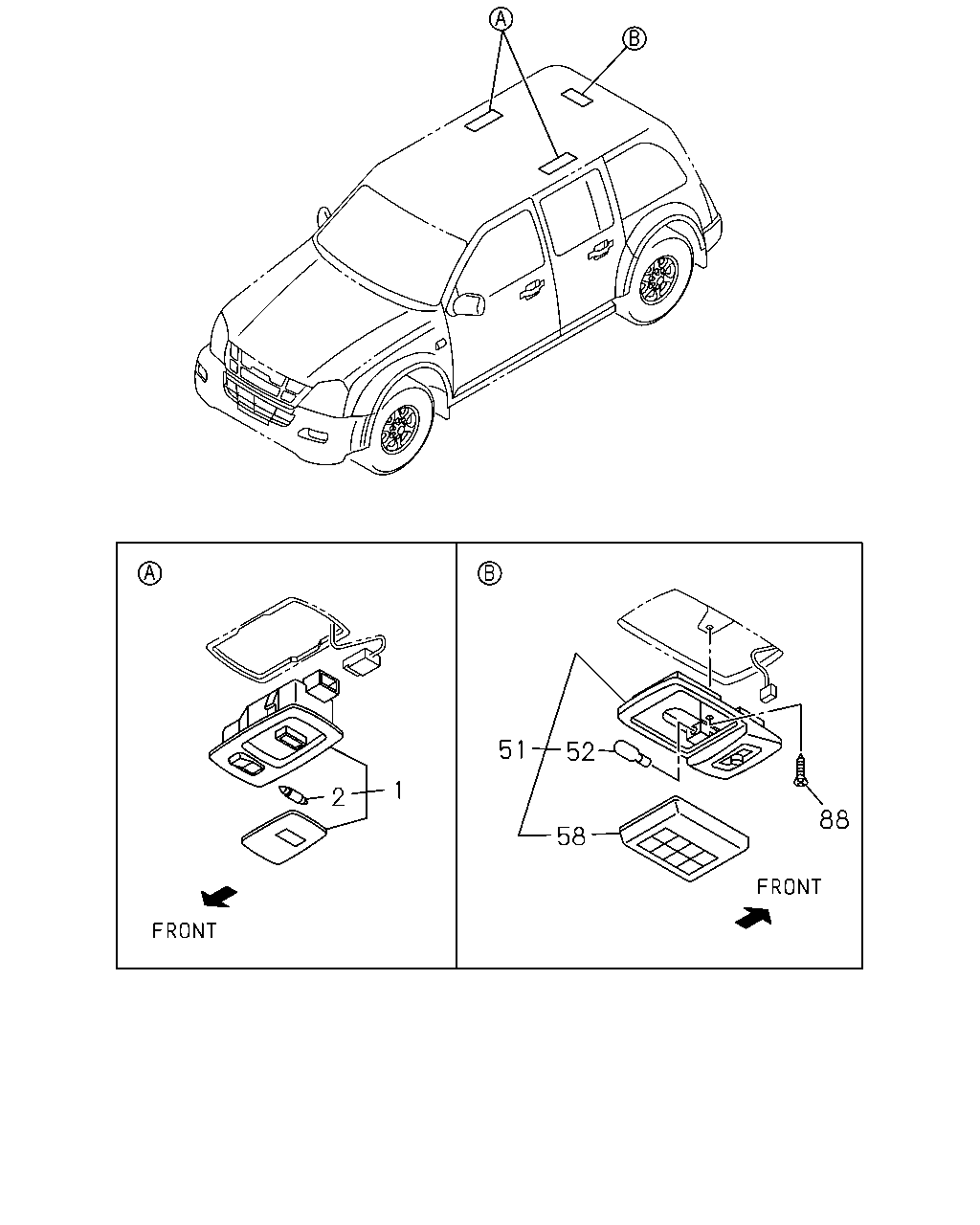

çizim 118657
51 52 1 2 88 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-945-0 02 1 1108- ● ●
1 LAMP ASM; ROOM
LIGHT GRAY 		8-97399-028-0 02 1 0503-0508 ●
1 LAMP ASM; ROOM
LIGHT GRAY 		8-97399-028-0 02 1 0509-0606 ● ●
1 LAMP ASM; ROOM
BEIGE 		8-97404-680-0 02 1 0607-1107 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-680-0 02 1 1108- ● ●
2 BULB; ROOM LAMP
12V 8W 		8-94153-335-0 02 1 0503-0508 ●
2 BULB; ROOM LAMP
12V 8W 		8-94153-335-0 02 1 0509- ● ●
51 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) 		8-97422-943-0 01 1 1108- ● ●
51 LAMP ASM; SPOT
LIGHT GRAY 		8-97399-011-0 01 1 0503-0508 ●
51 LAMP ASM; SPOT
LIGHT GRAY 		8-97399-011-0 01 1 0509-0606 ● ●
51 LAMP ASM; SPOT
BEIGE 		8-97404-678-0 01 1 0607-1107 ● ●
51 LAMP ASM; SPOT
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-678-0 01 1 1108- ● ●
52 BULB; SPOT LAMP
12V 5W 		8-97178-882-0 01 1 0503-0508 ●
52 BULB; SPOT LAMP
12V 5W 		8-97178-882-0 01 1 0509- ● ●
58 LENS; SPOT LAMP 8-97178-881-0 01 1 0503-0508 ●
58 LENS; SPOT LAMP 8-97178-881-0 01 1 0509- ● ●
88 BOLT; LAMP
M4X12 TAPPING 		9-07066-412-0 01 1 0503-0508 ●
88 BOLT; LAMP
M4X12 TAPPING 		9-07066-412-0 01 1 0509-0606 ● ●
88 BOLT; LAMP
M4X12 TAPPING 		0-71040-412-0 01 1 0607- ● ●

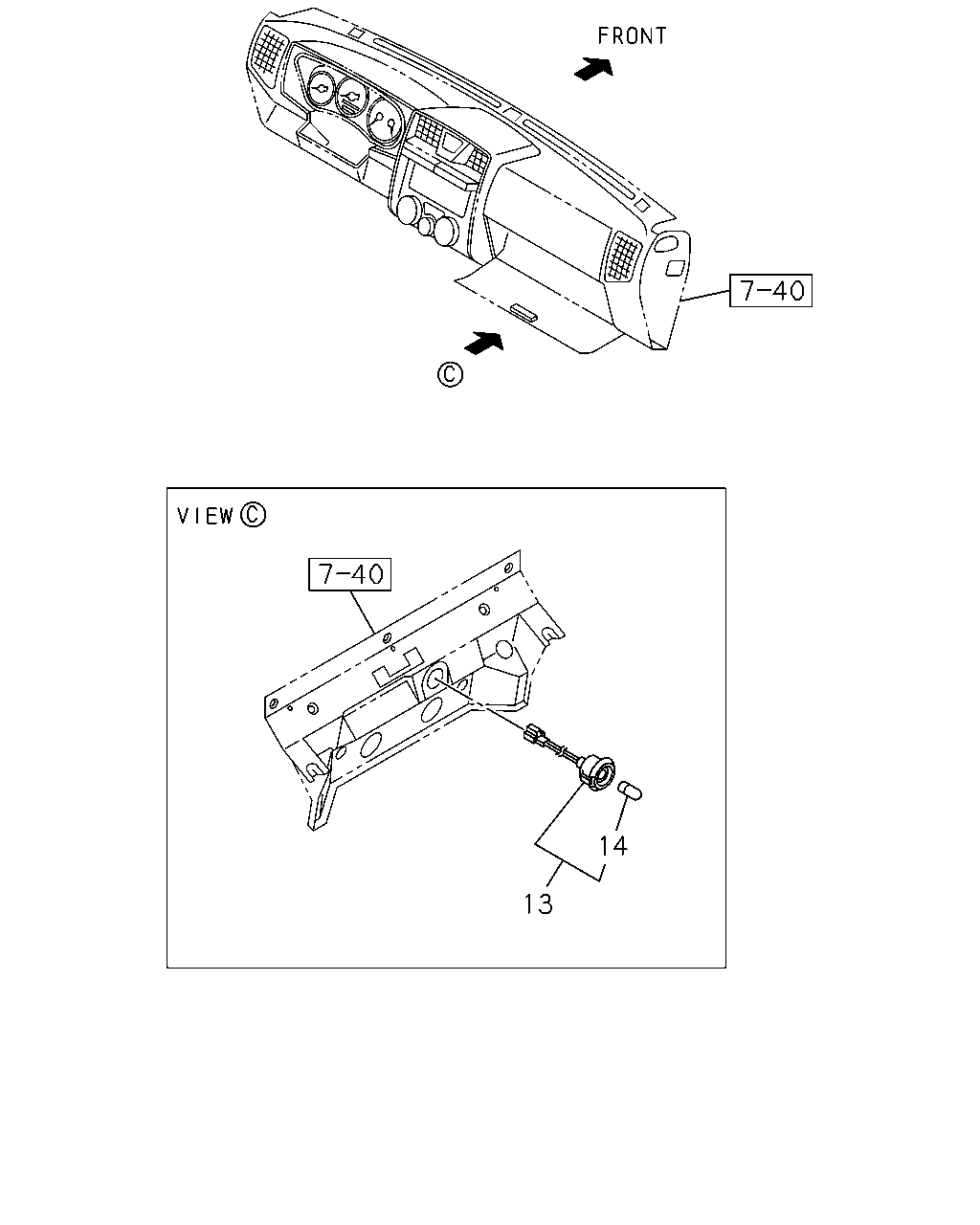

çizim 118666
14 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 LAMP ASM; GLOVE BOX 8-97363-727-0 01 1 0503-0508 ●
13 LAMP ASM; GLOVE BOX 8-97363-727-0 01 1 0509- ● ●
14 BULB; GLOVE BOX LAMP
12V 1.2W 		8-97352-272-0 01 1 0503-0508 ●
14 BULB; GLOVE BOX LAMP
12V 1.2W 		8-97352-272-0 01 1 0509- ● ●
