8-01 — LAMP; FRONT AND FRONT SIDE (#75082) — 132 parça

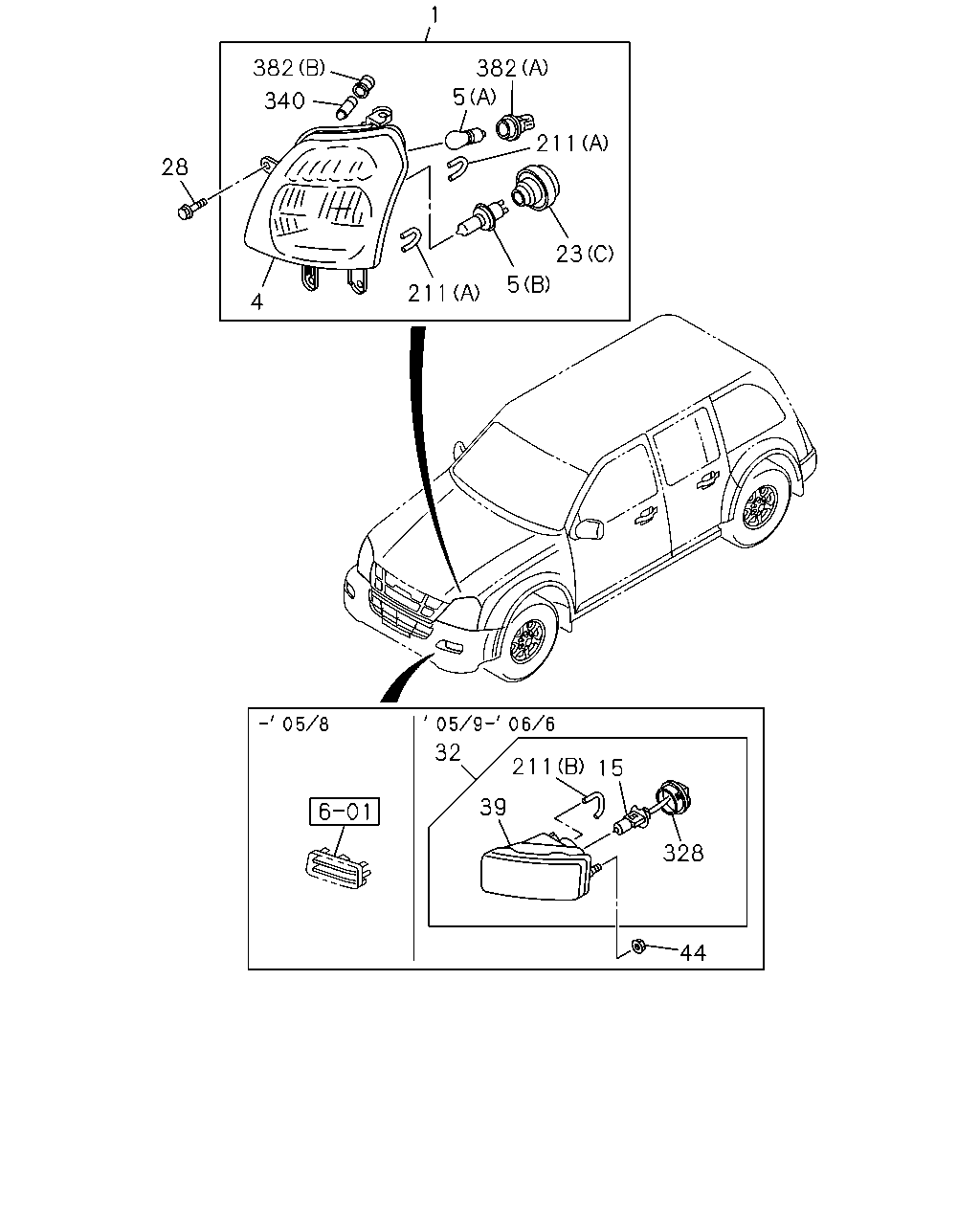

çizim 118649
1 382 382 5 340 211 28 23 5 211 4 32 211 15 39 328 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98202-753-0 01 1 1111- ● ●
1 LAMP ASM; HEAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98202-754-0 01 1 1111- ● ●
1 LAMP ASM; HEAD 8-98004-310-0 01 1 0503-0506 ● ●
1 LAMP ASM; HEAD 8-98023-832-0 01 1 0507-0606 ● ●
1 LAMP ASM; HEAD 8-97388-663-2 01 1 0607-0704 ● ●
1 LAMP ASM; HEAD 8-98080-004-0 01 1 0705-1110 ● ●
1 LAMP ASM; HEAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98080-004-0 01 1 1111- ● ●
1 LAMP ASM; HEAD 8-98004-309-0 01 1 0503-0506 ● ●
1 LAMP ASM; HEAD 8-98023-831-0 01 1 0507-0606 ● ●
1 LAMP ASM; HEAD 8-97388-662-2 01 1 0607-0704 ● ●
1 LAMP ASM; HEAD 8-98080-003-0 01 1 0705-1110 ● ●
1 LAMP ASM; HEAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98080-003-0 01 1 1111- ● ●
4 HEADLAMP UNIT
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98205-879-0 01 1 1111- ● ●
4 HEADLAMP UNIT
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98205-880-0 01 1 1111- ● ●
4 HEADLAMP UNIT 8-97379-815-0 01 1 0503-0508 ●
4 HEADLAMP UNIT 8-97379-815-0 01 1 0509-0606 ● ●
4 HEADLAMP UNIT 8-98011-844-0 01 1 0607-1110 ● ●
4 HEADLAMP UNIT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98011-844-0 01 1 1111- ● ●
4 HEADLAMP UNIT 8-97379-814-0 01 1 0503-0508 ●
4 HEADLAMP UNIT 8-97379-814-0 01 1 0509-0606 ● ●
4 HEADLAMP UNIT 8-98011-843-0 01 1 0607-1110 ● ●
4 HEADLAMP UNIT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98011-843-0 01 1 1111- ● ●
5 BULB; HEADLAMP
(A) 12V 21W 		8-97179-967-0 02 1 0503-0508 ●
5 BULB; HEADLAMP
(A) 12V 21W 		8-97179-967-0 02 1 0509-0606 ● ●
5 BULB; HEADLAMP
(D) 12V 60W 		8-97289-997-0 02 1 0607- ● ●
5 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0503-0508 ●
5 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0509-0606 ● ●
5 BULB; HEADLAMP
(C) 12V 55W 		8-98011-475-0 02 1 0607- ● ●
15 BULB; FOG LAMP
12V 55W 		8-98024-386-0 02 1 0509-0606 ● ●
15 BULB; FOG LAMP
12V 51W 		8-97286-998-0 02 1 0607- ● ●
23 COVER; BULB,HEADLAMP
(C) 		8-97332-448-0 02 1 0503-0508 ●
23 COVER; BULB,HEADLAMP
(C) 		8-97332-448-0 02 1 0509-0606 ● ●
23 COVER; BULB,HEADLAMP
(B) 		8-97675-961-0 02 1 0607- ● ●
23 COVER; BULB,HEADLAMP
(A) 		8-98011-477-0 02 1 0607- ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0503-0508 ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0509-0612 ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0701- ● ●
32 LAMP ASM; FOG 8-97363-012-0 01 1 0509-0509 ● ●
32 LAMP ASM; FOG 8-98030-125-0 01 1 0510-0606 ● ●
32 LAMP ASM; FOG 8-97363-011-0 01 1 0509-0509 ● ●
32 LAMP ASM; FOG 8-98030-124-0 01 1 0510-0606 ● ●
32 LAMP ASM; FOG 8-97374-661-1 02 1 0607-0904 ● ●
32 LAMP ASM; FOG 8-98144-229-0 02 1 0905-1101 ● ●
32 LAMP ASM; FOG 8-98169-680-0 02 1 1102- ● ●
39 UNIT; FOG LAMP 8-97333-415-0 01 1 0509-0606 ● ●
39 UNIT; FOG LAMP 8-97333-414-0 01 1 0509-0606 ● ●
44 NUT; FOG LAMP
M6 FLANGE 		0-91180-106-0 04 1 0509-0606 ● ●
44 NUT; FOG LAMP
M6 FLANGE 		8-97063-399-0 04 1 0607-0702 ● ●
44 NUT; FOG LAMP
M6 FLANGE 		8-98055-704-0 04 1 0703- ● ●
211 TUBE; HEADLAMP
(A) 		8-97333-983-0 02 1 0503-0506 ● ●
211 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0507-0606 ● ●
211 TUBE; HEADLAMP
(B) 		8-94451-175-0 02 1 0509-0606 ● ●
328 COVER; LAMP 8-97333-417-0 02 1 0509-0606 ● ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0503-0508 ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0509- ● ●
382 PLUG; SOCKET,HEADLAMP
SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98106-751-0 02 1 1111- ● ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0503-0508 ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0509-0606 ● ●
382 PLUG; SOCKET,HEADLAMP
(C) 		8-98012-762-0 02 1 0607-1110 ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98012-762-0 02 1 1111- ● ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0503-0508 ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0509-0606 ● ●
382 PLUG; SOCKET,HEADLAMP
(D) 		8-98012-788-0 02 1 0607- ● ●

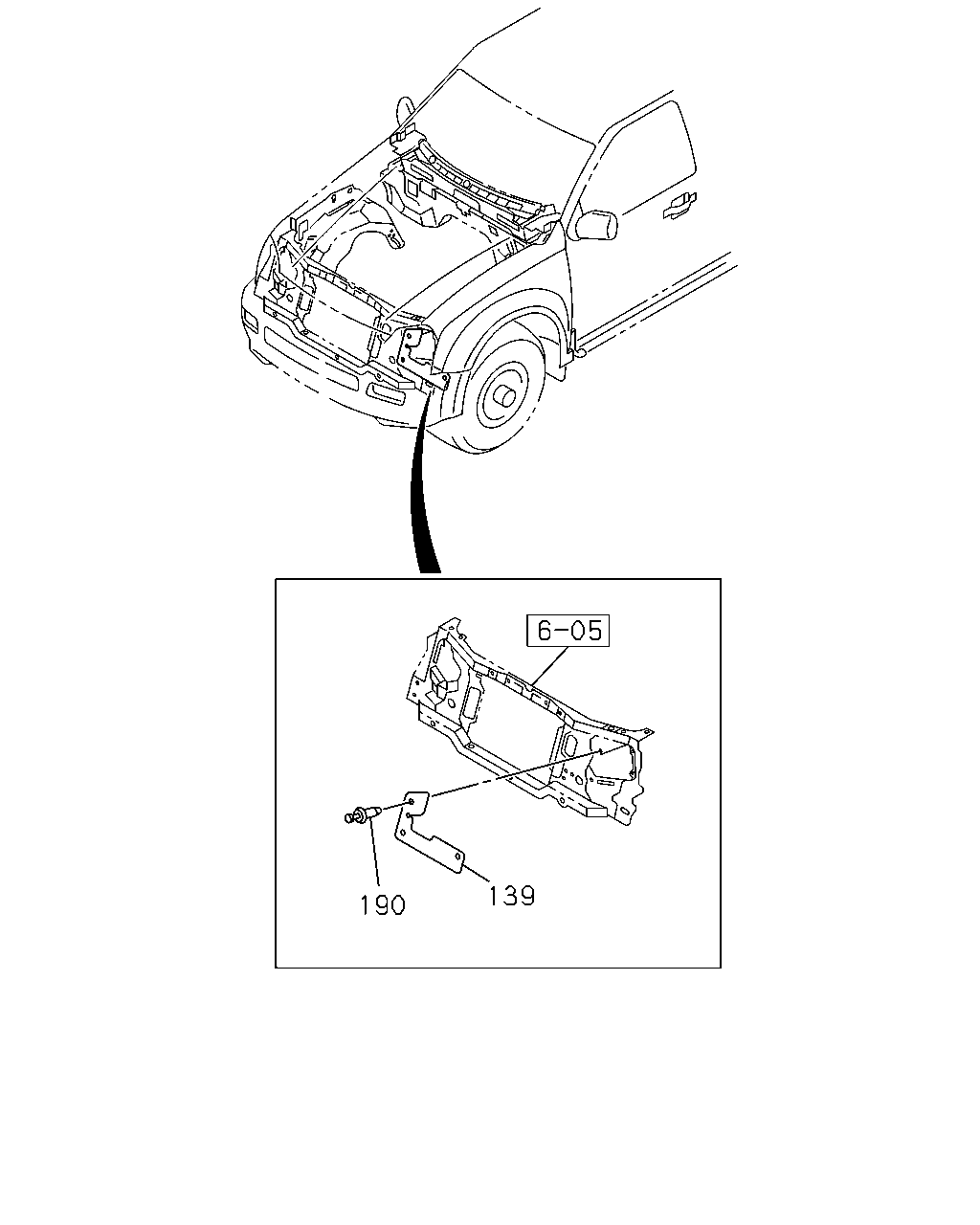

çizim 118661
139 190
BalonParca AdiParca NoAdetTipApplied Date A B
139 COVER; HEADLAMP 8-97333-394-0 02 1 0503-0508 ●
139 COVER; HEADLAMP 8-97333-394-0 02 1 0509-0606 ● ●
190 RETAINER; HEADLAMP 8-94279-954-0 06 1 0503-0508 ●
190 RETAINER; HEADLAMP 8-94279-954-0 06 1 0509-0606 ● ●

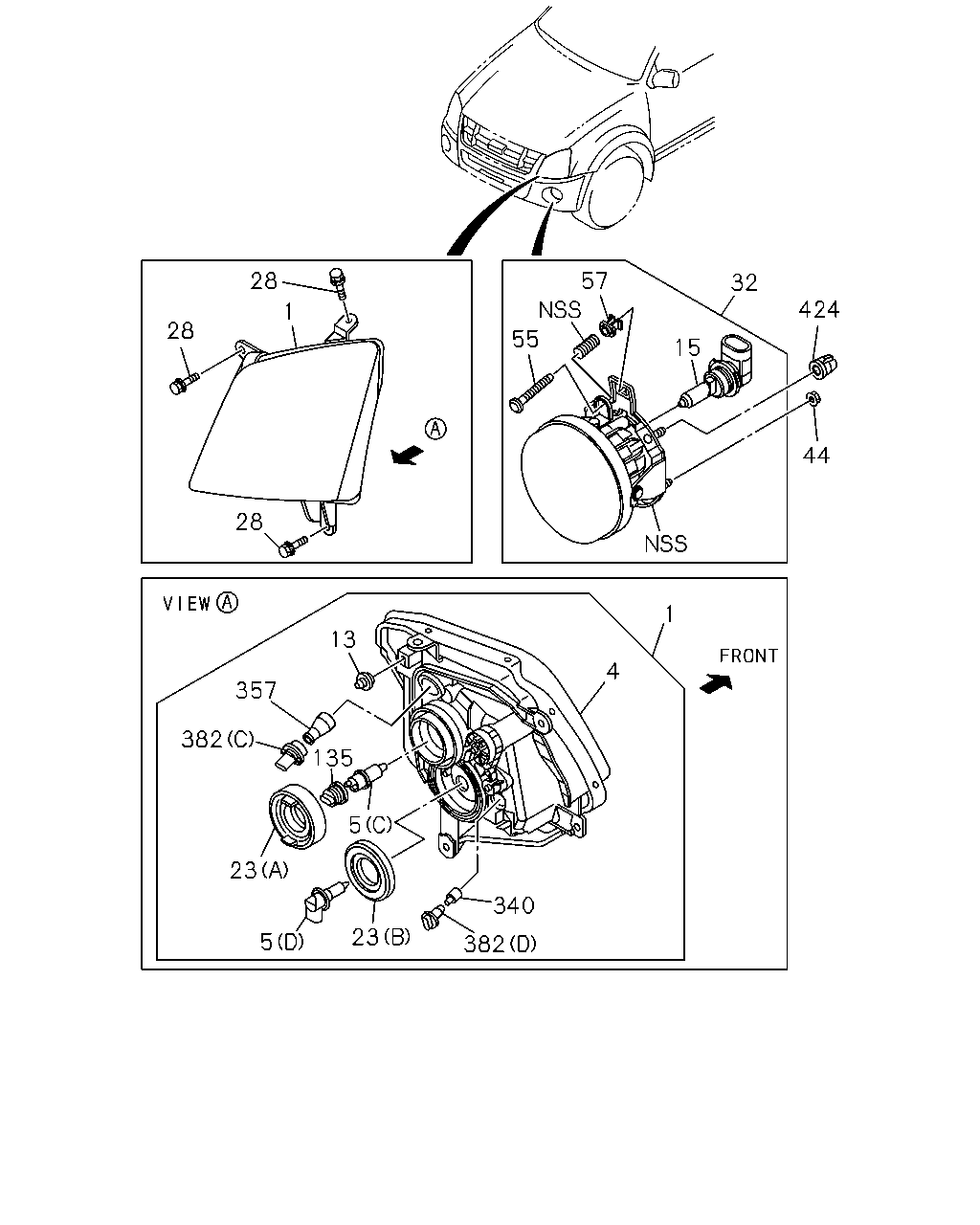

çizim 118743
28 57 32 424 1 28 55 15 44 28 1 13 4 357 382 135 5 23 340 23 5 382
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98202-753-0 01 1 1111- ● ●
1 LAMP ASM; HEAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98202-754-0 01 1 1111- ● ●
1 LAMP ASM; HEAD 8-98004-310-0 01 1 0503-0506 ● ●
1 LAMP ASM; HEAD 8-98023-832-0 01 1 0507-0606 ● ●
1 LAMP ASM; HEAD 8-97388-663-2 01 1 0607-0704 ● ●
1 LAMP ASM; HEAD 8-98080-004-0 01 1 0705-1110 ● ●
1 LAMP ASM; HEAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98080-004-0 01 1 1111- ● ●
1 LAMP ASM; HEAD 8-98004-309-0 01 1 0503-0506 ● ●
1 LAMP ASM; HEAD 8-98023-831-0 01 1 0507-0606 ● ●
1 LAMP ASM; HEAD 8-97388-662-2 01 1 0607-0704 ● ●
1 LAMP ASM; HEAD 8-98080-003-0 01 1 0705-1110 ● ●
1 LAMP ASM; HEAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98080-003-0 01 1 1111- ● ●
4 HEADLAMP UNIT
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98205-879-0 01 1 1111- ● ●
4 HEADLAMP UNIT
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98205-880-0 01 1 1111- ● ●
4 HEADLAMP UNIT 8-97379-815-0 01 1 0503-0508 ●
4 HEADLAMP UNIT 8-97379-815-0 01 1 0509-0606 ● ●
4 HEADLAMP UNIT 8-98011-844-0 01 1 0607-1110 ● ●
4 HEADLAMP UNIT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98011-844-0 01 1 1111- ● ●
4 HEADLAMP UNIT 8-97379-814-0 01 1 0503-0508 ●
4 HEADLAMP UNIT 8-97379-814-0 01 1 0509-0606 ● ●
4 HEADLAMP UNIT 8-98011-843-0 01 1 0607-1110 ● ●
4 HEADLAMP UNIT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98011-843-0 01 1 1111- ● ●
5 BULB; HEADLAMP
(A) 12V 21W 		8-97179-967-0 02 1 0503-0508 ●
5 BULB; HEADLAMP
(A) 12V 21W 		8-97179-967-0 02 1 0509-0606 ● ●
5 BULB; HEADLAMP
(D) 12V 60W 		8-97289-997-0 02 1 0607- ● ●
5 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0503-0508 ●
5 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0509-0606 ● ●
5 BULB; HEADLAMP
(C) 12V 55W 		8-98011-475-0 02 1 0607- ● ●
13 CLIP; HEADLAMP 8-97378-145-0 02 1 0607- ● ●
15 BULB; FOG LAMP
12V 55W 		8-98024-386-0 02 1 0509-0606 ● ●
15 BULB; FOG LAMP
12V 51W 		8-97286-998-0 02 1 0607- ● ●
23 COVER; BULB,HEADLAMP
(C) 		8-97332-448-0 02 1 0503-0508 ●
23 COVER; BULB,HEADLAMP
(C) 		8-97332-448-0 02 1 0509-0606 ● ●
23 COVER; BULB,HEADLAMP
(B) 		8-97675-961-0 02 1 0607- ● ●
23 COVER; BULB,HEADLAMP
(A) 		8-98011-477-0 02 1 0607- ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0503-0508 ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0509-0612 ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0701- ● ●
32 LAMP ASM; FOG 8-97363-012-0 01 1 0509-0509 ● ●
32 LAMP ASM; FOG 8-98030-125-0 01 1 0510-0606 ● ●
32 LAMP ASM; FOG 8-97363-011-0 01 1 0509-0509 ● ●
32 LAMP ASM; FOG 8-98030-124-0 01 1 0510-0606 ● ●
32 LAMP ASM; FOG 8-97374-661-1 02 1 0607-0904 ● ●
32 LAMP ASM; FOG 8-98144-229-0 02 1 0905-1101 ● ●
32 LAMP ASM; FOG 8-98169-680-0 02 1 1102- ● ●
44 NUT; FOG LAMP
M6 FLANGE 		0-91180-106-0 04 1 0509-0606 ● ●
44 NUT; FOG LAMP
M6 FLANGE 		8-97063-399-0 04 1 0607-0702 ● ●
44 NUT; FOG LAMP
M6 FLANGE 		8-98055-704-0 04 1 0703- ● ●
55 SCREW; ADJ,FOG LAMP 8-98017-834-0 02 1 0607- ● ●
57 NUT; UNIT TO SCREW,FOG LAMP 8-98017-835-0 02 1 0607- ● ●
135 ADAPTER; HEADLAMP 8-98011-476-0 02 1 0607- ● ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0503-0508 ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0509- ● ●
357 BULB; TURN SIGNAL
SALES PACKAGE EQUIPMENT SPORTY<XK0> 12V 21W 		8-98100-011-0 02 1 1111- ● ●
357 BULB; TURN SIGNAL
12V 21W 		8-94124-074-0 02 1 0607-1110 ● ●
357 BULB; TURN SIGNAL
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 12V 21W 		8-94124-074-0 02 1 1111- ● ●
382 PLUG; SOCKET,HEADLAMP
SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98106-751-0 02 1 1111- ● ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0503-0508 ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0509-0606 ● ●
382 PLUG; SOCKET,HEADLAMP
(C) 		8-98012-762-0 02 1 0607-1110 ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98012-762-0 02 1 1111- ● ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0503-0508 ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0509-0606 ● ●
382 PLUG; SOCKET,HEADLAMP
(D) 		8-98012-788-0 02 1 0607- ● ●
424 RETAINER; FOG LAMP 8-97372-854-0 02 1 0607- ● ●
