◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#75081) — 84 parça

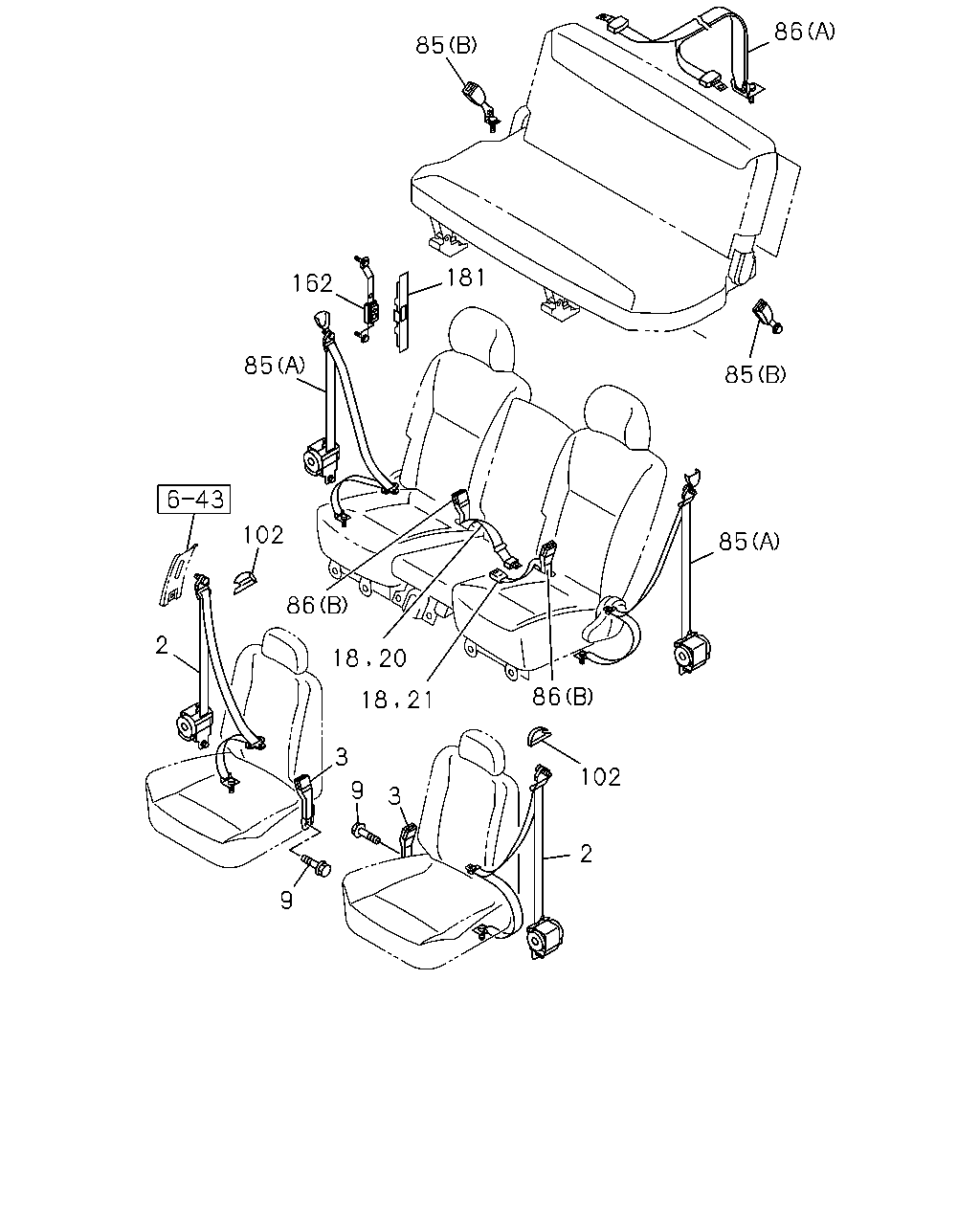

çizim 118673
86 85 181 162 85 85 102 85 86 2 86 3 102 9 3 2 9 18 20 18 21
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97422-891-1 02 1 1108-1203 ● ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) 		8-97423-694-0 02 1 1204- ● ●
2 BELT; SEAT,TONGUE SIDE
LIGHT GRAY 		8-97398-946-1 02 1 0503-0508 ●
2 BELT; SEAT,TONGUE SIDE
LIGHT GRAY 		8-97398-946-1 02 1 0509-0606 ● ●
2 BELT; SEAT,TONGUE SIDE
BEIGE 		8-97404-583-1 02 1 0607-1107 ● ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-583-1 02 1 1108-1203 ● ●
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(184) 		8-97423-695-0 02 1 1204- ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-958-0 01 1 1108- ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-962-0 01 1 1108- ● ●
3 BELT; SEAT,BUCKLE SIDE
LIGHT GRAY 		8-97399-040-0 01 1 0503-0508 ●
3 BELT; SEAT,BUCKLE SIDE
LIGHT GRAY 		8-97399-040-0 01 1 0509-0606 ● ●
3 BELT; SEAT,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-018-0 01 1 0607-1107 ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-018-0 01 1 1108- ● ●
3 BELT; SEAT,BUCKLE SIDE
LIGHT GRAY 		8-97399-048-0 01 1 0503-0508 ●
3 BELT; SEAT,BUCKLE SIDE
LIGHT GRAY 		8-97399-048-0 01 1 0509-0606 ● ●
3 BELT; SEAT,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-026-0 01 1 0607-1107 ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-026-0 01 1 1108- ● ●
9 BOLT; SEAT BELT ANCHOR 8-98003-878-0 02 1 0503-0508 ●
9 BOLT; SEAT BELT ANCHOR 8-98003-878-0 02 1 0509- ● ●
18 BELT; SEAT,RR
LIGHT GRAY 		8-97400-121-0 01 1 0503-0508 ●
18 BELT; SEAT,RR
LIGHT GRAY 		8-97400-121-0 01 1 0509-0606 ● ●
18 BELT; SEAT,RR
LIGHT GRAY 		8-97398-954-2 01 1 0503-0508 ●
18 BELT; SEAT,RR
LIGHT GRAY 		8-97398-954-2 01 1 0509-0606 ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97422-978-0 01 1 1108-1203 ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97423-889-1 01 1 1204- ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-777-0 01 1 0607-1107 ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-777-0 01 1 1108-1203 ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97423-890-1 01 1 1204- ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-979-0 01 1 1108- ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-778-0 01 1 0607-1107 ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-778-0 01 1 1108- ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97422-895-0 01 1 1108-1203 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (A) 		8-97423-696-0 01 1 1204- ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97422-896-0 01 1 1108-1203 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (A) 		8-97423-698-0 01 1 1204- ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97422-897-0 01 1 1108- ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97422-898-0 01 1 1108- ● ●
85 BELT; SEAT,RR OUTER
(A) LIGHT GRAY 		8-97398-957-2 01 1 0503-0508 ●
85 BELT; SEAT,RR OUTER
(A) LIGHT GRAY 		8-97404-490-0 01 1 0509-0606 ● ●
85 BELT; SEAT,RR OUTER
(A) BEIGE 		8-97407-775-0 01 1 0607-1107 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97407-775-0 01 1 1108-1203 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (A) 		8-97423-699-0 01 1 1204- ● ●
85 BELT; SEAT,RR OUTER
(B) LIGHT GRAY 		8-97398-960-0 01 1 0503-0508 ●
85 BELT; SEAT,RR OUTER
(B) LIGHT GRAY 		8-97398-960-0 01 1 0509-0606 ● ●
85 BELT; SEAT,RR OUTER
(B) BEIGE 		8-97404-597-0 01 1 0607-1107 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-597-0 01 1 1108- ● ●
85 BELT; SEAT,RR OUTER
(A) LIGHT GRAY 		8-97398-956-2 01 1 0503-0508 ●
85 BELT; SEAT,RR OUTER
(A) LIGHT GRAY 		8-97404-489-0 01 1 0509-0606 ● ●
85 BELT; SEAT,RR OUTER
(A) BEIGE 		8-97407-774-0 01 1 0607-1107 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97407-774-0 01 1 1108-1203 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (A) 		8-97423-697-0 01 1 1204- ● ●
85 BELT; SEAT,RR OUTER
(B) LIGHT GRAY 		8-97398-959-0 01 1 0503-0508 ●
85 BELT; SEAT,RR OUTER
(B) LIGHT GRAY 		8-97398-959-0 01 1 0509-0606 ● ●
85 BELT; SEAT,RR OUTER
(B) BEIGE 		8-97404-596-0 01 1 0607-1107 ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-596-0 01 1 1108- ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) BLACK 		8-97422-977-0 02 1 1108- ● ●
86 BELT; SEAT,RR INNER
(B) LIGHT GRAY 		8-97399-059-1 01 1 0503-0505 ●
86 BELT; SEAT,RR INNER
(B) LIGHT GRAY 		8-97399-059-1 01 1 0503-0505 ●
86 BELT; SEAT,RR INNER
(B) LIGHT GRAY 		8-97399-059-1 02 1 0506-0508 ●
86 BELT; SEAT,RR INNER
(B) LIGHT GRAY 		8-97399-059-1 02 1 0509-0606 ● ●
86 BELT; SEAT,RR INNER
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97406-034-0 01 1 0607-1107 ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97406-034-0 01 1 1108-1203 ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97423-892-1 01 1 1204- ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) DARK GRAY 		8-97423-000-0 01 1 1108-1203 ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) 		8-97423-891-1 01 1 1204- ● ●
86 BELT; SEAT,RR INNER
(A) LIGHT GRAY 		8-97400-566-0 01 1 0503-0508 ●
86 BELT; SEAT,RR INNER
(A) LIGHT GRAY 		8-97400-566-0 01 1 0509-0606 ● ●
86 BELT; SEAT,RR INNER
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-776-0 02 1 0607-1107 ● ●
86 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-776-0 02 1 1108- ● ●
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-893-0 02 1 1108- ● ●
102 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97398-948-0 02 1 0503-0508 ●
102 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97398-948-0 02 1 0509-0606 ● ●
102 COVER; SHOULDER ANCHOR
BEIGE 		8-97404-585-0 02 1 0607-1107 ● ●
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-585-0 02 1 1108- ● ●
162 ADJUSTER; SEAT BELT
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-892-1 02 1 1108- ● ●
162 ADJUSTER; SEAT BELT
LIGHT GRAY 		8-97398-947-1 02 1 0503-0508 ●
162 ADJUSTER; SEAT BELT
LIGHT GRAY 		8-97398-947-1 02 1 0509-0606 ● ●
162 ADJUSTER; SEAT BELT
BEIGE 		8-97404-584-1 02 1 0607-1107 ● ●
162 ADJUSTER; SEAT BELT
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-584-1 02 1 1108- ● ●
181 TRIM; SLIDER PLATE
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-894-1 02 1 1108- ● ●
181 TRIM; SLIDER PLATE
LIGHT GRAY 		8-97398-949-1 02 1 0503-0508 ●
181 TRIM; SLIDER PLATE
LIGHT GRAY 		8-97398-949-1 02 1 0509-0606 ● ●
181 TRIM; SLIDER PLATE
BEIGE 		8-97404-586-1 02 1 0607-1107 ● ●
181 TRIM; SLIDER PLATE
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-586-1 02 1 1108- ● ●
