7-55 — REAR SEAT (#75080) — 761 parça

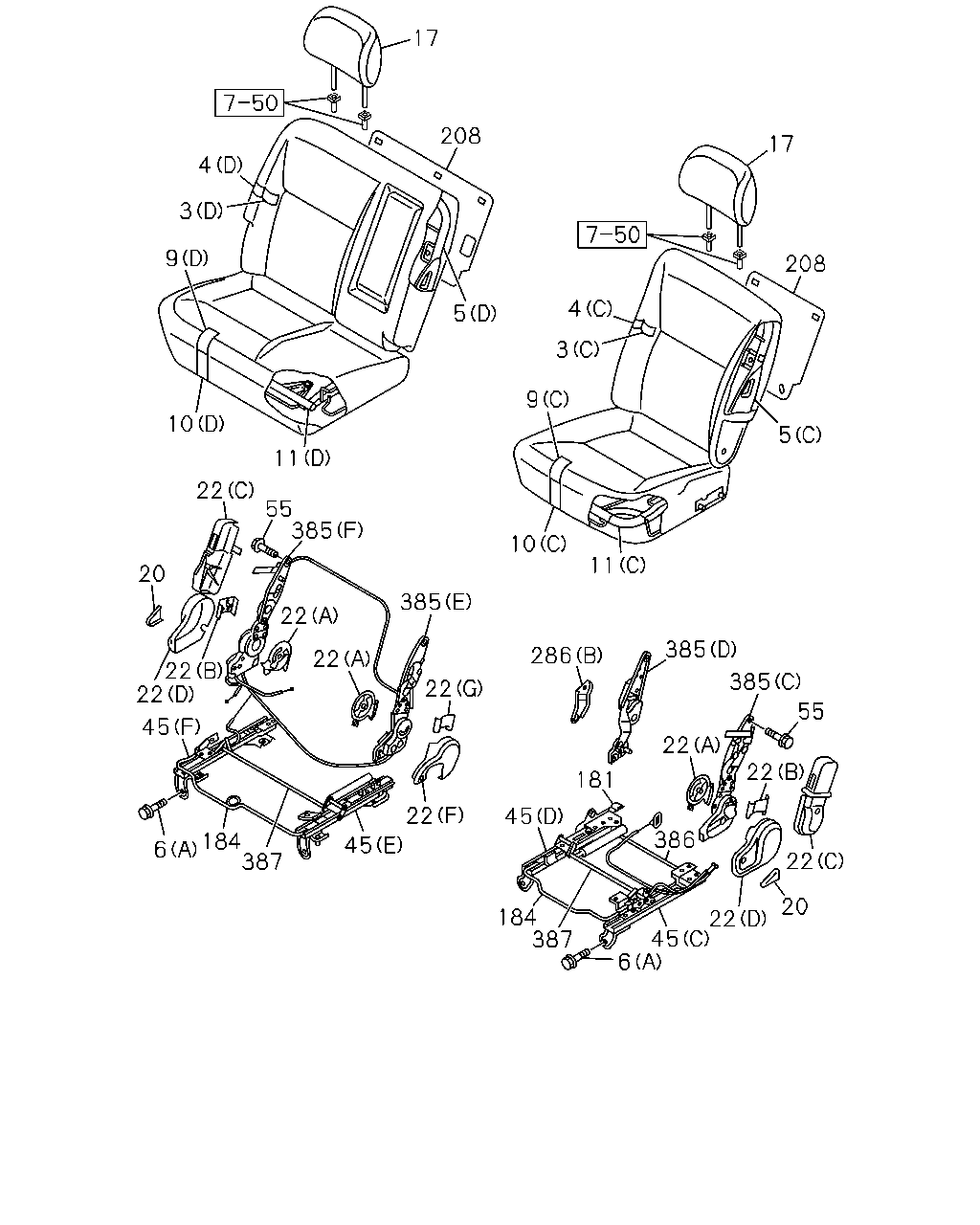

çizim 118667
17 208 17 4 3 9 208 4 5 3 9 10 5 11 22 55 385 10 11 20 385 22 385 286 22 22 22 385 22 55 45 22 22 181 22 45 386 184 387 45 6 22 20 184 387 22 45 6
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-964-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-983-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(B) LIGHT GRAY 		8-97399-072-0 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-094-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-094-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(A) LIGHT GRAY 		8-97399-063-2 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> (D) BEIGE 		8-97407-104-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (D) BEIGE 		8-97407-104-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(A) LIGHT GRAY 		8-97399-050-2 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> (C) BEIGE 		8-97407-099-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (C) BEIGE 		8-97407-099-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-109-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-109-1 01 1 1108-
4 PAD; RR,SEAT BACK
(B) 		8-97373-383-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
(A) 		8-97373-254-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-148-1 01 1 0607-1107
4 PAD; RR,SEAT BACK
(D) 		8-98038-148-1 01 1 1108-
4 PAD; RR,SEAT BACK
(A) 		8-97373-253-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-107-1 01 1 0607-1107
4 PAD; RR,SEAT BACK
(C) 		8-98038-107-1 01 1 1108-
5 FRAME ASM; RR SEAT BACK
(B) 		8-97373-382-0 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
(A) 		8-97373-252-1 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-146-1 01 1 0607-1107
5 FRAME ASM; RR SEAT BACK
(D) 		8-98038-146-1 01 1 1108-
5 FRAME ASM; RR SEAT BACK
(A) 		8-97373-251-1 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-106-1 01 1 0607-1107
5 FRAME ASM; RR SEAT BACK
(C) 		8-98038-106-1 01 1 1108-
6 BOLT; RR SEAT
(A) 		8-97248-987-0 06 1 0503-0606
6 BOLT; RR SEAT
(A) 		8-97248-987-0 08 1 0607-0612
6 BOLT; RR SEAT
(A) M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 0701-
6 BOLT; RR SEAT
(B) 		8-97943-079-0 04 1 0503-0606
6 BOLT; RR SEAT
(C) 		8-98003-870-0 08 1 0503-0606
6 BOLT; RR SEAT
(D) 		8-98003-805-0 08 1 0503-0606
6 BOLT; RR SEAT
(E) 		8-98003-805-0 02 1 0503-0606
6 BOLT; RR SEAT
(F) 		8-98003-859-0 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-971-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-987-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(B) LIGHT GRAY 		8-97399-077-0 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-095-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-095-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(A) LIGHT GRAY 		8-97399-067-3 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> (D) BEIGE 		8-97407-105-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (D) BEIGE 		8-97407-105-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(A) LIGHT GRAY 		8-97399-054-2 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> (C) BEIGE 		8-97407-100-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (C) BEIGE 		8-97407-100-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-110-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-110-1 01 1 1108-
10 PAD; CUSHION,RR SEAT
(B) 		8-97373-396-0 01 1 0503-0508
10 PAD; CUSHION,RR SEAT
(B) 		8-98021-007-0 01 1 0509-0606
10 PAD; CUSHION,RR SEAT
(A) 		8-97373-275-1 01 1 0503-0606
10 PAD; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-151-1 01 1 0607-1107
10 PAD; CUSHION,RR SEAT
(D) 		8-98038-151-1 01 1 1108-
10 PAD; CUSHION,RR SEAT
(A) 		8-97373-274-1 01 1 0503-0606
10 PAD; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-136-1 01 1 0607-1107
10 PAD; CUSHION,RR SEAT
(C) 		8-98038-136-1 01 1 1108-
11 FRAME ASM; CUSHION,RR SEAT
(B) 		8-97373-395-1 01 1 0503-0606
11 FRAME ASM; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-120-1 01 1 0607-1107
11 FRAME ASM; CUSHION,RR SEAT
(C) 		8-98038-120-1 01 1 1108-
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-97373-273-3 01 1 0503-0508
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-98024-509-0 01 1 0509-0606
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-97373-272-3 01 1 0503-0508
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-98024-508-0 01 1 0509-0606
11 FRAME ASM; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-150-1 01 1 0607-1107
11 FRAME ASM; CUSHION,RR SEAT
(D) 		8-98038-150-1 01 1 1108-
17 REST; HD,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97422-980-1 01 1 1108-
17 REST; HD,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97422-991-1 01 1 1108-
17 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-096-1 02 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-096-1 02 1 1108-
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-106-1 01 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-106-1 01 1 1108-
17 REST; HD,RR SEAT
4X2(UCB***) LIGHT GRAY 		8-97399-034-1 01 1 0503-0505
17 REST; HD,RR SEAT
4X2(UCB***) LIGHT GRAY 		8-97399-034-1 01 1 0503-0505
17 REST; HD,RR SEAT
LIGHT GRAY 		8-97399-034-1 02 1 0506-0606
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-101-1 01 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-101-1 01 1 1108-
20 KNOB; RECLINING DEVICE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-976-2 01 1 1108-
20 KNOB; RECLINING DEVICE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-990-2 01 1 1108-
20 KNOB; RECLINING DEVICE
LIGHT GRAY 		8-97399-071-1 01 1 0503-0606
20 KNOB; RECLINING DEVICE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-120-2 01 1 0607-1107
20 KNOB; RECLINING DEVICE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-120-2 01 1 1108-
20 KNOB; RECLINING DEVICE
LIGHT GRAY 		8-97399-058-1 01 1 0503-0606
20 KNOB; RECLINING DEVICE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97404-818-2 01 1 0607-1107
20 KNOB; RECLINING DEVICE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97404-818-2 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-996-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-997-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) OUTER 		8-97422-966-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) INNER 		8-97422-967-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-968-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (G) 		8-97422-969-1 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-970-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-972-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (F) 		8-97422-973-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) 		8-97422-984-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-985-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-986-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-988-3 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-064-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-065-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-068-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-024-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-051-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-052-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-055-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-023-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-082-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-082-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-081-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-081-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-97373-284-1 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-97387-761-0 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-97373-281-2 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-98023-669-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) 		8-98038-153-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(E) 		8-98038-153-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-97373-283-1 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-98023-670-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-191-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(D) 		8-98038-191-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-98023-672-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) 		8-98038-209-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(F) 		8-98038-209-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-98023-671-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-193-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(C) 		8-98038-193-1 01 1 1108-
55 BOLT; HINGE,RR SEAT 8-98003-870-0 08 1 0503-
181 BAND; STOPPER,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-993-0 01 1 1108-
181 BAND; STOPPER,RR SEAT
LIGHT GRAY 		8-97404-025-0 01 1 0503-0606
181 BAND; STOPPER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-287-0 01 1 0607-1107
181 BAND; STOPPER,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-287-0 01 1 1108-
184 HANDLE; SLIDER,RR SEAT 8-97373-294-0 01 1 0503-0606
184 HANDLE; SLIDER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-198-0 01 1 0607-1107
184 HANDLE; SLIDER,RR SEAT 8-98038-198-0 01 1 1108-
184 HANDLE; SLIDER,RR SEAT 8-97373-293-0 01 1 0503-0606
184 HANDLE; SLIDER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-211-0 01 1 0607-1107
184 HANDLE; SLIDER,RR SEAT 8-98038-211-0 01 1 1108-
208 BOARD; RR SEAT BACK
4X2(UCB***) 		8-97373-269-0 01 1 0503-0505
208 BOARD; RR SEAT BACK
4X2(UCB***) 		8-97373-269-0 01 1 0503-0505
208 BOARD; RR SEAT BACK 8-97373-269-0 02 1 0506-0606
208 BOARD; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-162-0 01 1 0607-1107
208 BOARD; RR SEAT BACK 8-98038-162-0 01 1 1108-
208 BOARD; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98043-261-0 01 1 0607-1107
208 BOARD; RR SEAT BACK 8-98043-261-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) 		8-97422-974-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-975-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-989-1 01 1 1108-
286 COVER; HINGE
(C) LIGHT GRAY 		8-97399-075-0 01 1 0503-0606
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-069-3 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 1108-
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-070-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 1108-
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-056-3 01 1 0503-0606
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-057-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(A) 		8-97373-258-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-161-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(C) 		8-98038-161-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(B) 		8-97373-260-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) 		8-98038-203-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(F) 		8-98038-203-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(A) 		8-97373-257-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-160-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(D) 		8-98038-160-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(B) 		8-97373-259-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) 		8-98038-201-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(E) 		8-98038-201-1 01 1 1108-
386 SHAFT ASM; CONNECT 2ND RECLINING
4X2(UCB***) 		8-97373-271-0 01 1 0503-0505
386 SHAFT ASM; CONNECT 2ND RECLINING
4X2(UCB***) 		8-97373-271-0 01 1 0503-0505
386 SHAFT ASM; CONNECT 2ND RECLINING 8-97373-271-0 02 1 0506-0606
386 SHAFT ASM; CONNECT 2ND RECLINING
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-163-0 01 1 0607-1107
386 SHAFT ASM; CONNECT 2ND RECLINING 8-98038-163-0 01 1 1108-
387 SHAFT ASM; CONNECT 2ND CUSHION
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-210-0 01 1 0607-1107
387 SHAFT ASM; CONNECT 2ND CUSHION 8-98038-210-0 01 1 1108-
387 SHAFT ASM; CONNECT 2ND CUSHION
4X2(UCB***) 		8-97373-286-0 01 1 0503-0505
387 SHAFT ASM; CONNECT 2ND CUSHION
4X2(UCB***) 		8-97373-286-0 01 1 0503-0505
387 SHAFT ASM; CONNECT 2ND CUSHION 8-97373-286-0 02 1 0506-0606
387 SHAFT ASM; CONNECT 2ND CUSHION
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-197-0 01 1 0607-1107
387 SHAFT ASM; CONNECT 2ND CUSHION 8-98038-197-0 01 1 1108-

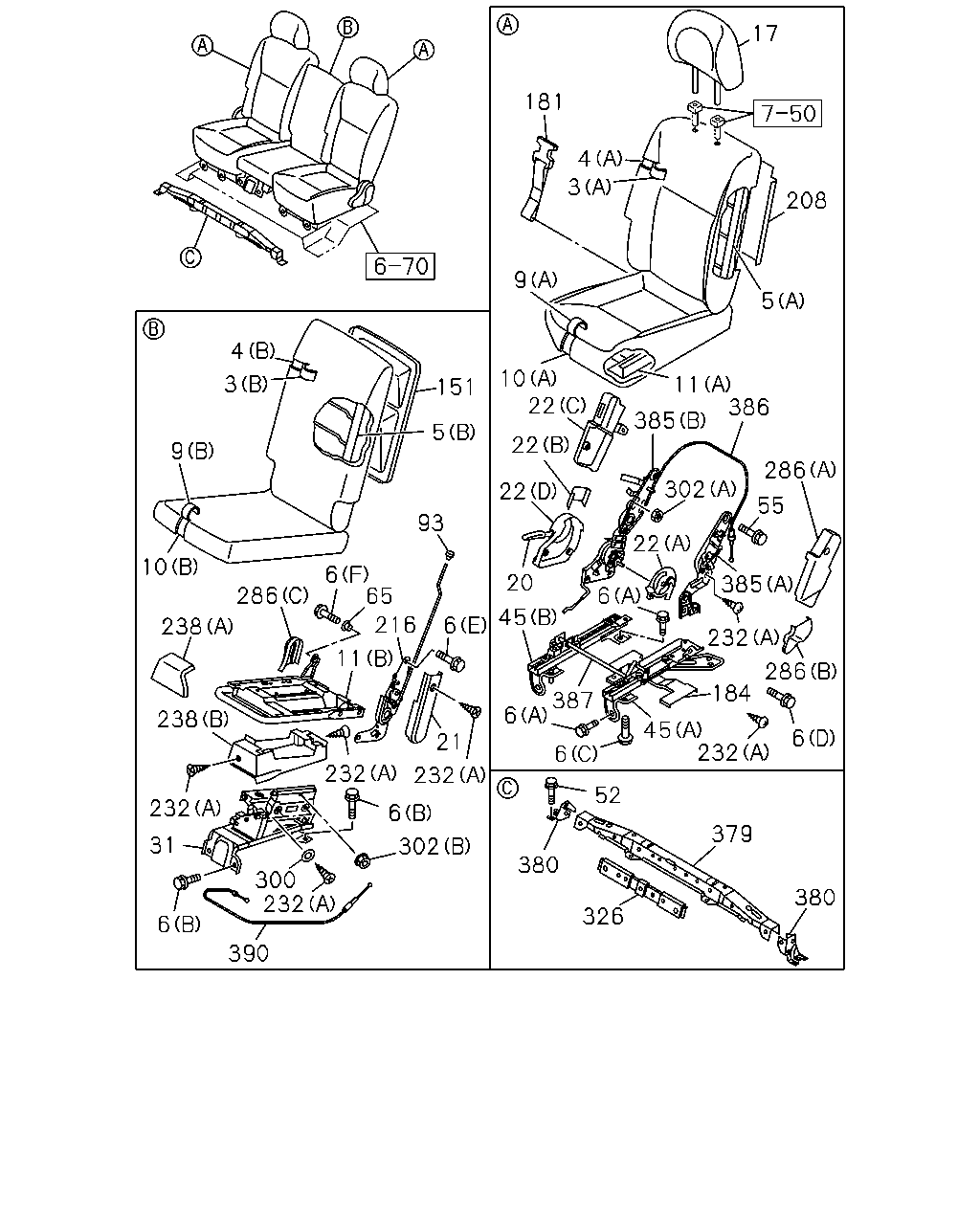

çizim 118677
17 181 4 3 208 9 5 4 10 22 3 11 386 151 385 5 22 9 286 302 22 22 55 93 10 6 65 20 385 286 6 45 216 6 238 232 11 286 184 387 6 238 45 232 6 21 6 232 232 52 232 6 379 31 302 380 300 232 380 326 6 390
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-964-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-983-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(B) LIGHT GRAY 		8-97399-072-0 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-094-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-094-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(A) LIGHT GRAY 		8-97399-063-2 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> (D) BEIGE 		8-97407-104-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (D) BEIGE 		8-97407-104-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
(A) LIGHT GRAY 		8-97399-050-2 01 1 0503-0606
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> (C) BEIGE 		8-97407-099-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (C) BEIGE 		8-97407-099-1 01 1 1108-
3 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-109-1 01 1 0607-1107
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-109-1 01 1 1108-
4 PAD; RR,SEAT BACK
(B) 		8-97373-383-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
(A) 		8-97373-254-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-148-1 01 1 0607-1107
4 PAD; RR,SEAT BACK
(D) 		8-98038-148-1 01 1 1108-
4 PAD; RR,SEAT BACK
(A) 		8-97373-253-0 01 1 0503-0606
4 PAD; RR,SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-107-1 01 1 0607-1107
4 PAD; RR,SEAT BACK
(C) 		8-98038-107-1 01 1 1108-
5 FRAME ASM; RR SEAT BACK
(B) 		8-97373-382-0 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
(A) 		8-97373-252-1 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-146-1 01 1 0607-1107
5 FRAME ASM; RR SEAT BACK
(D) 		8-98038-146-1 01 1 1108-
5 FRAME ASM; RR SEAT BACK
(A) 		8-97373-251-1 01 1 0503-0606
5 FRAME ASM; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-106-1 01 1 0607-1107
5 FRAME ASM; RR SEAT BACK
(C) 		8-98038-106-1 01 1 1108-
6 BOLT; RR SEAT
(A) 		8-97248-987-0 06 1 0503-0606
6 BOLT; RR SEAT
(A) 		8-97248-987-0 08 1 0607-0612
6 BOLT; RR SEAT
(A) M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 0701-
6 BOLT; RR SEAT
(B) 		8-97943-079-0 04 1 0503-0606
6 BOLT; RR SEAT
(C) 		8-98003-870-0 08 1 0503-0606
6 BOLT; RR SEAT
(D) 		8-98003-805-0 08 1 0503-0606
6 BOLT; RR SEAT
(E) 		8-98003-805-0 02 1 0503-0606
6 BOLT; RR SEAT
(F) 		8-98003-859-0 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-971-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-987-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(B) LIGHT GRAY 		8-97399-077-0 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-095-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-095-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(A) LIGHT GRAY 		8-97399-067-3 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> (D) BEIGE 		8-97407-105-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (D) BEIGE 		8-97407-105-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
(A) LIGHT GRAY 		8-97399-054-2 01 1 0503-0606
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> (C) BEIGE 		8-97407-100-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> (C) BEIGE 		8-97407-100-1 01 1 1108-
9 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-110-1 01 1 0607-1107
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-110-1 01 1 1108-
10 PAD; CUSHION,RR SEAT
(B) 		8-97373-396-0 01 1 0503-0508
10 PAD; CUSHION,RR SEAT
(B) 		8-98021-007-0 01 1 0509-0606
10 PAD; CUSHION,RR SEAT
(A) 		8-97373-275-1 01 1 0503-0606
10 PAD; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-151-1 01 1 0607-1107
10 PAD; CUSHION,RR SEAT
(D) 		8-98038-151-1 01 1 1108-
10 PAD; CUSHION,RR SEAT
(A) 		8-97373-274-1 01 1 0503-0606
10 PAD; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-136-1 01 1 0607-1107
10 PAD; CUSHION,RR SEAT
(C) 		8-98038-136-1 01 1 1108-
11 FRAME ASM; CUSHION,RR SEAT
(B) 		8-97373-395-1 01 1 0503-0606
11 FRAME ASM; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-120-1 01 1 0607-1107
11 FRAME ASM; CUSHION,RR SEAT
(C) 		8-98038-120-1 01 1 1108-
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-97373-273-3 01 1 0503-0508
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-98024-509-0 01 1 0509-0606
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-97373-272-3 01 1 0503-0508
11 FRAME ASM; CUSHION,RR SEAT
(A) 		8-98024-508-0 01 1 0509-0606
11 FRAME ASM; CUSHION,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-150-1 01 1 0607-1107
11 FRAME ASM; CUSHION,RR SEAT
(D) 		8-98038-150-1 01 1 1108-
17 REST; HD,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97422-980-1 01 1 1108-
17 REST; HD,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97422-991-1 01 1 1108-
17 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-096-1 02 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-096-1 02 1 1108-
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-106-1 01 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-106-1 01 1 1108-
17 REST; HD,RR SEAT
4X2(UCB***) LIGHT GRAY 		8-97399-034-1 01 1 0503-0505
17 REST; HD,RR SEAT
4X2(UCB***) LIGHT GRAY 		8-97399-034-1 01 1 0503-0505
17 REST; HD,RR SEAT
LIGHT GRAY 		8-97399-034-1 02 1 0506-0606
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-101-1 01 1 0607-1107
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-101-1 01 1 1108-
20 KNOB; RECLINING DEVICE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-976-2 01 1 1108-
20 KNOB; RECLINING DEVICE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-990-2 01 1 1108-
20 KNOB; RECLINING DEVICE
LIGHT GRAY 		8-97399-071-1 01 1 0503-0606
20 KNOB; RECLINING DEVICE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-120-2 01 1 0607-1107
20 KNOB; RECLINING DEVICE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-120-2 01 1 1108-
20 KNOB; RECLINING DEVICE
LIGHT GRAY 		8-97399-058-1 01 1 0503-0606
20 KNOB; RECLINING DEVICE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97404-818-2 01 1 0607-1107
20 KNOB; RECLINING DEVICE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97404-818-2 01 1 1108-
21 COVER; RECLINING DEVICE,LWR
LIGHT GRAY 		8-97399-074-0 01 1 0503-0606
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-996-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-997-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) OUTER 		8-97422-966-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) INNER 		8-97422-967-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-968-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (G) 		8-97422-969-1 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-970-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-972-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (F) 		8-97422-973-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) 		8-97422-984-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-985-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-986-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-988-3 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-064-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-065-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-068-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-024-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-051-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-052-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-055-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-023-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-082-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-082-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-081-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-081-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 1108-
31 DEVICE; FOLDING,SEAT 8-97373-389-2 01 1 0503-0606
45 ADJUSTER; RR SEAT
(B) 		8-97373-284-1 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-97387-761-0 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-97373-281-2 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-98023-669-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) 		8-98038-153-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(E) 		8-98038-153-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-97373-283-1 01 1 0503-0508
45 ADJUSTER; RR SEAT
(A) 		8-98023-670-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-191-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(D) 		8-98038-191-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-98023-672-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) 		8-98038-209-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(F) 		8-98038-209-1 01 1 1108-
45 ADJUSTER; RR SEAT
(B) 		8-98023-671-0 01 1 0509-0606
45 ADJUSTER; RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-193-1 01 1 0607-1107
45 ADJUSTER; RR SEAT
(C) 		8-98038-193-1 01 1 1108-
52 BOLT; RR SEAT
M8X16 FLANGE 		0-28080-816-0 07 1 0503-0601
52 BOLT; RR SEAT
M8X16 FLANGE 		0-28050-816-0 07 1 0602-
55 BOLT; HINGE,RR SEAT 8-98003-870-0 08 1 0503-
65 COLLAR; RR SEAT HINGE 8-98003-212-0 01 1 0503-0606
93 KNOB; LK,RR SEAT BACK
LIGHT GRAY 		8-97400-814-0 01 1 0503-0606
151 TRAY; RR SEAT
LIGHT GRAY 		8-97399-073-0 01 1 0503-0606
181 BAND; STOPPER,RR SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-993-0 01 1 1108-
181 BAND; STOPPER,RR SEAT
LIGHT GRAY 		8-97404-025-0 01 1 0503-0606
181 BAND; STOPPER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-287-0 01 1 0607-1107
181 BAND; STOPPER,RR SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-287-0 01 1 1108-
184 HANDLE; SLIDER,RR SEAT 8-97373-294-0 01 1 0503-0606
184 HANDLE; SLIDER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-198-0 01 1 0607-1107
184 HANDLE; SLIDER,RR SEAT 8-98038-198-0 01 1 1108-
184 HANDLE; SLIDER,RR SEAT 8-97373-293-0 01 1 0503-0606
184 HANDLE; SLIDER,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-211-0 01 1 0607-1107
184 HANDLE; SLIDER,RR SEAT 8-98038-211-0 01 1 1108-
208 BOARD; RR SEAT BACK
4X2(UCB***) 		8-97373-269-0 01 1 0503-0505
208 BOARD; RR SEAT BACK
4X2(UCB***) 		8-97373-269-0 01 1 0503-0505
208 BOARD; RR SEAT BACK 8-97373-269-0 02 1 0506-0606
208 BOARD; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-162-0 01 1 0607-1107
208 BOARD; RR SEAT BACK 8-98038-162-0 01 1 1108-
208 BOARD; RR SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98043-261-0 01 1 0607-1107
208 BOARD; RR SEAT BACK 8-98043-261-0 01 1 1108-
216 HINGE; RR CENTER 8-97373-398-2 01 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 10 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 04 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 01 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 02 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 02 1 0503-0606
232 SCREW; RR SEAT
4X2(UCB***) (B) M5X14 TAPPING 		1-72548-072-0 02 1 0503-0507
232 SCREW; RR SEAT
4X2(UCB***) (B) M5X10 		9-93497-510-0 02 1 0508-0508
232 SCREW; RR SEAT
(B) M5X10 		9-93497-510-0 02 1 0509-0605
232 SCREW; RR SEAT
(B) M5X10 		0-34218-510-0 02 1 0606-
238 COVER; LEG
(B) LIGHT GRAY 		8-97399-078-0 01 1 0503-0606
238 COVER; LEG
(A) LIGHT GRAY 		8-97399-025-1 01 1 0503-0606
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) 		8-97422-974-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-975-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-989-1 01 1 1108-
286 COVER; HINGE
(C) LIGHT GRAY 		8-97399-075-0 01 1 0503-0606
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-069-3 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 1108-
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-070-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 1108-
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-056-3 01 1 0503-0606
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-057-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 1108-
300 RUBBER; RR SEAT CUSHION 8-98003-211-0 02 1 0503-0606
302 NUT; RR SEAT
(A) 		8-98003-861-0 02 1 0503-0606
302 NUT; RR SEAT
(B) 		8-98003-862-0 02 1 0503-0606

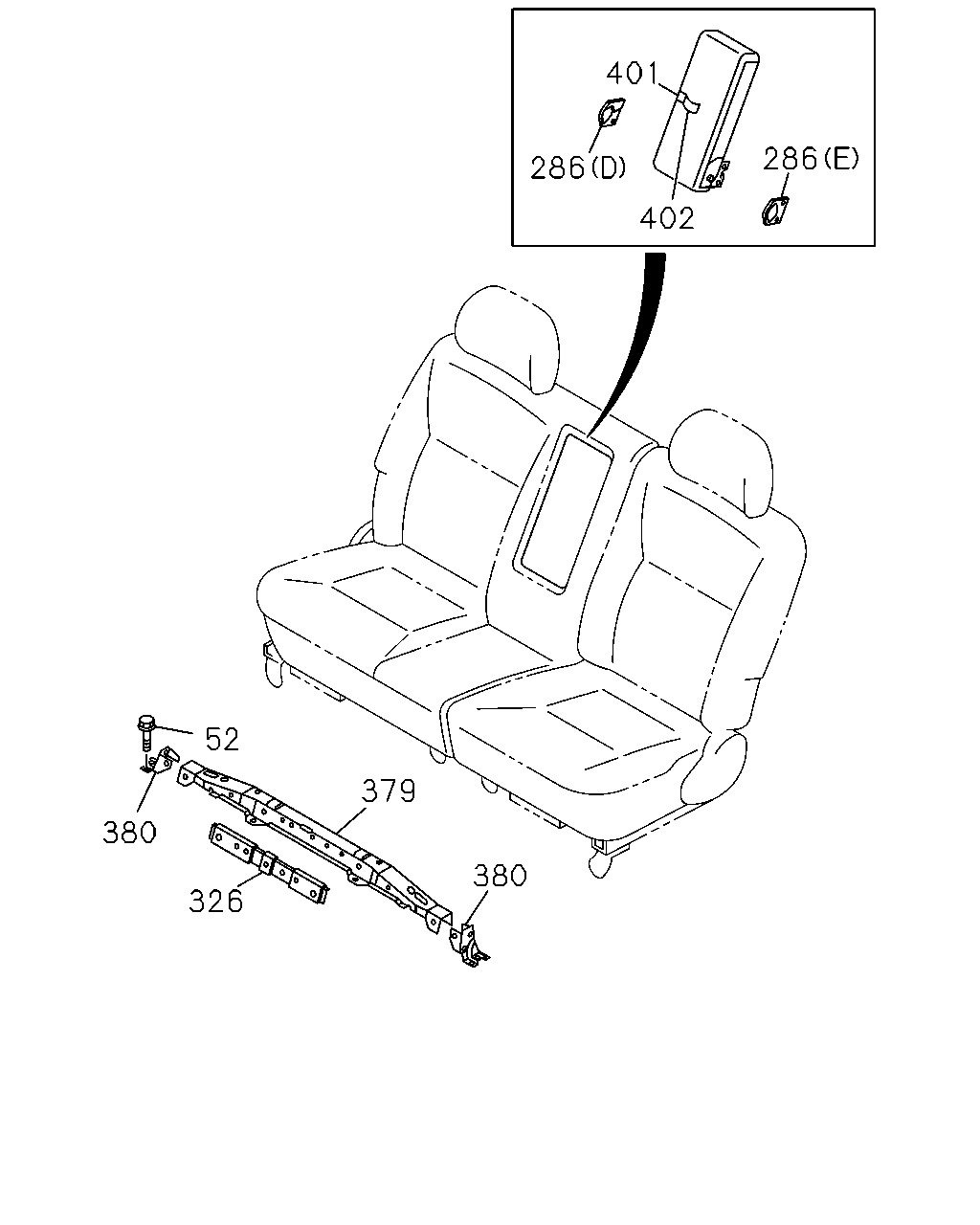

326 REINFORCEMENT; RR SEAT 8-97359-986-0 01 1 0503-0606
326 REINFORCEMENT; RR SEAT 8-98032-249-0 01 1 0607-
379 RISER; RR SEAT,FRT 8-97359-959-1 01 1 0503-0606
379 RISER; RR SEAT,FRT 8-98030-675-0 01 1 0607-
380 RISER; RR SEAT,SIDE 8-97359-966-0 01 1 0503-
380 RISER; RR SEAT,SIDE 8-97359-965-0 01 1 0503-
385 RECLINING; ADJ,RR SEAT
(A) 		8-97373-258-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) 		8-98038-161-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(C) 		8-98038-161-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(B) 		8-97373-260-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) 		8-98038-203-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(F) 		8-98038-203-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(A) 		8-97373-257-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) 		8-98038-160-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(D) 		8-98038-160-1 01 1 1108-
385 RECLINING; ADJ,RR SEAT
(B) 		8-97373-259-1 01 1 0503-0606
385 RECLINING; ADJ,RR SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) 		8-98038-201-1 01 1 0607-1107
385 RECLINING; ADJ,RR SEAT
(E) 		8-98038-201-1 01 1 1108-
386 SHAFT ASM; CONNECT 2ND RECLINING
4X2(UCB***) 		8-97373-271-0 01 1 0503-0505
386 SHAFT ASM; CONNECT 2ND RECLINING
4X2(UCB***) 		8-97373-271-0 01 1 0503-0505
386 SHAFT ASM; CONNECT 2ND RECLINING 8-97373-271-0 02 1 0506-0606
386 SHAFT ASM; CONNECT 2ND RECLINING
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-163-0 01 1 0607-1107
386 SHAFT ASM; CONNECT 2ND RECLINING 8-98038-163-0 01 1 1108-
387 SHAFT ASM; CONNECT 2ND CUSHION
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-210-0 01 1 0607-1107
387 SHAFT ASM; CONNECT 2ND CUSHION 8-98038-210-0 01 1 1108-
387 SHAFT ASM; CONNECT 2ND CUSHION
4X2(UCB***) 		8-97373-286-0 01 1 0503-0505
387 SHAFT ASM; CONNECT 2ND CUSHION
4X2(UCB***) 		8-97373-286-0 01 1 0503-0505
387 SHAFT ASM; CONNECT 2ND CUSHION 8-97373-286-0 02 1 0506-0606
387 SHAFT ASM; CONNECT 2ND CUSHION
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-197-0 01 1 0607-1107
387 SHAFT ASM; CONNECT 2ND CUSHION 8-98038-197-0 01 1 1108-
390 CABLE; LOCK 8-97379-577-0 01 1 0503-0606

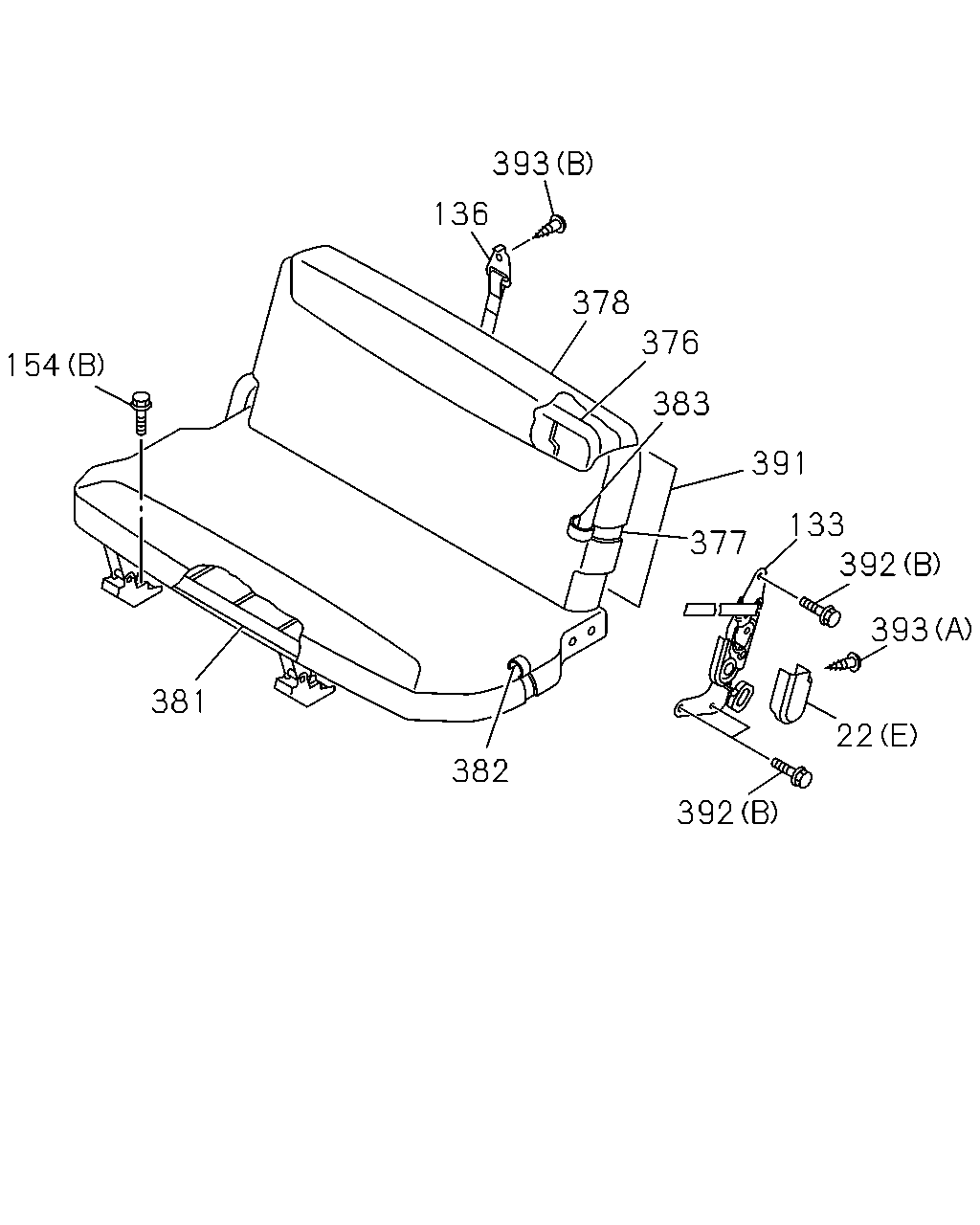

çizim 118745
393 136 378 376 154 383 391 133 392 377 393 381 22 382 392
BalonParca AdiParca NoAdetTipApplied Date
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-996-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-997-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) OUTER 		8-97422-966-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) INNER 		8-97422-967-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-968-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (G) 		8-97422-969-1 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-970-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-972-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (F) 		8-97422-973-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) 		8-97422-984-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-985-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-986-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-988-3 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-064-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-065-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-068-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-024-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-051-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-052-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-055-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-023-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-082-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-082-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-081-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-081-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 1108-
133 RECLINING; ADJ,RR SEAT,3RD
4X2(UCB***) 		8-97373-300-1 01 1 0503-0508
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-300-1 01 1 0509-0606
133 RECLINING; ADJ,RR SEAT,3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-300-1 01 1 0607-1107
133 RECLINING; ADJ,RR SEAT,3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-300-1 01 1 1108-1110
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-300-1 01 1 1111-
133 RECLINING; ADJ,RR SEAT,3RD
4X2(UCB***) 		8-97373-299-0 01 1 0503-0508
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-299-0 01 1 0509-0606
133 RECLINING; ADJ,RR SEAT,3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-299-0 01 1 0607-1107
133 RECLINING; ADJ,RR SEAT,3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-299-0 01 1 1108-1110
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-299-0 01 1 1111-
136 BAND; 3RD SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-998-0 01 1 1108-
136 BAND; 3RD SEAT BACK
4X2(UCB***) LIGHT GRAY 		8-97404-026-0 01 1 0503-0508
136 BAND; 3RD SEAT BACK
LIGHT GRAY 		8-97404-026-0 01 1 0509-0606
136 BAND; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-032-0 01 1 0607-1107
136 BAND; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-032-0 01 1 1108-
154 BOLT; STRIKER TO FLOOR
(B) 		8-97248-987-0 02 1 0503-0612
154 BOLT; STRIKER TO FLOOR
(B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0701-0801
154 BOLT; STRIKER TO FLOOR
(B) 		8-98113-379-0 02 1 0802-
154 BOLT; STRIKER TO FLOOR
4X2(UCB***) (A) M10X30 FLANGE 		0-28691-030-0 02 1 0503-0508
154 BOLT; STRIKER TO FLOOR
(A) M10X30 FLANGE 		0-28691-030-0 02 1 0509-0601
154 BOLT; STRIKER TO FLOOR
(A) M10X30 FLANGE 		0-28661-030-0 02 1 0602-
376 FRAME ASM; 3RD SEAT BACK
4X2(UCB***) 		8-97373-304-1 01 1 0503-0508
376 FRAME ASM; 3RD SEAT BACK 8-98020-904-0 01 1 0509-0606
376 FRAME ASM; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-904-0 01 1 0607-1107
376 FRAME ASM; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-904-0 01 1 1108-1110
376 FRAME ASM; 3RD SEAT BACK 8-98020-904-0 01 1 1111-
377 PAD; 3RD SEAT BACK
4X2(UCB***) 		8-97373-306-1 01 1 0503-0508
377 PAD; 3RD SEAT BACK 8-98020-905-0 01 1 0509-0606
377 PAD; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-905-0 01 1 0607-1107
377 PAD; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-905-0 01 1 1108-1110
377 PAD; 3RD SEAT BACK 8-98020-905-0 01 1 1111-
378 COVER; TRIM,3RD SEAT BACK
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-037-0 01 1 0607-1107
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-037-0 01 1 1108-
378 COVER; TRIM,3RD SEAT BACK
4X2(UCB***) LIGHT GRAY 		8-97399-080-4 01 1 0503-0508
378 COVER; TRIM,3RD SEAT BACK
LIGHT GRAY 		8-97404-781-1 01 1 0509-0606
378 COVER; TRIM,3RD SEAT BACK
LEATHER SEAT<6TB> BEIGE 		8-97407-021-0 01 1 0607-1107
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-021-0 01 1 1108-
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-479-0 01 1 1108-
381 FRAME; CUSHION 3RD
4X2(UCB***) 		8-97373-305-2 01 1 0503-0508
381 FRAME; CUSHION 3RD 8-98014-348-0 01 1 0509-0606
381 FRAME; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-348-0 01 1 0607-0801
381 FRAME; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98113-363-0 01 1 0802-1107
381 FRAME; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98113-363-0 01 1 1108-1110
381 FRAME; CUSHION 3RD 8-98113-363-0 01 1 1111-
382 PAD; CUSHION 3RD
4X2(UCB***) 		8-97373-307-1 01 1 0503-0508
382 PAD; CUSHION 3RD 8-98014-353-0 01 1 0509-0606
382 PAD; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-353-0 01 1 0607-1107
382 PAD; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-353-0 01 1 1108-1110
382 PAD; CUSHION 3RD 8-98014-353-0 01 1 1111-
383 TRIM; CUSHION 3RD
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-480-0 01 1 1108-
383 TRIM; CUSHION 3RD
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-033-0 01 1 0607-0801
383 TRIM; CUSHION 3RD
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97415-689-0 01 1 0802-1107
383 TRIM; CUSHION 3RD
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97415-689-0 01 1 1108-
383 TRIM; CUSHION 3RD
4X2(UCB***) LIGHT GRAY 		8-97400-563-1 01 1 0503-0508
383 TRIM; CUSHION 3RD
LIGHT GRAY 		8-97404-560-0 01 1 0509-0606
383 TRIM; CUSHION 3RD
LEATHER SEAT<6TB> BEIGE 		8-97407-018-0 01 1 0607-0801
383 TRIM; CUSHION 3RD
LEATHER SEAT<6TB> BEIGE 		8-97415-691-0 01 1 0802-1107
383 TRIM; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97415-691-0 01 1 1108-
391 BOARD; 3RD SEAT BACK
4X2(UCB***) 		8-97383-511-0 01 1 0503-0508
391 BOARD; 3RD SEAT BACK 8-97383-511-0 01 1 0509-0606
391 BOARD; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-511-0 01 1 0607-1107
391 BOARD; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-511-0 01 1 1108-1110
391 BOARD; 3RD SEAT BACK 8-97383-511-0 01 1 1111-
392 BOLT; 3RD SEAT
(B) 		8-98003-805-0 04 1 0503-
392 BOLT; 3RD SEAT
(B) 		8-98003-805-0 04 1 0503-
392 BOLT; 3RD SEAT
(A) 		8-98003-871-0 02 1 0503-
393 SCREW; 3RD SEAT
(A) 		8-98003-863-0 02 1 0503-
393 SCREW; 3RD SEAT
(B) 		8-98003-867-0 01 1 0503-
çizim 118754
393 400 136 91 268 319 400 154 376 392 378 232 383 133 392 377 391 393 382 381 395 22 395 392 394 395 154 370 325
BalonParca AdiParca NoAdetTipApplied Date
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-996-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) BLACK 		8-97422-997-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) OUTER 		8-97422-966-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) INNER 		8-97422-967-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-968-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (G) 		8-97422-969-1 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-970-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-972-3 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (F) 		8-97422-973-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) 		8-97422-984-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-985-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (C) 		8-97422-986-0 01 1 1108-
22 COVER; RECLINING ADJ
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-988-3 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-064-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-812-0 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-065-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97404-813-0 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-068-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97404-817-3 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-024-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) INNER BEIGE 		8-97407-116-0 01 1 1108-
22 COVER; RECLINING ADJ
(A) LIGHT GRAY 		8-97399-051-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-030-3 01 1 1108-
22 COVER; RECLINING ADJ
(B) LIGHT GRAY 		8-97399-052-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97406-031-3 01 1 1108-
22 COVER; RECLINING ADJ
(D) LIGHT GRAY 		8-97399-055-3 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97404-811-0 01 1 1108-
22 COVER; RECLINING ADJ
(C) LIGHT GRAY 		8-97404-023-0 01 1 0503-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE 		8-97407-114-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE 		8-97407-117-1 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE 		8-97407-118-0 01 1 1108-
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-119-3 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-082-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-082-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97407-113-0 01 1 1108-
22 COVER; RECLINING ADJ
4X2(UCB***) (E) LIGHT GRAY 		8-97399-081-3 01 1 0503-0508
22 COVER; RECLINING ADJ
(E) LIGHT GRAY 		8-97399-081-3 01 1 0509-0606
22 COVER; RECLINING ADJ
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 0607-1107
22 COVER; RECLINING ADJ
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) OUTER BEIGE 		8-97407-112-0 01 1 1108-
91 COVER; RR SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-941-1 01 1 1108-
91 COVER; RR SEAT BACK
4X2(UCB***) LIGHT GRAY 		8-97400-564-1 01 1 0503-0508
91 COVER; RR SEAT BACK
LIGHT GRAY 		8-97400-564-1 01 1 0509-0606
91 COVER; RR SEAT BACK
BEIGE 		8-97404-673-1 01 1 0607-1107
91 COVER; RR SEAT BACK
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-673-1 01 1 1108-
133 RECLINING; ADJ,RR SEAT,3RD
4X2(UCB***) 		8-97373-300-1 01 1 0503-0508
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-300-1 01 1 0509-0606
133 RECLINING; ADJ,RR SEAT,3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-300-1 01 1 0607-1107
133 RECLINING; ADJ,RR SEAT,3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-300-1 01 1 1108-1110
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-300-1 01 1 1111-
133 RECLINING; ADJ,RR SEAT,3RD
4X2(UCB***) 		8-97373-299-0 01 1 0503-0508
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-299-0 01 1 0509-0606
133 RECLINING; ADJ,RR SEAT,3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-299-0 01 1 0607-1107
133 RECLINING; ADJ,RR SEAT,3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97373-299-0 01 1 1108-1110
133 RECLINING; ADJ,RR SEAT,3RD 8-97373-299-0 01 1 1111-
136 BAND; 3RD SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-998-0 01 1 1108-
136 BAND; 3RD SEAT BACK
4X2(UCB***) LIGHT GRAY 		8-97404-026-0 01 1 0503-0508
136 BAND; 3RD SEAT BACK
LIGHT GRAY 		8-97404-026-0 01 1 0509-0606
136 BAND; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-032-0 01 1 0607-1107
136 BAND; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-032-0 01 1 1108-
154 BOLT; STRIKER TO FLOOR
(B) 		8-97248-987-0 02 1 0503-0612
154 BOLT; STRIKER TO FLOOR
(B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0701-0801
154 BOLT; STRIKER TO FLOOR
(B) 		8-98113-379-0 02 1 0802-
154 BOLT; STRIKER TO FLOOR
4X2(UCB***) (A) M10X30 FLANGE 		0-28691-030-0 02 1 0503-0508
154 BOLT; STRIKER TO FLOOR
(A) M10X30 FLANGE 		0-28691-030-0 02 1 0509-0601
154 BOLT; STRIKER TO FLOOR
(A) M10X30 FLANGE 		0-28661-030-0 02 1 0602-
232 SCREW; RR SEAT
(A) 		8-98003-863-0 10 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 04 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 01 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 02 1 0503-0606
232 SCREW; RR SEAT
(A) 		8-98003-863-0 02 1 0503-0606
232 SCREW; RR SEAT
4X2(UCB***) (B) M5X14 TAPPING 		1-72548-072-0 02 1 0503-0507
232 SCREW; RR SEAT
4X2(UCB***) (B) M5X10 		9-93497-510-0 02 1 0508-0508
232 SCREW; RR SEAT
(B) M5X10 		9-93497-510-0 02 1 0509-0605
232 SCREW; RR SEAT
(B) M5X10 		0-34218-510-0 02 1 0606-
268 KNOB; FLOOR LOCK
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-942-0 01 1 1108-
268 KNOB; FLOOR LOCK
4X2(UCB***) LIGHT GRAY 		8-97403-934-0 01 1 0503-0508
268 KNOB; FLOOR LOCK
LIGHT GRAY 		8-97403-934-0 01 1 0509-0606
268 KNOB; FLOOR LOCK
BEIGE 		8-97404-674-0 01 1 0607-1107
268 KNOB; FLOOR LOCK
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-674-0 01 1 1108-
319 LOCK; SEAT
4X2(UCB***) 		8-97383-446-3 01 1 0503-0508
319 LOCK; SEAT 8-97383-446-3 01 1 0509-0606
319 LOCK; SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-446-3 01 1 0607-1107
319 LOCK; SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-446-3 01 1 1108-1110
319 LOCK; SEAT 8-97383-446-3 01 1 1111-
325 PLUG; RR SEAT
4X2(UCB***) OD=25 BLACK 		1-76798-019-0 01 1 0503-0508
325 PLUG; RR SEAT
OD=25 BLACK 		1-76798-019-0 01 1 0509-
370 STRIKER; SEAT
4X2(UCB***) 		8-97354-544-1 01 1 0503-0508
370 STRIKER; SEAT 8-97354-544-1 01 1 0509-
376 FRAME ASM; 3RD SEAT BACK
4X2(UCB***) 		8-97373-304-1 01 1 0503-0508
376 FRAME ASM; 3RD SEAT BACK 8-98020-904-0 01 1 0509-0606
376 FRAME ASM; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-904-0 01 1 0607-1107
376 FRAME ASM; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-904-0 01 1 1108-1110
376 FRAME ASM; 3RD SEAT BACK 8-98020-904-0 01 1 1111-
377 PAD; 3RD SEAT BACK
4X2(UCB***) 		8-97373-306-1 01 1 0503-0508
377 PAD; 3RD SEAT BACK 8-98020-905-0 01 1 0509-0606
377 PAD; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-905-0 01 1 0607-1107
377 PAD; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98020-905-0 01 1 1108-1110
377 PAD; 3RD SEAT BACK 8-98020-905-0 01 1 1111-
378 COVER; TRIM,3RD SEAT BACK
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-037-0 01 1 0607-1107
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-037-0 01 1 1108-
378 COVER; TRIM,3RD SEAT BACK
4X2(UCB***) LIGHT GRAY 		8-97399-080-4 01 1 0503-0508
378 COVER; TRIM,3RD SEAT BACK
LIGHT GRAY 		8-97404-781-1 01 1 0509-0606
378 COVER; TRIM,3RD SEAT BACK
LEATHER SEAT<6TB> BEIGE 		8-97407-021-0 01 1 0607-1107
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-021-0 01 1 1108-
378 COVER; TRIM,3RD SEAT BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-479-0 01 1 1108-
381 FRAME; CUSHION 3RD
4X2(UCB***) 		8-97373-305-2 01 1 0503-0508
381 FRAME; CUSHION 3RD 8-98014-348-0 01 1 0509-0606
381 FRAME; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-348-0 01 1 0607-0801
381 FRAME; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98113-363-0 01 1 0802-1107
381 FRAME; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98113-363-0 01 1 1108-1110
381 FRAME; CUSHION 3RD 8-98113-363-0 01 1 1111-
382 PAD; CUSHION 3RD
4X2(UCB***) 		8-97373-307-1 01 1 0503-0508
382 PAD; CUSHION 3RD 8-98014-353-0 01 1 0509-0606
382 PAD; CUSHION 3RD
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-353-0 01 1 0607-1107
382 PAD; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98014-353-0 01 1 1108-1110
382 PAD; CUSHION 3RD 8-98014-353-0 01 1 1111-
383 TRIM; CUSHION 3RD
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-480-0 01 1 1108-
383 TRIM; CUSHION 3RD
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-033-0 01 1 0607-0801
383 TRIM; CUSHION 3RD
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97415-689-0 01 1 0802-1107
383 TRIM; CUSHION 3RD
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97415-689-0 01 1 1108-
383 TRIM; CUSHION 3RD
4X2(UCB***) LIGHT GRAY 		8-97400-563-1 01 1 0503-0508
383 TRIM; CUSHION 3RD
LIGHT GRAY 		8-97404-560-0 01 1 0509-0606
383 TRIM; CUSHION 3RD
LEATHER SEAT<6TB> BEIGE 		8-97407-018-0 01 1 0607-0801
383 TRIM; CUSHION 3RD
LEATHER SEAT<6TB> BEIGE 		8-97415-691-0 01 1 0802-1107
383 TRIM; CUSHION 3RD
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97415-691-0 01 1 1108-
391 BOARD; 3RD SEAT BACK
4X2(UCB***) 		8-97383-511-0 01 1 0503-0508
391 BOARD; 3RD SEAT BACK 8-97383-511-0 01 1 0509-0606
391 BOARD; 3RD SEAT BACK
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-511-0 01 1 0607-1107
391 BOARD; 3RD SEAT BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97383-511-0 01 1 1108-1110
391 BOARD; 3RD SEAT BACK 8-97383-511-0 01 1 1111-
392 BOLT; 3RD SEAT
(B) 		8-98003-805-0 04 1 0503-
392 BOLT; 3RD SEAT
(B) 		8-98003-805-0 04 1 0503-
392 BOLT; 3RD SEAT
(A) 		8-98003-871-0 02 1 0503-
393 SCREW; 3RD SEAT
(A) 		8-98003-863-0 02 1 0503-
393 SCREW; 3RD SEAT
(B) 		8-98003-867-0 01 1 0503-
394 RUBBER; 3RD SEAT
4X2(UCB***) 		8-98002-196-0 02 1 0503-0508
394 RUBBER; 3RD SEAT 8-98002-196-0 02 1 0509-0606
394 RUBBER; 3RD SEAT
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98002-196-0 02 1 0607-1107
394 RUBBER; 3RD SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98002-196-0 02 1 1108-1110
394 RUBBER; 3RD SEAT 8-98002-196-0 02 1 1111-
395 COVER; 3RD SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) (A) 		8-97422-938-0 01 1 1108-
395 COVER; 3RD SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LOWER 		8-97422-939-0 01 1 1108-
395 COVER; 3RD SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) (A) UPPER 		8-97422-940-0 01 1 1108-
395 COVER; 3RD SEAT
(A) LOWER LIGHT GRAY 		8-97404-295-0 01 1 0509-0606
395 COVER; 3RD SEAT
(A) LOWER BEIGE 		8-97404-969-0 01 1 0607-1107
395 COVER; 3RD SEAT
INTERIOR COLOR BEIGE(184) (A) LOWER BEIGE 		8-97404-969-0 01 1 1108-
395 COVER; 3RD SEAT
(B) UPPER LIGHT GRAY 		8-97404-296-0 01 1 0509-0606
395 COVER; 3RD SEAT
(B) UPPER BEIGE 		8-97404-970-0 01 1 0607-1107
395 COVER; 3RD SEAT
INTERIOR COLOR BEIGE(184) (B) UPPER BEIGE 		8-97404-970-0 01 1 1108-
395 COVER; 3RD SEAT
(A) LIGHT GRAY 		8-97404-294-0 01 1 0509-0606
395 COVER; 3RD SEAT
(A) BEIGE 		8-97404-968-0 01 1 0607-1107
395 COVER; 3RD SEAT
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-968-0 01 1 1108-
400 REST; HD,3RD SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-001-0 02 1 1108-
400 REST; HD,3RD SEAT
LIGHT GRAY 		8-97404-782-1 02 1 0509-0606
400 REST; HD,3RD SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-019-0 02 1 0607-1107
400 REST; HD,3RD SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-019-0 02 1 1108-
400 REST; HD,3RD SEAT
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-035-0 02 1 0607-1107
400 REST; HD,3RD SEAT
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-035-0 02 1 1108-
çizim 118756
401 286 286 402 52 379 380 380 326
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; RR SEAT
M8X16 FLANGE 		0-28080-816-0 07 1 0503-0601
52 BOLT; RR SEAT
M8X16 FLANGE 		0-28050-816-0 07 1 0602-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (E) 		8-97422-974-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (D) 		8-97422-975-0 01 1 1108-
286 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) 		8-97422-989-1 01 1 1108-
286 COVER; HINGE
(C) LIGHT GRAY 		8-97399-075-0 01 1 0503-0606
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-069-3 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE 		8-97407-870-0 01 1 1108-
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-070-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97404-815-1 01 1 1108-
286 COVER; HINGE
(A) LIGHT GRAY 		8-97399-056-3 01 1 0503-0606
286 COVER; HINGE
(B) LIGHT GRAY 		8-97399-057-1 01 1 0503-0606
286 COVER; HINGE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 0607-1107
286 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE 		8-97407-869-0 01 1 1108-
326 REINFORCEMENT; RR SEAT 8-97359-986-0 01 1 0503-0606
326 REINFORCEMENT; RR SEAT 8-98032-249-0 01 1 0607-
379 RISER; RR SEAT,FRT 8-97359-959-1 01 1 0503-0606
379 RISER; RR SEAT,FRT 8-98030-675-0 01 1 0607-
380 RISER; RR SEAT,SIDE 8-97359-966-0 01 1 0503-
380 RISER; RR SEAT,SIDE 8-97359-965-0 01 1 0503-
401 PAD & FRAME ASM; ARM REST
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-98038-947-1 01 1 0607-1107
401 PAD & FRAME ASM; ARM REST 8-98038-947-1 01 1 1108-
402 TRIM COVER; ARM REST
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> 		8-97422-965-1 01 1 1108-
402 TRIM COVER; ARM REST
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-121-1 01 1 0607-1107
402 TRIM COVER; ARM REST
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-121-1 01 1 1108-
402 TRIM COVER; ARM REST
LEATHER SEAT<6TB> BEIGE 		8-97407-124-1 01 1 0607-1107
402 TRIM COVER; ARM REST
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-124-1 01 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
