8-05 — INTERIOR LAMP (#7508) — 108 parça

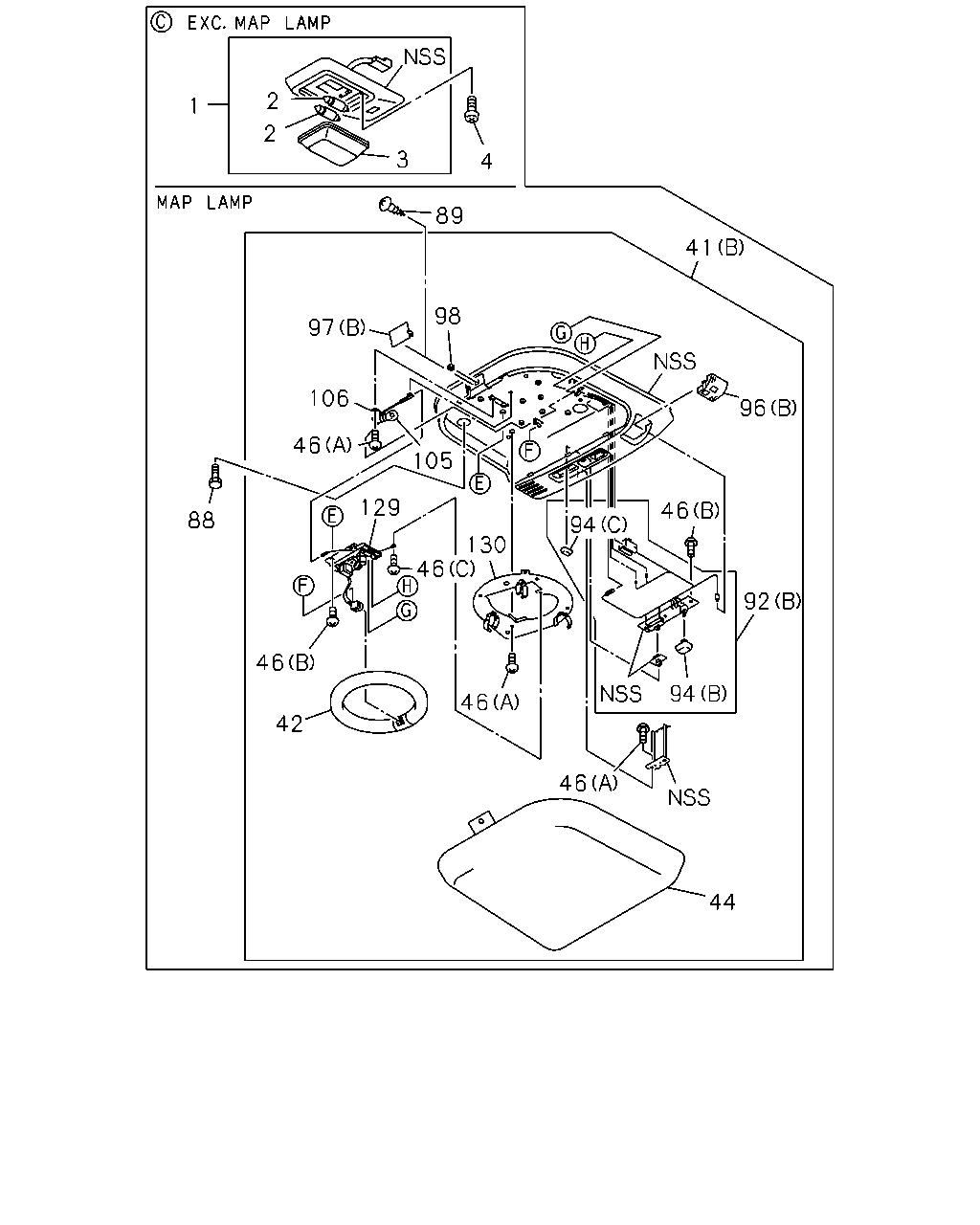

2 1 2 3 4 89 41 98 97 106 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM EXC. MAP LAMP<C85> TAI	1-82140-050-1	01	1	0611-	●	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W TAI	1-82195-001-0	02	1	0611-	●	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85> TAI	1-82145-020-0	01	1	0611-	●	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0611-	●	●
41	LAMP ASM; FLUORESCENT (A)	1-86830-305-2	01	1	9811-9906	●	●
41	LAMP ASM; FLUORESCENT (B)	1-86830-315-2	01	1	9907-0610	●	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-315-2	01	1	0611-	●	●
42	LAMP; FLUORESCENT TAI	1-86830-094-1	01	1	9811-0610	●	●
42	LAMP; FLUORESCENT MAP LAMP<C85> TAI	1-86830-094-1	01	1	0611-	●	●
44	LENS; FLUORESCENT LAMP TAI	1-86830-092-0	01	1	9811-0610	●	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85> TAI	1-86830-092-0	01	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING TAI	1-86830-095-0	04	1	9811-9906	●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12 TAI	1-86830-202-0	02	1	9811-9906	●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING TAI	1-86830-095-0	08	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING TAI	1-86830-095-0	08	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12 TAI	1-86830-202-0	07	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12 TAI	1-86830-202-0	07	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING TAI	1-86830-336-0	01	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING TAI	1-86830-336-0	01	1	0611-	●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER TAI	1-09980-574-0	04	1	9811-0610	●	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER TAI	1-09980-574-0	04	1	0611-	●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9811-0603	●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	0-71240-510-0	01	1	0604-0610	●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0611-	●	●
92	SWITCH ASM; FLUORESCENT (A)	1-86830-204-0	01	1	9811-9811	●	●
92	SWITCH ASM; FLUORESCENT (A)	1-86830-306-0	01	1	9812-9906	●	●
92	SWITCH ASM; FLUORESCENT (B) TAI	1-86830-341-0	01	1	9907-0610	●	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85> (B) TAI	1-86830-341-0	01	1	0611-	●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-304-0	01	1	9811-9906	●	●
94	KNOB; ROOM LAMP SW (B) TAI	1-86830-312-0	01	1	9907-0610	●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B) TAI	1-86830-312-0	01	1	0611-	●	●
94	KNOB; ROOM LAMP SW (C) TAI	1-86830-313-0	01	1	9907-0610	●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (C) TAI	1-86830-313-0	01	1	0611-	●	●
96	CAP; SPOT LAMP (A)	1-86830-282-0	01	1	9811-9906	●	●
96	CAP; SPOT LAMP (B)	1-86830-337-0	01	1	9907-0610	●	●
96	CAP; SPOT LAMP MAP LAMP<C85> (B)	1-86830-337-0	01	1	0611-	●	●
97	CAP; LENS FIX (A)	1-86830-101-0	01	1	9811-9906	●	●
97	CAP; LENS FIX (B) TAI	1-86830-311-0	01	1	9907-0610	●	●
97	CAP; LENS FIX MAP LAMP<C85> (B) TAI	1-86830-311-0	01	1	0611-	●	●
98	GROMMET; SCREW,LENS FIX TAI	1-86830-102-0	01	1	9811-0610	●	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85> TAI	1-86830-102-0	01	1	0611-	●	●
105	BULB; FLUORESCENT LAMP 28V 20W TAI	1-86830-200-0	01	1	9811-0610	●	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W TAI	1-86830-200-0	01	1	0611-	●	●
106	SOCKET; BULB TAI	1-86830-201-0	01	1	9811-0610	●	●
106	SOCKET; BULB MAP LAMP<C85> TAI	1-86830-201-0	01	1	0611-	●	●
129	INVERTER ASM; FLUORESCENT LAMP TAI	1-86830-338-0	01	1	9907-0610	●	●
129	INVERTER ASM; FLUORESCENT LAMP MAP LAMP<C85> TAI	1-86830-338-0	01	1	0611-	●	●
130	PLATE ASM; FLUORESCENT LAMP TAI	1-86830-339-0	01	1	9907-0610	●	●
130	PLATE ASM; FLUORESCENT LAMP MAP LAMP<C85> TAI	1-86830-339-0	01	1	0611-	●	●

41 88 89 90 98 97 91 52 95 94 42 96 92 105 106 46 46 44 2 2 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM EXC. MAP LAMP<C85> TAI	1-82140-050-1	01	1	0611-	●	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W TAI	1-82195-001-0	02	1	0611-	●	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85> TAI	1-82145-020-0	01	1	0611-	●	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0611-	●	●
41	LAMP ASM; FLUORESCENT (A)	1-86830-305-2	01	1	9811-9906	●	●
41	LAMP ASM; FLUORESCENT (B)	1-86830-315-2	01	1	9907-0610	●	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-315-2	01	1	0611-	●	●
42	LAMP; FLUORESCENT TAI	1-86830-094-1	01	1	9811-0610	●	●
42	LAMP; FLUORESCENT MAP LAMP<C85> TAI	1-86830-094-1	01	1	0611-	●	●
44	LENS; FLUORESCENT LAMP TAI	1-86830-092-0	01	1	9811-0610	●	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85> TAI	1-86830-092-0	01	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING TAI	1-86830-095-0	04	1	9811-9906	●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12 TAI	1-86830-202-0	02	1	9811-9906	●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING TAI	1-86830-095-0	08	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING TAI	1-86830-095-0	08	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12 TAI	1-86830-202-0	07	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12 TAI	1-86830-202-0	07	1	0611-	●	●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING TAI	1-86830-336-0	01	1	9907-0610	●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING TAI	1-86830-336-0	01	1	0611-	●	●
52	BULB; SPOT LAMP 28V 6W TAI	1-86830-090-0	01	1	9811-9906	●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER TAI	1-09980-574-0	04	1	9811-0610	●	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER TAI	1-09980-574-0	04	1	0611-	●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9811-0603	●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	0-71240-510-0	01	1	0604-0610	●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0611-	●	●
90	BASE; LAMP (B)	1-79998-976-1	01	1	0611-0702	●
90	BASE; LAMP (B)	1-79998-977-1	01	1	0611-0702	●
90	BASE; LAMP (A) TAI	1-86830-091-0	01	1	9811-9906	●	●
91	LAMP SUB ASM; FLUORESCENT	1-86830-207-0	01	1	9811-9906	●	●
92	SWITCH ASM; FLUORESCENT (A)	1-86830-204-0	01	1	9811-9811	●	●
92	SWITCH ASM; FLUORESCENT (A)	1-86830-306-0	01	1	9812-9906	●	●
92	SWITCH ASM; FLUORESCENT (B) TAI	1-86830-341-0	01	1	9907-0610	●	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85> (B) TAI	1-86830-341-0	01	1	0611-	●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-304-0	01	1	9811-9906	●	●
94	KNOB; ROOM LAMP SW (B) TAI	1-86830-312-0	01	1	9907-0610	●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B) TAI	1-86830-312-0	01	1	0611-	●	●
94	KNOB; ROOM LAMP SW (C) TAI	1-86830-313-0	01	1	9907-0610	●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (C) TAI	1-86830-313-0	01	1	0611-	●	●
95	KNOB; SPOT LAMP SW	1-86830-099-0	01	1	9811-9906	●	●
96	CAP; SPOT LAMP (A)	1-86830-282-0	01	1	9811-9906	●	●
96	CAP; SPOT LAMP (B)	1-86830-337-0	01	1	9907-0610	●	●
96	CAP; SPOT LAMP MAP LAMP<C85> (B)	1-86830-337-0	01	1	0611-	●	●
97	CAP; LENS FIX (A)	1-86830-101-0	01	1	9811-9906	●	●
97	CAP; LENS FIX (B) TAI	1-86830-311-0	01	1	9907-0610	●	●
97	CAP; LENS FIX MAP LAMP<C85> (B) TAI	1-86830-311-0	01	1	0611-	●	●
98	GROMMET; SCREW,LENS FIX TAI	1-86830-102-0	01	1	9811-0610	●	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85> TAI	1-86830-102-0	01	1	0611-	●	●
105	BULB; FLUORESCENT LAMP 28V 20W TAI	1-86830-200-0	01	1	9811-0610	●	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W TAI	1-86830-200-0	01	1	0611-	●	●
106	SOCKET; BULB TAI	1-86830-201-0	01	1	9811-0610	●	●
106	SOCKET; BULB MAP LAMP<C85> TAI	1-86830-201-0	01	1	0611-	●	●

34 35 38 45 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	COVER; STEP LAMP	1-79998-925-0	02	1	9811-	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9811-0604	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74360-420-0	04	1	0605-	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9811-	●	●
45	SCREW; BASE FIX M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0611-0702	●
90	BASE; LAMP (B)	1-79998-976-1	01	1	0611-0702	●
90	BASE; LAMP (B)	1-79998-977-1	01	1	0611-0702	●
90	BASE; LAMP (A) TAI	1-86830-091-0	01	1	9811-9906	●	●
