7-50 — FRONT SEAT (#75079) — 110 parça

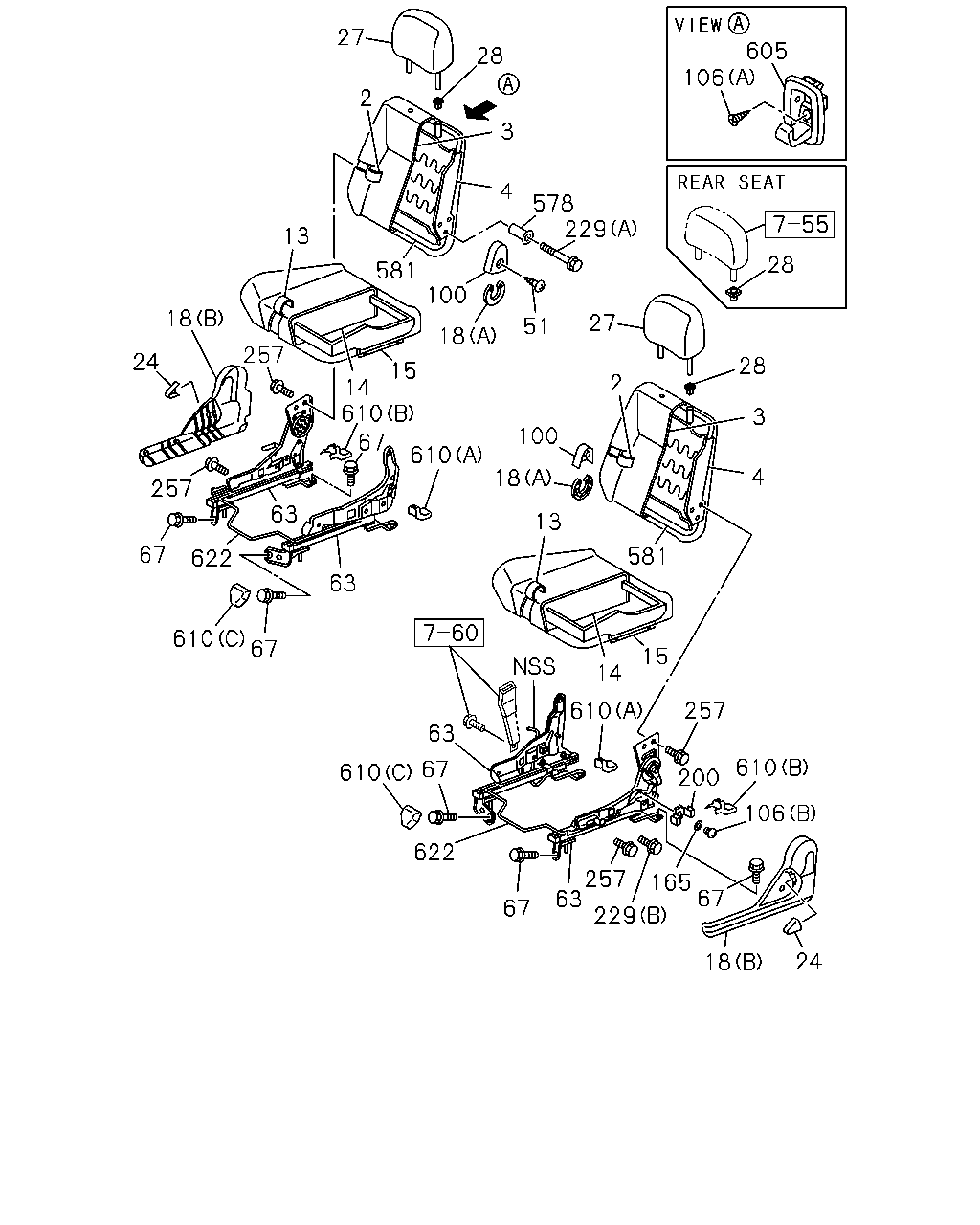

çizim 118663
27 605 28 106 2 3 4 578 229 13 28 581 100 18 27 51 18 257 24 28 15 2 14 610 3 100 67 610 4 18 257 63 13 67 581 622 63 610 67 15 14 257 610 63 610 67 610 200 106 622 257 63 165 67 67 229 24 18
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-476-0 01 1 1108-
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97423-477-0 01 1 1108-
2 COVER; TRIM,FRT SEAT,BACK
LIGHT GRAY 		8-97400-936-1 01 1 0503-0606
2 COVER; TRIM,FRT SEAT,BACK
LEATHER SEAT<6TB> BEIGE 		8-97407-015-0 01 1 0607-1107
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-015-0 01 1 1108-
2 COVER; TRIM,FRT SEAT,BACK
LIGHT GRAY 		8-97400-935-1 01 1 0503-0606
2 COVER; TRIM,FRT SEAT,BACK
LEATHER SEAT<6TB> BEIGE 		8-97407-012-0 01 1 0607-1107
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-012-0 01 1 1108-
2 COVER; TRIM,FRT SEAT,BACK
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-019-0 01 1 0607-1107
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-019-0 01 1 1108-
2 COVER; TRIM,FRT SEAT,BACK
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-027-0 01 1 0607-1107
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-027-0 01 1 1108-
3 PAD; FRT SEAT BACK 8-97372-751-2 01 1 0503-
3 PAD; FRT SEAT BACK 8-97386-389-1 01 1 0503-
4 FRAME ASM; FRT SEAT 8-97372-210-1 01 1 0503-
4 FRAME ASM; FRT SEAT 8-97386-390-1 01 1 0503-
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97422-955-0 01 1 1108-
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97422-960-0 01 1 1108-
13 COVER; TRIM,FRT SEAT,CUSHION
LIGHT GRAY 		8-97399-042-1 01 1 0503-0606
13 COVER; TRIM,FRT SEAT,CUSHION
LEATHER SEAT<6TB> BEIGE 		8-97407-013-0 01 1 0607-1107
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-013-0 01 1 1108-
13 COVER; TRIM,FRT SEAT,CUSHION
LIGHT GRAY 		8-97399-033-1 01 1 0503-0606
13 COVER; TRIM,FRT SEAT,CUSHION
LEATHER SEAT<6TB> BEIGE 		8-97407-009-0 01 1 0607-1107
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-009-0 01 1 1108-
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-020-0 01 1 0607-1107
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-020-0 01 1 1108-
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-011-0 01 1 0607-1107
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-011-0 01 1 1108-
14 PAD; FRT SEAT CUSHION 8-97372-749-0 01 1 0503-
14 PAD; FRT SEAT CUSHION 8-97372-748-0 01 1 0503-
15 FRAME; CUSHION,FRT SEAT 8-97372-206-0 01 1 0503-
15 FRAME; CUSHION,FRT SEAT 8-97372-205-0 01 1 0503-
18 COVER; RECLINING
(B) LIGHT GRAY 		8-97399-044-1 01 1 0503-0606
18 COVER; RECLINING
(B) BEIGE 		8-97406-021-1 01 1 0607-1107
18 COVER; RECLINING
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97406-021-1 01 1 1108-
18 COVER; RECLINING
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) DARK GRAY 		8-97405-241-1 01 1 1108-
18 COVER; RECLINING
(A) LIGHT GRAY 		8-97399-045-0 01 1 0503-0606
18 COVER; RECLINING
(A) BEIGE 		8-97406-022-0 01 1 0607-1107
18 COVER; RECLINING
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97406-022-0 01 1 1108-
18 COVER; RECLINING
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) DARK GRAY 		8-97408-681-0 01 1 1108-
18 COVER; RECLINING
(B) LIGHT GRAY 		8-97399-036-1 01 1 0503-0606
18 COVER; RECLINING
(B) BEIGE 		8-97406-014-1 01 1 0607-1107
18 COVER; RECLINING
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97406-014-1 01 1 1108-
18 COVER; RECLINING
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (B) DARK GRAY 		8-97405-240-1 01 1 1108-
18 COVER; RECLINING
(A) LIGHT GRAY 		8-97399-037-0 01 1 0503-0606
18 COVER; RECLINING
(A) BEIGE 		8-97406-015-0 01 1 0607-1107
18 COVER; RECLINING
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97406-015-0 01 1 1108-
18 COVER; RECLINING
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> (A) DARK GRAY 		8-97405-234-0 01 1 1108-
24 KNOB; RECLINING,FRT,SEAT
LIGHT GRAY 		8-97399-047-3 01 1 0503-0606
24 KNOB; RECLINING,FRT,SEAT
BEIGE 		8-97406-024-3 01 1 0607-1107
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-024-3 01 1 1108-
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97405-243-3 01 1 1108-
24 KNOB; RECLINING,FRT,SEAT
LIGHT GRAY 		8-97399-039-3 01 1 0503-0606
24 KNOB; RECLINING,FRT,SEAT
BEIGE 		8-97406-017-3 01 1 0607-1107
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-017-3 01 1 1108-
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97405-242-3 01 1 1108-
27 REST; HD,FRT SEAT
LIGHT GRAY 		8-97399-034-1 02 1 0503-0606
27 REST; HD,FRT SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-010-0 02 1 0607-1008
27 REST; HD,FRT SEAT
LEATHER SEAT<6TB> BEIGE 		8-97407-010-0 02 1 1009-1107
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB> BEIGE 		8-97407-010-0 02 1 1108-
27 REST; HD,FRT SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97422-956-0 02 1 1108-
27 REST; HD,FRT SEAT
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-012-0 02 1 0607-1008
27 REST; HD,FRT SEAT
CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-012-0 02 1 1009-1107
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(184) CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-012-0 02 1 1108-
28 HOLDER; GUIDE,HD REST
LOCK 		8-98003-408-0 04 1 0503-
28 HOLDER; GUIDE,HD REST
FREE 		8-98003-409-0 04 1 0503-
51 SCREW; COVER 8-98003-863-0 10 1 0503-
63 ADJUSTER; SEAT SLIDE
OUTER 		8-97372-213-2 01 1 0503-
63 ADJUSTER; SEAT SLIDE
INNER 		8-97372-216-1 01 1 0503-
63 ADJUSTER; SEAT SLIDE
OUTER 		8-97372-212-2 01 1 0503-0508
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98023-684-0 01 1 0509-
63 ADJUSTER; SEAT SLIDE
INNER 		8-97372-215-1 01 1 0503-0508
63 ADJUSTER; SEAT SLIDE
INNER 		8-98023-686-0 01 1 0509-
67 BOLT; FRT SEAT TO BODY
4X2(UCB***) 		8-97248-987-0 08 1 0503-0508
67 BOLT; FRT SEAT TO BODY 8-97248-987-0 08 1 0509-0612
67 BOLT; FRT SEAT TO BODY
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 0701-
100 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97405-244-0 01 1 1108-
100 COVER; HINGE
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> DARK GRAY 		8-97405-245-0 01 1 1108-
100 COVER; HINGE
LIGHT GRAY 		8-97399-046-0 01 1 0503-0606
100 COVER; HINGE
BEIGE 		8-97406-023-0 01 1 0607-1107
100 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-023-0 01 1 1108-
100 COVER; HINGE
LIGHT GRAY 		8-97399-038-0 01 1 0503-0606
100 COVER; HINGE
BEIGE 		8-97406-016-0 01 1 0607-1107
100 COVER; HINGE
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-016-0 01 1 1108-
106 SCREW
(B) 		8-98003-868-0 02 1 0503-
106 SCREW
(A) 		8-98003-864-0 01 1 0503-
165 WASHER; PL 8-98003-869-0 02 1 0503-
200 BRACKET; SEAT 8-98003-214-0 02 1 0503-
229 BOLT; HINGE,FRT SEAT
(A) 		8-98003-859-0 02 1 0503-
229 BOLT; HINGE,FRT SEAT
(B) 		8-98003-870-0 12 1 0503-
257 BOLT; RECLINING DEVICE 8-98003-805-0 04 1 0503-
578 BUSHING; HINGE LINK 8-98003-212-0 02 1 0503-
581 PIPE; SEAT 8-97373-460-0 02 1 0503-
605 HOOK; PASSENGER SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) LEATHER SEAT<6TB> BLACK 		8-97422-961-0 01 1 1108-
605 HOOK; PASSENGER SEAT
LIGHT GRAY 		8-97399-043-0 01 1 0503-0606
605 HOOK; PASSENGER SEAT
BEIGE 		8-97406-041-0 01 1 0607-1107
605 HOOK; PASSENGER SEAT
INTERIOR COLOR BEIGE(184) LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97406-041-0 01 1 1108-
610 COVER; LEG,FRT SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-819-2 02 1 1108-
610 COVER; LEG,FRT SEAT
INTERIOR COLOR IN VERY DARK GRAY(116) (B) DARK GRAY 		8-97403-824-2 02 1 1108-
610 COVER; LEG,FRT SEAT
(A) LIGHT GRAY 		8-97399-019-2 02 1 0503-0606
610 COVER; LEG,FRT SEAT
(A) BEIGE 		8-97404-665-2 02 1 0607-1107
610 COVER; LEG,FRT SEAT
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-665-2 02 1 1108-
610 COVER; LEG,FRT SEAT
(B) LIGHT GRAY 		8-97399-020-2 02 1 0503-0606
610 COVER; LEG,FRT SEAT
(B) BEIGE 		8-97404-666-2 02 1 0607-1107
610 COVER; LEG,FRT SEAT
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-666-2 02 1 1108-
610 COVER; LEG,FRT SEAT
(C) BLACK 		8-97399-018-1 01 1 0503-1107
610 COVER; LEG,FRT SEAT
INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR BEIGE(184) (C) BLACK 		8-97399-018-1 01 1 1108-
610 COVER; LEG,FRT SEAT
(C) BLACK 		8-97399-017-1 01 1 0503-1107
610 COVER; LEG,FRT SEAT
INTERIOR COLOR IN VERY DARK GRAY(116),INTERIOR COLOR BEIGE(184) (C) BLACK 		8-97399-017-1 01 1 1108-
622 HANDLE; SEAT ADJUSTER 8-97373-459-0 02 1 0503-
