◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#75078) — 123 parça

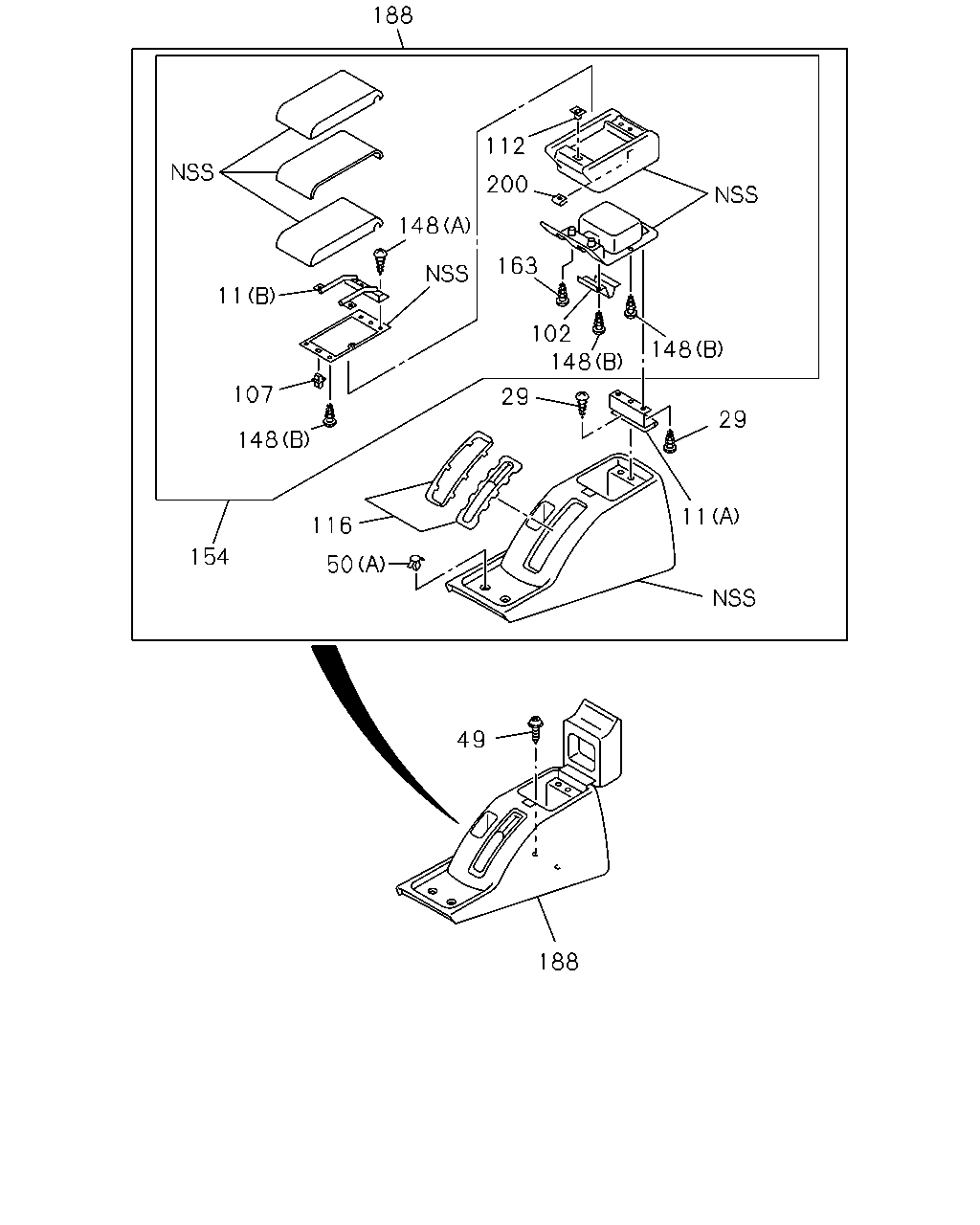

çizim 118651
188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 49 188
BalonParca AdiParca NoAdetTipApplied Date
11 HINGE; CONSOLE LID
4X2(UCB***) (A) 		8-97349-645-0 01 1 0503-0508
11 HINGE; CONSOLE LID
(A) 		8-97349-645-0 01 1 0509-
11 HINGE; CONSOLE LID
4X2(UCB***) (B) 		8-97349-646-0 01 1 0503-0508
11 HINGE; CONSOLE LID
(B) 		8-97349-646-0 01 1 0509-
29 SCREW; HINGE
4X2(UCB***) M5X16 		8-94279-312-0 05 1 0503-0508
29 SCREW; HINGE
M5X16 		8-94279-312-0 05 1 0509-
49 SCREW; CONSOLE
4X2(UCB***) M5X16 		8-94358-694-0 02 1 0503-0508
49 SCREW; CONSOLE
M5X16 		8-94358-694-0 02 1 0509-0702
49 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0703-1005
49 SCREW; CONSOLE
M5X16 		8-98167-220-0 02 1 1006-
50 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97418-440-0 02 1 1108-
50 CLIP; CONSOLE
4X2(UCB***) (A) 		8-97355-734-0 02 1 0503-0508
50 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-
50 CLIP; CONSOLE
(C) 		8-97388-958-0 02 1 0503-
50 CLIP; CONSOLE
(B) LIGHT GRAY 		8-97399-825-0 02 1 0503-0606
50 CLIP; CONSOLE
(B) BEIGE 		8-97404-621-0 02 1 0607-1107
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-621-0 02 1 1108-
102 LOCK ASM; RR CONSOLE
4X2(UCB***) 		8-97349-650-0 01 1 0503-0508
102 LOCK ASM; RR CONSOLE 8-97349-650-0 01 1 0509-
107 LOCK; LID,RR CONSOLE
4X2(UCB***) 		8-97349-644-0 01 1 0503-0508
107 LOCK; LID,RR CONSOLE 8-97349-644-0 01 1 0509-
112 LOCK; HOLE,RR CONSOLE
4X2(UCB***) 		8-97349-643-0 01 1 0503-0508
112 LOCK; HOLE,RR CONSOLE 8-97349-643-0 01 1 0509-
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97422-799-0 01 1 1108-
116 COVER; HOLE,CONSOLE,RR
4X2(UCB***) LIGHT GRAY 		8-97402-570-0 01 1 0503-0508
116 COVER; HOLE,CONSOLE,RR
LIGHT GRAY 		8-97402-570-0 01 1 0509-0606
116 COVER; HOLE,CONSOLE,RR
BEIGE 		8-97404-959-0 01 1 0607-1104
116 COVER; HOLE,CONSOLE,RR
BEIGE 		8-97422-809-0 01 1 1105-1107
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97422-809-0 01 1 1108-
148 SCREW; LID,CONSOLE
4X2(UCB***) (B) M4X14 		8-97349-647-0 13 1 0503-0508
148 SCREW; LID,CONSOLE
(B) M4X14 		8-97349-647-0 13 1 0509-
148 SCREW; LID,CONSOLE
4X2(UCB***) (A) M5X14 		8-97349-872-0 03 1 0503-0508
148 SCREW; LID,CONSOLE
(A) M5X14 		8-97349-872-0 03 1 0509-
154 LID ASM; RR CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> 		8-97422-690-0 01 1 1108-
154 LID ASM; RR CONSOLE
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-989-0 01 1 0607-1104
154 LID ASM; RR CONSOLE
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-813-0 01 1 1105-1107
154 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-813-0 01 1 1108-
154 LID ASM; RR CONSOLE
4X2(UCB***) LIGHT GRAY 		8-97402-571-0 01 1 0503-0508
154 LID ASM; RR CONSOLE
LIGHT GRAY 		8-97402-571-0 01 1 0509-0606
154 LID ASM; RR CONSOLE
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-956-1 01 1 0607-1107
154 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97404-956-1 01 1 1108-
163 RUBBER; CUSHION,PARCEL BOX LID
4X2(UCB***) 		8-97349-682-0 02 1 0503-0508
163 RUBBER; CUSHION,PARCEL BOX LID 8-97349-682-0 02 1 0509-
188 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> DARK GRAY 		8-97422-899-0 01 1 1108-
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-955-0 01 1 0607-1104
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-774-0 01 1 1105-1107
188 CONSOLE; RR
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-774-0 01 1 1108-
188 CONSOLE; RR
4X2(UCB***) LIGHT GRAY 		8-97398-963-0 01 1 0503-0508
188 CONSOLE; RR
LIGHT GRAY 		8-97398-963-0 01 1 0509-0606
188 CONSOLE; RR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-600-1 01 1 0607-1107
188 CONSOLE; RR
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97404-600-1 01 1 1108-
200 NUT; SPIRE,SPR LID
4X2(UCB***) 		8-97349-642-0 03 1 0503-0508
200 NUT; SPIRE,SPR LID 8-97349-642-0 03 1 0509-

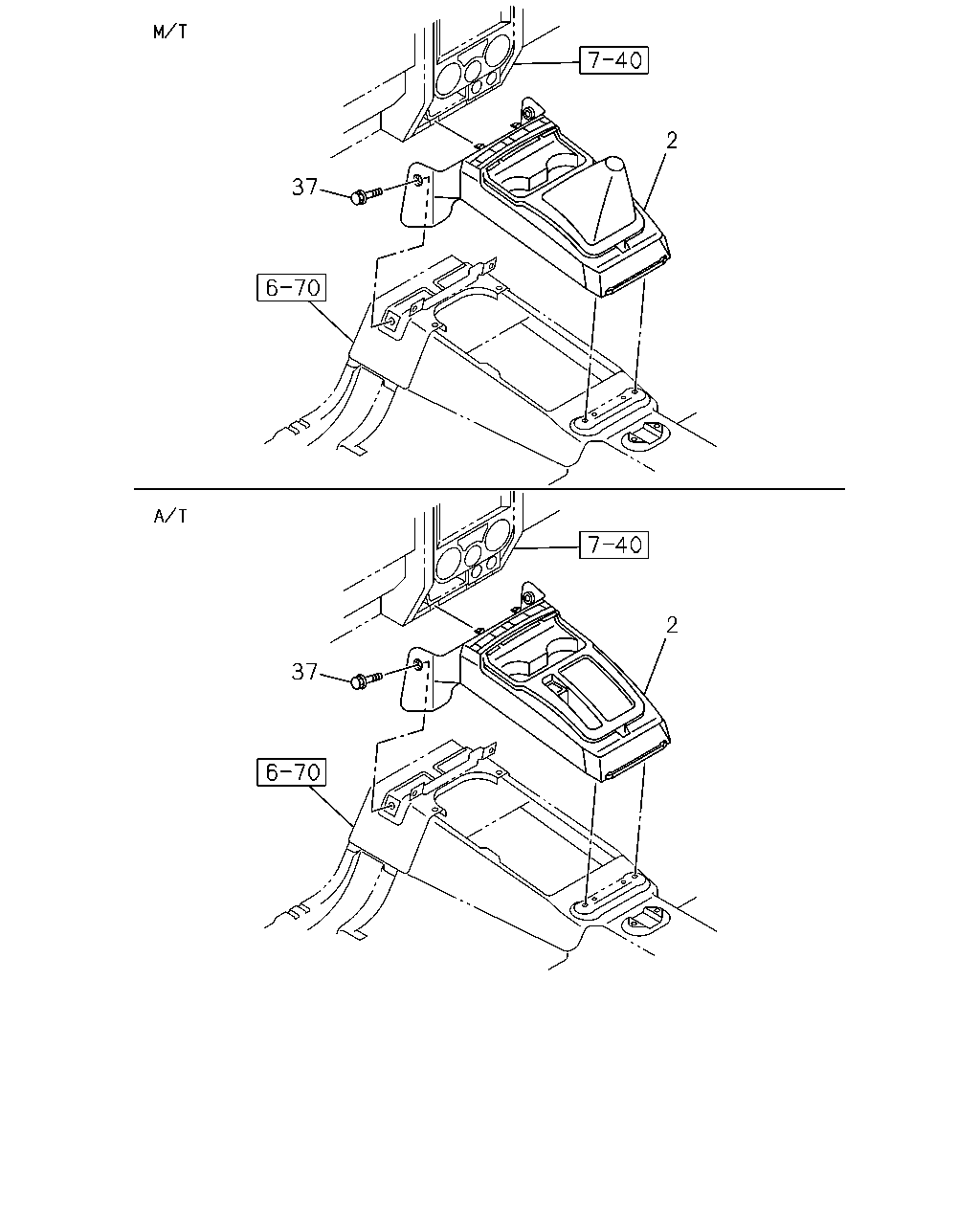

çizim 118655
2 37 2 37
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR CUSTOM<B19> BLACK 		8-97423-453-0 01 1 1111-
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR CUSTOM<B19> BLACK 		8-97422-890-0 01 1 1111-
2 CONSOLE; CENTER
4X2(UCB***) A/T 4 SPEED-JATCO(RMK) LIGHT GRAY 		8-97400-108-0 01 1 0503-0508
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) LIGHT GRAY 		8-97404-491-0 01 1 0509-0606
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) BEIGE 		8-97406-896-0 01 1 0607-0908
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) BEIGE 		8-97418-096-1 01 1 0909-1107
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) INTERIOR COLOR BEIGE(184) EXC. INTERIOR CUSTOM<B19> BEIGE 		8-97418-096-1 01 1 1108-
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) LIGHT GRAY 		8-97400-110-1 01 1 0503-0508
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) LIGHT GRAY 		8-97404-492-0 01 1 0509-0606
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) BEIGE 		8-97406-897-0 01 1 0607-0802
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) BEIGE 		8-97407-084-0 01 1 0803-0908
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) BEIGE 		8-97418-097-1 01 1 0909-1107
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BEIGE(184) BEIGE 		8-97418-097-1 01 1 1108-1110
2 CONSOLE; CENTER
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BEIGE(184) EXC. INTERIOR CUSTOM<B19> BEIGE 		8-97418-097-1 01 1 1111-
37 SCREW; CONSOLE
4X2(UCB***) M5X16 		8-94358-694-0 02 1 0503-0508
37 SCREW; CONSOLE
M5X16 		8-94358-694-0 02 1 0509-0702
37 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0703-1005
37 SCREW; CONSOLE
M5X16 		8-98167-220-0 02 1 1006-

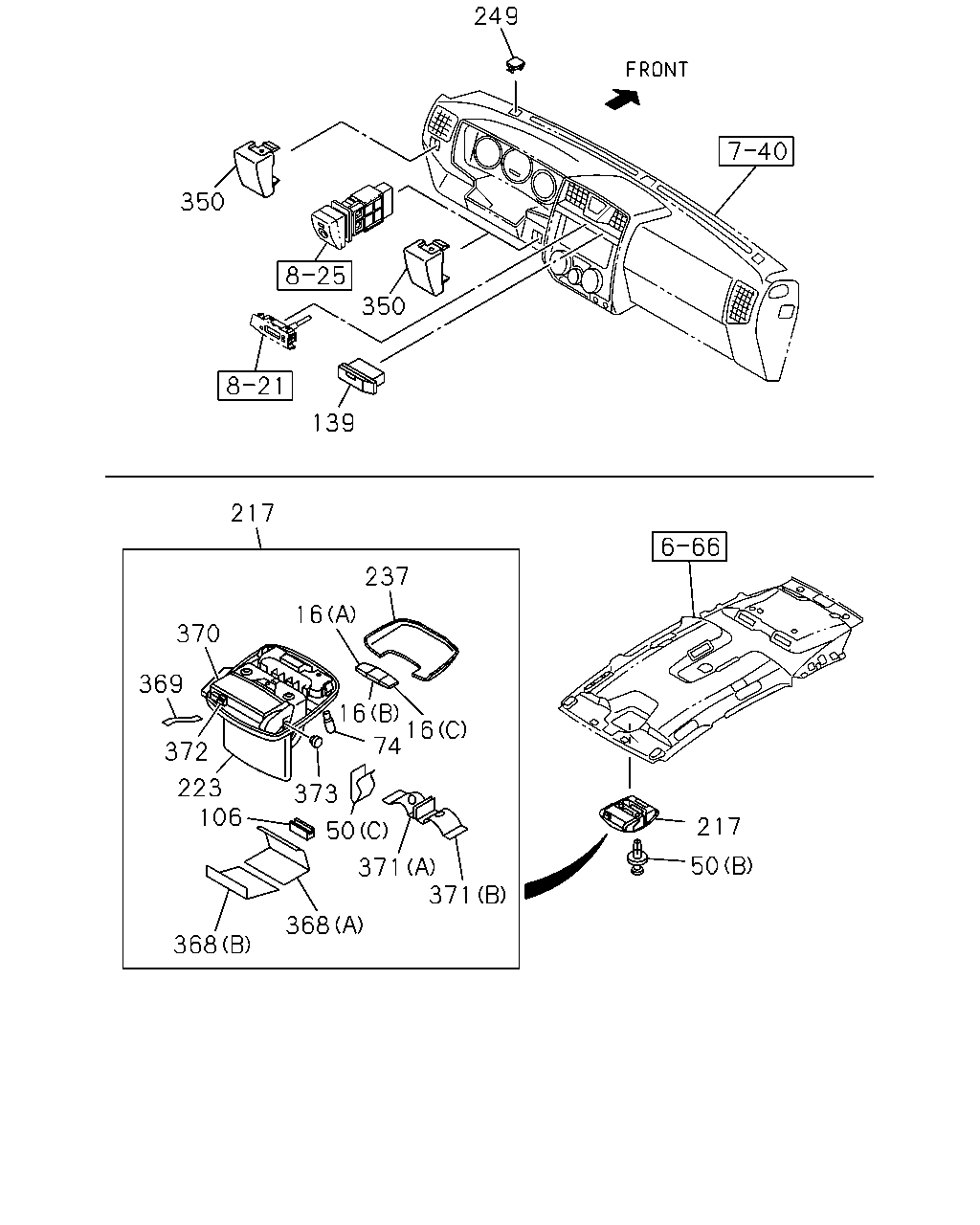

çizim 118656
249 350 350 139 217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368
BalonParca AdiParca NoAdetTipApplied Date
16 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97418-464-1 01 1 1108-
16 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97418-465-1 01 1 1108-
16 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) (C) BLACK 		8-97418-486-1 01 1 1108-
16 KNOB ASM
(A) LIGHT GRAY 		8-97401-424-1 01 1 0503-0606
16 KNOB ASM
(A) BEIGE 		8-97404-793-1 01 1 0607-1107
16 KNOB ASM
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-793-1 01 1 1108-
16 KNOB ASM
(B) LIGHT GRAY 		8-97401-427-1 01 1 0503-0606
16 KNOB ASM
(B) BEIGE 		8-97404-794-1 01 1 0607-1107
16 KNOB ASM
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-794-1 01 1 1108-
16 KNOB ASM
(C) LIGHT GRAY 		8-97401-432-1 01 1 0503-0606
16 KNOB ASM
(C) BEIGE 		8-97404-795-1 01 1 0607-1107
16 KNOB ASM
INTERIOR COLOR BEIGE(184) (C) BEIGE 		8-97404-795-1 01 1 1108-
50 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97418-440-0 02 1 1108-
50 CLIP; CONSOLE
4X2(UCB***) (A) 		8-97355-734-0 02 1 0503-0508
50 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-
50 CLIP; CONSOLE
(C) 		8-97388-958-0 02 1 0503-
50 CLIP; CONSOLE
(B) LIGHT GRAY 		8-97399-825-0 02 1 0503-0606
50 CLIP; CONSOLE
(B) BEIGE 		8-97404-621-0 02 1 0607-1107
50 CLIP; CONSOLE
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-621-0 02 1 1108-
74 BULB; CONSOLE 8-97388-953-0 02 1 0503-
106 LOCK; CONSOLE LID 8-97388-944-0 01 1 0503-
139 BOX; CONSOLE,UPR
4X2(UCB***) LIGHT GRAY 		8-97298-418-0 01 1 0503-0606
139 BOX; CONSOLE,UPR
4X2(UCB***) LIGHT GRAY 		8-97403-311-2 01 1 0607-1107
139 BOX; CONSOLE,UPR
4X2(UCB***) LIGHT GRAY 		8-97403-311-2 01 1 1108-
217 CONSOLE; HEADER
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97418-439-3 01 1 1108-
217 CONSOLE; HEADER
LIGHT GRAY 		8-97398-979-3 01 1 0503-0606
217 CONSOLE; HEADER
BEIGE 		8-97404-620-3 01 1 0607-1107
217 CONSOLE; HEADER
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-620-3 01 1 1108-
223 LID; HEADER CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97418-463-0 01 1 1108-
223 LID; HEADER CONSOLE
LIGHT GRAY 		8-97401-419-0 01 1 0503-0606
223 LID; HEADER CONSOLE
BEIGE 		8-97404-792-0 01 1 0607-1107
223 LID; HEADER CONSOLE
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-792-0 01 1 1108-
237 LENS; HEADER CONSOLE 8-97371-299-0 01 1 0503-
249 COVER
DARK GRAY 		8-97293-913-0 03 1 0503-0606
249 COVER
DARK GRAY 		8-97403-309-0 03 1 0607-1104
249 COVER
BLACK 		8-97422-663-0 03 1 1105-
350 COVER; CONSOLE
4X2(UCB***) DARK GRAY 		8-97298-962-0 01 1 0503-0508
350 COVER; CONSOLE
4X2(UCB***) EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97298-962-0 01 1 0503-0508
350 COVER; CONSOLE
DARK GRAY 		8-97298-962-0 01 1 0509-0606
350 COVER; CONSOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97298-962-0 01 1 0509-0606
350 COVER; CONSOLE
DARK GRAY 		8-97396-598-0 01 1 0607-1107
350 COVER; CONSOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97396-598-0 01 1 0607-1107
350 COVER; CONSOLE
4X2(UCB***) DARK GRAY 		8-97396-598-0 01 1 1108-
350 COVER; CONSOLE
4X2(UCB***) EXC. AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97396-598-0 01 1 1108-
368 SHEET; CASE,HEADER CONSOLE
(A) 		8-97388-945-0 01 1 0503-
368 SHEET; CASE,HEADER CONSOLE
(B) 		8-97388-948-0 01 1 0503-
369 SPRING; LID,HEADER CONSOLE 8-97388-946-0 01 1 0503-
370 CASE; HEADER CONSOLE 8-97388-947-0 01 1 0503-
371 REFLECTOR; LAMP,HEADER CONSOLE
(A) 		8-97388-949-0 01 1 0503-
371 REFLECTOR; LAMP,HEADER CONSOLE
(B) 		8-97388-950-0 01 1 0503-
372 HARNESS ASM; SWITCH,HEADER CONSOLE 8-97388-951-0 01 1 0503-
373 DAMPER; LID,HEADER CONSOLE 8-97388-954-0 01 1 0503-
