◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#75076) — 24 parça

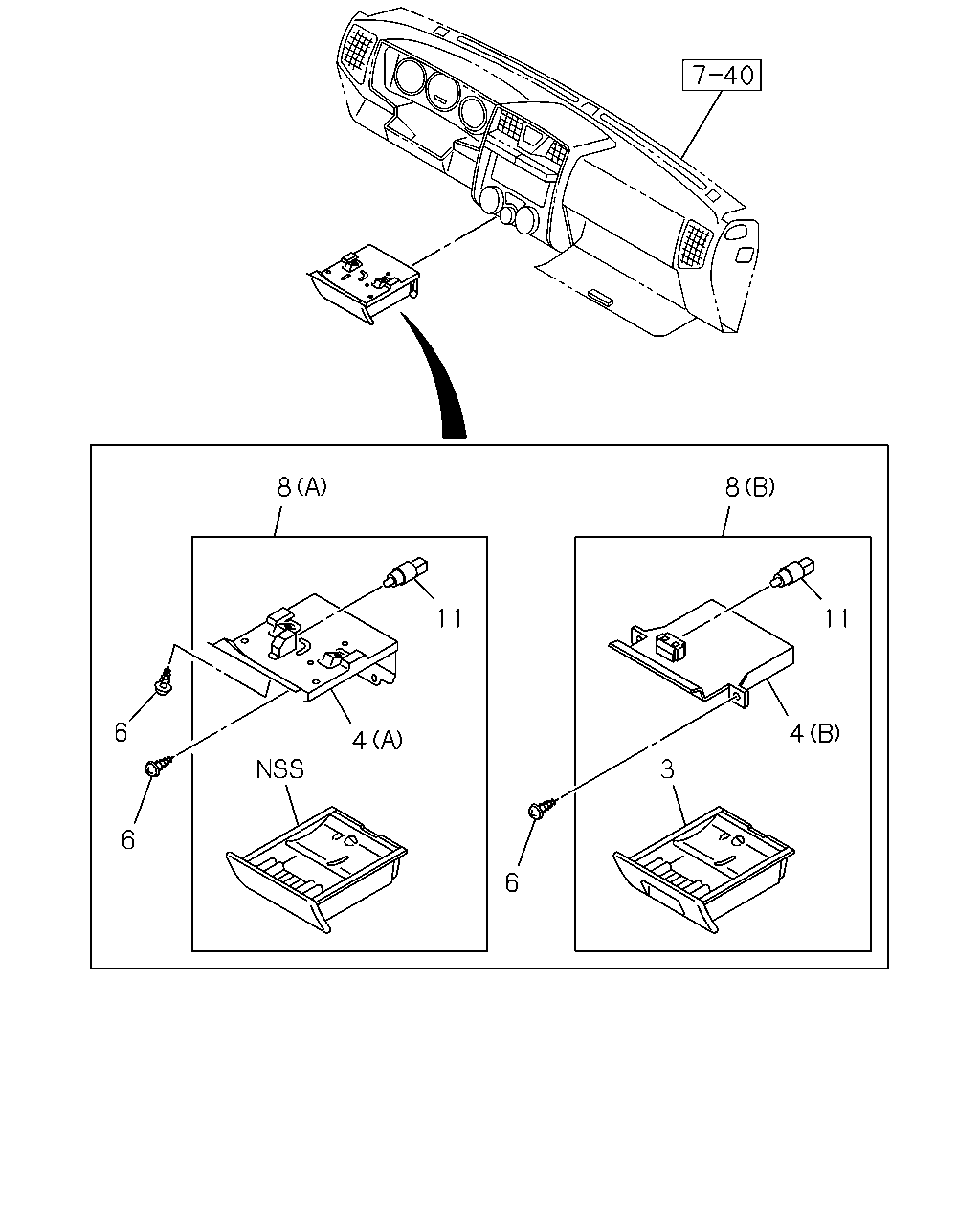

çizim 118675
8 8 11 11 6 4 4 3 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
3 CASE ASM; ASH TRAY INNER 8-98044-026-0 01 1 0607-0908 ● ●
3 CASE ASM; ASH TRAY INNER 8-98149-240-0 01 1 0909-1107 ● ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR CUSTOM<B19> 		8-98149-240-0 01 1 1108- ● ●
3 CASE ASM; ASH TRAY INNER
INTERIOR CUSTOM<B19> 		8-98184-294-0 01 1 1108- ● ●
4 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-647-0 01 1 0503-0508 ●
4 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-647-0 01 1 0509-0606 ● ●
4 CASE ASM; ASH TRAY OUTER
(B) 		8-98044-027-0 01 1 0607-1107 ● ●
4 CASE ASM; ASH TRAY OUTER
EXC. INTERIOR CUSTOM<B19> (B) 		8-98044-027-0 01 1 1108-1110 ● ●
4 CASE ASM; ASH TRAY OUTER
(B) 		8-98044-027-0 01 1 1111- ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING 		9-09829-323-1 03 1 0503-0508 ●
6 SCREW; ASH TRAY
M5X16 TAPPING 		9-09829-323-1 03 1 0509-0606 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING 		9-09829-323-1 02 1 0607-0702 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING 		8-98061-685-0 02 1 0703-1005 ● ●
6 SCREW; ASH TRAY
M5X16 TAPPING 		8-98167-449-0 02 1 1006- ● ●
8 TRAY ASM; ASH
(A) LIGHT GRAY 		8-97392-979-0 01 1 0503-0508 ●
8 TRAY ASM; ASH
(A) 		8-98018-261-0 01 1 0509-0606 ● ●
8 TRAY ASM; ASH
(B) 		8-98034-823-0 01 1 0607-0908 ● ●
8 TRAY ASM; ASH
(B) 		8-98149-230-0 01 1 0909-1107 ● ●
8 TRAY ASM; ASH
EXC. INTERIOR CUSTOM<B19> (B) 		8-98149-230-0 01 1 1108- ● ●
8 TRAY ASM; ASH
INTERIOR CUSTOM<B19> (B) 		8-98184-293-0 01 1 1108- ● ●
11 BULB; ASH TRAY 8-97308-651-0 01 1 0503-0508 ●
11 BULB; ASH TRAY 8-97308-651-0 01 1 0509-1107 ● ●
11 BULB; ASH TRAY
EXC. INTERIOR CUSTOM<B19> 		8-97308-651-0 01 1 1108-1110 ● ●
11 BULB; ASH TRAY 8-97308-651-0 01 1 1111- ● ●
