◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#75075) — 123 parça

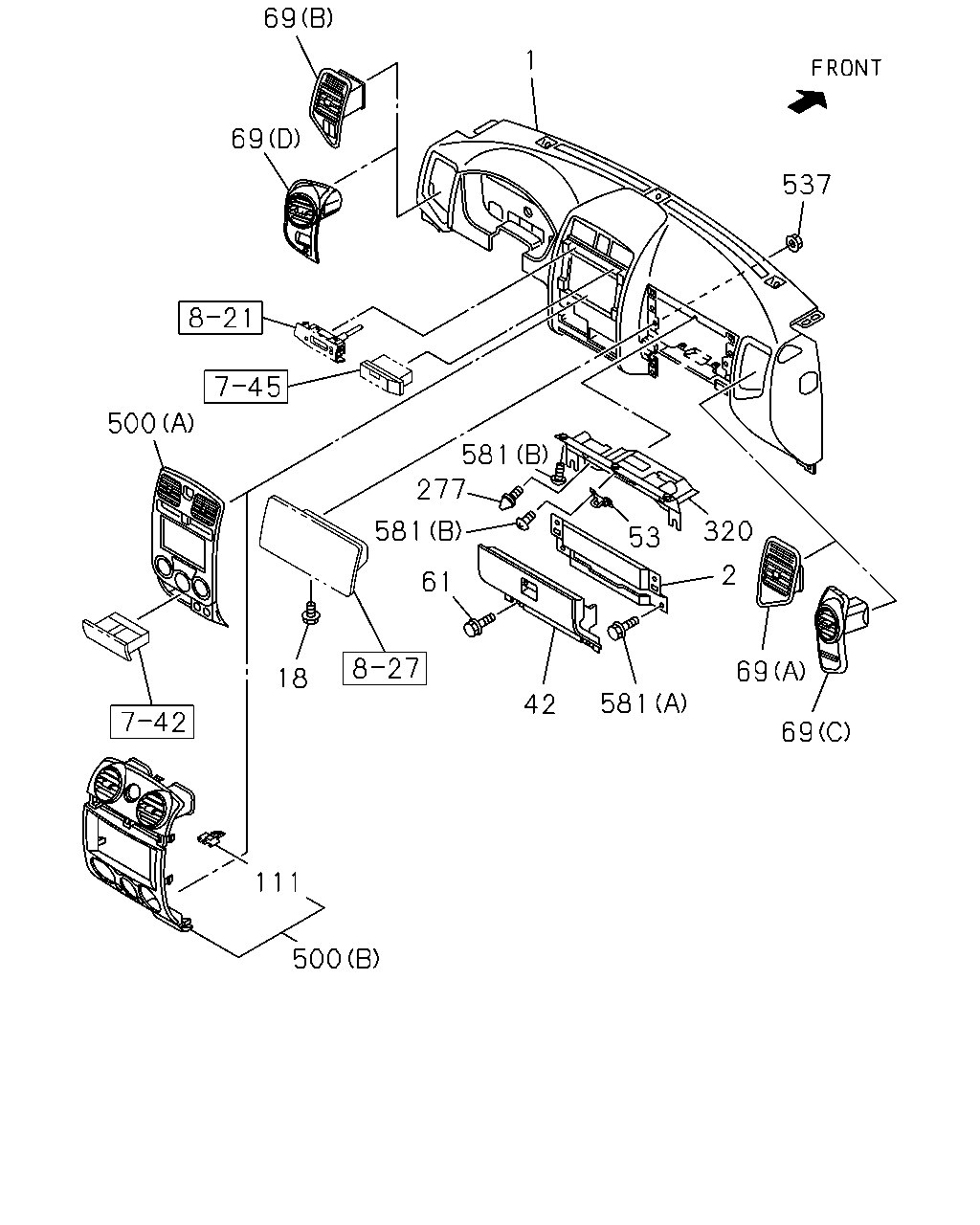

çizim 118650
69 1 69 537 500 581 277 581 320 53 2 61 69 18 581 42 69 111 500
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0503-0508 ●
1 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0509-0606 ● ●
1 PANEL; INST
DARK GRAY 		8-97405-958-0 01 1 0607-1103 ● ●
1 PANEL; INST
DARK GRAY 		8-97405-967-1 01 1 1104- ● ●
2 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0503-0508 ●
2 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0509- ● ●
18 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0503-0508 ●
18 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0509- ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97293-941-2 01 1 0503-0508 ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97293-941-2 01 1 0509-0606 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97403-321-2 01 1 0607-0612 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97409-179-0 01 1 0701-0805 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 0806- ● ●
53 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0503-0508 ●
53 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0509- ● ●
61 SCREW; GLOVE BOX
M5X16 		8-94279-312-0 02 1 0503-0508 ●
61 SCREW; GLOVE BOX
M5X16 		8-94279-312-0 02 1 0509-0702 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98061-683-0 02 1 0703-1005 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1006- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) LIGHT GRAY 		8-97400-554-0 01 1 0503-0508 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98018-274-0 01 1 0509-0606 ● ●
69 GRILLE; SIDE,AIR OUTLET
(D) 		8-98036-107-2 01 1 0607-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
(D) 		8-98149-233-0 01 1 0909-1110 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR CUSTOM<B19> (D) 		8-98149-233-0 01 1 1111- ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR CUSTOM<B19> (D) 		8-98203-275-0 01 1 1111- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) LIGHT GRAY 		8-97401-285-0 01 1 0503-0508 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98018-273-0 01 1 0509-0606 ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) 		8-98036-106-2 01 1 0607-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) 		8-98149-238-0 01 1 0909-1110 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(184) EXC. INTERIOR CUSTOM<B19> (C) 		8-98149-238-0 01 1 1111- ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR CUSTOM<B19> (C) 		8-98203-273-0 01 1 1111- ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-97137-828-0 06 1 0503-0610 ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-97137-828-0 06 1 0611-0910 ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 0911-1107 ● ●
111 CLIP; CLUSTER PANEL,GRILLE
EXC. INTERIOR CUSTOM<B19> T=0.5 		8-98061-356-0 06 1 1108-1110 ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 1111- ● ●
277 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0503-0508 ●
277 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0509- ● ●
320 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0503-0508 ●
320 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0509-0606 ● ●
320 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 0607- ● ●
500 CLUSTER; INST CENTER
(A) LIGHT GRAY 		8-97398-208-0 01 1 0503-0508 ●
500 CLUSTER; INST CENTER
(A) 		8-98018-250-0 01 1 0509-0606 ● ●
500 CLUSTER; INST CENTER
(B) 		8-98035-895-2 01 1 0607-0908 ● ●
500 CLUSTER; INST CENTER
(B) 		8-98149-232-0 01 1 0909-0910 ● ●
500 CLUSTER; INST CENTER
(B) 		8-98154-835-0 01 1 0911-1107 ● ●
500 CLUSTER; INST CENTER
EXC. INTERIOR CUSTOM<B19> (B) 		8-98154-835-0 01 1 1108- ● ●
500 CLUSTER; INST CENTER
INTERIOR CUSTOM<B19> (B) 		8-98184-295-0 01 1 1108- ● ●
537 NUT; BRKT
M6 W/DISHED WASHER 		8-97018-399-1 02 1 0503-0508 ●
537 NUT; BRKT
M6 W/DISHED WASHER 		8-97018-399-1 02 1 0509-0702 ● ●
537 NUT; BRKT
M6 W/DISHED WASHER 		8-98073-372-0 02 1 0703- ● ●
581 SCREW
(A) M6X20 W/WASHER 		8-94112-987-1 03 1 0503-0508 ●
581 SCREW
(A) M6X20 W/WASHER 		8-94112-987-1 03 1 0509-0610 ● ●
581 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0611- ● ●
581 SCREW
(B) M5X16 		8-94279-312-0 11 1 0503-0508 ●
581 SCREW
(B) M5X16 		8-94279-312-0 11 1 0509-0610 ● ●
581 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 11 1 0611- ● ●

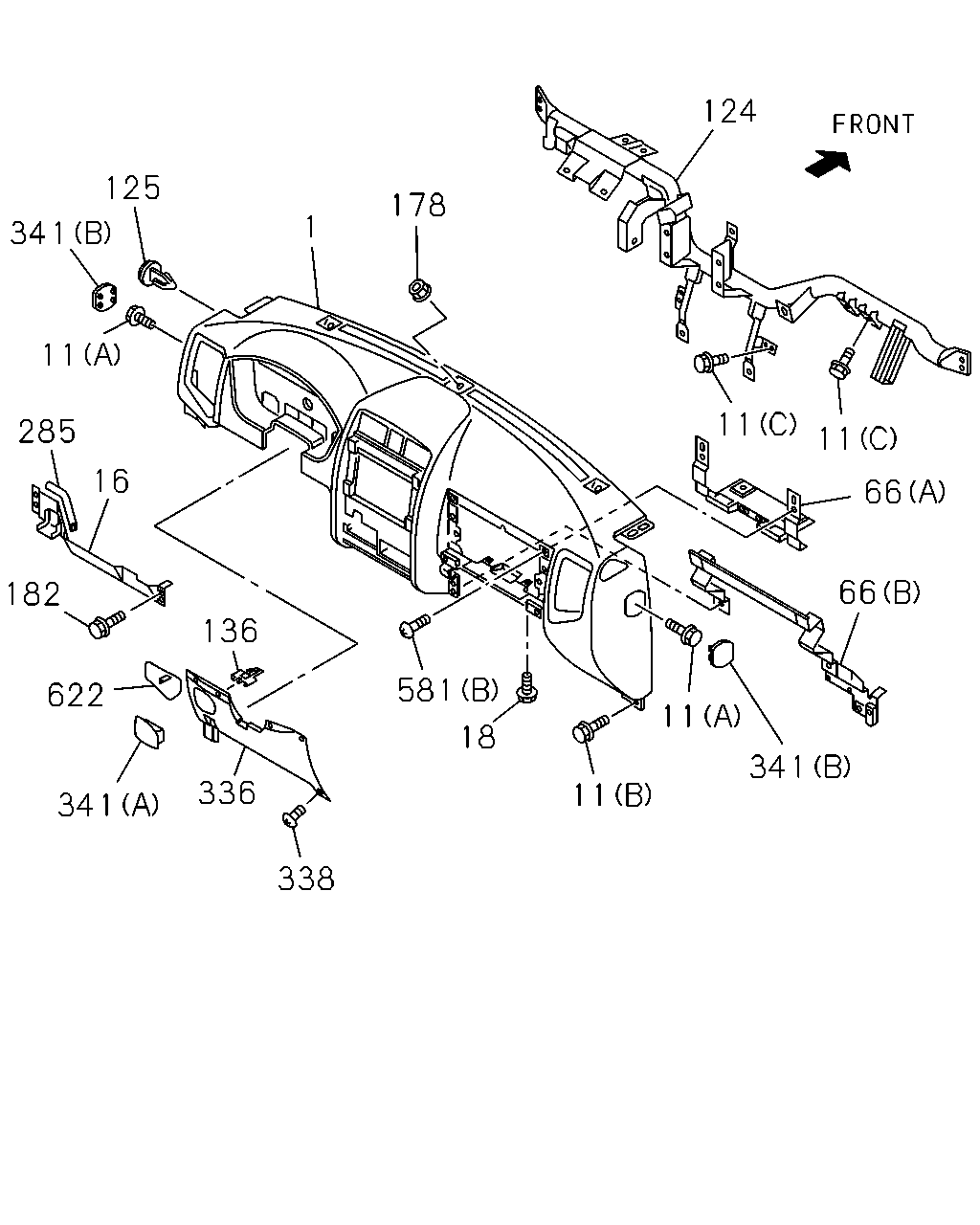

çizim 118654
124 125 178 1 341 11 11 285 11 16 66 66 182 136 581 622 11 18 341 336 11 341 338
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0503-0508 ●
1 PANEL; INST
DARK GRAY 		8-97398-419-0 01 1 0509-0606 ● ●
1 PANEL; INST
DARK GRAY 		8-97405-958-0 01 1 0607-1103 ● ●
1 PANEL; INST
DARK GRAY 		8-97405-967-1 01 1 1104- ● ●
11 BOLT; INST PNL
(C) M6X20 W/WASHER 		8-94112-987-1 06 1 0503-0508 ●
11 BOLT; INST PNL
(C) M6X20 W/WASHER 		8-94112-987-1 06 1 0509-0612 ● ●
11 BOLT; INST PNL
(C) M6X20 W/WASHER 		8-98056-282-0 06 1 0701- ● ●
11 BOLT; INST PNL
(A) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0503-0508 ●
11 BOLT; INST PNL
(A) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0509-0612 ● ●
11 BOLT; INST PNL
(A) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0701- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0503-0508 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0509-0612 ● ●
11 BOLT; INST PNL
(B) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0701- ● ●
16 BRACKET; INST PNL 8-97361-674-0 01 1 0503-0508 ●
16 BRACKET; INST PNL 8-97361-674-0 01 1 0509-0606 ● ●
16 BRACKET; INST PNL 8-98043-127-0 01 1 0607- ● ●
18 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0503-0508 ●
18 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0509- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-97308-641-0 01 1 0503-0508 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-97308-641-0 01 1 0509- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97369-652-0 01 1 0503-0508 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97369-652-0 01 1 0509- ● ●
124 REINFORCEMENT; INST PNL,UPR 8-97362-200-0 01 1 0503-0508 ●
124 REINFORCEMENT; INST PNL,UPR 8-98023-073-0 01 1 0509-0808 ● ●
124 REINFORCEMENT; INST PNL,UPR 8-98110-173-0 01 1 0809- ● ●
125 CLIP; INST PANEL 8-97310-401-0 01 1 0503-0508 ●
125 CLIP; INST PANEL 8-97310-401-0 01 1 0509- ● ●
136 CLIP; INST COVER
T=0.5 		8-97137-828-0 04 1 0503-0508 ●
136 CLIP; INST COVER
T=0.5 		8-97137-828-0 04 1 0509-0612 ● ●
136 CLIP; INST COVER
T=0.5 		8-98061-356-0 04 1 0701- ● ●
178 NUT; INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0503-0508 ●
178 NUT; INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0509-0702 ● ●
178 NUT; INST PANEL
M6 FLANGE 		8-98055-704-0 03 1 0703- ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER 		8-94112-987-1 04 1 0503-0508 ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER 		8-94112-987-1 04 1 0509-0612 ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER 		8-98056-282-0 04 1 0701- ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0503-0508 ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0509- ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97398-387-0 01 1 0503-0508 ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97398-387-0 01 1 0509-0606 ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97403-943-0 01 1 0607-1104 ● ●
336 COVER; INST PANEL SIDE
BLACK 		8-97422-823-0 01 1 1105- ● ●
338 SCREW; COVER
M5X16 		8-94279-312-0 01 1 0503-0508 ●
338 SCREW; COVER
M5X16 		8-94279-312-0 01 1 0509-0702 ● ●
338 SCREW; COVER
M5X16 TAPPING 		8-98061-683-0 01 1 0703-1005 ● ●
338 SCREW; COVER
M5X16 TAPPING 		8-98167-214-0 01 1 1006- ● ●
341 LID; FUSE BOX
(A) DARK GRAY 		8-97398-432-0 01 1 0503-0508 ●
341 LID; FUSE BOX
(A) DARK GRAY 		8-97398-432-0 01 1 0509-0606 ● ●
341 LID; FUSE BOX
(A) DARK GRAY 		8-97403-946-0 01 1 0607-1104 ● ●
341 LID; FUSE BOX
(A) BLACK 		8-97422-827-0 01 1 1105- ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0503-0508 ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0509-0606 ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 0607- ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0503-0508 ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0509-0606 ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 0607- ● ●
581 SCREW
(A) M6X20 W/WASHER 		8-94112-987-1 03 1 0503-0508 ●
581 SCREW
(A) M6X20 W/WASHER 		8-94112-987-1 03 1 0509-0610 ● ●
581 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0611- ● ●
581 SCREW
(B) M5X16 		8-94279-312-0 11 1 0503-0508 ●
581 SCREW
(B) M5X16 		8-94279-312-0 11 1 0509-0610 ● ●
581 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 11 1 0611- ● ●
622 BOX; IDLE CONT
DARK GRAY 		8-97398-433-0 01 1 0503-0508 ●
622 BOX; IDLE CONT
DARK GRAY 		8-97398-433-0 01 1 0509-0606 ● ●
622 BOX; IDLE CONT
DARK GRAY 		8-97403-949-0 01 1 0607-1104 ● ●
622 BOX; IDLE CONT 8-97422-829-0 01 1 1105- ● ●
