◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#75074) — 42 parça

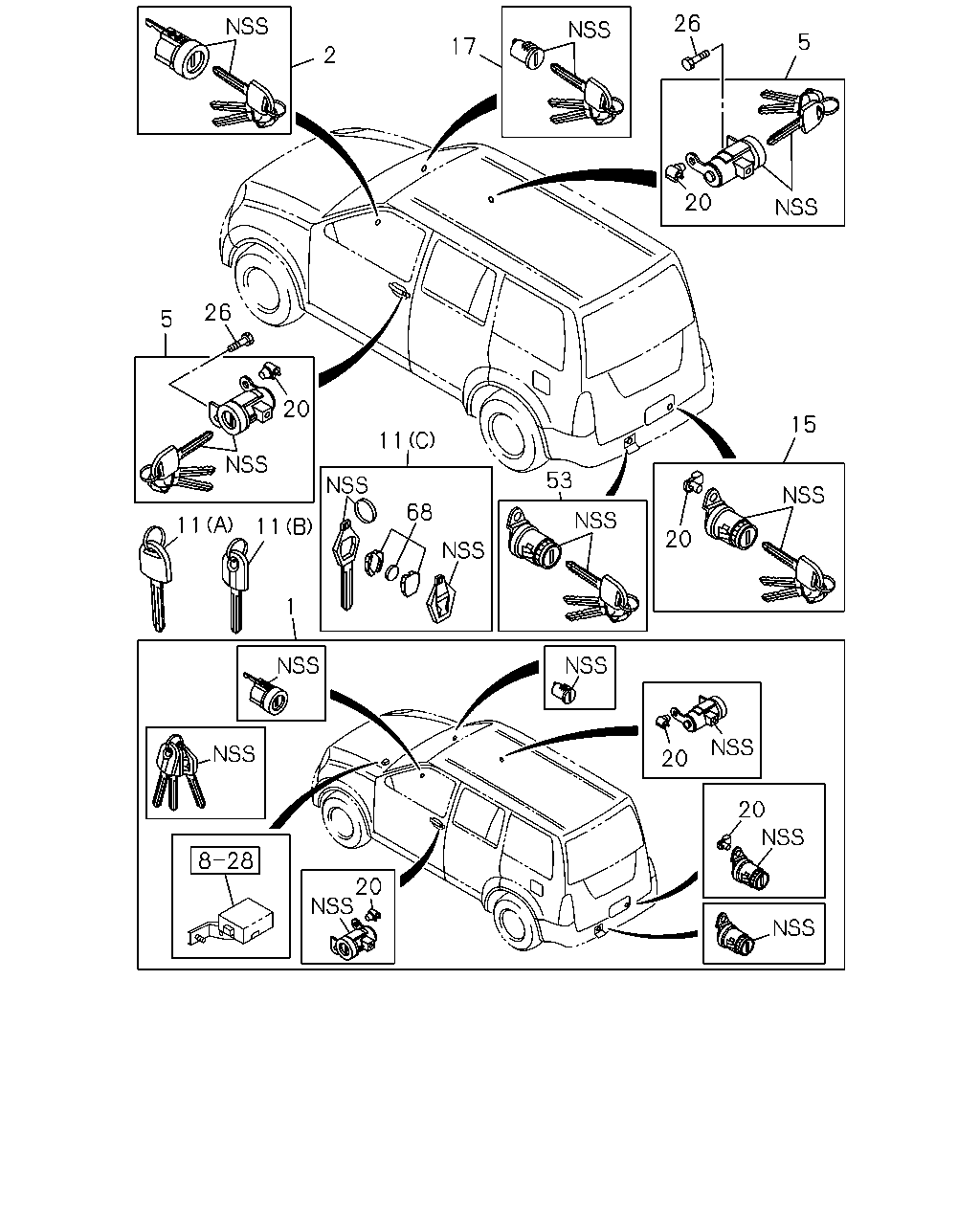

çizim 118664
26 5 17 2 20 26 5 20 15 11 53 68 11 11 20 1 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-97383-555-0 01 1 0503-0508 ●
1 CYLINDER SET; CAR LOCK 8-97383-555-0 01 1 0509-0606 ● ●
1 CYLINDER SET; CAR LOCK 8-98018-792-1 01 1 0607-0609 ● ●
1 CYLINDER SET; CAR LOCK 8-98060-432-0 01 1 0610-0708 ● ●
1 CYLINDER SET; CAR LOCK 8-98052-717-3 01 1 0709- ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97376-650-1 01 1 0503-0508 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97376-650-1 01 1 0509-0606 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98049-745-0 01 1 0607-0609 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98060-589-0 01 1 0610-0708 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98095-175-0 01 1 0709- ● ●
5 CYLINDER ASM; DOOR LOCK 8-97376-649-1 01 1 0503-0508 ●
5 CYLINDER ASM; DOOR LOCK 8-97376-649-1 01 1 0509-0606 ● ●
5 CYLINDER ASM; DOOR LOCK 8-98049-736-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK 8-98060-582-0 01 1 0610- ● ●
5 CYLINDER ASM; DOOR LOCK 8-97376-648-1 01 1 0503-0508 ●
5 CYLINDER ASM; DOOR LOCK 8-97376-648-1 01 1 0509-0606 ● ●
5 CYLINDER ASM; DOOR LOCK 8-98049-735-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK 8-98060-581-0 01 1 0610- ● ●
11 KEY; BLANK
(A) IMMOBILIZER 		8-97378-106-0 AR 1 0503-0508 ●
11 KEY; BLANK
(A) IMMOBILIZER 		8-97378-106-0 AR 1 0509-0606 ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98007-939-1 AR 1 0607- ● ●
11 KEY; BLANK
(C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98046-772-1 AR 1 0709- ● ●
15 CYLINDER ASM; W/KEY,TAIL GATE LOCK 8-97376-651-1 01 1 0503-0508 ●
15 CYLINDER ASM; W/KEY,TAIL GATE LOCK 8-97376-651-1 01 1 0509-0606 ● ●
15 CYLINDER ASM; W/KEY,TAIL GATE LOCK 8-98051-775-0 01 1 0607-0609 ● ●
15 CYLINDER ASM; W/KEY,TAIL GATE LOCK 8-98060-591-0 01 1 0610- ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 8-97376-647-1 01 1 0503-0508 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 8-97376-647-1 01 1 0509-0606 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 8-98049-734-0 01 1 0607-0609 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 8-98060-580-0 01 1 0610- ● ●
20 SNAP; DOOR LOCK CYL
LH DOOR & TAIL GATE YELLOW 		8-97350-043-0 02 1 0503-0508 ●
20 SNAP; DOOR LOCK CYL
LH DOOR & TAIL GATE YELLOW 		8-97350-043-0 02 1 0509- ● ●
20 SNAP; DOOR LOCK CYL
RH DOOR WHITE 		8-97350-044-0 01 1 0503-0508 ●
20 SNAP; DOOR LOCK CYL
RH DOOR WHITE 		8-97350-044-0 01 1 0509- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 04 1 0503-0508 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 04 1 0509-0701 ● ●
26 BOLT; KEY CYL,DOOR 8-98062-137-0 04 1 0702- ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE 8-97388-416-0 01 1 0503-0508 ●
53 CYLINDER ASM; W/KEY,SPARE TIRE 8-97388-416-0 01 1 0509-0606 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE 8-98049-739-0 01 1 0607-0609 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE 8-98060-585-0 01 1 0610- ● ●
68 TRANSMITTER; DOOR LOCK 8-98053-166-0 01 1 0709- ● ●
