◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#75072) — 18 parça

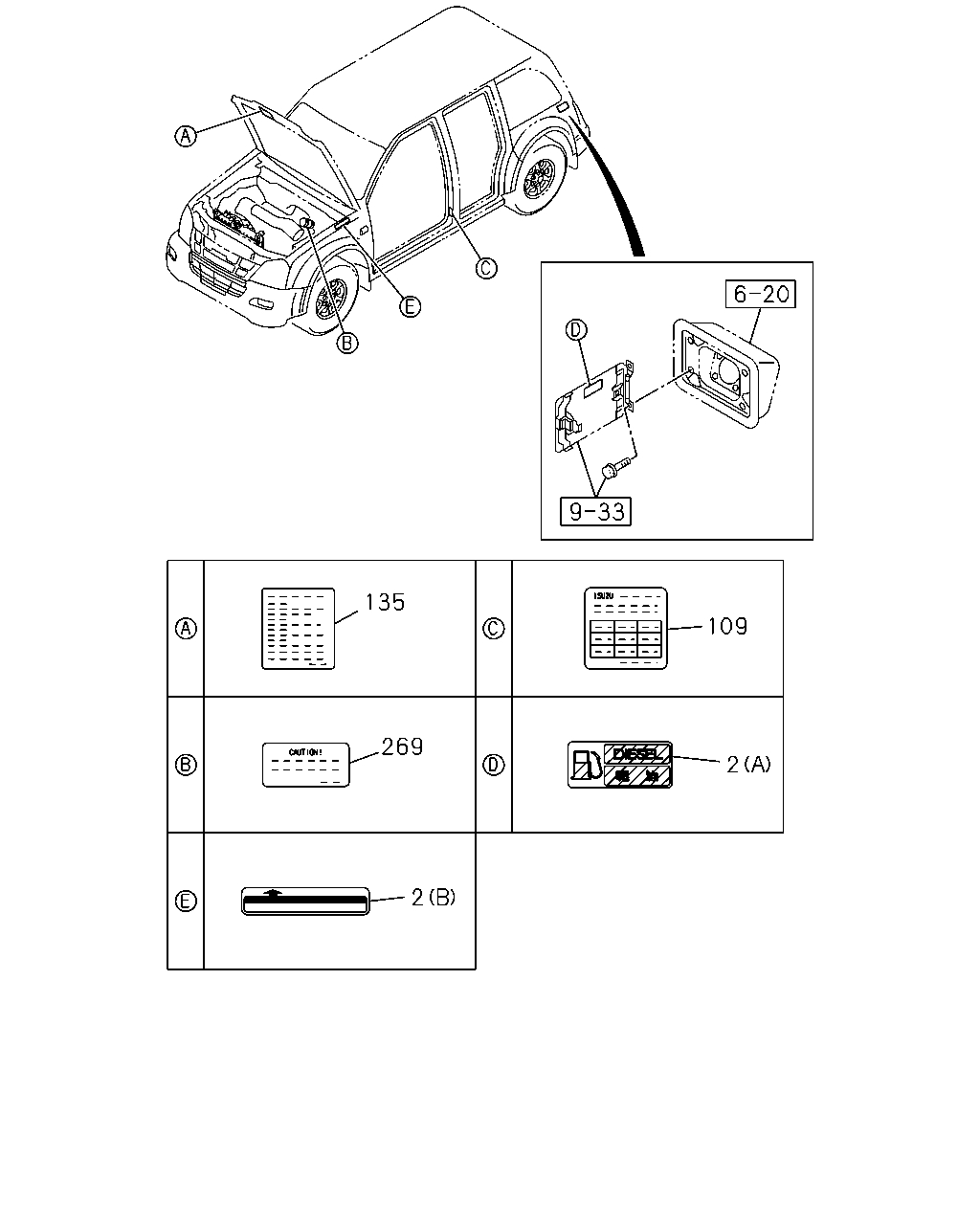

çizim 118636
135 109 269 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) 		8-97203-837-0 01 1 0503-0508 ●
2 LABEL; FUEL CAUTION
(A) 		8-97203-837-0 01 1 0509- ● ●
2 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0607- ● ●
109 PLATE; CAUTION,TIRE PLACARD 8-97383-554-0 01 1 0503-0508 ●
109 PLATE; CAUTION,TIRE PLACARD 8-97383-554-0 01 1 0509- ● ●
135 PLATE; CAUTION,ENGINE 8-97383-057-0 01 1 0503-0508 ●
135 PLATE; CAUTION,ENGINE 8-97383-057-0 01 1 0509-0606 ● ●
135 PLATE; CAUTION,ENGINE 8-98042-938-0 01 1 0607- ● ●
269 LABEL; CAUTION,EGR 8-97383-056-0 01 1 0503-0508 ●
269 LABEL; CAUTION,EGR 8-97383-056-0 01 1 0509- ● ●

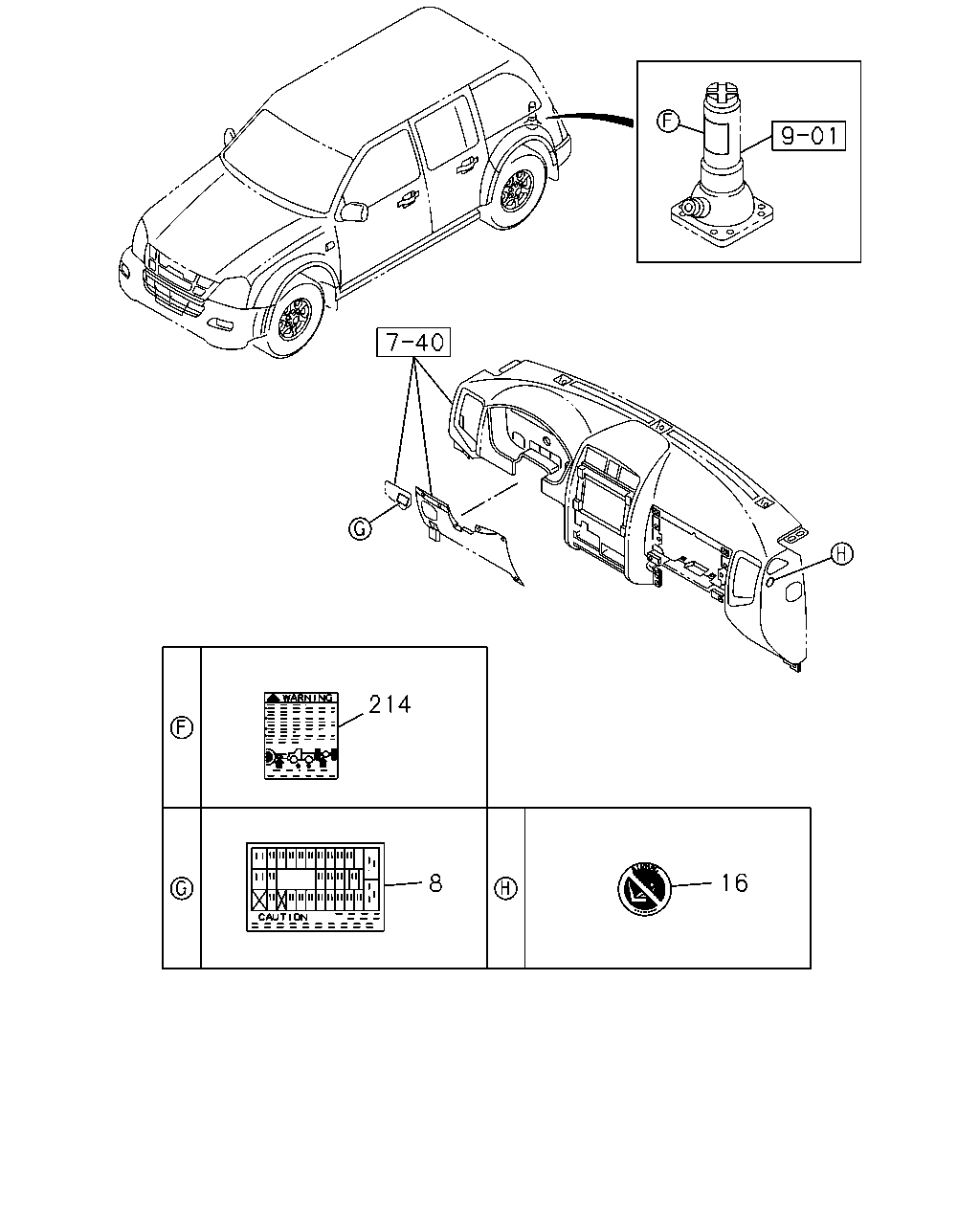

çizim 118645
214 16 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 LABEL; FUSE 8-97383-614-0 01 1 0503-0508 ●
8 LABEL; FUSE 8-97383-614-0 01 1 0509-0606 ● ●
8 LABEL; FUSE 8-98018-478-0 01 1 0607-0808 ● ●
8 LABEL; FUSE 8-98086-128-0 01 1 0809- ● ●
16 PLATE; CAUTION,SIR 8-97378-569-0 01 1 0503-0508 ●
16 PLATE; CAUTION,SIR 8-97378-569-0 01 1 0509- ● ●
214 LABEL; JACK 8-97315-282-1 01 1 0503-0508 ●
214 LABEL; JACK 8-97315-282-1 01 1 0509- ● ●
