1 |

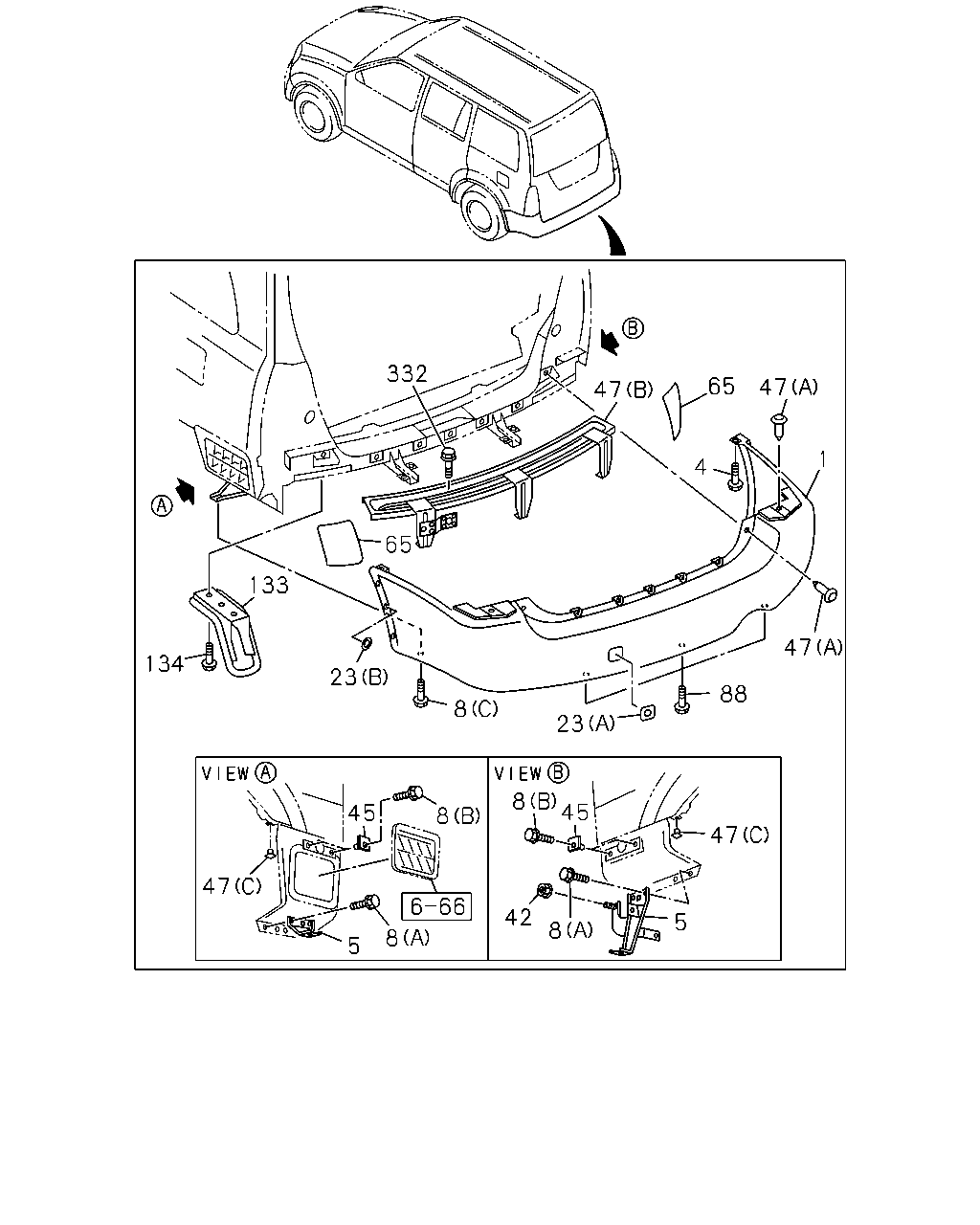

BUMPER; RR
PLEASE PAINT TO MATCH BODY COLOR
|
8-97387-956-0 |
01 |
1 |
0503-0508 |
● |
|
| |
1 |
BUMPER; RR
PLEASE PAINT TO MATCH BODY COLOR
|
8-97387-956-0 |
01 |
1 |
0509- |
● |
● |
| |
4 |
BOLT; BUMPER
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
02 |
1 |
0503-0508 |
● |
|
| |
4 |
BOLT; BUMPER
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
02 |
1 |
0509-0612 |
● |
● |
| |
4 |
BOLT; BUMPER
M6X20 TAPPING
|
8-98052-950-0 |
02 |
1 |
0701-1005 |
● |
● |
| |
4 |
BOLT; BUMPER
M6X20 TAPPING W/PL WASHER
|
8-98167-444-0 |
02 |
1 |
1006- |
● |
● |
| |
5 |
SUPPORT; RR BUMPER
|
8-97361-378-1 |
01 |
1 |
0503-0508 |
● |
|
| |
5 |
SUPPORT; RR BUMPER
|
8-97361-378-1 |
01 |
1 |
0509- |
● |
● |
| |
5 |
SUPPORT; RR BUMPER
|
8-97361-377-1 |
01 |
1 |
0503-0508 |
● |
|
| |
5 |
SUPPORT; RR BUMPER
|
8-97361-377-1 |
01 |
1 |
0509- |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(A)
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0503-0508 |
● |
|
| |
8 |
BOLT; RR SIDE BUMPER
(A)
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0509- |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(B)
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
04 |
1 |
0503-0508 |
● |
|
| |
8 |
BOLT; RR SIDE BUMPER
(B)
M6X20 W/PL WASHER TAPPING
|
8-94321-767-1 |
04 |
1 |
0509-0612 |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(B)
M6X20 TAPPING
|
8-98052-950-0 |
04 |
1 |
0701-1005 |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(B)
M6X20 TAPPING W/PL WASHER
|
8-98167-444-0 |
04 |
1 |
1006- |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(C)
M6X12 FLANGE
|
8-97351-109-0 |
02 |
1 |
0503-0508 |
● |
|
| |
8 |
BOLT; RR SIDE BUMPER
(C)
M6X12 FLANGE
|
8-97351-109-0 |
02 |
1 |
0509-0611 |
● |
● |
| |
8 |
BOLT; RR SIDE BUMPER
(C)
M6X12 FLANGE
|
8-98049-359-0 |
02 |
1 |
0612- |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
(B)
|
8-97387-938-0 |
06 |
1 |
0503-0508 |
● |
|
| |
23 |
COVER; RR BUMPER,HOLE
(B)
|
8-97387-938-0 |
06 |
1 |
0509- |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR ALPINE WHITE(877)
(A)
WHITE
|
8-97399-769-1 |
01 |
1 |
0503-0508 |
● |
|
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR ALPINE WHITE(877)
(A)
WHITE
|
8-97399-769-1 |
01 |
1 |
0509-0709 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR COSMIC GRAY MET/WARM SILVER MET(690),
BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET(691),
BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET(692),B
ODY COLOR STEEL BLACK MET/WARM SILVER MET(693),
BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET(694)
(A)
SILVER
|
8-97399-770-1 |
01 |
1 |
0503-0508 |
● |
|
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR IMPERIAL BLOND MET(688)
(A)
GOLD
|
8-97399-768-1 |
01 |
1 |
0503-0508 |
● |
|
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR STERLING SILVER MET(936),BODY COLOR
STARRY BLACK MICA/STERLING SIL.MET(938),BODY COLOR
CRYSTAL BLUE MET/STERLING SIL.MET(939),BODY COLOR
OMEGA WHITE PEARL/STERLING SIL.MET(940),BODY COLOR
IMPERIAL BLOND/STERLING SIL.MET(941),BODY COLOR
COSMIC GRAY MET/STERLING SIL.MET(957)
(A)
SILVER
|
8-97401-413-1 |
01 |
1 |
0509-0606 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR STERLING SILVER MET(936),BODY COLOR
STARRY BLACK MICA/STERLING SIL.MET(938),BODY COLOR
CRYSTAL BLUE MET/STERLING SIL.MET(939),BODY COLOR
DUNE GRAY MET/STERLING SIL. MET(949),BODY COLOR
MISTY ONYX MICA/STERLING SIL. MET(950)
(A)
SILVER
|
8-97401-413-1 |
01 |
1 |
0607-0708 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR STERLING SILVER MET(936),BODY COLOR
STARRY BLACK MICA/STERLING SIL.MET(938),BODY COLOR
DUNE GRAY MET/STERLING SIL. MET(949),BODY COLOR
MISTY ONYX MICA/STERLING SIL. MET(950)
(A)
SILVER
GRAY
|
8-97369-486-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519),
BODY COLOR STERLING SILVER MET(936),BODY COLOR
STARRY BLACK MICA/STERLING SIL.MET(938),BODY COLOR
DUNE GRAY MET/STERLING SIL. MET(949),BODY COLOR
MISTY ONYX MICA/STERLING SIL. MET(950)
(A)
SILVER
GRAY
|
8-97369-486-1 |
01 |
1 |
0710-0710 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR TOPAZ GOLD MET(501)
(A)
GOLD
|
8-97404-824-1 |
01 |
1 |
0607-0708 |
● |
● |
| |
23 |
COVER; RR BUMPER,HOLE
BODY COLOR CHARDONNAY GOLD MET(511)
(A)
GOLD
|
8-97412-625-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
42 |
NUT; RR SIDE BUMPER
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0503-0508 |
● |
|
| |
42 |
NUT; RR SIDE BUMPER
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0509- |
● |
● |
| |
45 |
REINFORCEMENT; RR BUMPER
|
8-97363-878-0 |
04 |
1 |
0503-0508 |
● |
|
| |
45 |
REINFORCEMENT; RR BUMPER
|
8-97363-878-0 |
04 |
1 |
0509- |
● |
● |
| |
47 |
RETAINER; BUMPER RR CENTER
(C)
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
0503-0508 |
● |
|
| |
47 |
RETAINER; BUMPER RR CENTER
(C)
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
0509- |
● |
● |
| |
47 |
RETAINER; BUMPER RR CENTER
(A)
|
8-97301-188-0 |
09 |
1 |
0503-0508 |
● |
|
| |
47 |
RETAINER; BUMPER RR CENTER
(A)
|
8-97301-188-0 |
09 |
1 |
0509- |
● |
● |
| |
47 |
RETAINER; BUMPER RR CENTER
(B)
|
8-97353-959-3 |
01 |
1 |
0503-0508 |
● |
|
| |
47 |
RETAINER; BUMPER RR CENTER
(B)
|
8-97353-959-3 |
01 |
1 |
0509- |
● |
● |
| |
65 |
GUARD; CHIP,RR BUMPER
|
8-98151-490-0 |
02 |
1 |
1003- |
● |
● |
| |
88 |
BOLT; RET TO BODY
M6X12 FLANGE
|
8-97351-109-0 |
03 |
1 |
0503-0508 |
● |
|
| |
88 |
BOLT; RET TO BODY
M6X12 FLANGE
|
8-97351-109-0 |
03 |
1 |
0509-0611 |
● |
● |
| |
88 |
BOLT; RET TO BODY
M6X12 FLANGE
|
8-98049-359-0 |
03 |
1 |
0612- |
● |
● |
| |
133 |
HOOK
|
8-97944-091-0 |
01 |
1 |
0503-0508 |
● |
|
| |
133 |
HOOK
|
8-97944-091-0 |
01 |
1 |
0509- |
● |
● |
| |
134 |
BOLT; HOOK
M10X30 FLANGE
|
0-28661-030-0 |
03 |
1 |
0503-0508 |
● |
|
| |
134 |
BOLT; HOOK
M10X30 FLANGE
|
0-28661-030-0 |
03 |
1 |
0509- |
● |
● |
| |
332 |
BOLT; STEP
M8X22 FLANGE
|
8-97131-511-0 |
04 |
1 |
0503-0508 |
● |
|
| |
332 |
BOLT; STEP
M8X22 FLANGE
|
8-97131-511-0 |
04 |
1 |
0509-0611 |
● |
● |
| |
332 |
BOLT; STEP
M8X25 FLANGE
|
8-98048-998-0 |
04 |
1 |
0612- |
● |
● |
