◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#7507) — 70 parça

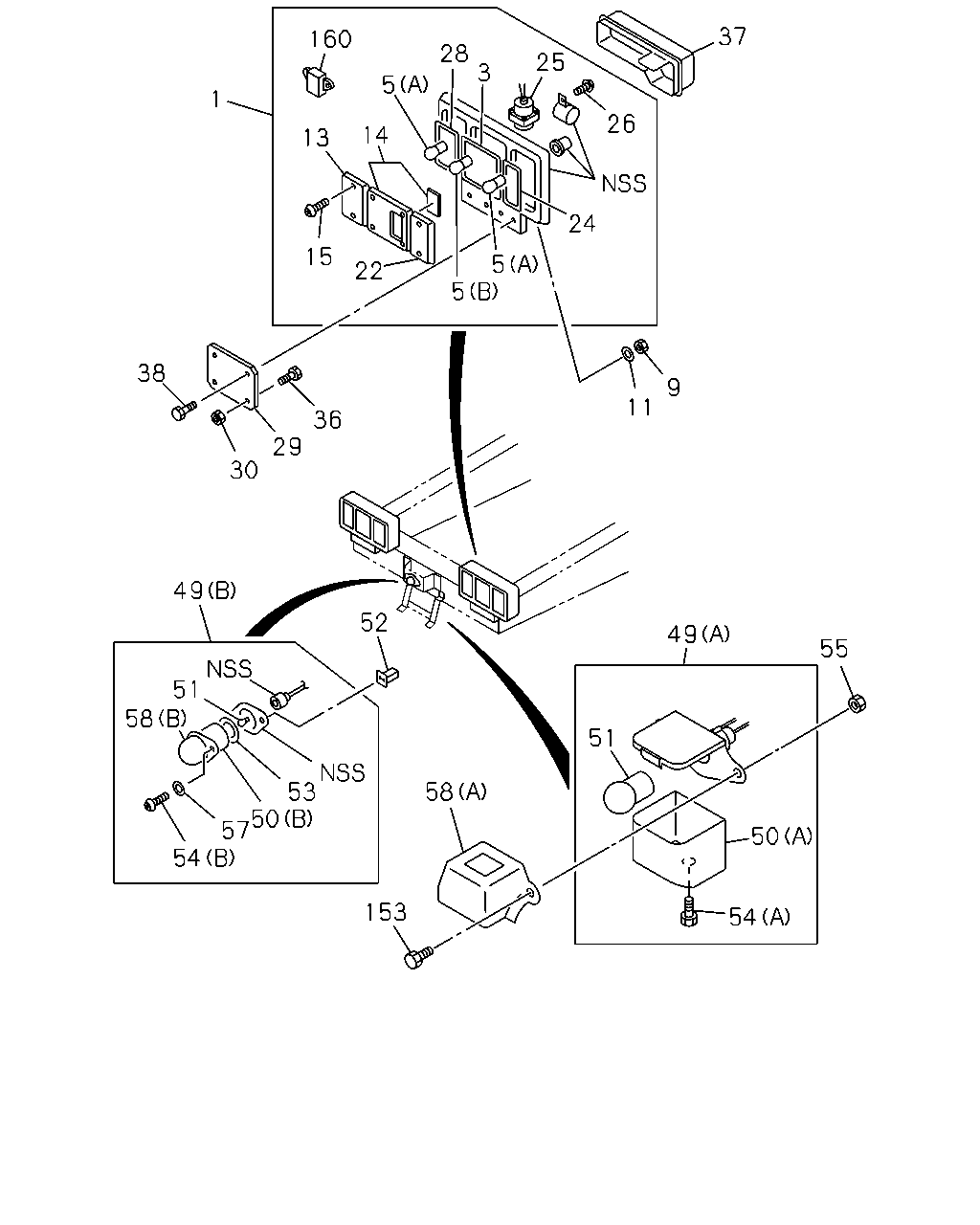

çizim 99056
37 160 28 3 25 5 1 26 14 13 24 15 5 5 22 38 9 11 36 29 30 49 52 49 55 51 58 51 53 50 57 54 58 50 153 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 0611- ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-134-2 01 1 0611- ● ●
1 LAMP ASM; RR COMB
TAI 		8-97530-332-0 01 1 9811-9906 ● ●
1 LAMP ASM; RR COMB
TAI 		8-97531-022-0 01 1 9907-0610 ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> TAI 		1-82230-132-2 01 1 0611- ● ●
1 LAMP ASM; RR COMB
TAI 		8-97530-331-0 01 1 9811-9906 ● ●
1 LAMP ASM; RR COMB
TAI 		8-97531-021-0 01 1 9907-0610 ● ●
1 LAMP ASM; RR COMB
INDICATOR TAIL & STOP LAMP<YD6> TAI 		1-82230-133-2 01 1 0611- ● ●
3 GASKET; RR COMB LAMP
TAI 		8-94257-505-0 02 1 9811-0610 ● ●
3 GASKET; RR COMB LAMP
TAI 		8-94257-505-0 01 1 0611- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W TAI 		8-94125-956-0 04 1 9811-0610 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W TAI 		8-94125-956-0 02 1 0611- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W TAI 		8-94125-957-0 02 1 9811-0610 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W TAI 		8-94125-957-0 01 1 0611- ● ●
9 NUT; LAMP,RR COMB
M6 		9-09110-406-0 04 1 9811-0512 ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0601- ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 04 1 9811-0605 ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 0606- ● ●
13 LENS; TURN SIGNAL
TAI 		8-94174-639-0 01 1 9811-0610 ● ●
13 LENS; TURN SIGNAL
TAI 		1-82235-015-0 01 1 0611- ● ●
13 LENS; TURN SIGNAL
TAI 		8-94174-638-0 01 1 9811-0610 ● ●
13 LENS; TURN SIGNAL
TAI 		1-82235-014-0 01 1 0611- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94257-509-2 01 1 9811-0610 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94257-511-0 01 1 0611- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94257-508-2 01 1 9811-0610 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94257-510-0 01 1 0611- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 9811-0610 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0611- ● ●
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-94257-512-1 02 1 9811-0610 ● ●
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-94257-512-0 01 1 0611- ● ●
24 GASKET; BACK,LAMP
TAI 		8-94257-506-0 02 1 9811-0610 ● ●
24 GASKET; BACK,LAMP
TAI 		8-94257-506-0 01 1 0611- ● ●
25 HORN ASM; BACK
TAI 		8-94257-518-0 01 1 9811-0610 ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> TAI 		8-94257-518-0 01 1 0611- ● ●
26 SCREW; BACK HORN
INDICATOR TAIL & STOP LAMP<YD6> TAI 		1-82239-031-0 02 1 0611- ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 02 1 0611- ● ●
26 SCREW; BACK HORN
EXC. INDICATOR TAIL & STOP LAMP<YD6> M4X12 TAPPING 		9-07076-412-0 01 1 0611- ● ●
26 SCREW; BACK HORN
M4X10 TAPPING 		9-07076-410-0 04 1 9811-0610 ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 0611- ● ●
28 GASKET; TURN,LAMP
TAI 		8-94257-507-0 02 1 9811-0610 ● ●
28 GASKET; TURN,LAMP
TAI 		8-94257-507-0 01 1 0611- ● ●
29 BRACKET; LAMP,RR COMB
TAI 		8-97530-547-0 02 1 9811-0610 ● ●
29 BRACKET; LAMP,RR COMB 1-82237-050-1 02 1 0611- ● ●
30 NUT; BRKT,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ●
30 NUT; BRKT,RR COMB
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
36 BOLT; BRKT,RR COMB
M10X25 FLANGE 		0-28681-025-0 04 1 9811-0512 ●
36 BOLT; BRKT,RR COMB
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 9811- ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 9811- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 9811-0512 ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0601- ● ●
49 LAMP; LICENSE PLATE
(A) TAI 		8-97530-333-0 01 1 9811-0610 ● ●
49 LAMP; LICENSE PLATE
(B) 24V 10W 		1-82120-024-1 01 1 0611- ● ●
50 LENS; LICENSE PLATE LAMP
(A) TAI 		5-82125-004-0 01 1 9811-0610 ● ●
50 LENS; LICENSE PLATE LAMP
(B) TAI 		1-82235-006-0 01 1 0611- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W TAI 		1-82194-037-0 01 1 9811- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0611- ● ●
53 GASKET; LICENSE LAMP
TAI 		1-82126-005-0 01 1 0611- ● ●
54 SCREW; LICENSE PLATE LAMP
(A) M4X8 TAI 		8-94419-312-0 01 1 9811-0610 ● ●
54 SCREW; LICENSE PLATE LAMP
(B) M5X20 TAI 		1-82129-007-0 02 1 0611- ● ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 9811-0610 ● ●
57 WASHER; PL,LICENSE PLATE LAMP
TAI 		1-82129-008-0 02 1 0611- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		8-97048-582-0 01 1 9811-0610 ● ●
58 COVER; LICENSE PLATE LAMP
(B) TAI 		1-82129-005-0 01 1 0611- ● ●
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 02 1 9811-0610 ● ●
160 INDICATOR; RR COMB LAMP
INDICATOR TAIL & STOP LAMP<YD6> TAI 		1-82550-195-0 01 1 0611- ● ●
