Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-86 - TRUNK OPENER AND FUEL LID
▶
6-86 — TRUNK OPENER AND FUEL LID
(#75068) — 41 parça
Tümü
A - UCB6VF
B - UCS6VF
◀
[686A] NO.2 (16 parça)

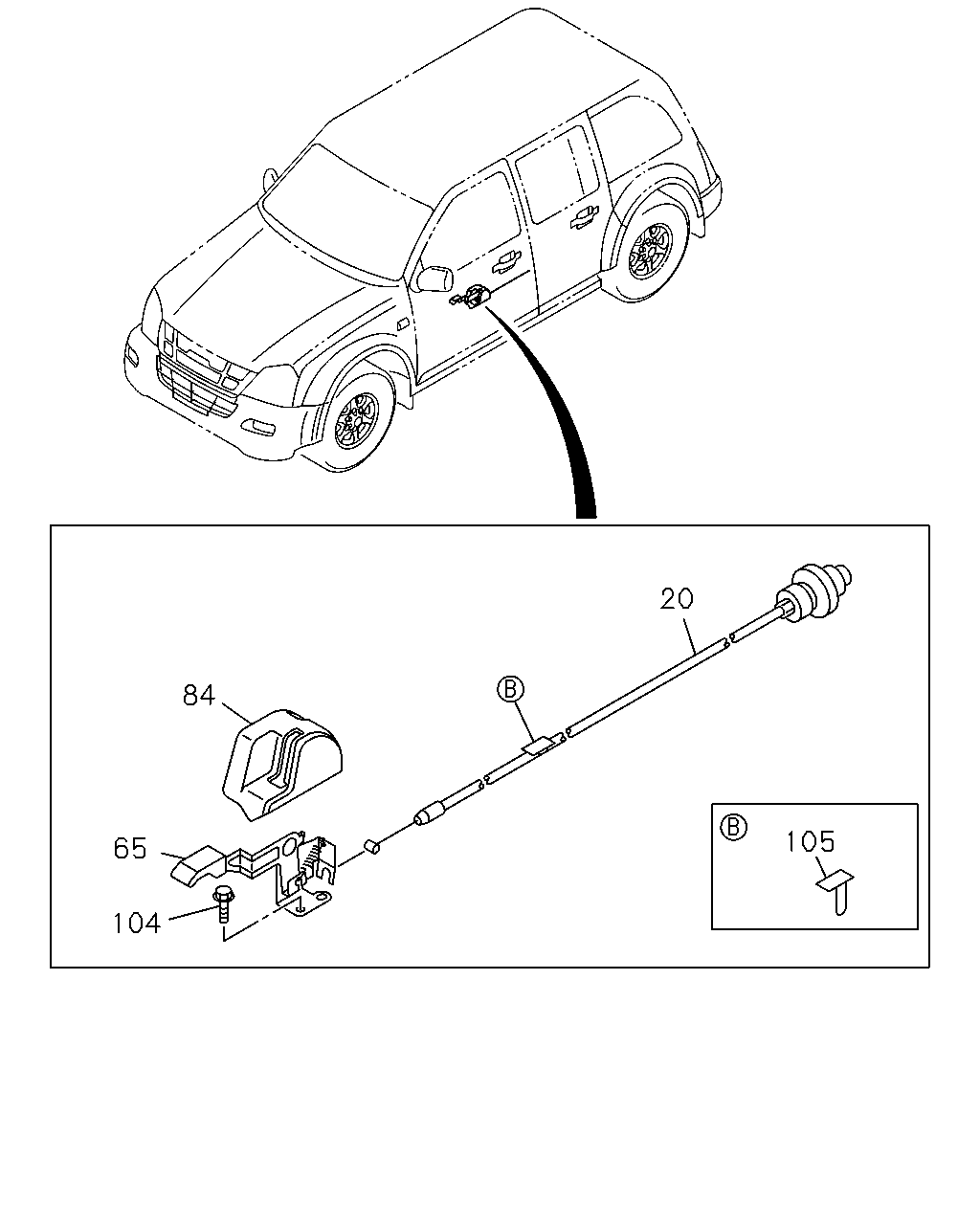

[686A] NO.1 (25 parça)
▶
20
84
105
65
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
CABLE; TRUNK LID & FUEL FILLER
8-97383-543-0
01
1
0503-0508
●
20
CABLE; TRUNK LID & FUEL FILLER
8-97383-543-0
01
1
0509-
●
●
65
KNOB; FUEL FILLER DOOR
DARK GRAY
8-97394-287-0
01
1
0503-0508
●
65
KNOB; FUEL FILLER DOOR
DARK GRAY
8-97394-287-0
01
1
0509-0510
●
●
65
KNOB; FUEL FILLER DOOR
DARK GRAY
8-97405-952-0
01
1
0511-0606
●
●
65
KNOB; FUEL FILLER DOOR
DARK GRAY
8-97405-954-0
01
1
0607-
●
●
84
COVER; BRKT
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY
8-97403-683-0
01
1
1108-
●
●
84
COVER; BRKT
LIGHT GRAY
8-97400-540-0
01
1
0503-0508
●
84
COVER; BRKT
LIGHT GRAY
8-97400-540-0
01
1
0509-0606
●
●
84
COVER; BRKT
BEIGE
8-97404-677-0
01
1
0607-1107
●
●
84
COVER; BRKT
INTERIOR COLOR BEIGE(184) BEIGE
8-97404-677-0
01
1
1108-
●
●
104
BOLT; KNOB
M6X16 FLANGE
0-28650-616-0
02
1
0503-0508
●
104
BOLT; KNOB
M6X16 FLANGE
0-28650-616-0
02
1
0509-
●
●
105
CLIP; CABLE,FUEL LID OPENER
ID=7
1-09987-055-0
01
1
0503-0508
●
105
CLIP; CABLE,FUEL LID OPENER
ID=7
1-09987-055-0
01
1
0509-1110
●
●
105
CLIP; CABLE,FUEL LID OPENER
ID=7
8-98158-303-0
01
1
1111-
●
●
71
9
93
9
47
110
86
8
111
49
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
BOLT; TAIL GATE LOCK
M6X16 FLANGE
0-28480-616-0
03
1
0503-0508
●
8
BOLT; TAIL GATE LOCK
M6X16 FLANGE
0-28480-616-0
03
1
0509-0601
●
●
8
BOLT; TAIL GATE LOCK
M6X16 FLANGE
0-28450-616-0
03
1
0602-
●
●
9
LOCK; TRUNK LID
8-97360-262-3
01
1
0503-0508
●
9
LOCK; TRUNK LID
8-97360-262-3
01
1
0509-0702
●
●
9
LOCK; TRUNK LID
8-98050-416-0
01
1
0703-
●
●
31
STRIKER; TAIL GATE
8-97194-517-2
01
1
0503-0508
●
31
STRIKER; TAIL GATE
8-97194-517-2
01
1
0509-0702
●
●
31
STRIKER; TAIL GATE
8-98050-331-0
01
1
0703-
●
●
47
SCREW; TAIL GATE LK
8-97388-312-0
03
1
0503-0508
●
47
SCREW; TAIL GATE LK
8-97388-312-0
03
1
0509-
●
●
49
SCREW; STRIKER TO TAIL GATE
M8X20 W/TORQUES
8-97386-626-0
02
1
0503-0508
●
49
SCREW; STRIKER TO TAIL GATE
M8X20 W/TORQUES
8-97386-626-0
02
1
0509-0610
●
●
49
SCREW; STRIKER TO TAIL GATE
M8X20 W/TORQUES
8-98049-356-0
02
1
0611-
●
●
71
LINK; TAIL GATE
8-97363-363-2
01
1
0503-0508
●
71
LINK; TAIL GATE
8-97363-363-2
01
1
0509-
●
●
86
HOLDER; LINK ROD
8-97388-310-0
01
1
0503-0508
●
86
HOLDER; LINK ROD
8-97388-310-0
01
1
0509-
●
●
93
NUT; LOCK
M8 FLANGE
8-97046-127-0
04
1
0503-0508
●
93
NUT; LOCK
M8 FLANGE
8-97046-127-0
04
1
0509-0610
●
●
93
NUT; LOCK
M8 FLANGE
8-98049-361-0
04
1
0611-
●
●
110
ACTUATOR; TAIL GATE LK
8-97388-311-0
01
1
0503-0508
●
110
ACTUATOR; TAIL GATE LK
8-97388-311-0
01
1
0509-
●
●
111
CABLE; TAIL GATE LK
8-97388-313-0
01
1
0503-0508
●
111
CABLE; TAIL GATE LK
8-97388-313-0
01
1
0509-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
