Sayfa 6-84 - Isuzu EPC

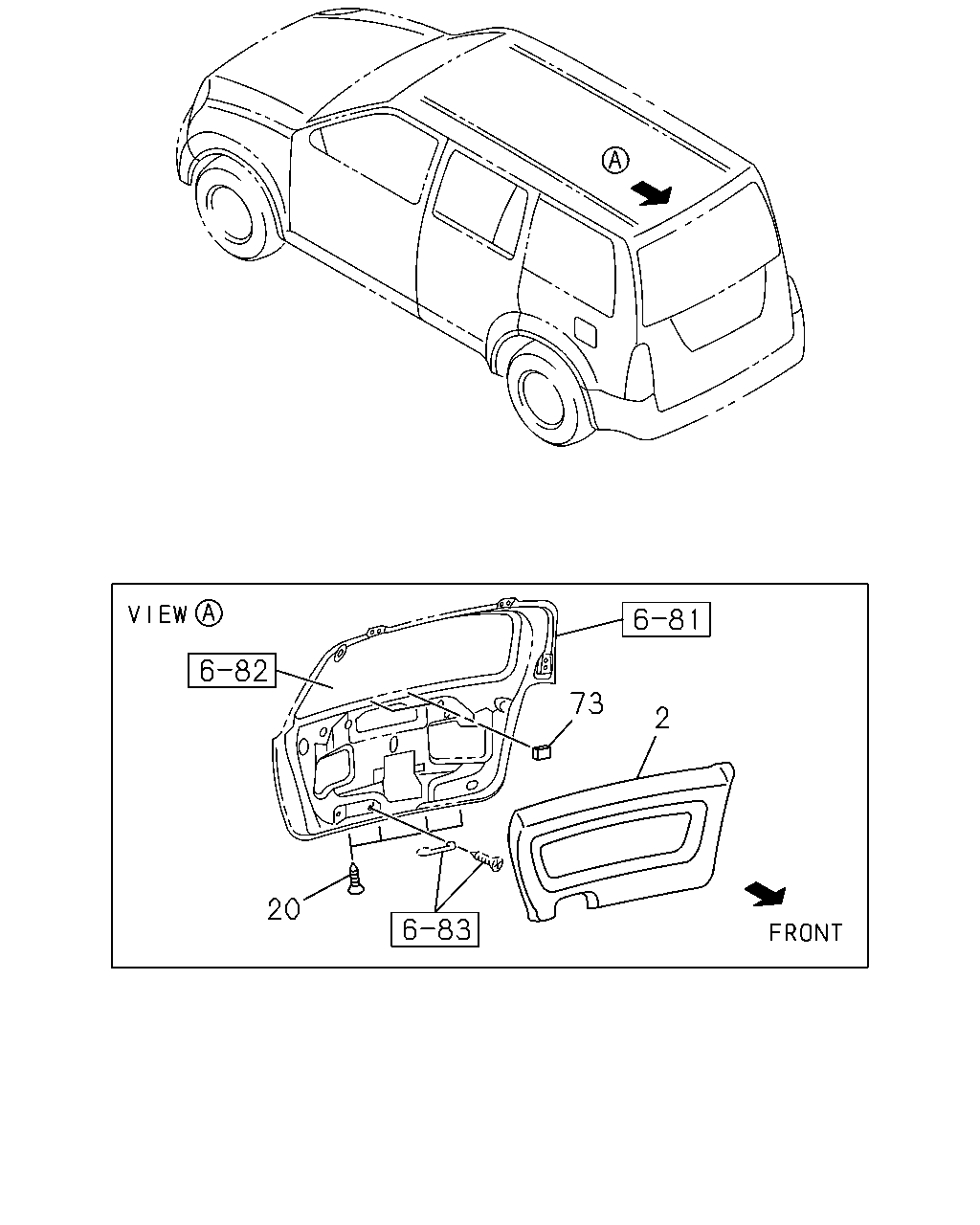

6-84 — BACK TRIM (#75067) — 9 parça

73 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TRIM; BACK DOOR UPR INTERIOR COLOR IN VERY DARK GRAY(116) BLACK	8-97422-932-2	01	1	1108-
2	TRIM; BACK DOOR UPR LIGHT GRAY	8-97399-014-2	01	1	0503-0606
2	TRIM; BACK DOOR UPR BEIGE	8-97404-659-2	01	1	0607-1107
2	TRIM; BACK DOOR UPR INTERIOR COLOR BEIGE(184) BEIGE	8-97404-659-2	01	1	1108-
20	FASTENER; RET INTERIOR COLOR IN VERY DARK GRAY(116) BLACK	8-97418-440-0	04	1	1108-
20	FASTENER; RET LIGHT GRAY	8-97399-825-0	04	1	0503-0606
20	FASTENER; RET BEIGE	8-97404-621-0	04	1	0607-1107
20	FASTENER; RET INTERIOR COLOR BEIGE(184) BEIGE	8-97404-621-0	04	1	1108-
73	SPACER; TRIM BACK INNER	8-98035-650-0	02	1	0601-
