6-83 — BACK DOOR LOCK AND HANDLE (#75066) — 85 parça

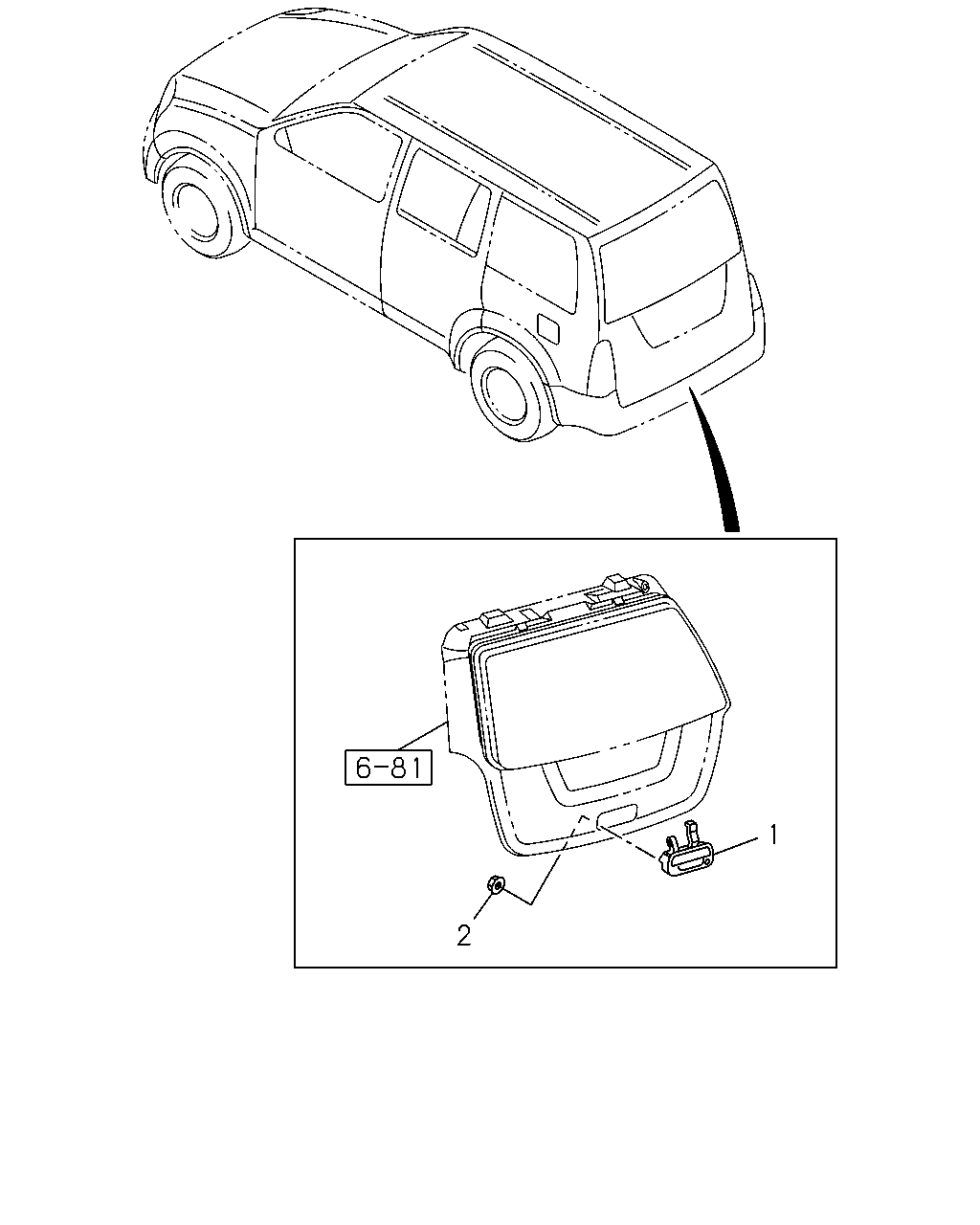

çizim 118631
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ROYAL GRAY MET(505) DARK GRAY 		8-97418-117-0 01 1 0909-1008 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR MINERAL GRAY MET(530) GRAY 		8-97418-902-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-265-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR OMEGA WHITE PEARL(689) WHITE 		8-97415-734-0 01 1 0803-1008 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97418-903-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97400-539-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97400-539-0 01 1 0509-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-260-0 01 1 0703-0808 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
B/COLOR NEBULA GRAY MICA/STERLING SIL.MET(524) DARK GRAY 		8-97414-871-0 01 1 0809-1107 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR COSMIC GRAY MET/WARM SILVER MET(690) GRAY 		8-97400-536-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-372-0 01 1 0509-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-263-0 01 1 0703- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR IMPERIAL BLOND MET(688),BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET(691) GOLD 		8-97400-537-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941) GOLD 		8-97400-537-0 01 1 0509-0606 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97404-588-0 01 1 0607-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-264-0 01 1 0703-0808 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97416-076-0 01 1 0809-0908 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR NAUTILUS BLUE MICA(521),B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97416-076-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR NAUTILUS BLUE MICA(521) DARK BLUE 		8-97416-076-0 01 1 1108- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET(694) BLUE 		8-97400-534-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97401-370-0 01 1 0509-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97408-807-0 01 1 0703-0708 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET(692) WHITE 		8-97400-538-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940) WHITE 		8-97400-538-0 01 1 0509-0606 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97404-739-0 01 1 0607-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97408-266-0 01 1 0703-0708 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR CHARDONNAY GOLD MET(511) GOLD 		8-97412-579-0 01 1 0709-0709 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97412-579-0 01 1 0710-1107 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STEEL BLACK MET/WARM SILVER MET(693) BLACK 		8-97400-535-0 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97401-371-0 01 1 0509-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-262-0 01 1 0703-0908 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR STARRY BLACK MICA(935) BLACK 		8-97408-262-0 01 1 0909- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR COSMIC GRAY MET/STERLING SIL.MET(957) GRAY 		8-97400-536-0 01 1 0509-0606 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97404-589-0 01 1 0607-0702 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-265-0 01 1 0703-0808 ● ●
2 NUT; HANDLE TO BACK DOOR
M6 FLANGE 		5-09440-004-0 02 1 0503-0508 ●
2 NUT; HANDLE TO BACK DOOR
M6 FLANGE 		5-09440-004-0 02 1 0509-0610 ● ●
2 NUT; HANDLE TO BACK DOOR
M6 FLANGE 		8-98049-362-0 02 1 0611- ● ●

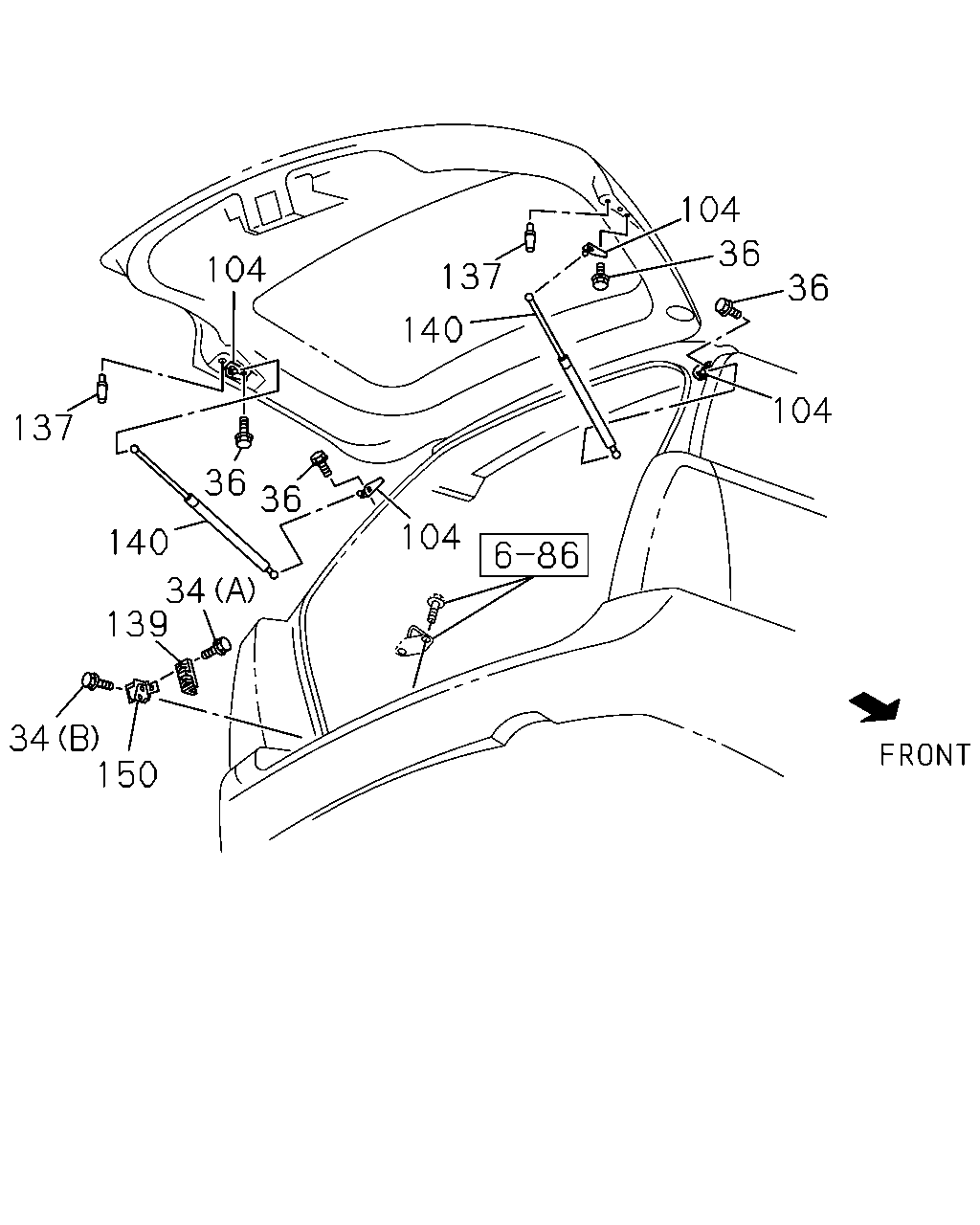

çizim 118643
104 36 104 137 36 140 104 137 36 36 104 140 34 139 34 150
BalonParca AdiParca NoAdetTipApplied Date A B
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 06 1 0503-0508 ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 06 1 0509-0805 ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-98125-360-0 06 1 0806- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-97071-681-0 06 1 0503-0508 ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-97071-681-0 06 1 0509-0702 ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-98056-280-0 06 1 0703- ● ●
36 BOLT; LINK
M6X16 FLANGE 		8-97803-298-0 08 1 0503-0508 ●
36 BOLT; LINK
M6X16 FLANGE 		8-97803-298-0 08 1 0509-0611 ● ●
36 BOLT; LINK
M6X16 FLANGE 		8-98049-357-0 08 1 0612- ● ●
104 BRACKET 8-97367-643-0 02 1 0503-0508 ●
104 BRACKET 8-97367-643-0 02 1 0509- ● ●
104 BRACKET 8-97367-642-0 02 1 0503-0508 ●
104 BRACKET 8-97367-642-0 02 1 0509- ● ●
137 CUSHION; BACK DOOR 8-97258-864-0 02 1 0503-0508 ●
137 CUSHION; BACK DOOR 8-97258-864-0 02 1 0509- ● ●
139 DOVETAIL; BODY 8-97234-392-0 02 1 0503-0508 ●
139 DOVETAIL; BODY 8-97234-392-0 02 1 0509- ● ●
140 STAY; TAIL GATE 8-97355-725-0 01 1 0503-0508 ●
140 STAY; TAIL GATE 8-97355-725-0 01 1 0509-0708 ● ●
140 STAY; TAIL GATE 8-98089-812-0 01 1 0709- ● ●
140 STAY; TAIL GATE 8-97355-724-0 01 1 0503-0508 ●
140 STAY; TAIL GATE 8-97355-724-0 01 1 0509-0708 ● ●
140 STAY; TAIL GATE 8-98089-811-0 01 1 0709- ● ●
150 BRACKET; STOPPER 8-97360-741-1 01 1 0503-0508 ●
150 BRACKET; STOPPER 8-97360-741-1 01 1 0509- ● ●
150 BRACKET; STOPPER 8-97360-740-1 01 1 0503-0508 ●
150 BRACKET; STOPPER 8-97360-740-1 01 1 0509- ● ●

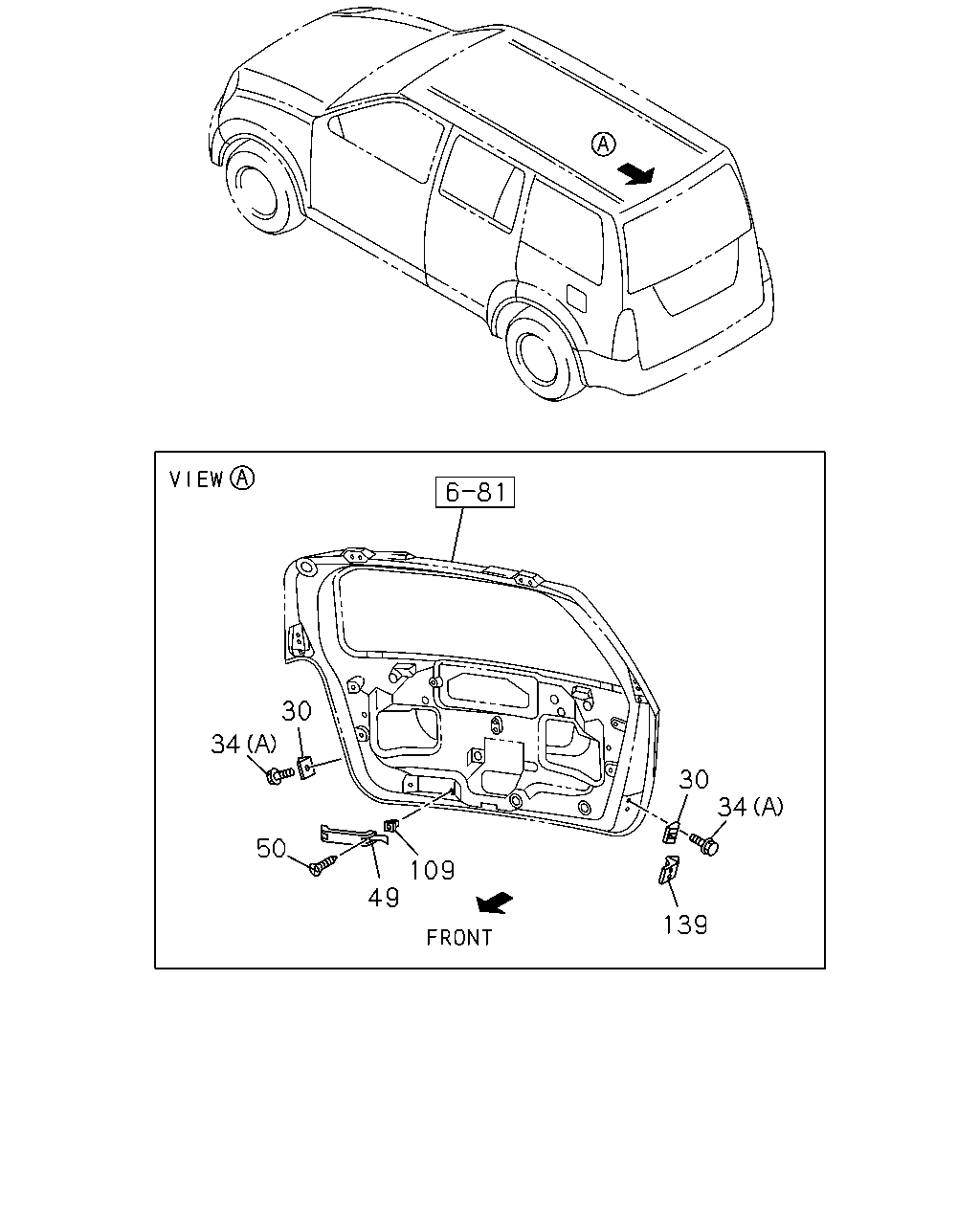

çizim 118646
30 34 30 34 50 109 49 139
BalonParca AdiParca NoAdetTipApplied Date A B
30 DOVETAIL; BACK DOOR 8-97234-389-3 02 1 0503-0508 ●
30 DOVETAIL; BACK DOOR 8-97234-389-3 02 1 0509- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 06 1 0503-0508 ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 06 1 0509-0805 ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-98125-360-0 06 1 0806- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-97071-681-0 06 1 0503-0508 ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-97071-681-0 06 1 0509-0702 ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) M6X18 		8-98056-280-0 06 1 0703- ● ●
49 GRIP; ASSIST BACK DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-931-0 01 1 1108- ● ●
49 GRIP; ASSIST BACK DOOR
LIGHT GRAY 		8-97399-013-0 01 1 0503-0508 ●
49 GRIP; ASSIST BACK DOOR
LIGHT GRAY 		8-97399-013-0 01 1 0509-0606 ● ●
49 GRIP; ASSIST BACK DOOR
BEIGE 		8-97404-658-0 01 1 0607-1107 ● ●
49 GRIP; ASSIST BACK DOOR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-658-0 01 1 1108- ● ●
50 SCREW; ASSIST GRIP
M6X30 TAPPING 		9-07066-630-0 02 1 0503-0508 ●
50 SCREW; ASSIST GRIP
M6X30 TAPPING 		9-07066-630-0 02 1 0509-0606 ● ●
50 SCREW; ASSIST GRIP
M6X30 TAPPING 		0-71040-630-0 02 1 0607- ● ●
109 GROMMET; SCREW 8-94159-130-0 02 1 0503-0508 ●
109 GROMMET; SCREW 8-94159-130-0 02 1 0509- ● ●
139 DOVETAIL; BODY 8-97234-392-0 02 1 0503-0508 ●
139 DOVETAIL; BODY 8-97234-392-0 02 1 0509- ● ●
