6-81 — BACK DOOR AND HINGE (#75064) — 19 parça

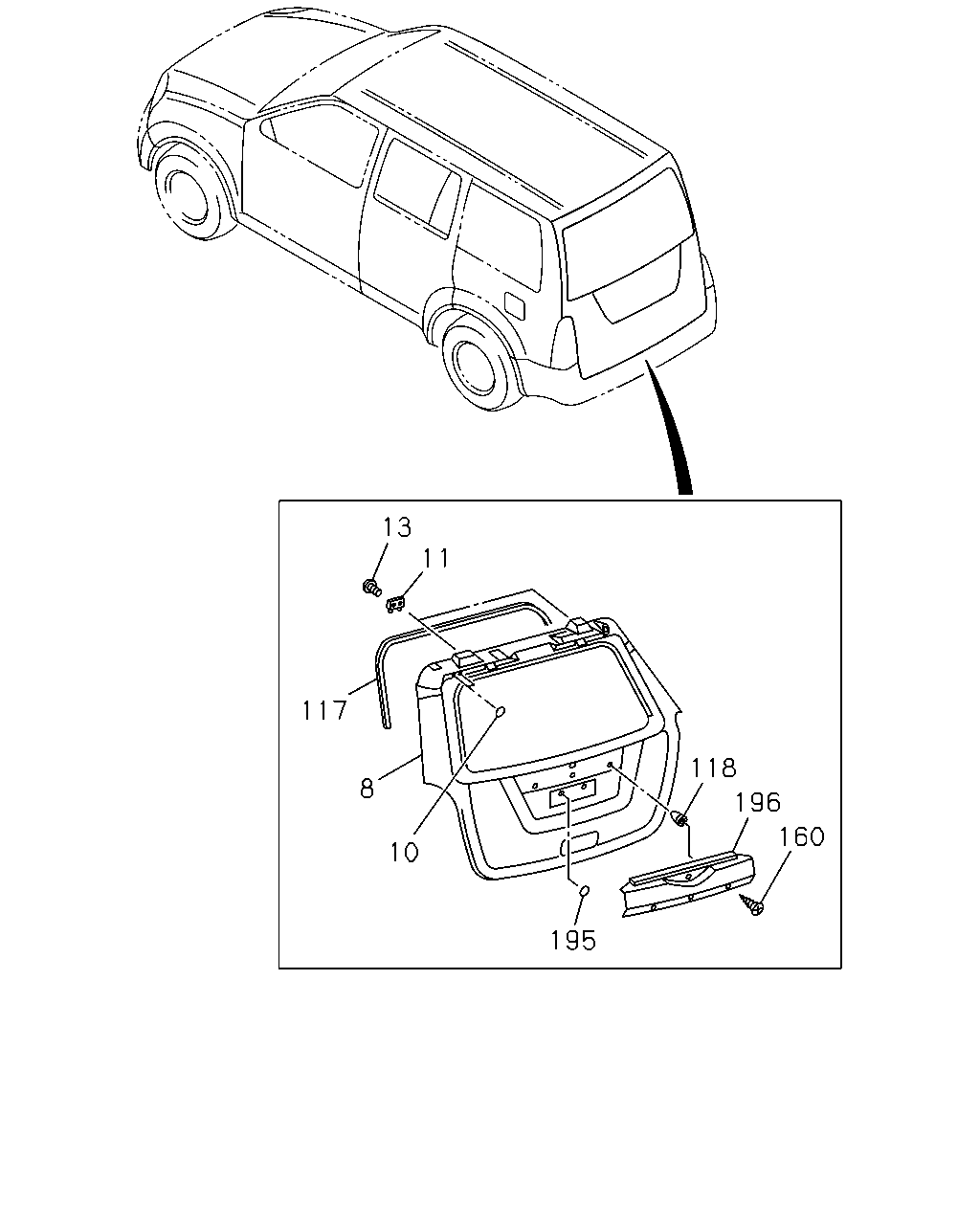

çizim 118628
13 11 117 118 8 196 160 10 195
BalonParca AdiParca NoAdetTipApplied Date A B
8 PANEL; TAIL GATE 8-97363-871-3 01 1 0503-0508 ●
8 PANEL; TAIL GATE 8-97363-871-3 01 1 0509-0606 ● ●
8 PANEL; TAIL GATE 8-98045-656-0 01 1 0607- ● ●
10 PLUG; TAIL GATE
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0607- ● ●
11 HINGE; TAIL GATE 8-97234-370-1 02 1 0503-0508 ●
11 HINGE; TAIL GATE 8-97234-370-1 02 1 0509- ● ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE 		0-28650-820-0 04 1 0503-0508 ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE 		0-28650-820-0 04 1 0509- ● ●
117 GARNISH 8-97360-266-1 01 1 0503-0508 ●
117 GARNISH 8-97360-266-1 01 1 0509- ● ●
118 NUT; GARNISH
D=7.9X7.9 L=11.4 M5 		8-94367-528-0 03 1 0503-0508 ●
118 NUT; GARNISH
D=7.9X7.9 L=11.4 M5 		8-94367-528-0 03 1 0509- ● ●
160 BOLT
M5X16 		8-94384-690-0 03 1 0503-0508 ●
160 BOLT
M5X16 		8-94384-690-0 03 1 0509-0611 ● ●
160 BOLT
M5X16 TAPPING 		8-98049-145-0 03 1 0612- ● ●
195 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0503-0508 ●
195 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0509- ● ●
196 MOLDING; TAIL GATE 8-97354-779-4 01 1 0503-0508 ●
196 MOLDING; TAIL GATE 8-97354-779-4 01 1 0509- ● ●
