◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#75061) — 35 parça

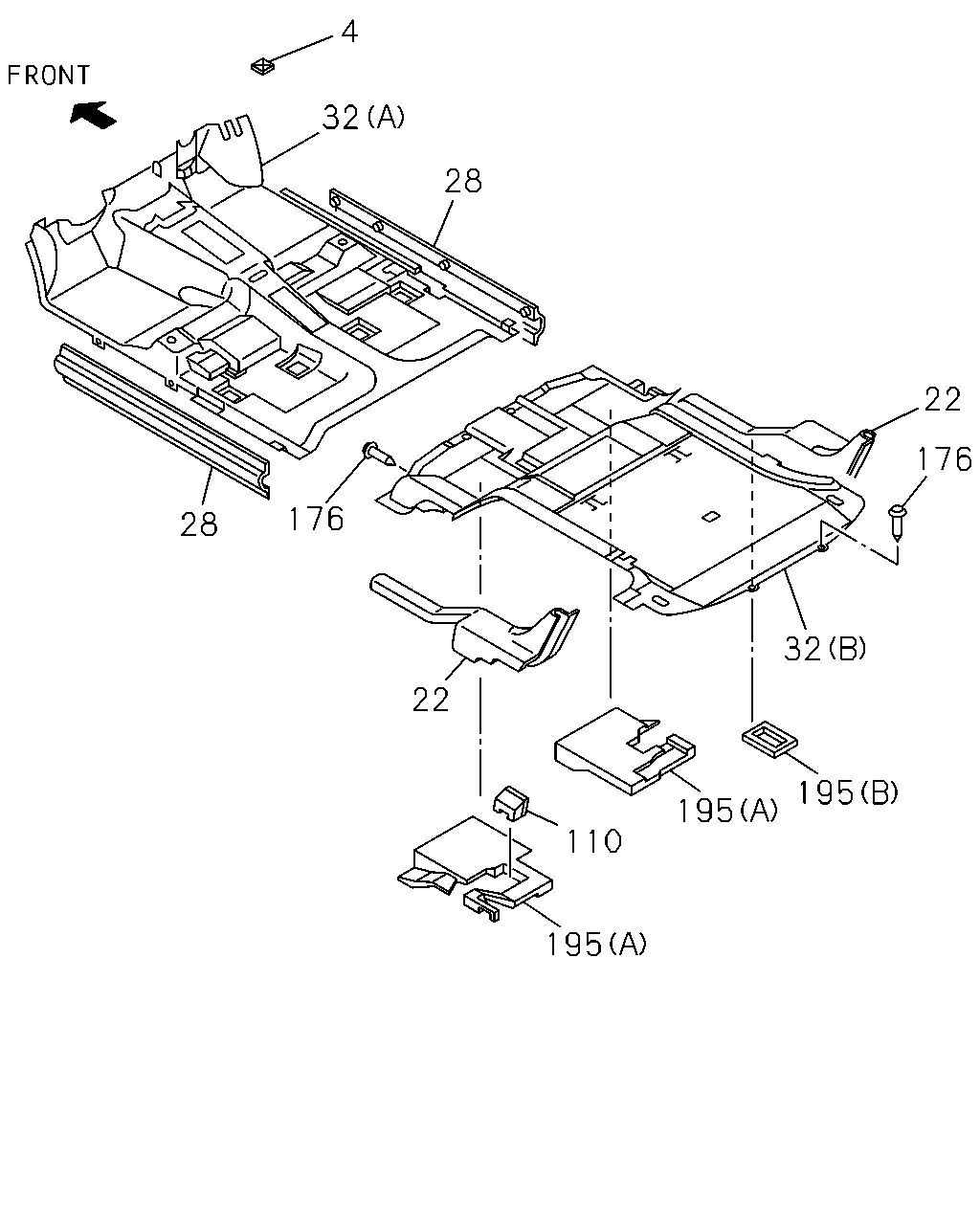

çizim 118647
4 32 28 22 176 176 28 32 22 195 195 110 195
BalonParca AdiParca NoAdetTipApplied Date
4 INSULATOR; FRT
4X2(UCB***) 		8-97352-085-0 04 1 0503-0508
4 INSULATOR; FRT 8-97352-085-0 04 1 0509-
22 PLATE; SILL,RR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-903-2 01 1 1108-
22 PLATE; SILL,RR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-904-2 01 1 1108-
22 PLATE; SILL,RR
LIGHT GRAY 		8-97398-970-2 01 1 0503-0606
22 PLATE; SILL,RR
BEIGE 		8-97404-609-2 01 1 0607-1107
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-609-2 01 1 1108-
22 PLATE; SILL,RR
LIGHT GRAY 		8-97398-969-2 01 1 0503-0606
22 PLATE; SILL,RR
BEIGE 		8-97404-608-2 01 1 0607-1107
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-608-2 01 1 1108-
28 PLATE; SILL,FRT
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-455-1 02 1 1108-
28 PLATE; SILL,FRT
LIGHT GRAY 		8-97398-968-1 02 1 0503-0606
28 PLATE; SILL,FRT
BEIGE 		8-97404-607-1 02 1 0607-1107
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-607-1 02 1 1108-
32 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97423-469-3 01 1 1108-
32 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97423-470-1 01 1 1108-
32 CARPET; FLOOR
4X2(UCB***) (A) LIGHT GRAY 		8-97400-555-3 01 1 0503-0508
32 CARPET; FLOOR
(A) LIGHT GRAY 		8-97400-555-3 01 1 0509-0606
32 CARPET; FLOOR
(A) BEIGE 		8-97404-602-3 01 1 0607-1107
32 CARPET; FLOOR
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-602-3 01 1 1108-
32 CARPET; FLOOR
4X2(UCB***) (B) LIGHT GRAY 		8-97400-556-3 01 1 0503-0505
32 CARPET; FLOOR
4X2(UCB***) (B) LIGHT GRAY 		8-97404-371-0 01 1 0506-0508
32 CARPET; FLOOR
(B) LIGHT GRAY 		8-97404-371-0 01 1 0509-0606
32 CARPET; FLOOR
(B) BEIGE 		8-97406-882-1 01 1 0607-1107
32 CARPET; FLOOR
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97406-882-1 01 1 1108-
110 INSULATION; PAD,RR FLOOR,RR 8-97375-231-1 02 1 0503-
176 RETAINER; CARPET
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-411-0 04 1 1108-
176 RETAINER; CARPET
LIGHT GRAY 		8-97398-966-0 04 1 0503-0606
176 RETAINER; CARPET
BEIGE 		8-97404-605-0 04 1 0607-1107
176 RETAINER; CARPET
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-605-0 04 1 1108-
195 SPACER; RR FLOOR
(A) 		8-97367-069-1 01 1 0503-0606
195 SPACER; RR FLOOR
(A) 		8-98033-686-0 01 1 0607-
195 SPACER; RR FLOOR
(A) 		8-97367-068-1 01 1 0503-0606
195 SPACER; RR FLOOR
(A) 		8-98033-684-0 01 1 0607-
195 SPACER; RR FLOOR
(B) 		8-98065-927-0 AR 1 0611-
