6-70 — FLOOR PANEL (#75060) — 85 parça

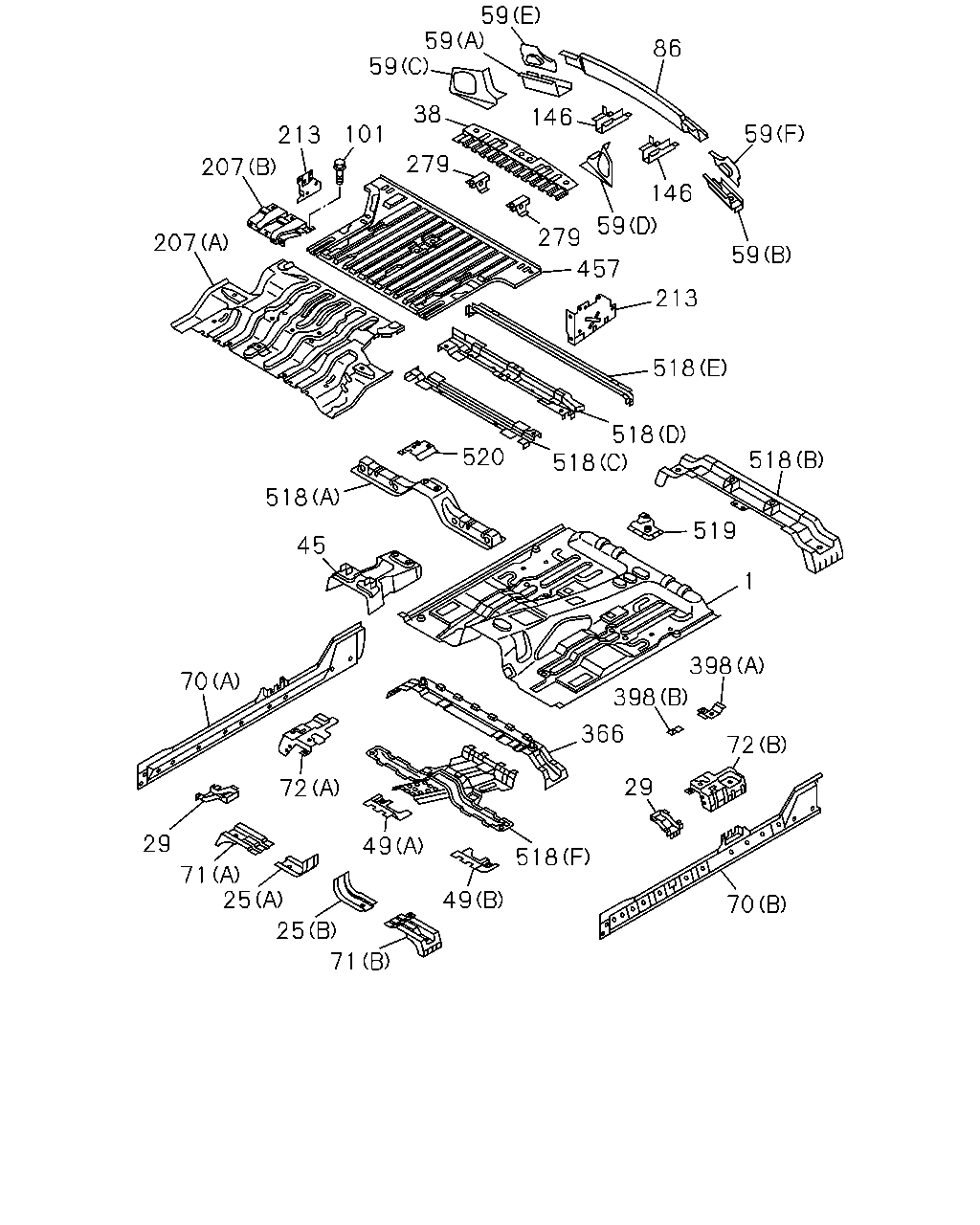

çizim 118638
59 59 59 86 38 146 59 101 213 279 207 146 59 279 207 59 457 213 518 518 518 520 518 518 519 45 1 398 70 398 366 72 29 72 29 49 518 71 25 49 70 25 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97357-509-0 01 1 0503-0508 ●
1 PANEL; FLOOR 8-97357-509-0 01 1 0509- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(A) 		8-97235-810-1 01 1 0503-0508 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(A) 		8-97235-810-1 01 1 0509- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(B) 		8-97235-811-1 01 1 0503-0508 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
(B) 		8-97235-811-1 01 1 0509- ● ●
29 GUSSET 8-97349-433-0 02 1 0503-0508 ●
29 GUSSET 8-97349-433-0 02 1 0509- ● ●
38 CLOSING; RR END 8-97361-196-0 01 1 0503-0508 ●
38 CLOSING; RR END 8-97361-196-0 01 1 0509- ● ●
45 REINFORCEMENT; TUNNEL,FRT 8-97380-608-0 01 1 0503-0508 ●
45 REINFORCEMENT; TUNNEL,FRT 8-97380-608-0 01 1 0509- ● ●
49 BRACKET; HEAT PROTECTOR,FRT
(A) 		8-97334-434-0 01 1 0503-0508 ●
49 BRACKET; HEAT PROTECTOR,FRT
(A) 		8-97334-434-0 01 1 0509- ● ●
49 BRACKET; HEAT PROTECTOR,FRT
(B) 		8-97334-435-0 01 1 0503-0508 ●
49 BRACKET; HEAT PROTECTOR,FRT
(B) 		8-97334-435-0 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(A) 		8-97359-896-2 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(A) 		8-97359-896-2 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(B) 		8-97359-897-2 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(B) 		8-97359-897-2 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(C) 		8-97359-909-1 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(C) 		8-97359-909-1 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(D) 		8-97359-910-1 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(D) 		8-97359-910-1 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(E) 		8-97360-043-0 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(E) 		8-97360-043-0 01 1 0509- ● ●
59 EXTENSION; RR END CLOSING
(F) 		8-97360-044-0 01 1 0503-0508 ●
59 EXTENSION; RR END CLOSING
(F) 		8-97360-044-0 01 1 0509- ● ●
70 PANEL; ROCKER INNER
(A) 		8-97361-194-2 01 1 0503-0508 ●
70 PANEL; ROCKER INNER
(A) 		8-97361-194-2 01 1 0509- ● ●
70 PANEL; ROCKER INNER
(B) 		8-97361-195-2 01 1 0503-0508 ●
70 PANEL; ROCKER INNER
(B) 		8-97361-195-2 01 1 0509- ● ●
71 BRACKET; CAB MTG,CENTER
(A) 		8-97363-846-0 01 1 0503-0508 ●
71 BRACKET; CAB MTG,CENTER
(A) 		8-97363-846-0 01 1 0509- ● ●
71 BRACKET; CAB MTG,CENTER
(B) 		8-97363-847-0 01 1 0503-0508 ●
71 BRACKET; CAB MTG,CENTER
(B) 		8-97363-847-0 01 1 0509- ● ●
72 BRACKET; CAB MTG,RR
(A) 		8-97367-941-0 01 1 0503-0508 ●
72 BRACKET; CAB MTG,RR
(A) 		8-97367-941-0 01 1 0509- ● ●
72 BRACKET; CAB MTG,RR
(B) 		8-97367-942-0 01 1 0503-0508 ●
72 BRACKET; CAB MTG,RR
(B) 		8-97367-942-0 01 1 0509- ● ●
86 BAR; RR END 8-97359-891-0 01 1 0503-0508 ●
86 BAR; RR END 8-97359-891-0 01 1 0509- ● ●
101 BOLT; EXT PANEL
M8X16 FLANGE 		0-28080-816-0 03 1 0503-0508 ●
101 BOLT; EXT PANEL
M8X16 FLANGE 		0-28080-816-0 03 1 0509-0601 ● ●
101 BOLT; EXT PANEL
M8X16 FLANGE 		0-28050-816-0 03 1 0602-0606 ● ●
146 BRACKET; RR BUMPER,RR FLOOR 8-97359-893-0 02 1 0503-0508 ●
146 BRACKET; RR BUMPER,RR FLOOR 8-97359-893-0 02 1 0509- ● ●
207 PANEL; FLOOR,RR CTR
(A) 		8-97359-837-1 01 1 0503-0508 ●
207 PANEL; FLOOR,RR CTR
(A) 		8-97359-837-1 01 1 0509-0606 ● ●
207 PANEL; FLOOR,RR CTR
(A) 		8-98032-797-0 01 1 0607- ● ●
207 PANEL; FLOOR,RR CTR
(B) 		8-97360-000-0 01 1 0503-0508 ●
207 PANEL; FLOOR,RR CTR
(B) 		8-97360-000-0 01 1 0509-0606 ● ●
213 PANEL; RR FLOOR SIDE 8-97362-624-4 01 1 0503-0508 ●
213 PANEL; RR FLOOR SIDE 8-97362-624-4 01 1 0509- ● ●
213 PANEL; RR FLOOR SIDE 8-97360-776-1 01 1 0503-0508 ●
213 PANEL; RR FLOOR SIDE 8-97360-776-1 01 1 0509- ● ●
279 REINFORCEMENT 8-97359-892-1 02 1 0503-0508 ●
279 REINFORCEMENT 8-97359-892-1 02 1 0509- ● ●
366 BAR ASM; FRT SEAT MTG 8-97359-914-2 01 1 0503-0508 ●
366 BAR ASM; FRT SEAT MTG 8-97359-914-2 01 1 0509- ● ●
398 BRACKET; PIPE SUPPORT
(A) 		8-97333-851-1 01 1 0503-0508 ●
398 BRACKET; PIPE SUPPORT
(A) 		8-97333-851-1 01 1 0509- ● ●
398 BRACKET; PIPE SUPPORT
(B) 		8-97360-719-0 01 1 0503-0508 ●
398 BRACKET; PIPE SUPPORT
(B) 		8-97360-719-0 01 1 0509- ● ●
457 PAN; LUG FLOOR 8-97359-862-3 01 1 0503-0508 ●
457 PAN; LUG FLOOR 8-97359-862-3 01 1 0509- ● ●
518 SILL; FLOOR
(A) 		8-97235-794-3 01 1 0503-0508 ●
518 SILL; FLOOR
(A) 		8-97235-794-3 01 1 0509-0709 ● ●
518 SILL; FLOOR
(A) 		8-98048-087-0 01 1 0710- ● ●
518 SILL; FLOOR
(B) 		8-97359-839-1 01 1 0503-0508 ●
518 SILL; FLOOR
(B) 		8-97359-839-1 01 1 0509-0606 ● ●
518 SILL; FLOOR
(B) 		8-98030-677-0 01 1 0607- ● ●
518 SILL; FLOOR
(C) 		8-97359-864-3 01 1 0503-0508 ●
518 SILL; FLOOR
(C) 		8-97359-864-3 01 1 0509-0804 ● ●
518 SILL; FLOOR
(C) 		8-98107-511-0 01 1 0805- ● ●
518 SILL; FLOOR
(D) 		8-97359-873-1 01 1 0503-0508 ●
518 SILL; FLOOR
(D) 		8-97359-873-1 01 1 0509- ● ●
518 SILL; FLOOR
(E) 		8-97359-882-2 01 1 0503-0508 ●
518 SILL; FLOOR
(E) 		8-97359-882-2 01 1 0509- ● ●
518 SILL; FLOOR
(F) 		8-97371-000-0 01 1 0503-0508 ●
518 SILL; FLOOR
(F) 		8-97371-000-0 01 1 0509- ● ●
519 BRACKET; CONTROLLER 4WD 8-97246-499-2 01 1 0503-0508 ●
519 BRACKET; CONTROLLER 4WD 8-97246-499-2 01 1 0509-0606 ● ●
520 BRACKET; FUEL LID OPENER 8-97328-721-0 01 1 0503-0508 ●
520 BRACKET; FUEL LID OPENER 8-97328-721-0 01 1 0509- ● ●
