◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#7506) — 63 parça

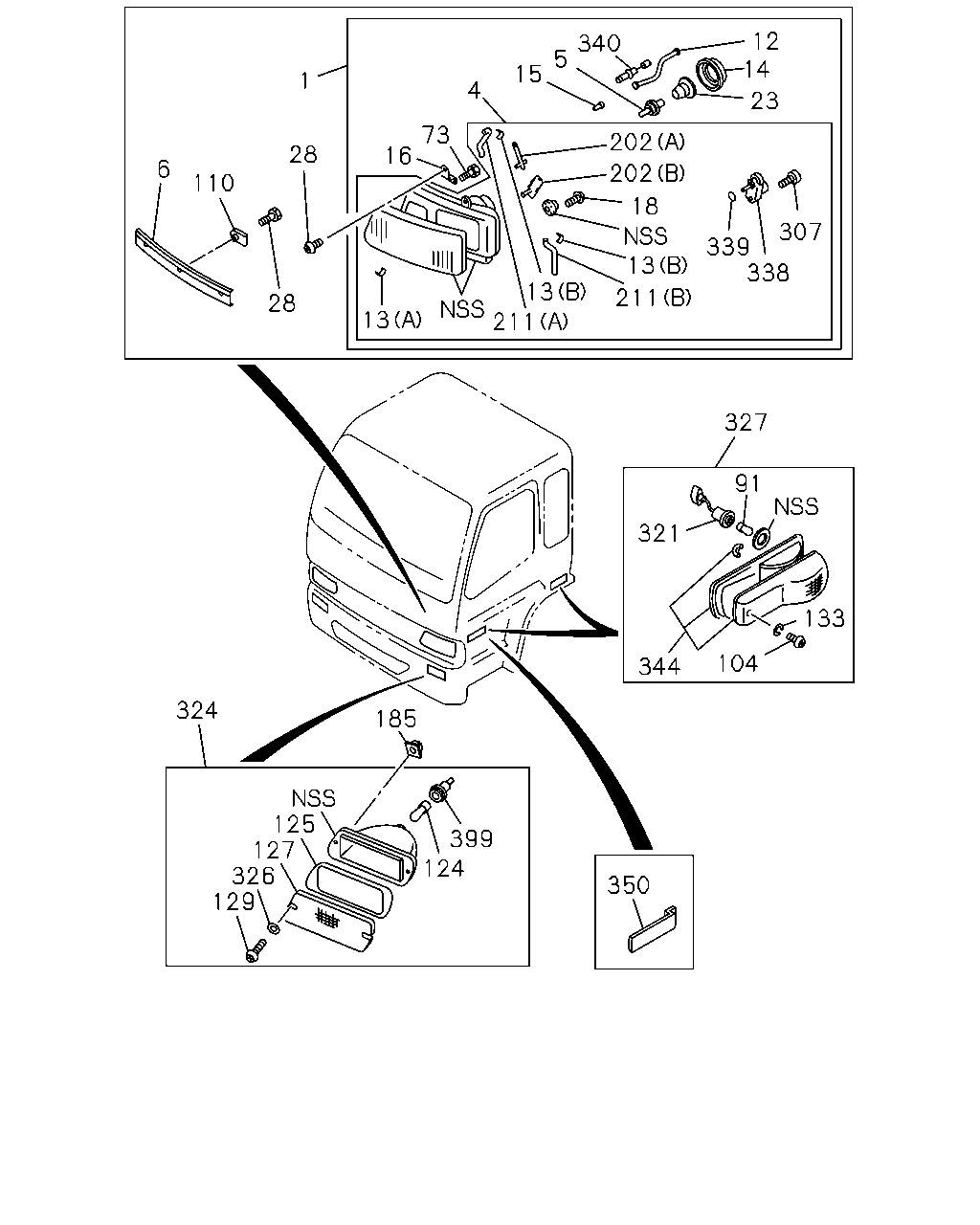

çizim 99120
12 14 340 5 15 1 4 23 73 16 202 28 6 202 110 18 307 13 339 338 13 211 28 211 13 327 91 321 133 104 344 324 185 125 127 326 129 399 124 350
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
TAI 		8-97530-314-0 01 1 9811-0610 ● ●
1 LAMP ASM; HEAD
TAI 		1-82110-440-0 01 1 0611- ● ●
1 LAMP ASM; HEAD
TAI 		8-97530-313-0 01 1 9811-0610 ● ●
1 LAMP ASM; HEAD
TAI 		1-82110-439-0 01 1 0611- ● ●
4 HEADLAMP UNIT
TAI 		1-86830-198-1 01 1 9811-0610 ● ●
4 HEADLAMP UNIT
TAI 		1-82119-205-0 01 1 0611- ● ●
4 HEADLAMP UNIT
TAI 		1-86830-197-1 01 1 9811-0610 ● ●
4 HEADLAMP UNIT
TAI 		1-82119-204-0 01 1 0611- ● ●
5 BULB; HEADLAMP
24V 75/70W TAI 		8-97530-667-0 02 1 9811-0610 ● ●
5 BULB; HEADLAMP
24V 75/70W TAI 		1-82194-063-0 02 1 0611- ● ●
6 RIM; HEADLAMP
TAI 		1-86830-006-5 01 1 9811- ● ●
6 RIM; HEADLAMP
TAI 		1-86830-005-5 01 1 9811- ● ●
12 HARNESS; HEADLAMP
TAI 		1-86830-145-0 02 1 9811- ● ●
13 CLIP; HEADLAMP
(B) TAI 		1-82119-084-0 04 1 9811- ● ●
13 CLIP; HEADLAMP
(A) TAI 		8-94381-588-0 14 1 9811- ● ●
14 CAP; BULB,LAMP
TAI 		1-86830-148-0 02 1 9811- ● ●
15 BULB; FOG LAMP
24V 55W TAI 		1-82194-079-0 02 1 9811- ● ●
16 BRACKET; HEADLAMP
TAI 		1-86830-076-0 01 1 9811- ● ●
16 BRACKET; HEADLAMP
TAI 		1-86830-075-0 01 1 9811- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING TAI 		1-82119-067-0 08 1 9811- ● ●
23 COVER; BULB,HEADLAMP
TAI 		1-86830-147-0 02 1 9811- ● ●
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 14 1 9811-0708 ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 10 1 0709- ● ●
73 BOLT; BRKT,HEADLAMP
TAI 		8-94332-050-0 04 1 9811- ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W TAI 		1-82194-037-0 02 1 9811-0610 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W TAI 		1-82194-030-0 02 1 0611- ● ●
104 SCREW; SIDE TURN SIGNAL
TAI 		1-86830-149-0 02 1 9811- ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 9811- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W TAI 		1-82194-036-0 02 1 9811- ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9811- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9811- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9811- ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9811- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
TAI 		1-86830-150-0 02 1 9811-0206 ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 TAI 		8-94222-314-0 04 1 9811- ● ●
202 GEAR UNIT; HEADLAMP
(A) TAI 		1-86830-139-0 02 1 9811- ● ●
202 GEAR UNIT; HEADLAMP
(B) TAI 		1-86830-140-0 02 1 9811- ● ●
211 TUBE; HEADLAMP
(A) TAI 		1-86830-142-0 01 1 9811-0610 ● ●
211 TUBE; HEADLAMP
(B) TAI 		1-86830-144-0 01 1 9811-0610 ● ●
211 TUBE; HEADLAMP
(B) TAI 		1-86830-331-0 01 1 0611- ● ●
211 TUBE; HEADLAMP
(A) TAI 		1-86830-141-0 01 1 9811-0610 ● ●
211 TUBE; HEADLAMP
(B) TAI 		1-86830-143-0 01 1 9811-0610 ● ●
211 TUBE; HEADLAMP
(B) TAI 		1-86830-330-0 01 1 0611- ● ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING TAI 		1-82119-067-0 02 1 0611- ● ●
321 HARNESS; SIDE FLASHER LAMP
TAI 		1-86830-253-0 02 1 9811- ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9811- ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9811- ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9811- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 9811-0610 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0611- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 9811-0610 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0611- ● ●
338 LEVELING; HEADLAMP
TAI 		1-86830-138-0 02 1 0611- ● ●
339 GASKET; LEVELING
TAI 		1-86830-158-0 02 1 0611- ● ●
340 BULB; POSITION
24V 5W TAI 		1-82194-042-0 02 1 9811- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9811- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9811- ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9811-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9811-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9811- ● ●
