◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#75059) — 35 parça

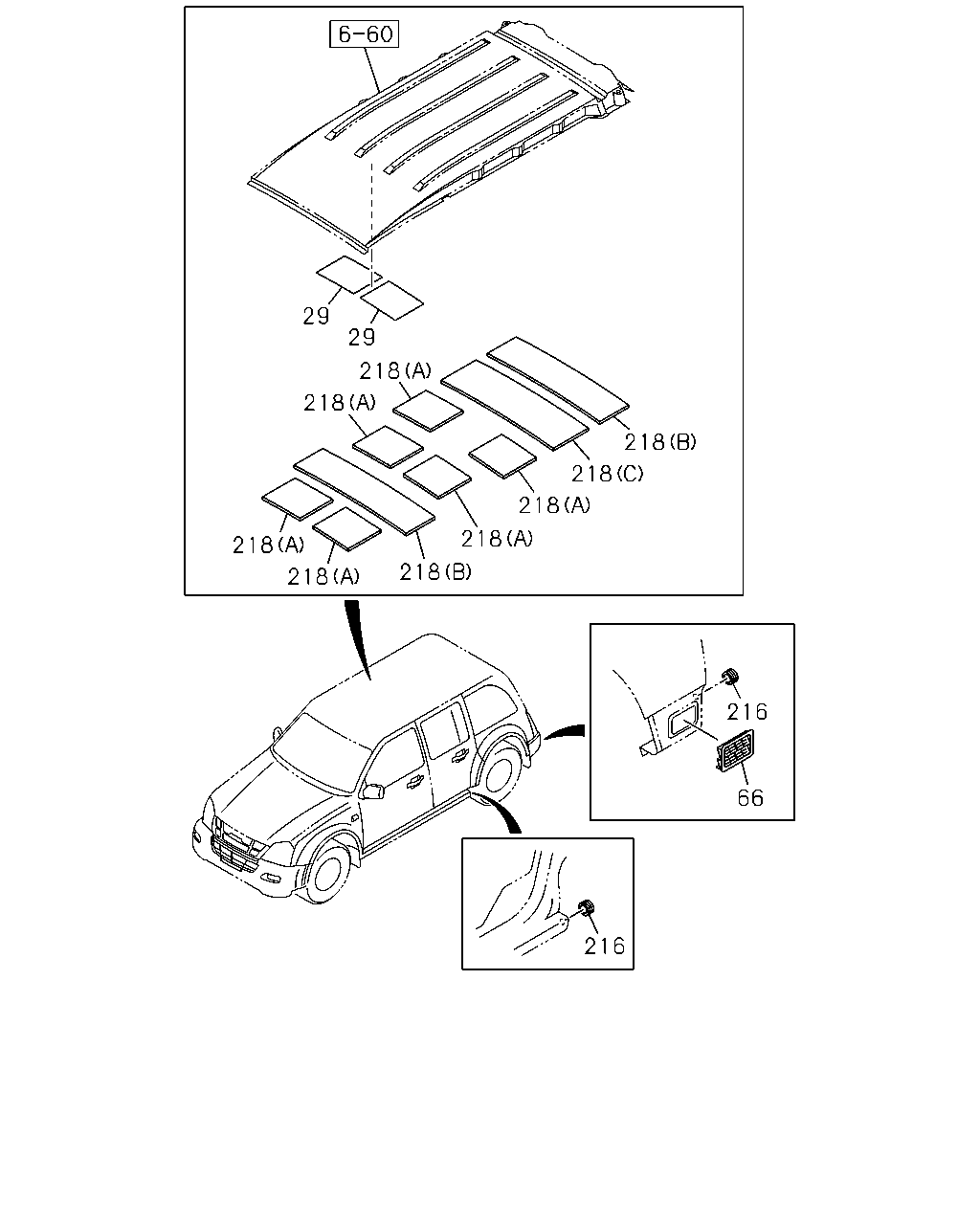

çizim 118630
29 29 218 218 218 218 218 218 218 218 218 216 66 216
BalonParca AdiParca NoAdetTipApplied Date
29 DEADENER; ROOF PANEL 8-97369-873-1 02 1 0503-
66 GRILLE; AIR OUTLET 8-97360-901-1 01 1 0503-
216 GROMMET; HOLE
OD=19 		8-97365-823-0 04 1 0503-
218 INSULATOR; ROOF
(A) 		8-97367-329-0 06 1 0503-
218 INSULATOR; ROOF
(B) 		8-97367-330-1 02 1 0503-
218 INSULATOR; ROOF
(C) 		8-97367-331-0 01 1 0503-

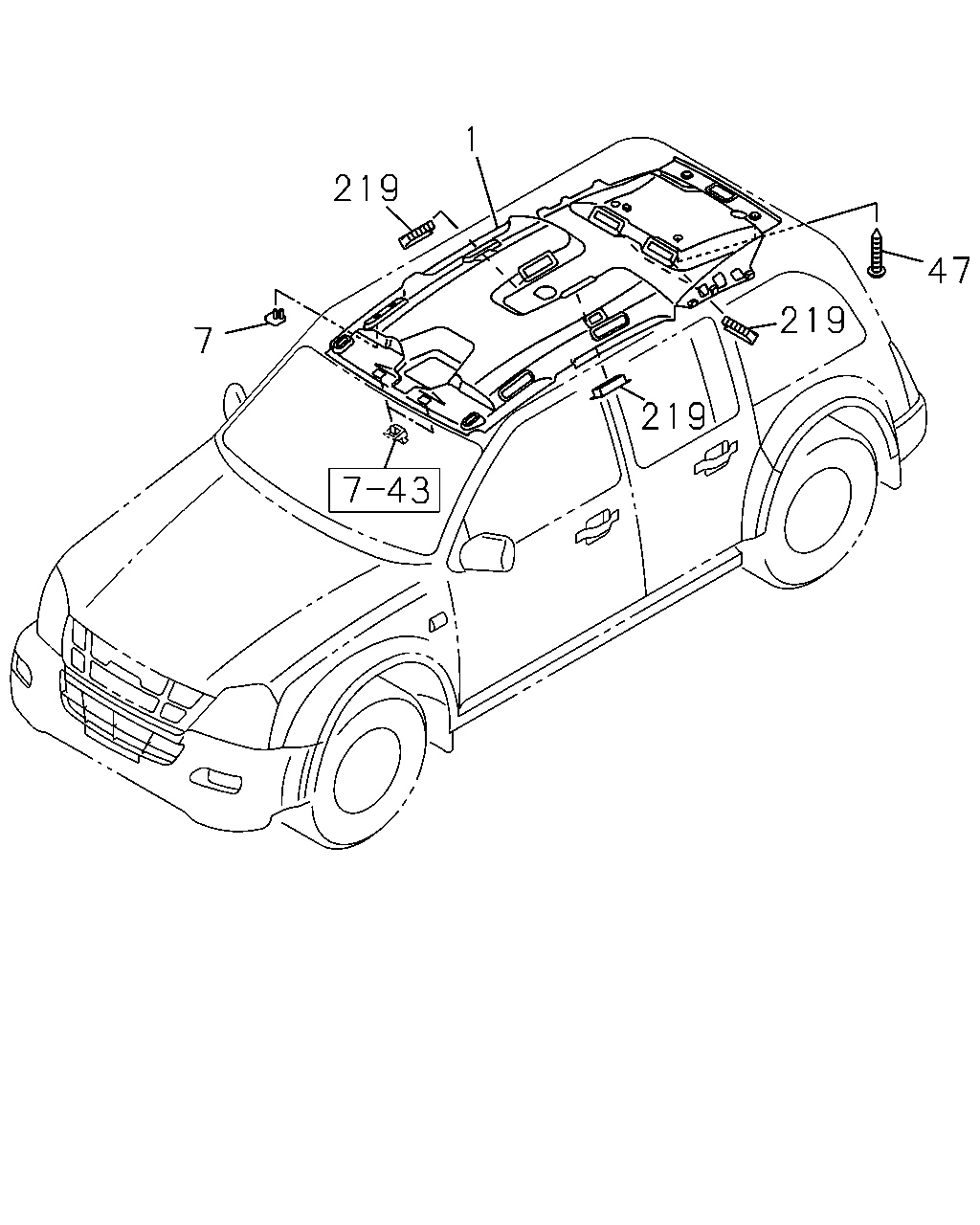

çizim 118633
1 219 47 219 7 219
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
INTERIOR COLOR IN VERY DARK GRAY(116) AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-97422-905-4 01 1 1108-
1 LINING; HD
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-97422-906-4 01 1 1108-
1 LINING; HD
4X2(UCB***) AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-980-3 01 1 0503-0508
1 LINING; HD
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-980-3 01 1 0509-0606
1 LINING; HD
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-622-4 01 1 0607-1107
1 LINING; HD
INTERIOR COLOR BEIGE(184) AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-622-4 01 1 1108-
1 LINING; HD
4X2(UCB***) EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-981-3 01 1 0503-0508
1 LINING; HD
EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-981-3 01 1 0509-0606
1 LINING; HD
EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-623-4 01 1 0607-1107
1 LINING; HD
INTERIOR COLOR BEIGE(184) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-623-4 01 1 1108-
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97418-567-0 02 1 1108-
7 RETAINER; HEADLINING RAIL
LIGHT GRAY 		8-97400-400-0 02 1 0503-0606
7 RETAINER; HEADLINING RAIL
BEIGE 		8-97404-625-0 02 1 0607-1107
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-625-0 02 1 1108-
47 CLIP; HEADLINING
INTERIOR COLOR IN VERY DARK GRAY(116) AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-97422-907-0 04 1 1108-
47 CLIP; HEADLINING
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-97422-907-0 05 1 1108-
47 CLIP; HEADLINING
4X2(UCB***) AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-982-0 04 1 0503-0508
47 CLIP; HEADLINING
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-982-0 04 1 0509-0606
47 CLIP; HEADLINING
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-624-0 04 1 0607-1107
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE(184) AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-624-0 04 1 1108-
47 CLIP; HEADLINING
4X2(UCB***) EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-982-0 05 1 0503-0508
47 CLIP; HEADLINING
EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97398-982-0 05 1 0509-0606
47 CLIP; HEADLINING
EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-624-0 05 1 0607-1107
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE(184) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-624-0 05 1 1108-
219 GRILLE; RR COOLER
INTERIOR COLOR IN VERY DARK GRAY(116) AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-97422-947-2 04 1 1108-
219 GRILLE; RR COOLER
4X2(UCB***) AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97400-773-1 04 1 0503-0508
219 GRILLE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY 		8-97400-773-1 04 1 0509-0606
219 GRILLE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-797-2 04 1 0607-1107
219 GRILLE; RR COOLER
INTERIOR COLOR BEIGE(184) AIR CONDITIONER ROOF MOUNTED<C69> BEIGE 		8-97404-797-2 04 1 1108-
