6-50 — REAR DOOR AND HINGE (#75054) — 37 parça

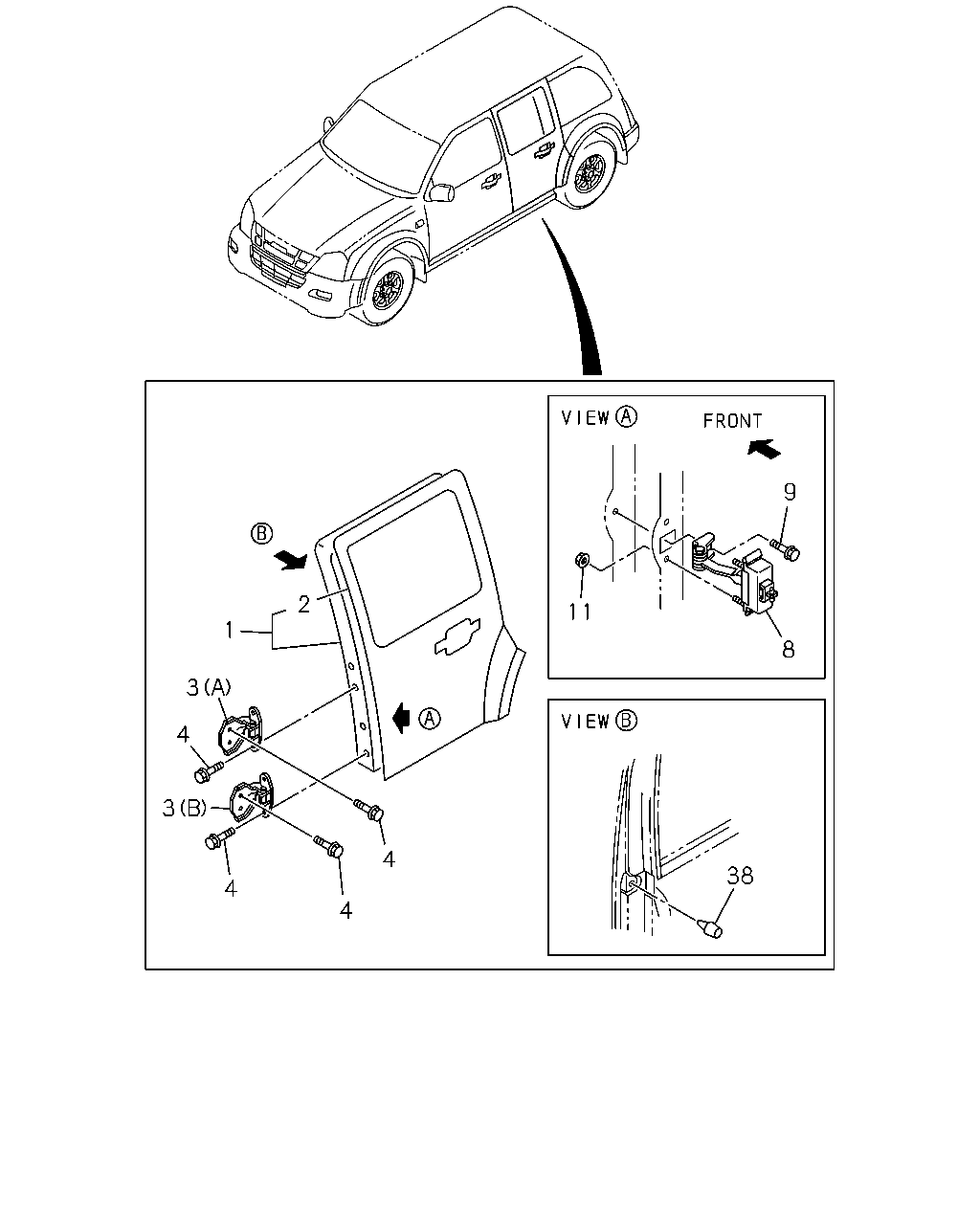

çizim 118627
9 2 11 1 8 3 4 3 4 38 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; REAR
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-527-1 01 1 0503-0508 ●
1 DOOR ASM; REAR
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-527-2 01 1 0509- ● ●
1 DOOR ASM; REAR
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-526-1 01 1 0503-0508 ●
1 DOOR ASM; REAR
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-526-2 01 1 0509- ● ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-525-1 01 1 0503-0508 ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-525-1 01 1 0509-1310 ● ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-98231-511-1 01 1 1311- ● ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-524-1 01 1 0503-0508 ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-524-1 01 1 0509-1310 ● ●
1 DOOR ASM; REAR
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-98231-510-1 01 1 1311- ● ●
2 PANEL; RR DOOR OUTER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-531-1 01 1 0503-0508 ●
2 PANEL; RR DOOR OUTER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-531-1 01 1 0509- ● ●
2 PANEL; RR DOOR OUTER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-530-1 01 1 0503-0508 ●
2 PANEL; RR DOOR OUTER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-530-1 01 1 0509- ● ●
2 PANEL; RR DOOR OUTER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-529-1 01 1 0503-0508 ●
2 PANEL; RR DOOR OUTER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-529-1 01 1 0509- ● ●
2 PANEL; RR DOOR OUTER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-528-1 01 1 0503-0508 ●
2 PANEL; RR DOOR OUTER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97357-528-1 01 1 0509- ● ●
3 HINGE; RR DOOR
(A) UPPER 		8-97362-029-2 02 1 0503-0508 ●
3 HINGE; RR DOOR
(A) UPPER 		8-97362-029-2 02 1 0509- ● ●
3 HINGE; RR DOOR
(B) LOWER 		8-97362-030-2 02 1 0503-0508 ●
3 HINGE; RR DOOR
(B) LOWER 		8-97362-030-2 02 1 0509- ● ●
4 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 16 1 0503-0508 ●
4 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 16 1 0509-0606 ● ●
4 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 16 1 0607-1008 ● ●
4 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 08 1 1009- ● ●
8 ARM; CHECK,RR DOOR 8-97357-670-0 02 1 0503-0508 ●
8 ARM; CHECK,RR DOOR 8-97357-670-0 02 1 0509- ● ●
9 BOLT; CHECK ARM
M8X23 		8-97310-216-1 02 1 0503-0508 ●
9 BOLT; CHECK ARM
M8X23 		8-97310-216-1 02 1 0509-0701 ● ●
9 BOLT; CHECK ARM
M8X23 		8-98062-206-0 02 1 0702-1110 ● ●
9 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1111- ● ●
11 NUT
M6 FLANGE 		8-97943-101-0 04 1 0503-0508 ●
11 NUT
M6 FLANGE 		8-97943-101-0 04 1 0509-0610 ● ●
11 NUT
M6 FLANGE 		8-98049-362-0 04 1 0611- ● ●
38 PROTECTOR; RR DOOR 8-97301-795-1 02 1 0503-0508 ●
38 PROTECTOR; RR DOOR 8-97301-795-1 02 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
