◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#75051) — 105 parça

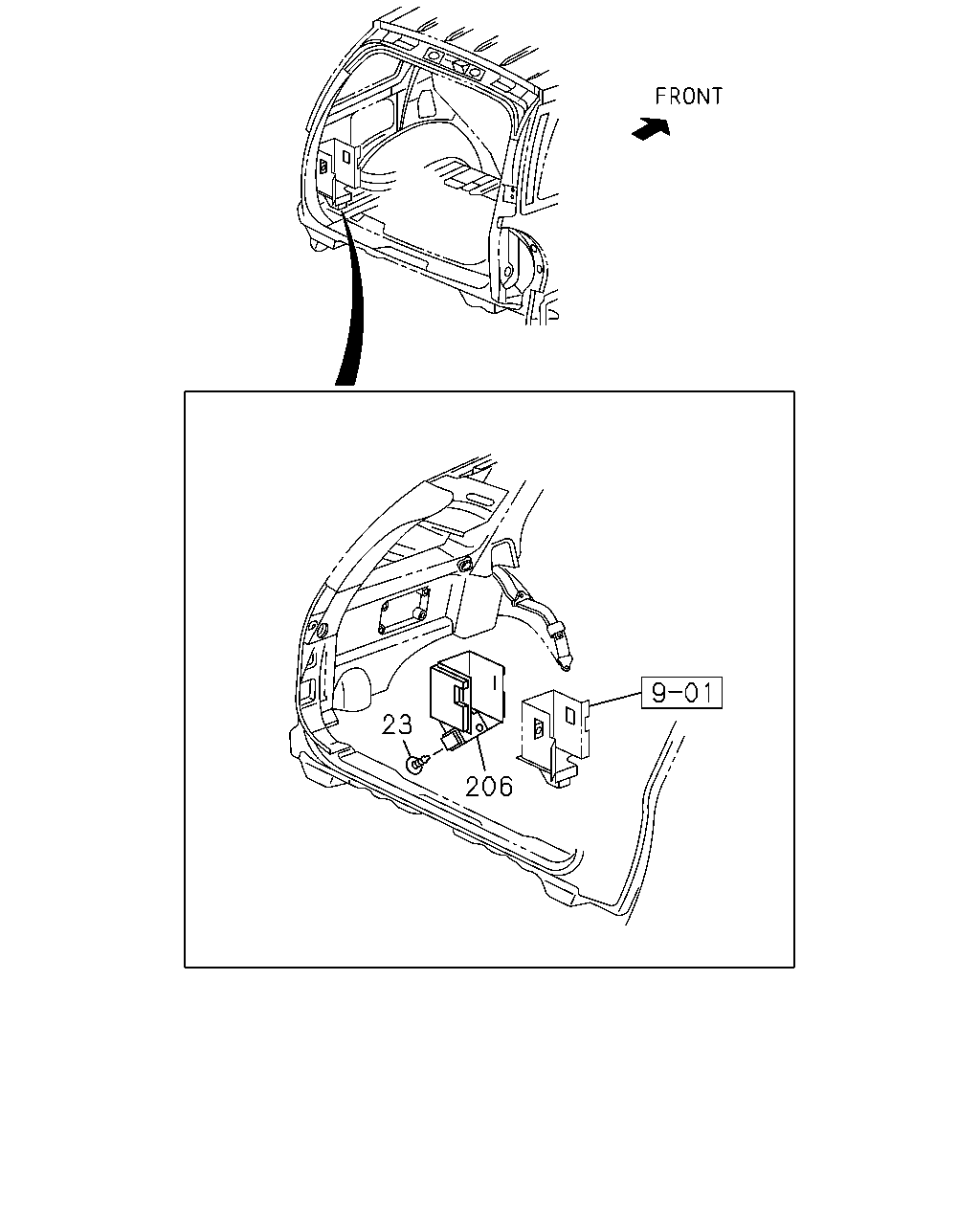

çizim 118614
23 206
BalonParca AdiParca NoAdetTipApplied Date
23 RETAINER; QTR
L=19 BLACK 		8-94363-776-0 02 1 0503-
206 INSULATOR; QTR TRIM 8-97376-625-1 01 1 0503-

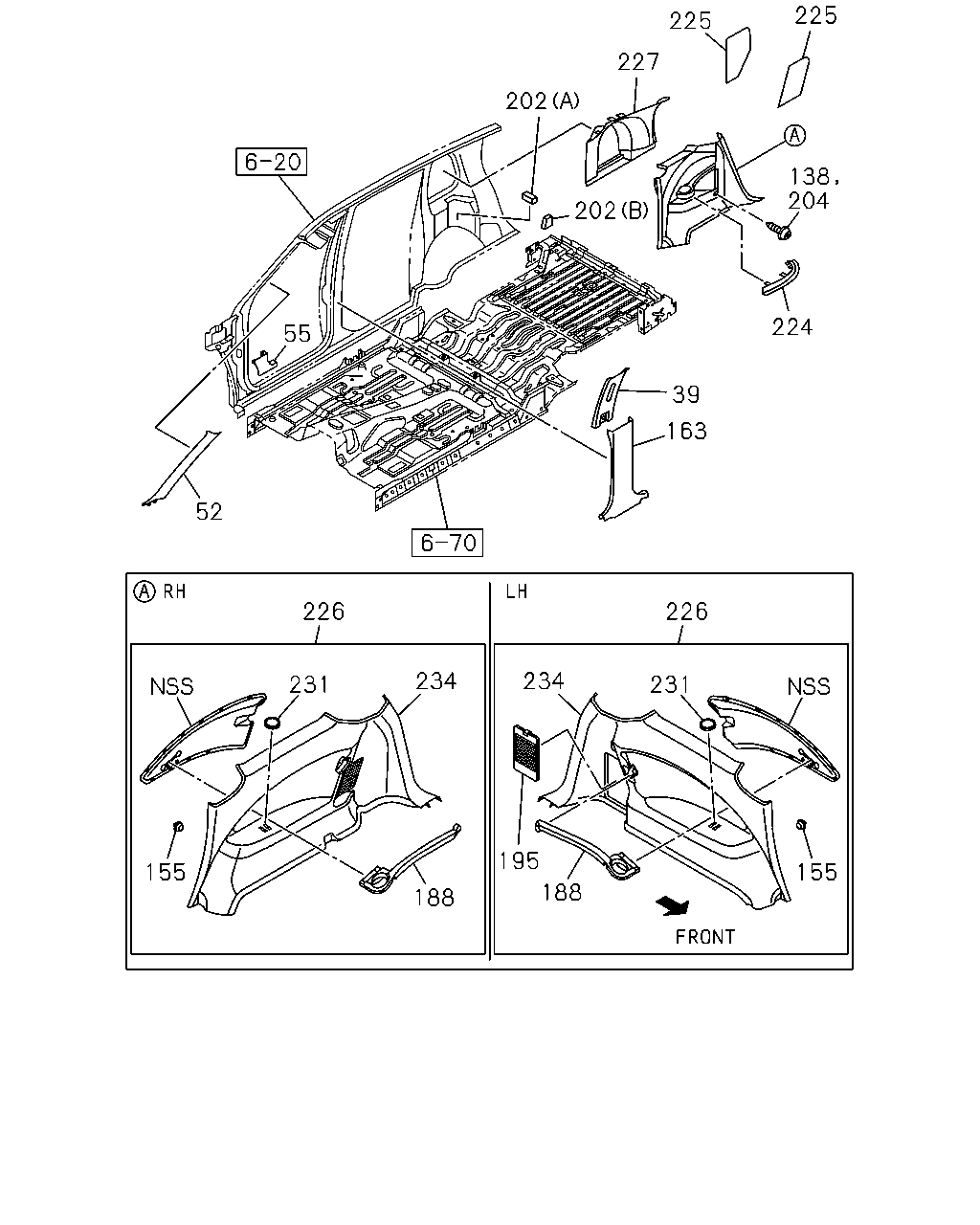

çizim 118684
155 231 234 195 188 188 234 231 155 226 226 52 163 39 224 204 138 202 202 227 225 225 55
BalonParca AdiParca NoAdetTipApplied Date
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-909-0 01 1 1108-
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-910-0 01 1 1108-
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97398-985-0 01 1 0503-0606
39 COVER; TRIM,CENTER PILLAR
BEIGE 		8-97404-629-0 01 1 0607-1107
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-629-0 01 1 1108-
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97398-986-0 01 1 0503-0606
39 COVER; TRIM,CENTER PILLAR
BEIGE 		8-97404-630-0 01 1 0607-1107
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-630-0 01 1 1108-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97418-431-0 01 1 1108-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97418-432-0 01 1 1108-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97399-492-5 01 1 0503-0606
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97404-612-5 01 1 0607-0612
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97408-874-0 01 1 0701-1107
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97408-874-0 01 1 1108-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97398-974-5 01 1 0503-0606
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97404-613-5 01 1 0607-0612
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97408-875-0 01 1 0701-1107
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97408-875-0 01 1 1108-
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-459-0 01 1 1108-
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-461-0 01 1 1108-
55 PAD; TRIM,DASH SIDE
LIGHT GRAY 		8-97398-972-0 01 1 0503-0606
55 PAD; TRIM,DASH SIDE
BEIGE 		8-97404-610-0 01 1 0607-1107
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-610-0 01 1 1108-
55 PAD; TRIM,DASH SIDE
LIGHT GRAY 		8-97398-973-0 01 1 0503-0606
55 PAD; TRIM,DASH SIDE
BEIGE 		8-97404-611-0 01 1 0607-1107
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-611-0 01 1 1108-
138 SCREW; TRIM COVER
M6X20 W/PL WASHER 		1-09981-376-0 06 1 1009-
155 CLIP; TRIM,QUARTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> H=16.7 		8-97022-017-0 10 1 0503-
155 CLIP; TRIM,QUARTER
INTERIOR COLOR BEIGE(184) H=16.7 		8-97022-017-0 10 1 0503-
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-544-3 01 1 1108-
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-546-3 01 1 1108-
163 COVER; TRIM,CENTER PILLAR,LWR
LIGHT GRAY 		8-97398-987-3 01 1 0503-0606
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE 		8-97404-631-3 01 1 0607-1107
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-631-3 01 1 1108-
163 COVER; TRIM,CENTER PILLAR,LWR
LIGHT GRAY 		8-97398-988-3 01 1 0503-0606
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE 		8-97404-632-3 01 1 0607-1107
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-632-3 01 1 1108-
188 BAR; GUARD
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97425-954-2 01 1 1108-
188 BAR; GUARD
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97425-959-2 01 1 1108-
188 BAR; GUARD
INTERIOR COLOR BEIGE(184) BEIGE 		8-97425-956-2 01 1 0607-
188 BAR; GUARD
INTERIOR COLOR BEIGE(184) BEIGE 		8-97425-962-2 01 1 0607-
188 BAR; GUARD
CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-949-2 01 1 0503-0606
188 BAR; GUARD
CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-952-2 01 1 0503-0606
188 BAR; GUARD
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-949-2 01 1 0509-0606
188 BAR; GUARD
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-952-2 01 1 0509-0606
195 LID; JACK & TOOL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97425-958-2 01 1 1108-
195 LID; JACK & TOOL
CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-951-2 01 1 0503-0606
195 LID; JACK & TOOL
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-951-2 01 1 0503-0508
195 LID; JACK & TOOL
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-951-2 01 1 0509-0606
195 LID; JACK & TOOL
INTERIOR COLOR BEIGE(184) BEIGE 		8-97425-961-2 01 1 0607-
202 SEAL; CENTER PILLAR
(A) 		8-97362-561-0 04 1 0503-
202 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 02 1 0503-
204 BOLT
M6X20 W/PL WASHER 		1-09981-376-0 06 1 0503-1008
224 COVER; ARM REST,RR QTR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-911-1 01 1 1108-
224 COVER; ARM REST,RR QTR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-912-1 01 1 1108-
224 COVER; ARM REST,RR QTR
LIGHT GRAY 		8-97398-989-1 01 1 0503-0606
224 COVER; ARM REST,RR QTR
BEIGE 		8-97404-633-1 01 1 0607-1107
224 COVER; ARM REST,RR QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-633-1 01 1 1108-
224 COVER; ARM REST,RR QTR
LIGHT GRAY 		8-97398-990-1 01 1 0503-0606
224 COVER; ARM REST,RR QTR
BEIGE 		8-97404-634-1 01 1 0607-1107
224 COVER; ARM REST,RR QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-634-1 01 1 1108-
225 COVER; ARM REST,FT QTR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-913-0 01 1 1108-
225 COVER; ARM REST,FT QTR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-914-0 01 1 1108-
225 COVER; ARM REST,FT QTR
LIGHT GRAY 		8-97398-991-0 01 1 0503-0606
225 COVER; ARM REST,FT QTR
BEIGE 		8-97404-635-0 01 1 0607-1107
225 COVER; ARM REST,FT QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-635-0 01 1 1108-
225 COVER; ARM REST,FT QTR
LIGHT GRAY 		8-97398-992-0 01 1 0503-0606
225 COVER; ARM REST,FT QTR
BEIGE 		8-97404-636-0 01 1 0607-1107
225 COVER; ARM REST,FT QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-636-0 01 1 1108-
226 TRIM ASM; QTR LWR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> DARK GRAY 		8-97422-915-0 01 1 1108-
226 TRIM ASM; QTR LWR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> DARK GRAY 		8-97422-916-0 01 1 1108-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-957-0 01 1 0607-1107
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-957-0 01 1 1108-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-956-0 01 1 0607-1107
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-956-0 01 1 1108-
226 TRIM ASM; QTR LWR
LIGHT GRAY 		8-97398-994-2 01 1 0503-0606
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE 		8-97405-027-0 01 1 0607-1107
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97405-027-0 01 1 1108-
226 TRIM ASM; QTR LWR
LIGHT GRAY 		8-97398-993-2 01 1 0503-0606
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE 		8-97405-026-0 01 1 0607-1107
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97405-026-0 01 1 1108-
227 TRIM ASM; QTR UPR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-917-0 01 1 1108-
227 TRIM ASM; QTR UPR
INTERIOR COLOR IN VERY DARK GRAY(116) BLACK 		8-97422-918-0 01 1 1108-
227 TRIM ASM; QTR UPR
LIGHT GRAY 		8-97398-996-3 01 1 0503-0508
227 TRIM ASM; QTR UPR
LIGHT GRAY 		8-97404-498-0 01 1 0509-0606
227 TRIM ASM; QTR UPR
BEIGE 		8-97404-642-0 01 1 0607-1107
227 TRIM ASM; QTR UPR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-642-0 01 1 1108-
227 TRIM ASM; QTR UPR
LIGHT GRAY 		8-97398-995-3 01 1 0503-0508
227 TRIM ASM; QTR UPR
LIGHT GRAY 		8-97404-497-0 01 1 0509-0606
227 TRIM ASM; QTR UPR
BEIGE 		8-97404-641-0 01 1 0607-1107
227 TRIM ASM; QTR UPR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97404-641-0 01 1 1108-
231 RUBBER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> 		8-97371-339-0 02 1 0503-
231 RUBBER
INTERIOR COLOR BEIGE(184) 		8-97371-339-0 02 1 0503-
234 TRIM; QTR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97425-953-2 01 1 1108-
234 TRIM; QTR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> BLACK 		8-97425-957-2 01 1 1108-
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-948-2 01 1 0503-0508
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-948-2 01 1 0509-0606
234 TRIM; QTR
CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-948-2 01 1 0503-0606
234 TRIM; QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97425-955-2 01 1 0607-
234 TRIM; QTR
CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-950-2 01 1 0503-0606
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-950-2 01 1 0509-0606
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY 		8-97425-950-2 01 1 0503-0508
234 TRIM; QTR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97425-960-2 01 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
