7-70 — SEPARATER AND BED (#7505) — 137 parça

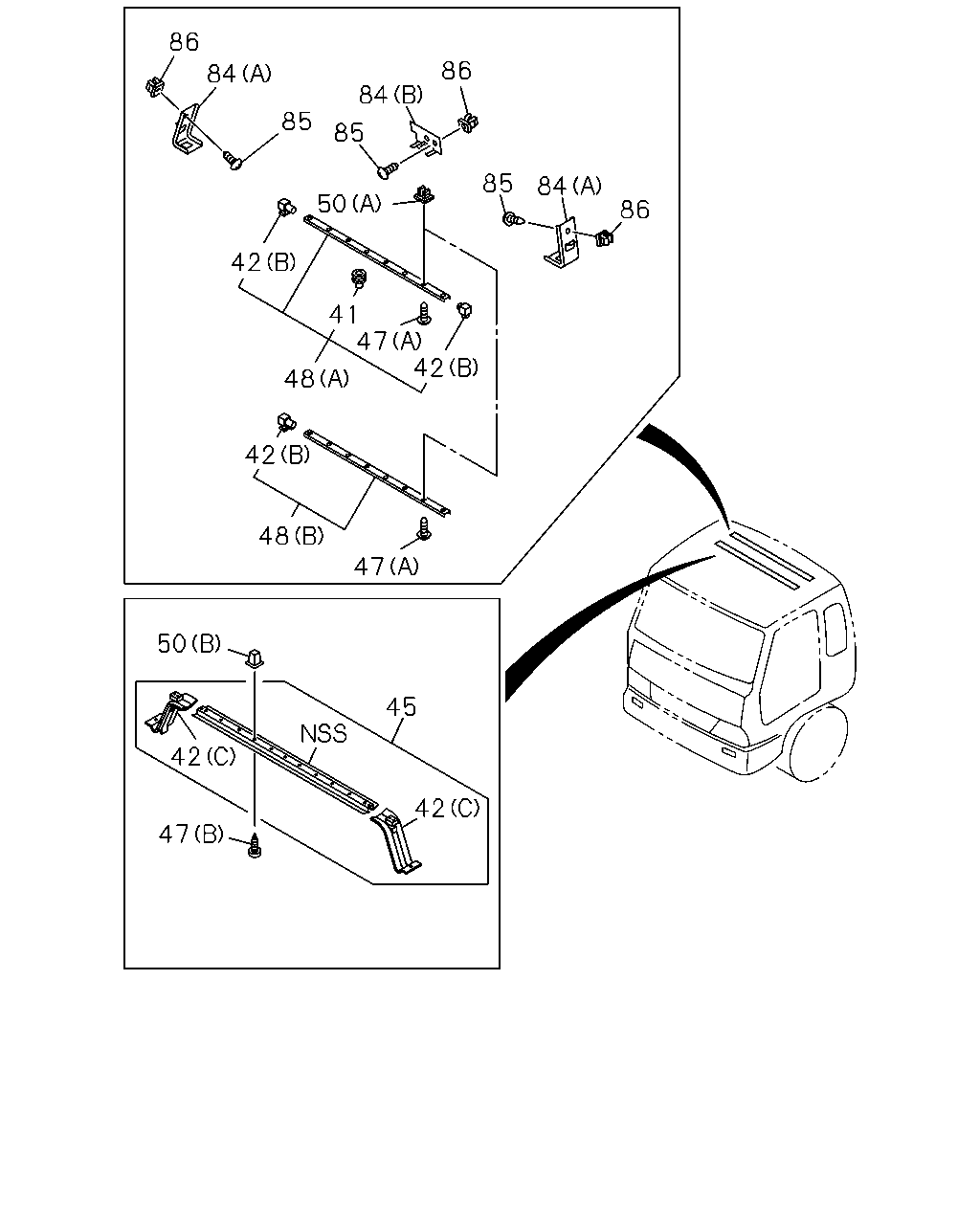

çizim 26117
86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 45 42 42 47
BalonParca AdiParca NoAdetTipApplied Date A B
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 40 1 9907-0610 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 32 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 DARK GRAY 		1-73996-105-0 14 1 9811-9906 ● ●
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 9907-0610 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 DARK GRAY 		1-73996-105-0 40 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) TAI 		1-73996-393-0 02 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) TAI 		1-73996-393-0 04 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(B) TAI 		1-73996-399-0 01 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) TAI 		1-73996-399-0 02 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-449-2 02 1 9811-9906 ● ●
42 STOPPER; CURTAIN RAIL
(C) TAI 		1-73996-402-0 02 1 9907- ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 04 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) TAI 		1-73996-393-0 04 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) TAI 		1-73996-393-0 02 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(B) TAI 		1-73996-399-0 02 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) TAI 		1-73996-399-0 01 1 0611- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-369-1 01 1 0611- ● ●
45 RAIL; CURTAIN,FRT 1-73908-262-0 01 1 9811-9906 ● ●
45 RAIL; CURTAIN,FRT 1-73996-370-1 01 1 9907-0610 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-370-1 01 1 0611- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 TAI 		5-09981-059-0 19 1 9811-0610 ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) M5X20 TAI 		5-09981-059-0 25 1 0611- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 TAI 		5-09981-093-0 07 1 9811- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 TAI 		5-09981-059-0 25 1 9811-0610 ●
47 SCREW; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 TAI 		5-09981-059-0 19 1 0611- ● ●
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9811-9906 ●
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-1 01 1 9907-0610 ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0611- ● ●
48 RAIL; CURTAIN,BACK
(A) 		1-73996-106-3 01 1 9811-9906 ●
48 RAIL; CURTAIN,BACK
(A) 		1-73996-386-1 01 1 9907-0610 ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0611- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 19 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 15 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 11 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 25 1 0611- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 TAI 		1-09983-159-0 15 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 25 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 11 1 0611- ●
84 BRACKET; CURTAIN RAIL
(A) TAI 		1-73998-986-2 02 1 9811- ● ●
84 BRACKET; CURTAIN RAIL
(B) TAI 		1-73998-987-4 07 1 9811- ● ●
85 SCREW; BRKT
M5X20 TAI 		5-09981-059-0 09 1 9811- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 09 1 9811- ● ●

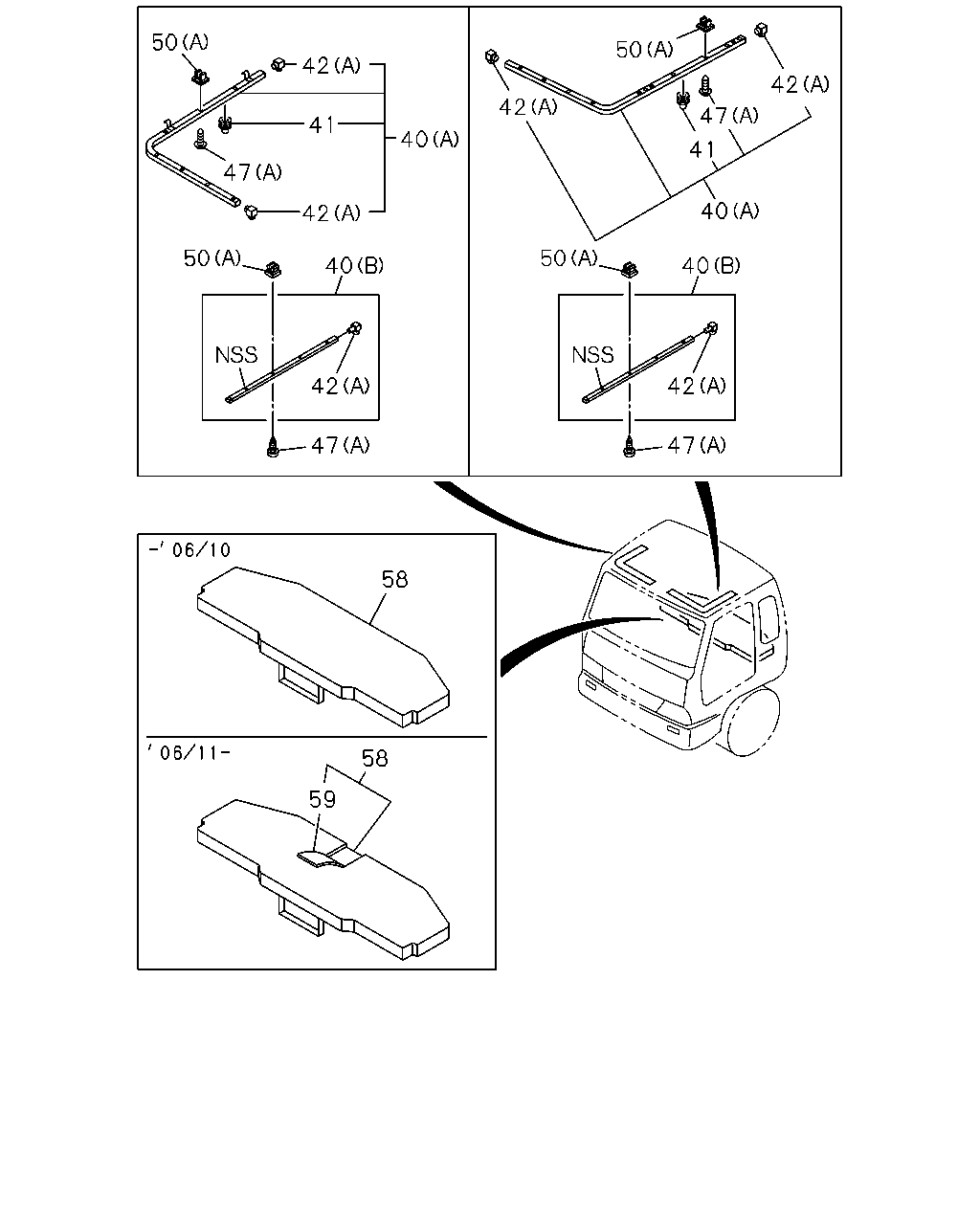

çizim 26482
50 50 42 42 47 42 41 40 41 47 40 42 50 50 40 40 42 42 47 47 58 58 59
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-334-1 02 1 9811-9906 ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-378-1 02 1 9907-0610 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-378-1 02 1 0611- ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73908-154-1 01 1 9811-9906 ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-368-0 01 1 9907-0610 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-368-1 01 1 0611- ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73908-153-1 01 1 9811-9906 ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-367-0 01 1 9907-0610 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-367-1 01 1 0611- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 40 1 9907-0610 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 32 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 DARK GRAY 		1-73996-105-0 14 1 9811-9906 ● ●
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 9907-0610 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0611- ● ●
41 HOOK; CURTAIN RAIL
H=14.5 DARK GRAY 		1-73996-105-0 40 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) TAI 		1-73996-393-0 02 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) TAI 		1-73996-393-0 04 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(B) TAI 		1-73996-399-0 01 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) TAI 		1-73996-399-0 02 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-449-2 02 1 9811-9906 ● ●
42 STOPPER; CURTAIN RAIL
(C) TAI 		1-73996-402-0 02 1 9907- ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 04 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(A) TAI 		1-73996-393-0 04 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) TAI 		1-73996-393-0 02 1 0611- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9811-9906 ●
42 STOPPER; CURTAIN RAIL
(B) TAI 		1-73996-399-0 02 1 9907-0610 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) TAI 		1-73996-399-0 01 1 0611- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 TAI 		5-09981-059-0 19 1 9811-0610 ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) M5X20 TAI 		5-09981-059-0 25 1 0611- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 TAI 		5-09981-093-0 07 1 9811- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 TAI 		5-09981-059-0 25 1 9811-0610 ●
47 SCREW; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 TAI 		5-09981-059-0 19 1 0611- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 19 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 15 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 11 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 25 1 0611- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 TAI 		1-09983-159-0 07 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 TAI 		1-09983-159-0 15 1 0611- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 25 1 9811-0610 ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 11 1 0611- ●
58 BED; MAT
TAI 		8-97535-080-0 01 1 9811-0610 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> TAI 		1-75116-522-1 01 1 0611- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> TAI 		1-75116-669-1 01 1 0611- ● ●

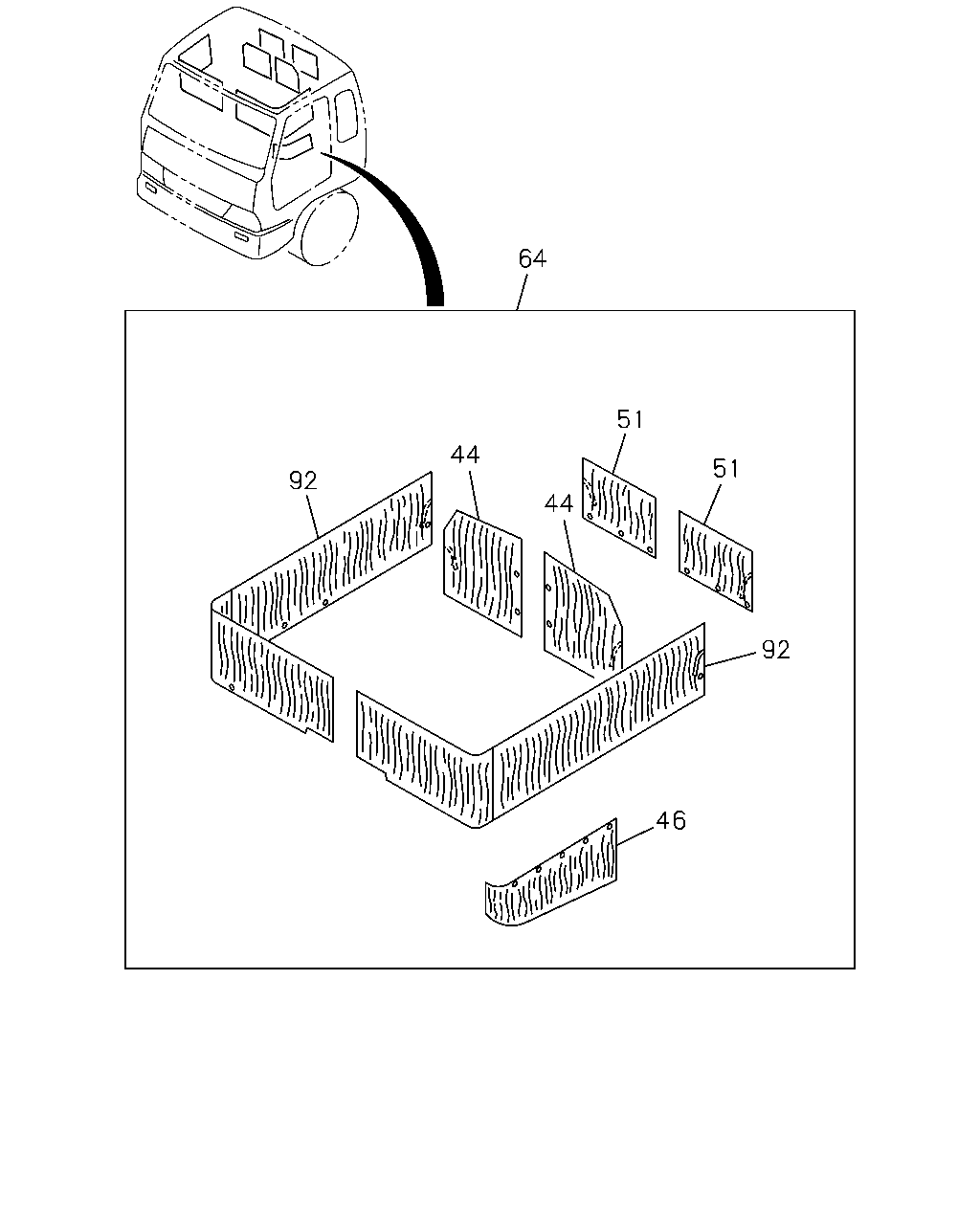

çizim 26670
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
TAI 		1-73908-207-1 02 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
TAI 		1-73908-208-1 02 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
TAI 		8-97535-072-0 01 1 9811-0610 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-208-1 01 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-208-1 01 1 0702- ● ●
44 CURTAIN ASM; CABIN CENTER
TAI 		8-97535-071-0 01 1 9811-0610 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-207-1 01 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-207-1 01 1 0702- ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> TAI 		1-73907-303-0 01 1 0611-0701 ●
46 CURTAIN ASM; DOOR
TAI 		1-73907-303-0 01 1 0611-0701 ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> TAI 		1-73907-303-0 01 1 0702- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-211-1 01 1 0611-0701 ●
51 CURTAIN; BACK
TAI 		1-73908-211-1 01 1 0611-0701 ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-211-1 01 1 0702- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-212-1 01 1 0611-0701 ●
51 CURTAIN; BACK
TAI 		1-73908-212-1 01 1 0611-0701 ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-212-1 01 1 0702- ● ●
64 CURTAIN KIT
TAI 		8-97535-070-0 01 1 9811-0610 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-205-1 01 1 0611-0701 ●
64 CURTAIN KIT
TAI 		1-73908-205-1 01 1 0611-0701 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-205-1 01 1 0702- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-215-1 01 1 0611-0701 ●
92 CURTAIN ASM; ROUND
TAI 		1-73908-215-1 01 1 0611-0701 ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-215-1 01 1 0702- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-216-1 01 1 0611-0701 ●
92 CURTAIN ASM; ROUND
TAI 		1-73908-216-1 01 1 0611-0701 ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-216-1 01 1 0702- ● ●

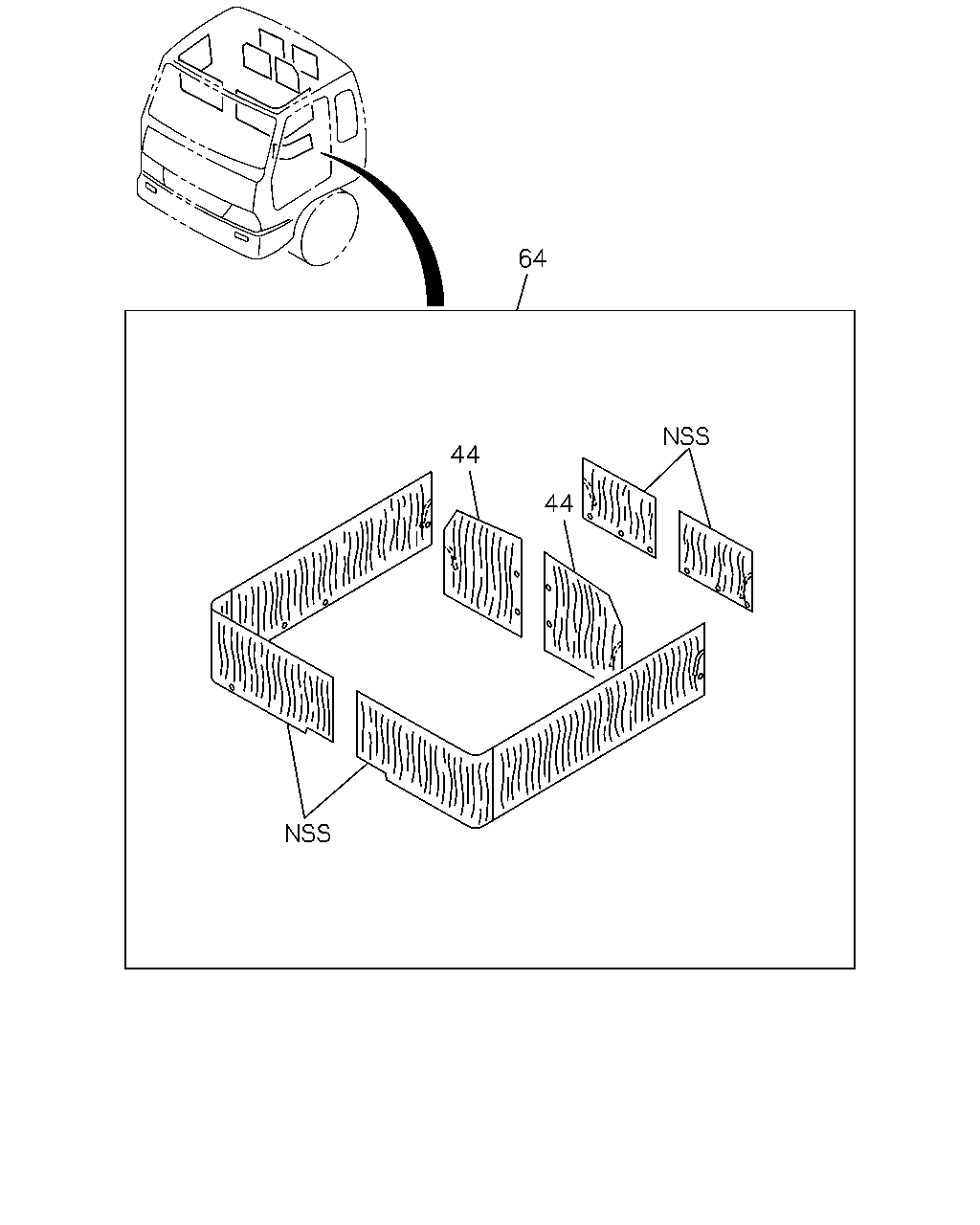

çizim 99055
64 44 44
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
TAI 		1-73908-207-1 02 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
TAI 		1-73908-208-1 02 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
TAI 		8-97535-072-0 01 1 9811-0610 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-208-1 01 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-208-1 01 1 0702- ● ●
44 CURTAIN ASM; CABIN CENTER
TAI 		8-97535-071-0 01 1 9811-0610 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-207-1 01 1 0611-0701 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> TAI 		1-73908-207-1 01 1 0702- ● ●
64 CURTAIN KIT
TAI 		8-97535-070-0 01 1 9811-0610 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-205-1 01 1 0611-0701 ●
64 CURTAIN KIT
TAI 		1-73908-205-1 01 1 0611-0701 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> TAI 		1-73908-205-1 01 1 0702- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
