6-35 — FRONT DOOR TRIM (#75049) — 38 parça

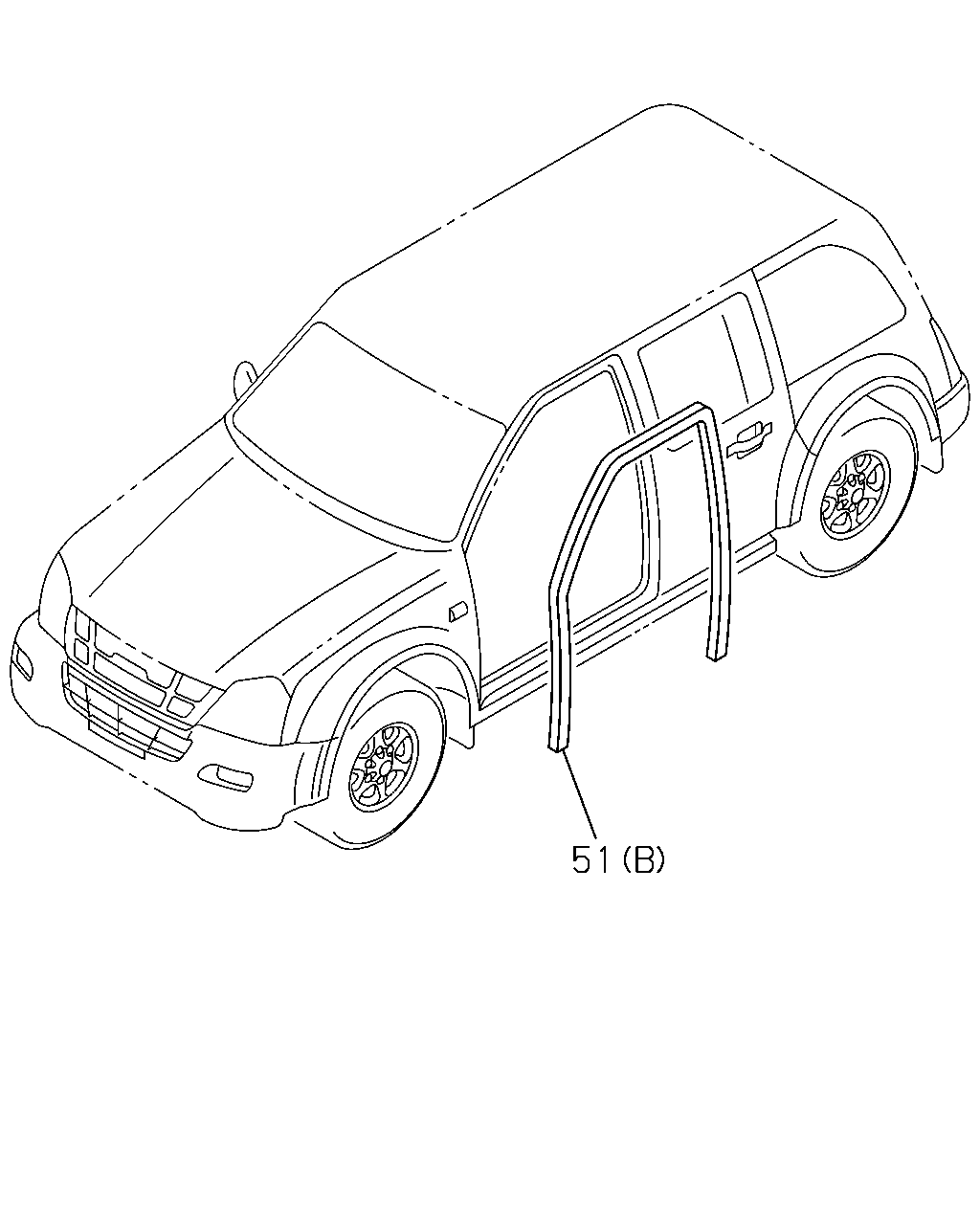

çizim 118615
51
BalonParca AdiParca NoAdetTipApplied Date
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) DARK GRAY 		8-97403-590-0 02 1 1108-
51 WEATHERSTRIP; FRONT DOOR
(B) LIGHT GRAY 		8-97402-845-0 02 1 0503-0606
51 WEATHERSTRIP; FRONT DOOR
(B) BEIGE 		8-97404-643-0 02 1 0607-1107
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-643-0 02 1 1108-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 0503-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 0503-

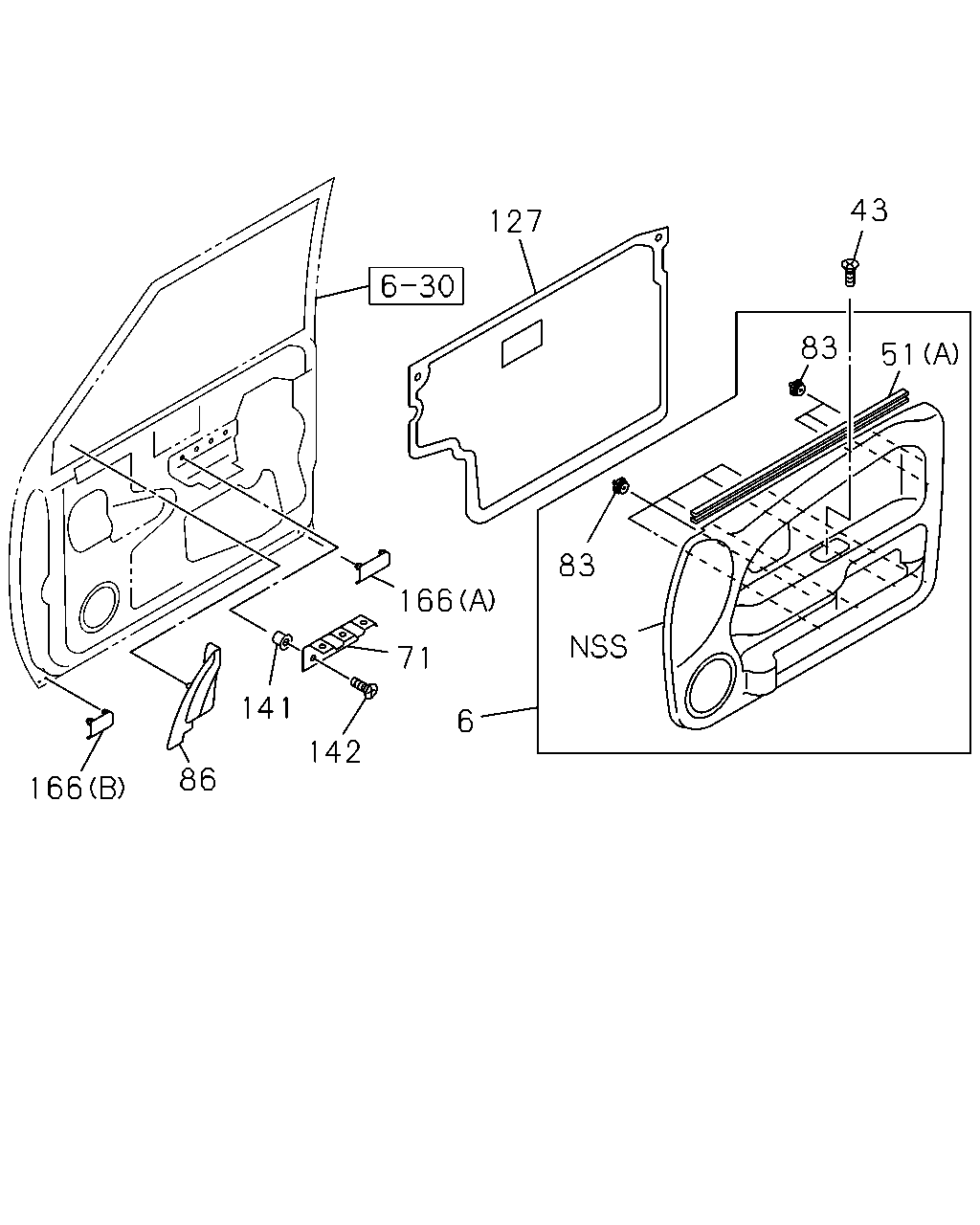

çizim 118620
43 127 83 51 83 166 71 141 6 142 86 166
BalonParca AdiParca NoAdetTipApplied Date
6 TRIM; DOOR,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> 		8-97422-925-0 01 1 1108-
6 TRIM; DOOR,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. CLOTH TRIM COVER<7PG> 		8-97422-926-0 01 1 1108-
6 TRIM; DOOR,UPR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-959-0 01 1 0607-1107
6 TRIM; DOOR,UPR
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-959-0 01 1 1108-
6 TRIM; DOOR,UPR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-958-0 01 1 0607-1107
6 TRIM; DOOR,UPR
INTERIOR COLOR BEIGE(184) EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-958-0 01 1 1108-
6 TRIM; DOOR,UPR
LIGHT GRAY 		8-97399-006-0 01 1 0503-0606
6 TRIM; DOOR,UPR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-653-0 01 1 0607-1107
6 TRIM; DOOR,UPR
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97404-653-0 01 1 1108-
6 TRIM; DOOR,UPR
LIGHT GRAY 		8-97399-005-0 01 1 0503-0606
6 TRIM; DOOR,UPR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-652-0 01 1 0607-1107
6 TRIM; DOOR,UPR
INTERIOR COLOR BEIGE(184) CLOTH TRIM COVER<7PG> BEIGE 		8-97404-652-0 01 1 1108-
43 SCREW; DOOR POCKET
4X2(UCB***) M5X14 		8-94152-495-0 04 1 0503-0508
43 SCREW; DOOR POCKET
M5X14 		8-94152-495-0 04 1 0509-0707
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) DARK GRAY 		8-97403-590-0 02 1 1108-
51 WEATHERSTRIP; FRONT DOOR
(B) LIGHT GRAY 		8-97402-845-0 02 1 0503-0606
51 WEATHERSTRIP; FRONT DOOR
(B) BEIGE 		8-97404-643-0 02 1 0607-1107
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97404-643-0 02 1 1108-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 0503-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 0503-
71 BRACKET; ARM REST 8-97238-106-2 02 1 0503-
83 CLIP; DOOR TRIM
H=16.7 		8-97022-017-0 16 1 0503-
86 COVER ASM; DOOR POCKET
BLACK 		8-97298-456-2 01 1 0503-
86 COVER ASM; DOOR POCKET
BLACK 		8-97298-455-2 01 1 0503-
127 SEAL; DOOR INNER
4X2(UCB***) 		8-97373-017-1 01 1 0503-0508
127 SEAL; DOOR INNER 8-97373-017-1 01 1 0509-
127 SEAL; DOOR INNER
4X2(UCB***) 		8-97373-016-1 01 1 0503-0508
127 SEAL; DOOR INNER 8-97373-016-1 01 1 0509-
141 GROMMET; SCREW,LWR COVER 8-94152-494-0 04 1 0503-
142 SCREW; LWR COVER,DOOR TRIM
M5X14 		8-94152-495-0 04 1 0503-
166 PLUG; HOLE
(A) 		8-98009-499-0 02 1 0508-
166 PLUG; HOLE
(B) 		8-98009-500-0 02 1 0508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
