6-32 — FRONT DOOR LOCK AND HANDLE (#75048) — 233 parça

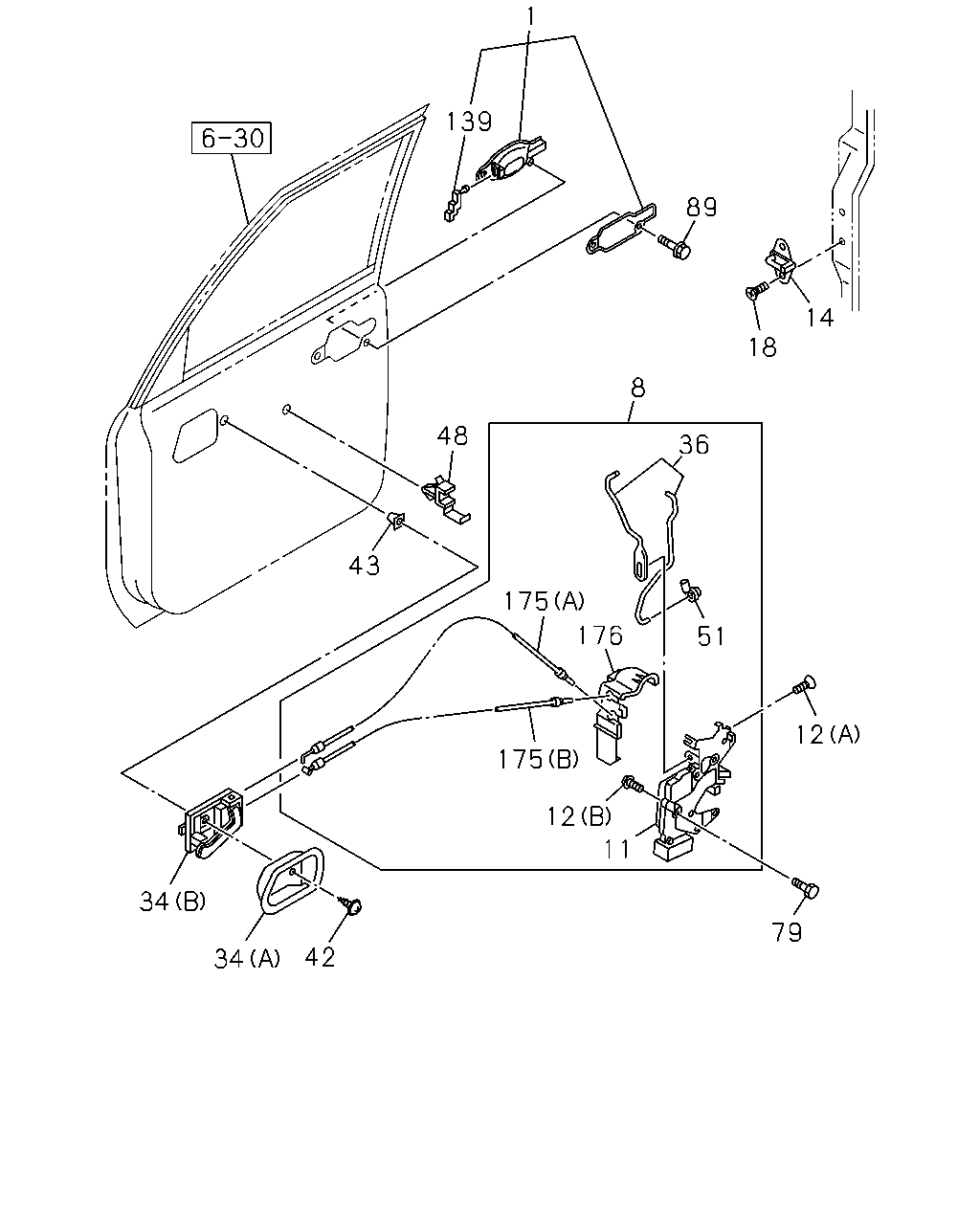

çizim 118616
89 1 139 14 18 8 36 51 12 79 11 12 175 176 175 43 48 34 34 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET(505) DARK GRAY 		8-97408-106-0 01 1 0909-1008 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MINERAL GRAY MET(530) GRAY 		8-97418-849-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET(505) DARK GRAY 		8-97408-121-0 01 1 0909-1008 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MINERAL GRAY MET(530) GRAY 		8-97418-852-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-198-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-199-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97414-570-0 01 1 0803-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) WHITE 		8-97414-570-0 01 1 0803-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) WHITE 		8-97414-570-0 01 1 0809-1008 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97418-850-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97414-571-0 01 1 0803-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) WHITE 		8-97414-571-0 01 1 0803-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL(689) WHITE 		8-97414-571-0 01 1 0809-1008 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97418-853-0 01 1 1009- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97293-678-2 01 1 0503-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-080-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97408-080-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97293-675-2 01 1 0503-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-067-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97408-067-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/STERLING SIL.MET(957) GRAY 		8-97396-057-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97404-728-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-197-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97408-197-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/STERLING SIL.MET(957) GRAY 		8-97396-055-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97404-727-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-196-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97408-196-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/WARM SILVER MET(690) GRAY 		8-97396-057-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-013-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-087-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97408-087-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/WARM SILVER MET(690) GRAY 		8-97396-055-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-010-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-074-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97408-074-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET(688),BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET(691) GOLD 		8-97398-618-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941) GOLD 		8-97398-618-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97403-072-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-090-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97408-090-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET(688),BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET(691) GOLD 		8-97398-616-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941) GOLD 		8-97398-616-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97403-068-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-077-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97408-077-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET(694) BLUE 		8-97398-617-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97401-014-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97408-088-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET(694) BLUE 		8-97398-615-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97401-011-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97408-075-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET(692) WHITE 		8-97399-136-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940) WHITE 		8-97399-136-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97403-073-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97408-091-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHARDONNAY GOLD MET(511) GOLD 		8-97408-414-0 01 1 0709-0709 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-414-0 01 1 0710-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) HANDLE O/S DOOR BODY COLOR<D75> GOLD 		8-97408-414-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET(692) WHITE 		8-97399-135-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940) WHITE 		8-97399-135-2 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97403-069-2 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97408-078-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHARDONNAY GOLD MET(511) GOLD 		8-97408-411-0 01 1 0709-0709 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-411-0 01 1 0710-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) HANDLE O/S DOOR BODY COLOR<D75> GOLD 		8-97408-411-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STEEL BLACK MET/WARM SILVER MET(693) BLACK 		8-97396-183-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97401-012-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-086-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97408-086-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STEEL BLACK MET/WARM SILVER MET(693) BLACK 		8-97396-182-2 01 1 0503-0508 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97401-009-2 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-073-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97408-073-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97399-994-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-114-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-114-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-114-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR NEBULA GRAY MICA/STERLING SIL.MET(524) DARK GRAY 		8-97414-847-0 01 1 0809-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97399-975-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-099-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-099-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) WHITE 		8-97408-099-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR NEBULA GRAY MICA/STERLING SIL.MET(524) DARK GRAY 		8-97414-845-0 01 1 0809-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/STERLING SIL.MET(957) GRAY 		8-97399-984-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97404-730-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-199-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-199-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-199-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR COSMIC GRAY MET/STERLING SIL.MET(957) GRAY 		8-97399-965-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97404-729-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-198-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-198-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA/STERLING SIL. MET(950) SILVER 		8-97408-198-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97401-020-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97408-117-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97401-017-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939) BLUE 		8-97408-102-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941) GOLD 		8-97399-992-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97403-080-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-118-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) OUTSIDE HANDLE CHROME<E20> GRAY 		8-97408-118-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-118-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97414-848-0 01 1 0809-0908 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521),B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97414-848-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) DARK BLUE 		8-97414-848-0 01 1 1108- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941) GOLD 		8-97399-973-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97403-075-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-103-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) OUTSIDE HANDLE CHROME<E20> GRAY 		8-97408-103-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR DUNE GRAY MET/STERLING SIL. MET(949) GRAY 		8-97408-103-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97414-846-0 01 1 0809-0908 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521),B/COLOR NAUTILUS BLUE MICA/STERLING SIL.MET(525) DARK BLUE 		8-97414-846-0 01 1 0909-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) DARK BLUE 		8-97414-846-0 01 1 1108- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940) WHITE 		8-97399-993-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97403-081-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97408-119-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHARDONNAY GOLD MET(511) GOLD 		8-97408-422-0 01 1 0709-0709 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-422-0 01 1 0710-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-422-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-422-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-422-0 01 1 0809-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940) WHITE 		8-97399-974-0 01 1 0509-0606 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97403-076-0 01 1 0607-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TOPAZ GOLD MET(501) GOLD 		8-97408-104-0 01 1 0612-0708 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHARDONNAY GOLD MET(511) GOLD 		8-97408-418-0 01 1 0709-0709 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-418-0 01 1 0710-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-418-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-418-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
B/COLOR CHARDONNAY GOLD MET/STERLING SIL.MET(519) GOLD 		8-97408-418-0 01 1 0809-1107 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97401-018-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-115-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-115-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-115-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-115-0 01 1 0809-0908 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA(935) BLACK 		8-97408-115-0 01 1 0909- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97401-015-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-100-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-100-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-100-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938) BLACK 		8-97408-100-0 01 1 0809-0908 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STARRY BLACK MICA(935) BLACK 		8-97408-100-0 01 1 0909- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-019-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-116-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-116-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-116-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-116-0 01 1 0809- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-016-0 01 1 0509-0611 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-101-0 01 1 0612-0712 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-101-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-101-0 01 1 0801-0808 ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97408-101-0 01 1 0809- ● ●
8 LOCK; DOOR,FRT DOOR 8-98003-244-0 01 1 0503-0504 ●
8 LOCK; DOOR,FRT DOOR 8-98003-246-0 01 1 0505-0508 ●
8 LOCK; DOOR,FRT DOOR 8-98003-246-0 01 1 0509-0606 ● ●
8 LOCK; DOOR,FRT DOOR 8-98012-189-0 01 1 0607-1004 ● ●
8 LOCK; DOOR,FRT DOOR 8-98169-047-0 01 1 1005- ● ●
8 LOCK; DOOR,FRT DOOR 8-98003-247-0 01 1 0503-0504 ●
8 LOCK; DOOR,FRT DOOR 8-98003-245-0 01 1 0505-0508 ●
8 LOCK; DOOR,FRT DOOR 8-98003-245-0 01 1 0509-0606 ● ●
8 LOCK; DOOR,FRT DOOR 8-98012-188-0 01 1 0607- ● ●
11 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 0503-0504 ●
11 ACTUATOR; DOOR LK,FRT 8-97351-087-0 01 1 0505-0508 ●
11 ACTUATOR; DOOR LK,FRT 8-97351-087-0 01 1 0509- ● ●
11 ACTUATOR; DOOR LK,FRT 8-97349-995-0 01 1 0503-0504 ●
11 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 0505-0508 ●
11 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 0509- ● ●
12 SCREW; DOOR LK
(A) M6X20 		1-09981-494-0 06 1 0503-0508 ●
12 SCREW; DOOR LK
(A) M6X20 		1-09981-494-0 06 1 0509-0611 ● ●
12 SCREW; DOOR LK
(A) M6X20 		8-98049-000-0 06 1 0612- ● ●
12 SCREW; DOOR LK
(B) 		8-97349-997-0 04 1 0503-0508 ●
12 SCREW; DOOR LK
(B) 		8-97349-997-0 04 1 0509- ● ●
14 STRIKER; FRT DOOR 8-97235-985-1 02 1 0503-0508 ●
14 STRIKER; FRT DOOR 8-97235-985-1 02 1 0509-0606 ● ●
14 STRIKER; FRT DOOR 8-98012-203-0 02 1 0607- ● ●
18 SCREW; DOOR STRIKER
M8X35 		8-97324-511-0 04 1 0503-0508 ●
18 SCREW; DOOR STRIKER
M8X35 		8-97324-511-0 04 1 0509-0610 ● ●
18 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 0611- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97422-949-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) BLACK 		8-97422-950-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97422-929-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) BLACK 		8-97422-930-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) LIGHT GRAY 		8-97399-004-1 01 1 0503-0508 ●
34 HANDLE; INSIDE,FRT DOOR
(B) LIGHT GRAY 		8-97399-004-1 01 1 0509-0606 ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97404-961-0 01 1 0607-0708 ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97408-559-1 01 1 0709-1107 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97408-559-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
(A) LIGHT GRAY 		8-97399-010-1 01 1 0503-0508 ●
34 HANDLE; INSIDE,FRT DOOR
(A) LIGHT GRAY 		8-97399-010-1 01 1 0509-0606 ● ●
34 HANDLE; INSIDE,FRT DOOR
(A) BEIGE 		8-97404-657-1 01 1 0607-1107 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-657-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
(A) LIGHT GRAY 		8-97399-009-1 01 1 0503-0508 ●
34 HANDLE; INSIDE,FRT DOOR
(A) LIGHT GRAY 		8-97399-009-1 01 1 0509-0606 ● ●
34 HANDLE; INSIDE,FRT DOOR
(A) BEIGE 		8-97404-656-1 01 1 0607-1107 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(184) (A) BEIGE 		8-97404-656-1 01 1 1108- ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) LIGHT GRAY 		8-97399-060-1 01 1 0503-0508 ●
34 HANDLE; INSIDE,FRT DOOR
(B) LIGHT GRAY 		8-97399-060-1 01 1 0509-0606 ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97404-962-0 01 1 0607-0708 ● ●
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97408-558-1 01 1 0709-1107 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97408-558-1 01 1 1108- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 0503-0508 ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 0509- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 0503-0508 ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 0509- ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 		8-94152-495-0 02 1 0503-0508 ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 		8-94152-495-0 02 1 0509- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 8-94152-494-0 02 1 0503-0508 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 8-94152-494-0 02 1 0509- ● ●
48 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 0503- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 0503-0508 ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 0509- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 0503-0508 ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 0509- ● ●
79 BOLT; DOOR LK ACTUATOR
M6X8 		8-94155-893-0 02 1 0503-0508 ●
79 BOLT; DOOR LK ACTUATOR
M6X8 		8-94155-893-0 02 1 0509-0609 ● ●
79 BOLT; DOOR LK ACTUATOR
M6X8 FLANGE 		8-98048-996-0 02 1 0610- ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 04 1 0503-0508 ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 04 1 0509-0609 ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE 		8-98048-996-0 04 1 0610- ● ●
139 HOLDER; ROD,DOOR HANDLE
YELLOW 		8-97333-304-0 01 1 0503-0508 ●
139 HOLDER; ROD,DOOR HANDLE
YELLOW 		8-97333-304-0 01 1 0509- ● ●
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 0503-0508 ●
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 0509- ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-989-0 02 1 0503-0508 ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-989-0 02 1 0509- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-987-0 01 1 0503-0508 ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-987-0 01 1 0509- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-988-0 01 1 0503-0508 ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-988-0 01 1 0509- ● ●
176 COVER; DOOR LOCK 8-97349-991-0 01 1 0503-0508 ●
176 COVER; DOOR LOCK 8-97349-991-0 01 1 0509- ● ●
176 COVER; DOOR LOCK 8-97349-992-0 01 1 0503-0508 ●
176 COVER; DOOR LOCK 8-97349-992-1 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
