6-10 — ENGINE HOOD AND LOCK (#75043) — 71 parça

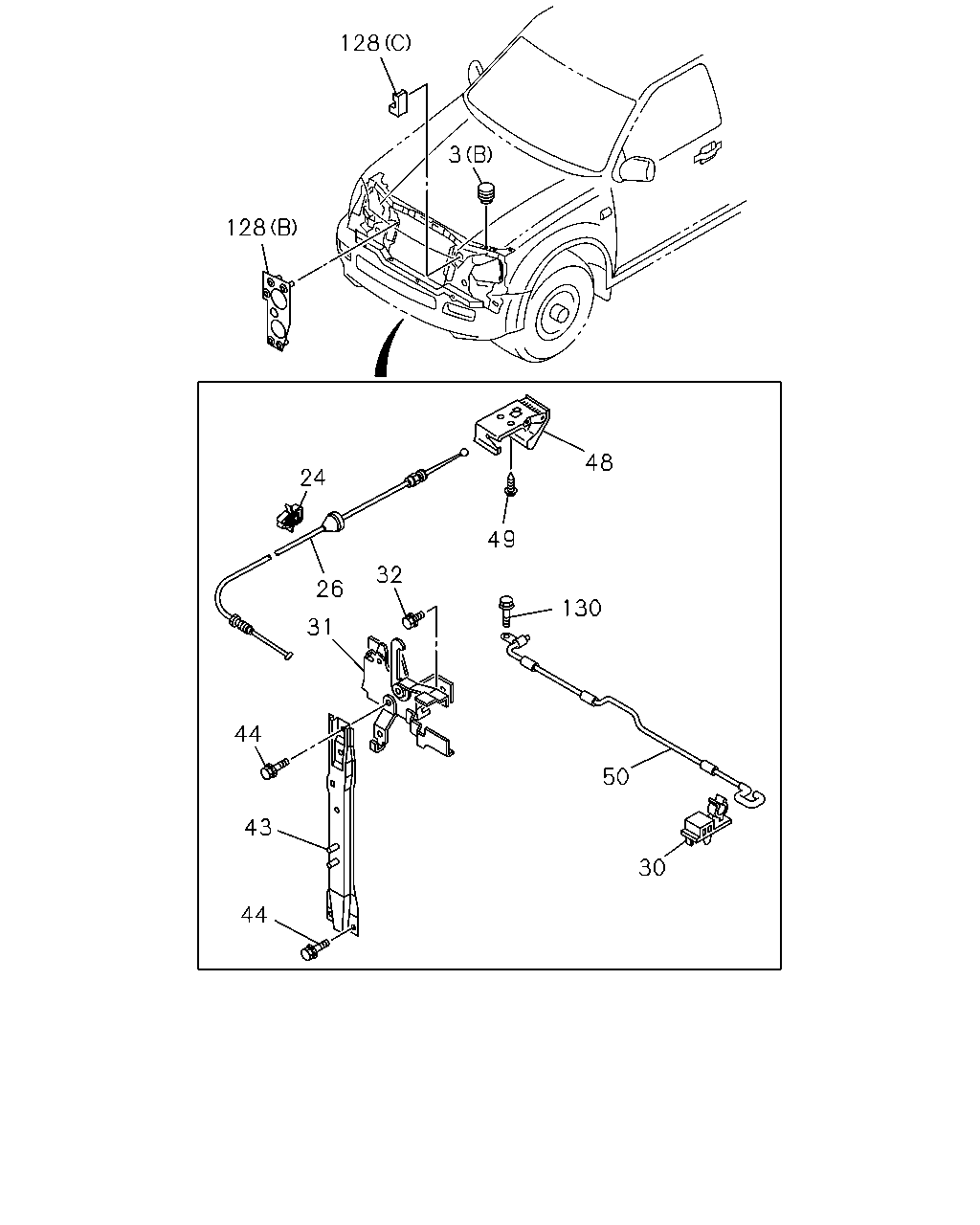

çizim 118608
128 3 128 48 24 49 32 26 130 31 44 50 43 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 BUFFER; ENG HOOD,FRT
(A) 		8-94358-581-0 02 1 0503-0508 ●
3 BUFFER; ENG HOOD,FRT
(A) 		8-94358-581-0 02 1 0509- ● ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0503-0508 ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0509- ● ●
24 CLIP; CONT CABLE 8-97182-405-0 03 1 0503-0508 ●
24 CLIP; CONT CABLE 8-97182-405-0 03 1 0509- ● ●
26 CABLE; ENG HOOD CONT 8-97334-436-2 01 1 0503-0508 ●
26 CABLE; ENG HOOD CONT 8-97334-436-2 01 1 0509-0612 ● ●
26 CABLE; ENG HOOD CONT 8-98072-368-0 01 1 0701- ● ●
30 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 0503-0508 ●
30 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 0509- ● ●
31 LOCK; ENG HOOD 8-97363-009-0 01 1 0503-0508 ●
31 LOCK; ENG HOOD 8-97363-009-0 01 1 0509- ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 0503-0508 ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 0509- ● ●
43 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 0503-0508 ●
43 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 0509-0606 ● ●
43 STAY; ENG HOOD,FRT END 8-98031-229-0 01 1 0607- ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97389-218-0 04 1 0503-0508 ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97389-218-0 04 1 0509-0706 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 0707- ● ●
48 LEVER; ENG HOOD
DARK GRAY 		8-97397-848-0 01 1 0503-0508 ●
48 LEVER; ENG HOOD
DARK GRAY 		8-97397-848-0 01 1 0509-0606 ● ●
48 LEVER; ENG HOOD
DARK GRAY 		8-97397-849-0 01 1 0607-0612 ● ●
48 LEVER; ENG HOOD
DARK GRAY 		8-97411-781-0 01 1 0701- ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		9-09829-323-1 02 1 0503-0508 ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		9-09829-323-1 02 1 0509-0701 ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98061-685-0 02 1 0702-1005 ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1006- ● ●
50 ROD; SUPPORT,ENG HOOD 8-97361-206-0 01 1 0503-0508 ●
50 ROD; SUPPORT,ENG HOOD 8-97361-206-0 01 1 0509-0606 ● ●
50 ROD; SUPPORT,ENG HOOD 8-98044-500-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(A) 		8-97234-598-1 01 1 0503-0508 ●
128 SEAL; PLATFORM
(A) 		8-97234-598-1 01 1 0509-0606 ● ●
128 SEAL; PLATFORM
(A) 		8-98024-523-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(B) 		8-97333-442-0 01 1 0503-0508 ●
128 SEAL; PLATFORM
(B) 		8-98023-877-0 01 1 0509- ● ●
128 SEAL; PLATFORM
(C) 		8-97372-864-0 01 1 0503-0508 ●
128 SEAL; PLATFORM
(C) 		8-97372-864-0 01 1 0509- ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE 		0-28680-625-0 01 1 0503-0508 ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE 		0-28680-625-0 01 1 0509-0601 ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE 		0-28650-625-0 01 1 0602- ● ●

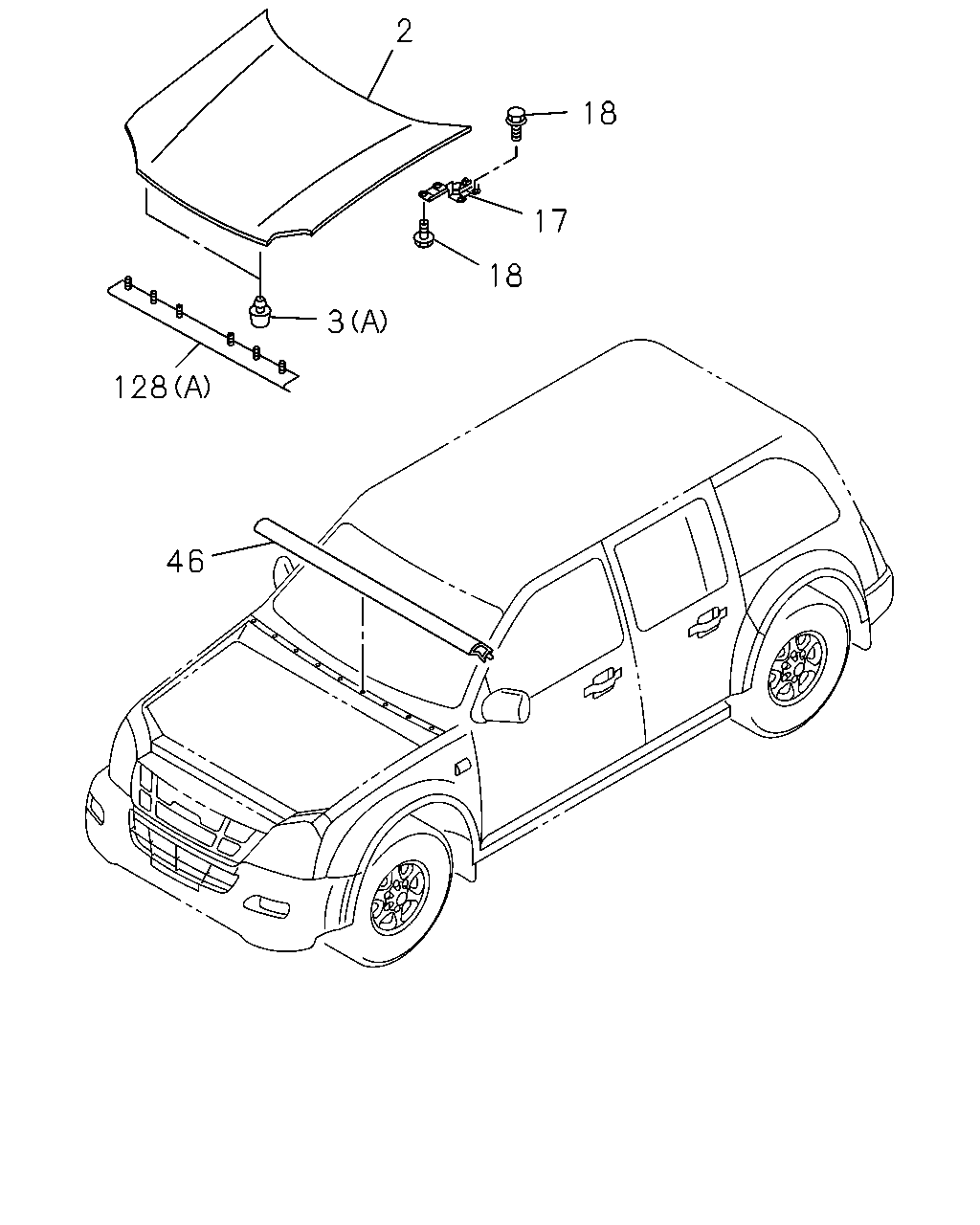

çizim 118613
2 18 17 18 3 128 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL; ENG HOOD 8-97363-781-0 01 1 0503-0508 ●
2 PANEL; ENG HOOD 8-97363-781-0 01 1 0509-0606 ● ●
2 PANEL; ENG HOOD 8-97387-346-1 01 1 0607-0608 ● ●
2 PANEL; ENG HOOD 8-98046-692-0 01 1 0609- ● ●
3 BUFFER; ENG HOOD,FRT
(A) 		8-94358-581-0 02 1 0503-0508 ●
3 BUFFER; ENG HOOD,FRT
(A) 		8-94358-581-0 02 1 0509- ● ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0503-0508 ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0509- ● ●
17 HINGE; ENG HOOD 8-97235-398-1 01 1 0503-0508 ●
17 HINGE; ENG HOOD 8-97235-398-1 01 1 0509-0701 ● ●
17 HINGE; ENG HOOD 8-98050-665-0 01 1 0702- ● ●
17 HINGE; ENG HOOD 8-97235-397-1 01 1 0503-0508 ●
17 HINGE; ENG HOOD 8-97235-397-1 01 1 0509-0701 ● ●
17 HINGE; ENG HOOD 8-98050-664-0 01 1 0702- ● ●
18 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 0503-0508 ●
18 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 0509-0606 ● ●
18 BOLT; HINGE
M8X16 		8-94139-492-0 04 1 0607-0701 ● ●
18 BOLT; HINGE
M8X16 		8-94139-492-0 04 1 0607-0701 ● ●
18 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0702- ● ●
18 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0702- ● ●
46 SEAL; ENG HOOD 8-97380-860-0 01 1 0503-0508 ●
46 SEAL; ENG HOOD 8-97380-860-0 01 1 0509- ● ●
128 SEAL; PLATFORM
(A) 		8-97234-598-1 01 1 0503-0508 ●
128 SEAL; PLATFORM
(A) 		8-97234-598-1 01 1 0509-0606 ● ●
128 SEAL; PLATFORM
(A) 		8-98024-523-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(B) 		8-97333-442-0 01 1 0503-0508 ●
128 SEAL; PLATFORM
(B) 		8-98023-877-0 01 1 0509- ● ●
128 SEAL; PLATFORM
(C) 		8-97372-864-0 01 1 0503-0508 ●
128 SEAL; PLATFORM
(C) 		8-97372-864-0 01 1 0509- ● ●
