6-05 — FRONT PANEL (#75041) — 48 parça

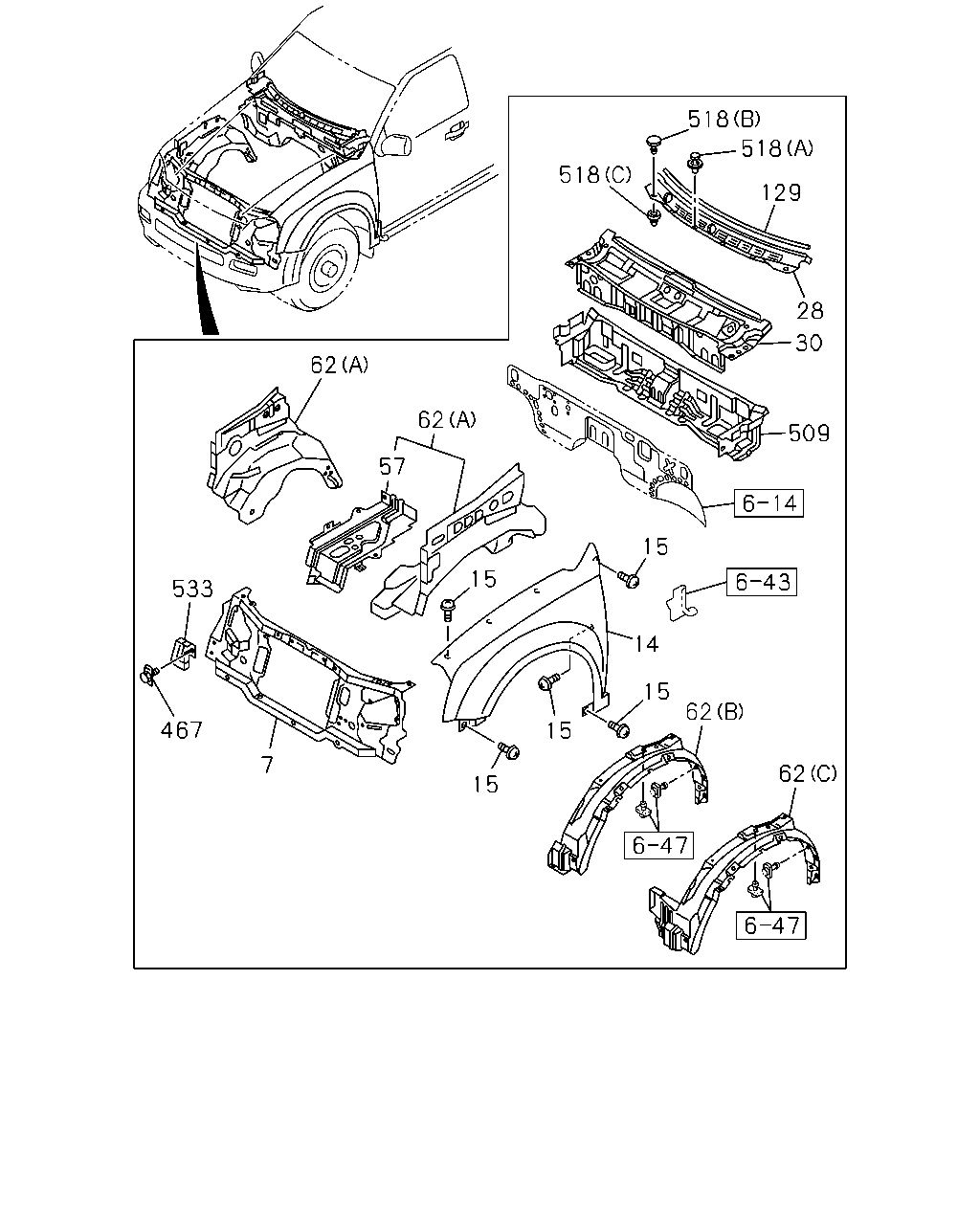

çizim 118621
518 518 518 129 28 30 62 62 509 57 15 15 533 14 15 62 467 15 7 62 15
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR 8-97364-302-1 01 1 0503-0508 ●
7 PANEL; DEFLECTOR 8-97364-302-1 01 1 0509-0606 ● ●
7 PANEL; DEFLECTOR 8-97387-380-0 01 1 0607- ● ●
14 FENDER; FRT 8-97367-006-0 01 1 0503-0508 ●
14 FENDER; FRT 8-97367-006-0 01 1 0509-0606 ● ●
14 FENDER; FRT 8-97387-364-0 01 1 0607- ● ●
14 FENDER; FRT 8-97367-005-0 01 1 0503-0508 ●
14 FENDER; FRT 8-97367-005-0 01 1 0509-0606 ● ●
14 FENDER; FRT 8-97387-363-0 01 1 0607- ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-97172-961-1 16 1 0503-0508 ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-97172-961-1 16 1 0509-0701 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98056-294-0 16 1 0702-0804 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98111-470-0 16 1 0805-1009 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 16 1 1010- ● ●
28 COVER; DASH COWL 8-97363-071-0 01 1 0503-0503 ●
28 COVER; DASH COWL 8-98009-238-0 01 1 0504-0508 ●
28 COVER; DASH COWL 8-98009-238-0 01 1 0509- ● ●
30 PANEL; COWL UPR 8-97331-904-5 01 1 0503-0508 ●
30 PANEL; COWL UPR 8-97331-904-5 01 1 0509-0701 ● ●
30 PANEL; COWL UPR 8-98061-603-0 01 1 0702- ● ●
57 TRAY; BATTERY 8-97326-537-1 01 1 0503-0508 ●
57 TRAY; BATTERY 8-97326-537-1 01 1 0509- ● ●
62 PANEL; WHEEL HOUSE
(B) 		8-97235-443-1 01 1 0503-0508 ●
62 PANEL; WHEEL HOUSE
(B) 		8-97235-443-1 01 1 0509-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) 		8-98007-132-3 01 1 0607- ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-97358-316-1 01 1 0503-0508 ●
62 PANEL; WHEEL HOUSE
(A) 		8-97358-316-1 01 1 0509-0702 ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-98074-558-0 01 1 0703- ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-97234-964-4 01 1 0503-0508 ●
62 PANEL; WHEEL HOUSE
(A) 		8-97234-964-4 01 1 0509- ● ●
62 PANEL; WHEEL HOUSE
(B) 		8-97235-441-2 01 1 0503-0508 ●
62 PANEL; WHEEL HOUSE
(B) 		8-97235-441-2 01 1 0509-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) 		8-98007-131-3 01 1 0607- ● ●
129 FINISHER; COWL COVER 8-97333-282-2 01 1 0503-0508 ●
129 FINISHER; COWL COVER 8-97333-282-2 01 1 0509- ● ●
467 RIVET; PLASTIC,DRIP MOLDING 8-94221-150-0 01 1 0503-0508 ●
467 RIVET; PLASTIC,DRIP MOLDING 8-94221-150-0 01 1 0509- ● ●
509 PANEL; DASH 8-97253-847-0 01 1 0503-0508 ●
509 PANEL; DASH 8-97253-847-0 01 1 0509-0701 ● ●
509 PANEL; DASH 8-98061-606-0 01 1 0702- ● ●
518 SCREW; BRKT,COWL COVER
(A) 		8-97013-997-0 05 1 0503-0503 ● ●
518 SCREW; BRKT,COWL COVER
(A) 		8-97013-997-0 03 1 0504- ● ●
518 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 0503-0508 ●
518 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 0509- ● ●
518 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 0503-0508 ●
518 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 0509- ● ●
533 SEAL; FRT PANEL 8-97316-861-0 01 1 0503-0508 ●
533 SEAL; FRT PANEL 8-97316-861-0 01 1 0509- ● ●
