6-03 — RADIATOR GRILLE (#75040) — 55 parça

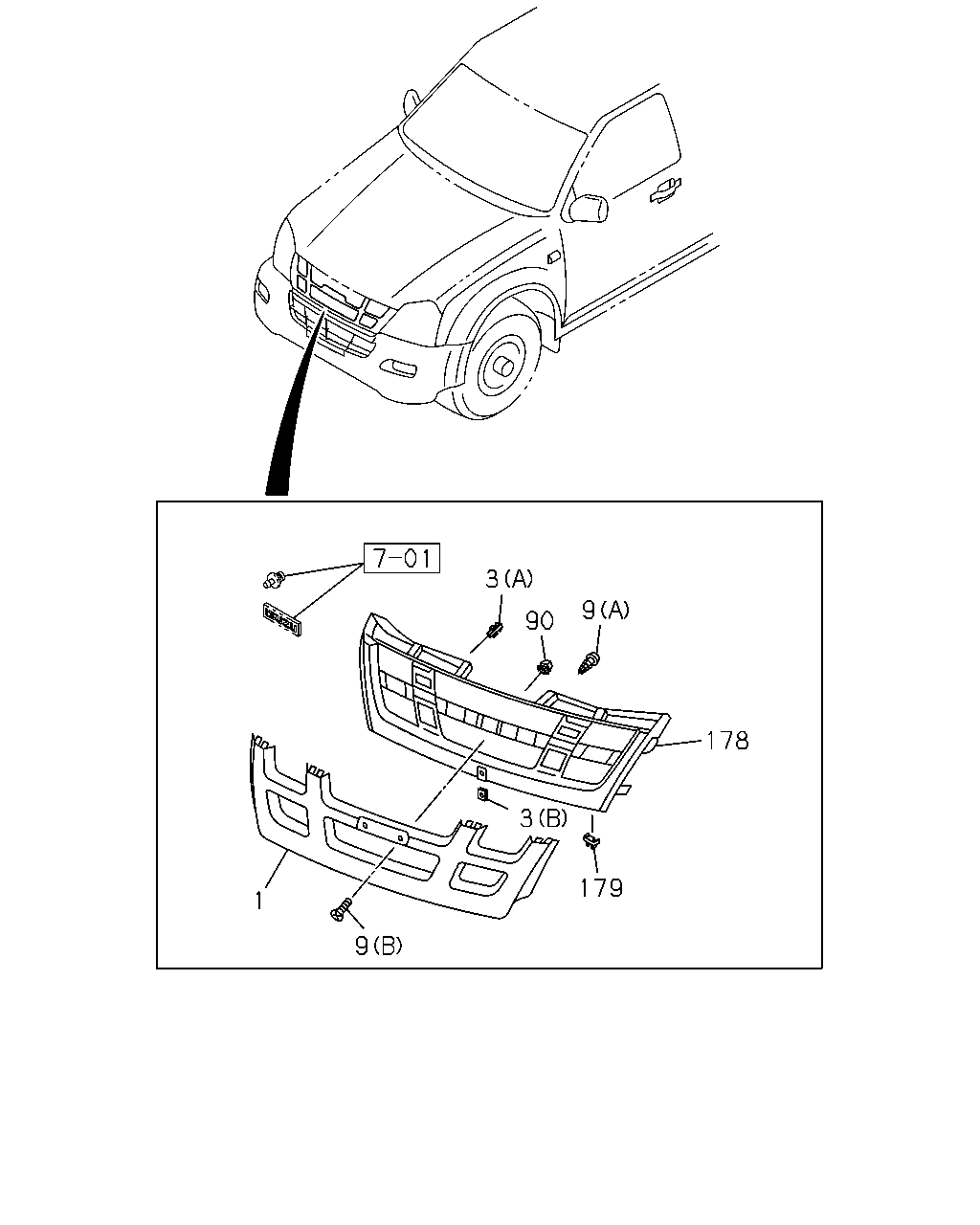

çizim 118604
3 9 90 178 3 179 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0503-0606 ●
1 GRILLE; RAD
PLATED 		8-97367-361-2 01 1 0509-0606 ●
1 GRILLE; RAD
PLATED 		8-98012-482-1 01 1 0607- ● ●
3 CLIP; GRILLE
(B) 		8-97317-633-0 01 1 0503-0508 ●
3 CLIP; GRILLE
(B) 		8-97317-633-0 01 1 0509-0606 ● ●
3 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0503-0508 ●
3 CLIP; GRILLE
(A) 		8-97350-903-0 04 1 0509-0606 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 01 1 0503-0508 ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 01 1 0509-0606 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 03 1 0607-0707 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98073-081-0 03 1 0708-1005 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 03 1 1006- ● ●
9 SCREW; RAD GRILLE
(A) 		8-97370-062-0 09 1 0503-0508 ●
9 SCREW; RAD GRILLE
(A) 		8-97370-062-0 09 1 0509-0606 ● ●
9 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0607-0610 ● ●
9 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611- ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 01 1 0503-0508 ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 01 1 0509-0606 ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 03 1 0607- ● ●
178 GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98187-092-0 01 1 1108- ● ●
178 GRILLE; INNER,RAD 8-97367-363-3 01 1 0503-0508 ●
178 GRILLE; INNER,RAD 8-97367-363-3 01 1 0509-0606 ● ●
178 GRILLE; INNER,RAD 8-98012-821-2 01 1 0607-1107 ● ●
178 GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98012-821-2 01 1 1108- ● ●
179 RETAINER; GRILLE,RAD 8-97350-904-0 02 1 0503-0508 ●
179 RETAINER; GRILLE,RAD 8-97350-904-0 02 1 0509-0606 ● ●
179 RETAINER; GRILLE,RAD 8-97301-188-0 02 1 0607- ● ●

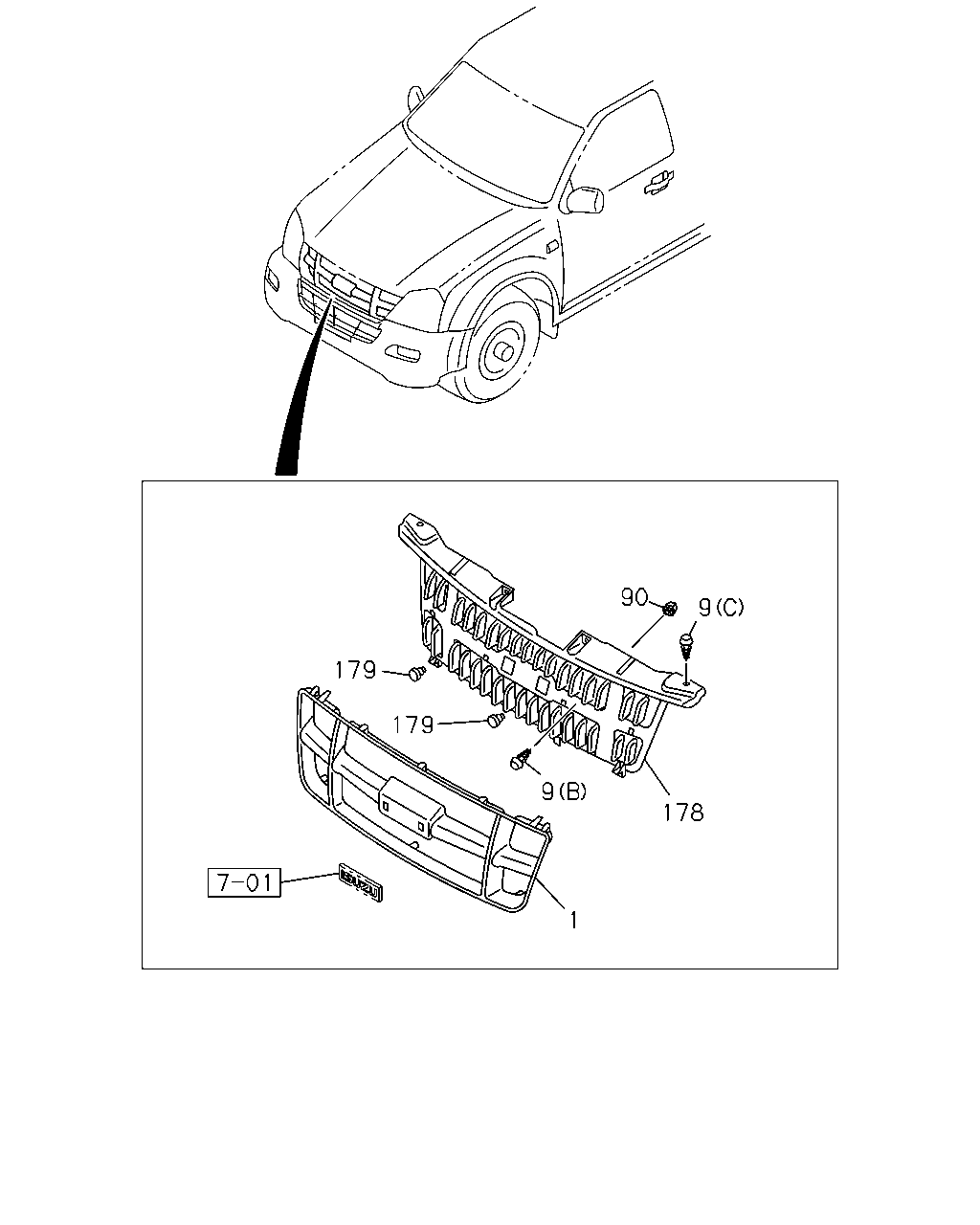

çizim 118607
90 9 179 179 9 178 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97386-222-0 01 1 0503-0606 ●
1 GRILLE; RAD
PLATED 		8-97367-361-2 01 1 0509-0606 ●
1 GRILLE; RAD
PLATED 		8-98012-482-1 01 1 0607- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 01 1 0503-0508 ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 01 1 0509-0606 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-94380-268-0 03 1 0607-0707 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98073-081-0 03 1 0708-1005 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 03 1 1006- ● ●
9 SCREW; RAD GRILLE
(A) 		8-97370-062-0 09 1 0503-0508 ●
9 SCREW; RAD GRILLE
(A) 		8-97370-062-0 09 1 0509-0606 ● ●
9 SCREW; RAD GRILLE
(C) 		8-98018-511-0 02 1 0607-0610 ● ●
9 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0611- ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 01 1 0503-0508 ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 01 1 0509-0606 ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 03 1 0607- ● ●
178 GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98187-092-0 01 1 1108- ● ●
178 GRILLE; INNER,RAD 8-97367-363-3 01 1 0503-0508 ●
178 GRILLE; INNER,RAD 8-97367-363-3 01 1 0509-0606 ● ●
178 GRILLE; INNER,RAD 8-98012-821-2 01 1 0607-1107 ● ●
178 GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98012-821-2 01 1 1108- ● ●
179 RETAINER; GRILLE,RAD 8-97350-904-0 02 1 0503-0508 ●
179 RETAINER; GRILLE,RAD 8-97350-904-0 02 1 0509-0606 ● ●
179 RETAINER; GRILLE,RAD 8-97301-188-0 02 1 0607- ● ●

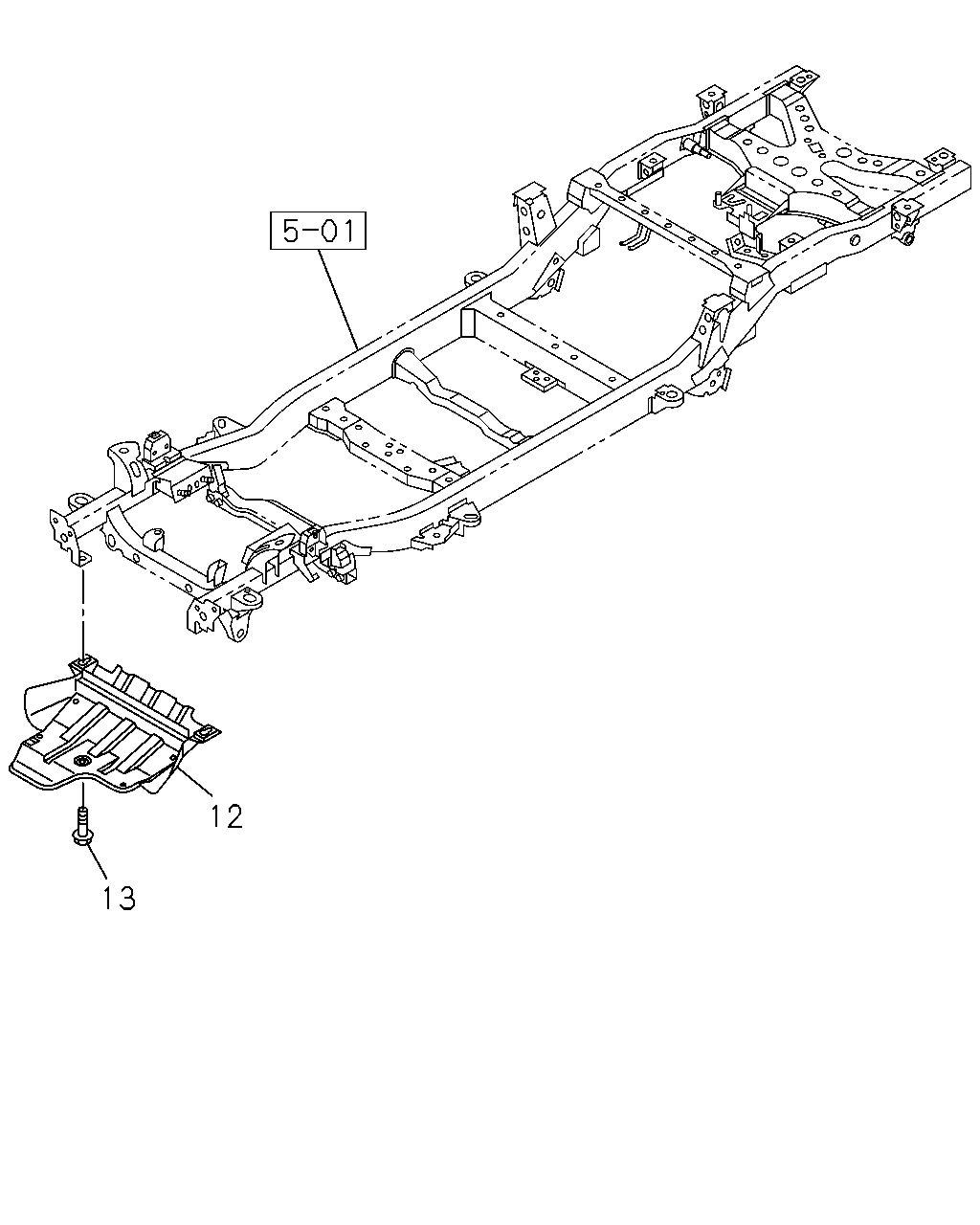

çizim 118753
12 13
BalonParca AdiParca NoAdetTipApplied Date A B
12 PLATE; SKID,RAD 8-97944-143-0 01 1 0503-0508 ●
12 PLATE; SKID,RAD 8-97944-143-0 01 1 0509- ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97943-077-0 04 1 0503-0508 ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97943-077-0 04 1 0509-0611 ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0612- ● ●
