◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#7504) — 11 parça

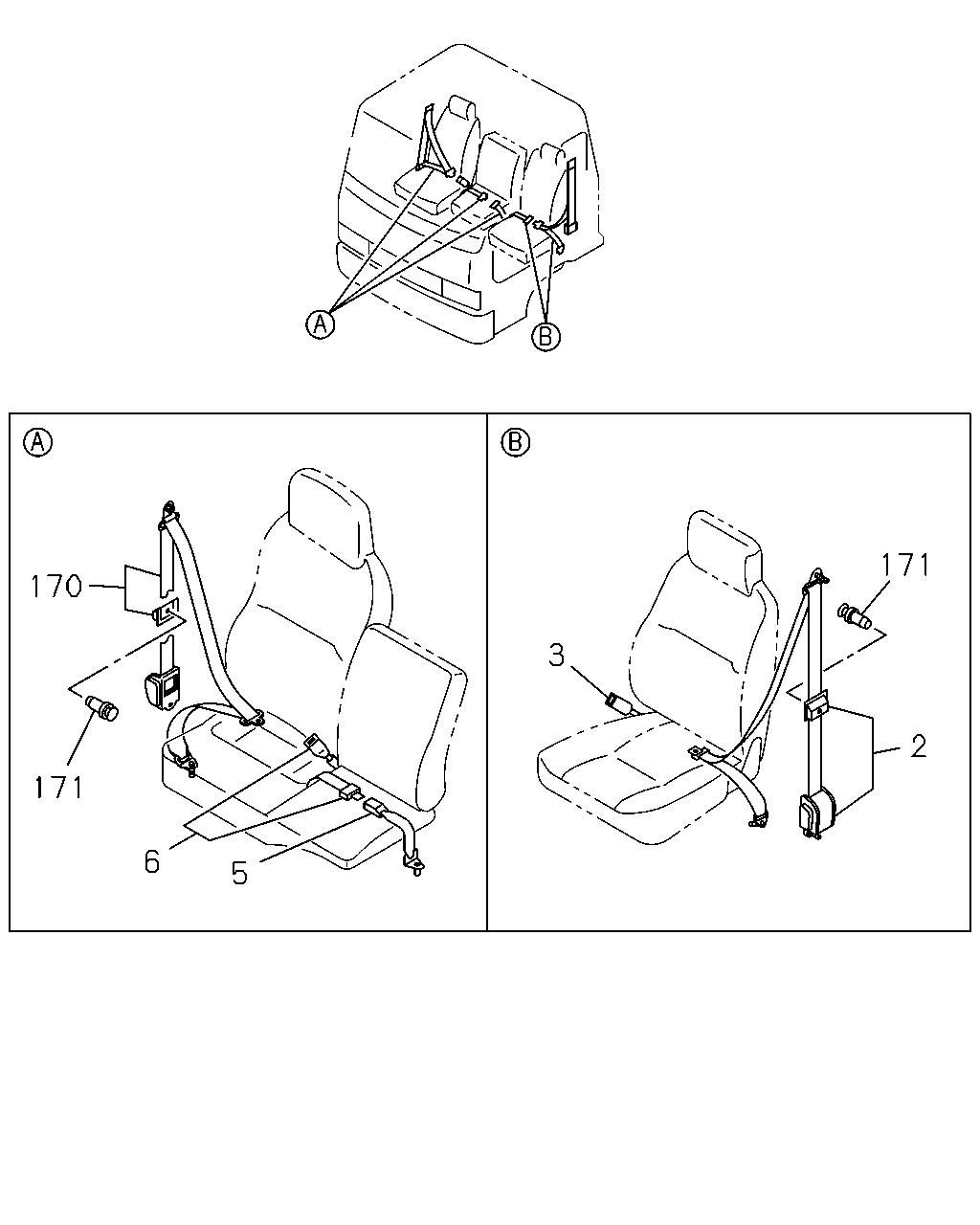

çizim 26116
171 170 3 2 171 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
TAI 		8-97535-076-0 01 1 9811-0610 ● ●
2 BELT; SEAT,TONGUE SIDE
TAI 		8-98046-540-0 01 1 0611- ● ●
3 BELT; SEAT,BUCKLE SIDE
TAI 		8-97535-075-0 01 1 9811-0610 ● ●
3 BELT; SEAT,BUCKLE SIDE
TAI 		1-75618-914-0 01 1 0611- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
TAI 		8-97535-078-0 01 1 9811-0610 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
TAI 		1-75617-553-1 01 1 0611- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
TAI 		8-97535-079-0 01 1 9811-0610 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
TAI 		8-98046-543-0 01 1 0611- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAI 		8-97535-077-0 01 1 9811-0610 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAI 		8-98046-541-0 01 1 0611- ● ●
171 CLIP; SEAT BELT GUIDE
TAI 		1-09987-239-0 02 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
