6-01 — FRONT BUMPER (#75039) — 97 parça

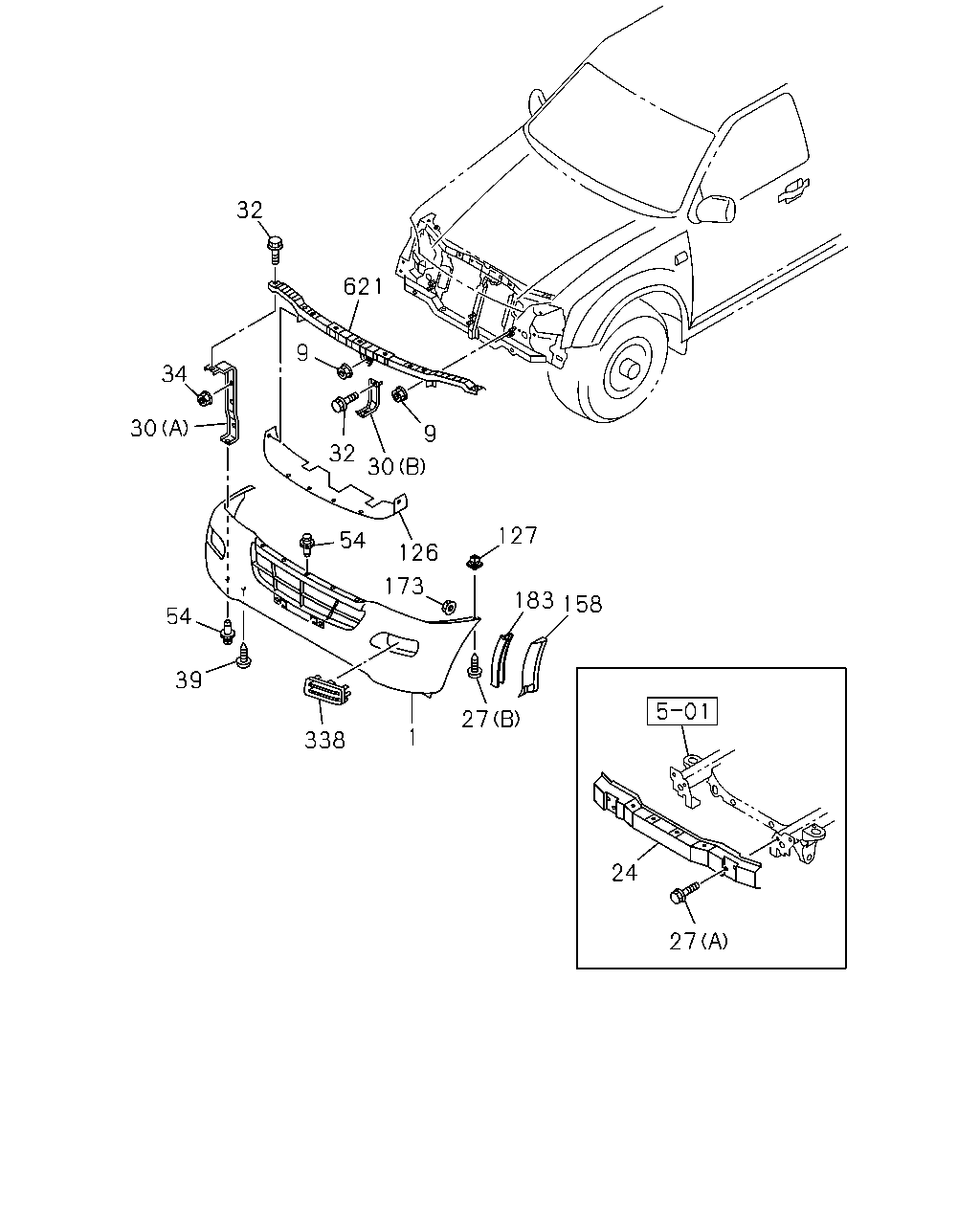

32 621 9 34 30 9 32 30 127 54 126 173 183 158 54 39 27 1 338 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0503-0508	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0509-0606	●	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-98049-887-0	01	1	0607-1009	●	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-98158-620-0	01	1	1010-1107	●	●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> PLEASE PAINT TO MATCH BODY COLOR	8-98158-620-0	01	1	1108-	●	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> PLEASE PAINT TO MATCH BODY COLOR	8-98185-694-0	01	1	1108-	●	●
9	NUT; REINF,FRT BUMPER M6 FLANGE	0-91180-106-0	06	1	0503-0508	●
9	NUT; REINF,FRT BUMPER M6 FLANGE	0-91180-106-0	06	1	0509-	●	●
24	BAR; FRT BUMPER	8-97367-044-0	01	1	0503-0508	●
24	BAR; FRT BUMPER	8-97367-044-0	01	1	0509-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0503-0508	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0509-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0503-0508	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0509-0606	●	●
30	BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0503-0508	●
30	BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0509-0606	●	●
30	BRACKET; FRT BUMPER (A)	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A)	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0503-0508	●
30	BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0509-0609	●	●
30	BRACKET; FRT BUMPER (B)	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28680-616-0	04	1	0503-0508	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28680-616-0	04	1	0509-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE	0-91180-106-0	04	1	0503-0508	●
34	NUT; BRKT,BUMPER M6 FLANGE	0-91180-106-0	04	1	0509-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0503-0508	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0509-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER	8-97301-188-0	09	1	0503-0508	●
54	RETAINER; FRT BUMPER	8-97301-188-0	09	1	0509-0606	●	●
54	RETAINER; FRT BUMPER	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER	8-97367-045-0	01	1	0503-0508	●
126	SEAL; BUMPER	8-97367-045-0	01	1	0509-0510	●	●
126	SEAL; BUMPER	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8	8-94222-314-0	02	1	0503-0508	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8	8-94222-314-0	02	1	0509-	●	●
158	EXTENSION; FRT BUMPER PRIMER	8-97331-852-1	01	1	0503-0508	●
158	EXTENSION; FRT BUMPER PRIMER	8-97331-852-1	01	1	0509-0606	●	●
158	EXTENSION; FRT BUMPER PRIMER	8-97331-851-1	01	1	0503-0508	●
158	EXTENSION; FRT BUMPER PRIMER	8-97331-851-1	01	1	0509-0606	●	●
173	NUT; EXT M6 FLANGE	0-91180-106-0	06	1	0503-0508	●
173	NUT; EXT M6 FLANGE	0-91180-106-0	06	1	0509-0606	●	●
183	FINISHER; FRT BUMPER BODY COLOR COSMIC GRAY MET/WARM SILVER MET(690), BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET(691), BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET(692),B ODY COLOR STEEL BLACK MET/WARM SILVER MET(693), BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET(694),BOD Y COLOR ALPINE WHITE(877) LIGHT GRAY	8-97396-033-0	02	1	0503-0508	●
183	FINISHER; FRT BUMPER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936),BODY COLOR STARRY BLACK MICA/STERLING SIL.MET(938),BODY COLOR CRYSTAL BLUE MET/STERLING SIL.MET(939),BODY COLOR OMEGA WHITE PEARL/STERLING SIL.MET(940),BODY COLOR IMPERIAL BLOND/STERLING SIL.MET(941),BODY COLOR COSMIC GRAY MET/STERLINGSIL.MET(957) LIGHT GRAY	8-97396-033-0	02	1	0509-0606	●	●
183	FINISHER; FRT BUMPER BODY COLOR IMPERIAL BLOND MET(688) BEIGE	8-97393-894-0	02	1	0503-0508	●
338	BEZEL; FOG LAMP	8-97363-449-0	01	1	0503-0508	●
338	BEZEL; FOG LAMP	8-97363-448-0	01	1	0503-0508	●
621	SUPPORT; FRT BUMPER	8-97367-043-1	01	1	0503-0508	●
621	SUPPORT; FRT BUMPER	8-97367-043-1	01	1	0509-0606	●	●
621	SUPPORT; FRT BUMPER	8-98039-600-1	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER	8-98060-774-0	01	1	0703-	●	●

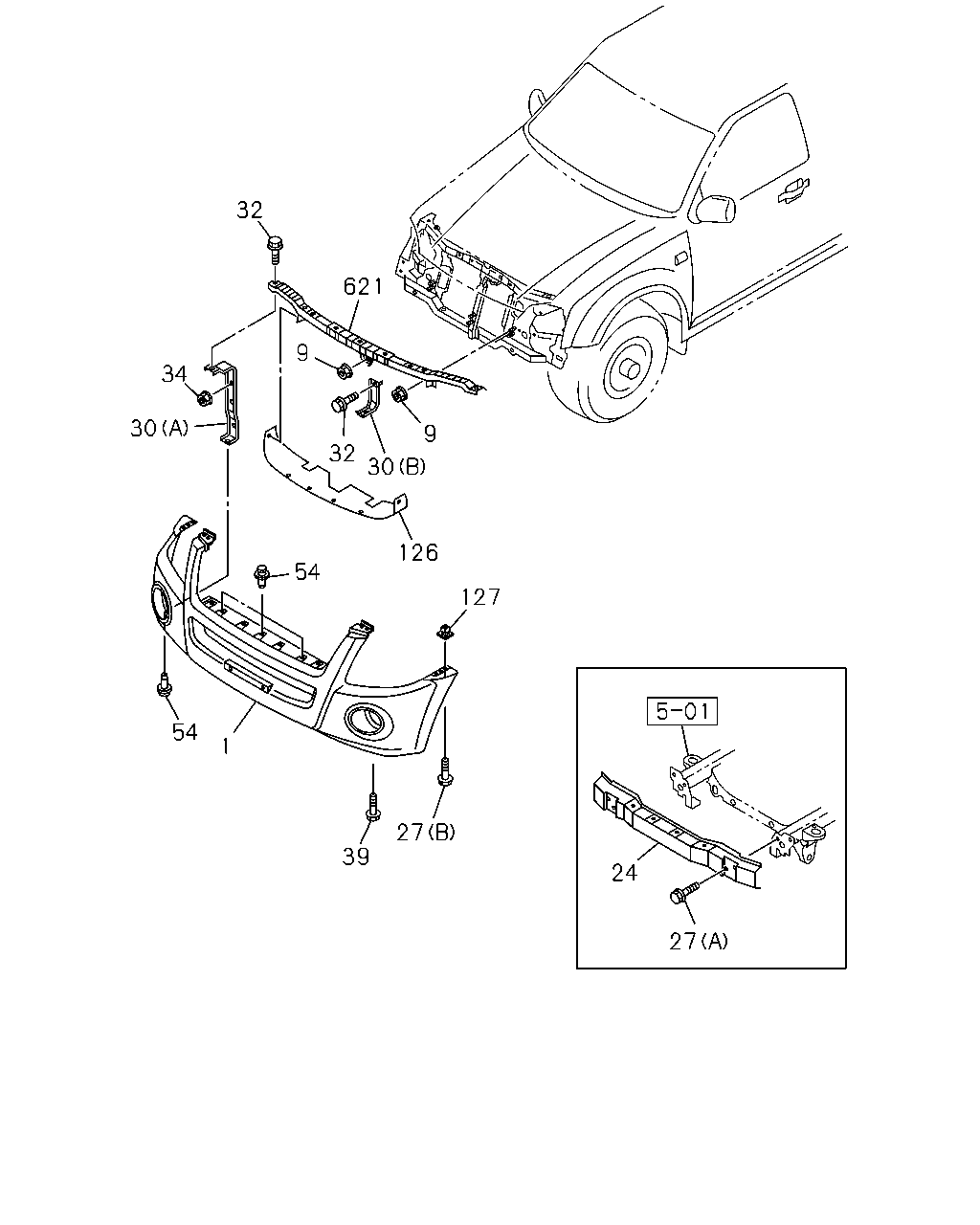

32 621 9 34 30 9 32 30 126 54 127 54 1 27 39 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0503-0508	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0509-0606	●	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-98049-887-0	01	1	0607-1009	●	●
1	BUMPER ASM; FRT PLEASE PAINT TO MATCH BODY COLOR	8-98158-620-0	01	1	1010-1107	●	●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> PLEASE PAINT TO MATCH BODY COLOR	8-98158-620-0	01	1	1108-	●	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> PLEASE PAINT TO MATCH BODY COLOR	8-98185-694-0	01	1	1108-	●	●
9	NUT; REINF,FRT BUMPER M6 FLANGE	0-91180-106-0	06	1	0503-0508	●
9	NUT; REINF,FRT BUMPER M6 FLANGE	0-91180-106-0	06	1	0509-	●	●
24	BAR; FRT BUMPER	8-97367-044-0	01	1	0503-0508	●
24	BAR; FRT BUMPER	8-97367-044-0	01	1	0509-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0503-0508	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0509-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0503-0508	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0509-0606	●	●
30	BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0503-0508	●
30	BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0509-0606	●	●
30	BRACKET; FRT BUMPER (A)	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A)	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0503-0508	●
30	BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0509-0609	●	●
30	BRACKET; FRT BUMPER (B)	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28680-616-0	04	1	0503-0508	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28680-616-0	04	1	0509-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE	0-91180-106-0	04	1	0503-0508	●
34	NUT; BRKT,BUMPER M6 FLANGE	0-91180-106-0	04	1	0509-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0503-0508	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0509-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER	8-97301-188-0	09	1	0503-0508	●
54	RETAINER; FRT BUMPER	8-97301-188-0	09	1	0509-0606	●	●
54	RETAINER; FRT BUMPER	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER	8-97367-045-0	01	1	0503-0508	●
126	SEAL; BUMPER	8-97367-045-0	01	1	0509-0510	●	●
126	SEAL; BUMPER	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8	8-94222-314-0	02	1	0503-0508	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8	8-94222-314-0	02	1	0509-	●	●
621	SUPPORT; FRT BUMPER	8-97367-043-1	01	1	0503-0508	●
621	SUPPORT; FRT BUMPER	8-97367-043-1	01	1	0509-0606	●	●
621	SUPPORT; FRT BUMPER	8-98039-600-1	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER	8-98060-774-0	01	1	0703-	●	●
