◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#75038) — 26 parça

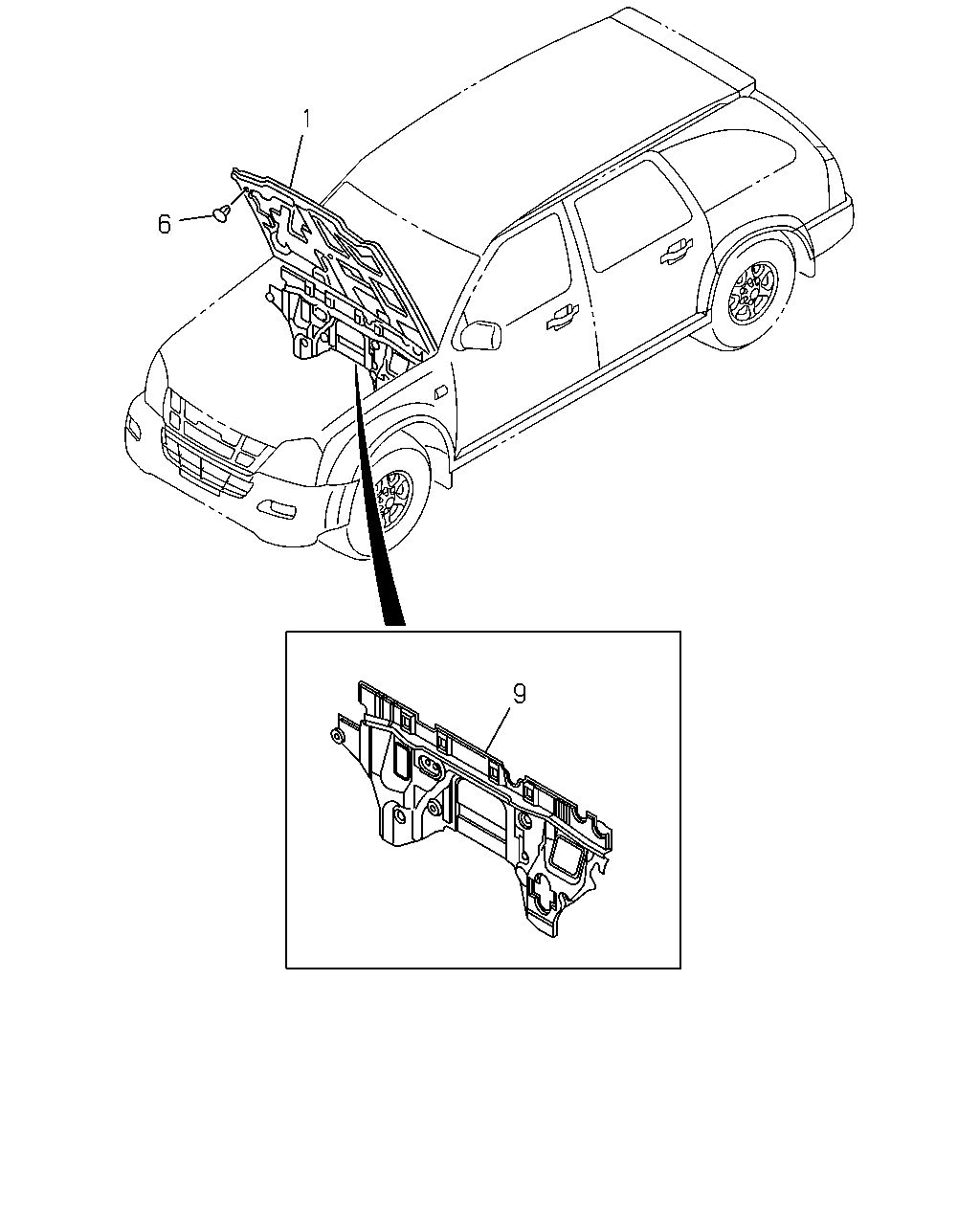

çizim 118601
1 6 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 INSULATION; ENG HOOD 8-97361-321-0 01 1 0503-0508 ●
1 INSULATION; ENG HOOD 8-97361-321-0 01 1 0509-0606 ● ●
1 INSULATION; ENG HOOD 8-98007-122-3 01 1 0607- ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 12 1 0503-0508 ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 12 1 0509-0606 ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 13 1 0607- ● ●
9 INSULATION; DASH ENG ROOM 8-97368-044-0 01 1 0503-0508 ●
9 INSULATION; DASH ENG ROOM 8-97368-044-0 01 1 0509- ● ●

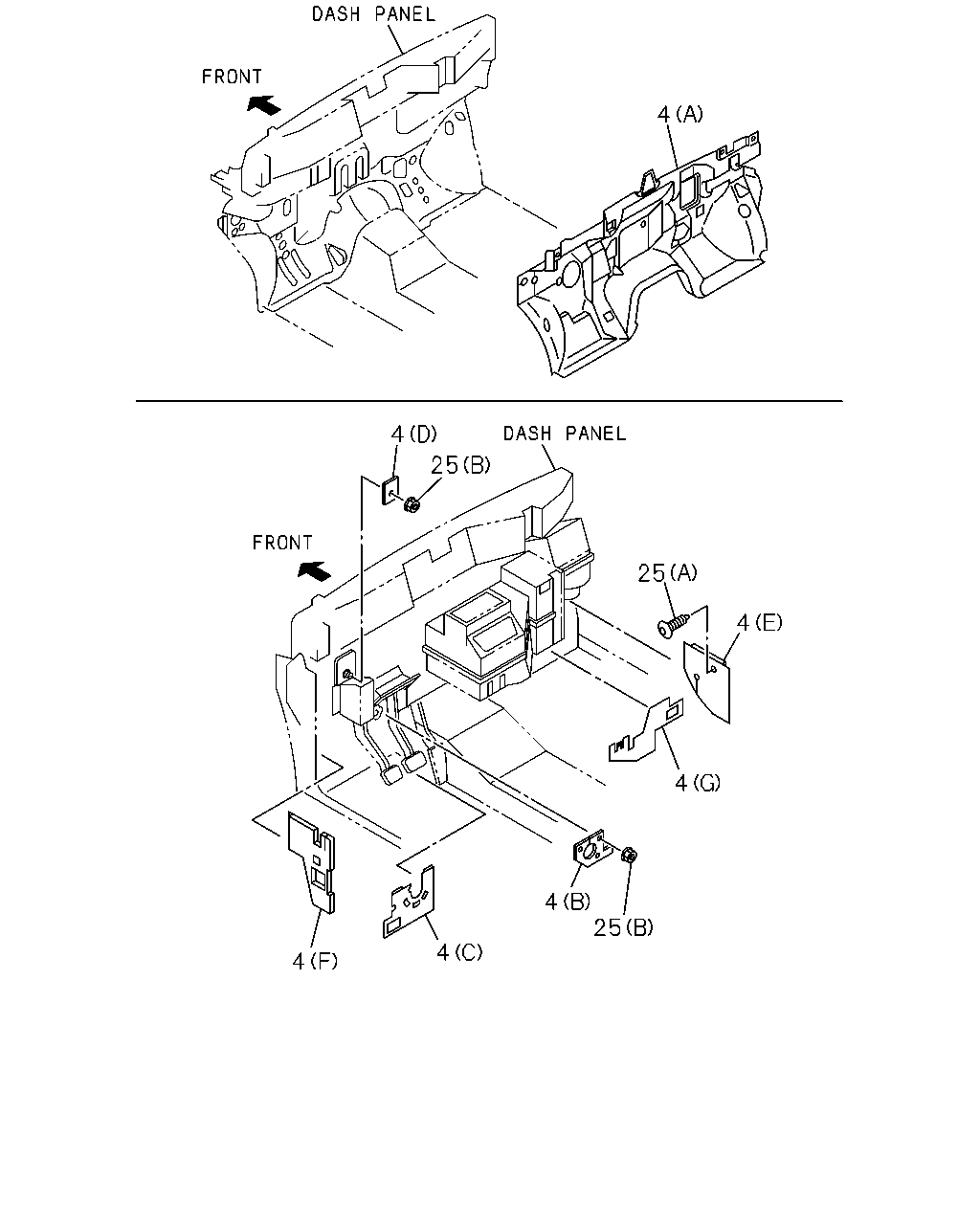

çizim 118603
4 4 25 25 4 4 4 25 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 INSULATION; DASH PNL,INNER
(B) 		8-97378-548-2 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(B) 		8-97378-548-2 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(D) 		8-97378-550-1 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(D) 		8-97378-550-1 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(E) 		8-97378-745-1 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(E) 		8-97378-745-1 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(F) 		8-97378-746-1 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(F) 		8-97378-746-1 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(G) 		8-97378-747-1 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(G) 		8-97378-747-1 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(A) 		8-98002-802-0 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(A) 		8-98002-802-0 01 1 0509- ● ●
4 INSULATION; DASH PNL,INNER
(C) 		8-98009-422-0 01 1 0503-0508 ●
4 INSULATION; DASH PNL,INNER
(C) 		8-98009-422-0 01 1 0509- ● ●
25 CLIP; DASH INSULATION
(A) OD=25 		8-94279-810-0 01 1 0503-0508 ●
25 CLIP; DASH INSULATION
(A) OD=25 		8-94279-810-0 01 1 0509- ● ●
25 CLIP; DASH INSULATION
(B) 		8-97379-175-0 03 1 0503-0508 ●
25 CLIP; DASH INSULATION
(B) 		8-97379-175-0 03 1 0509- ● ●
