5-10 — CAB MOUNTING; FRAME SIDE (#75035) — 68 parça

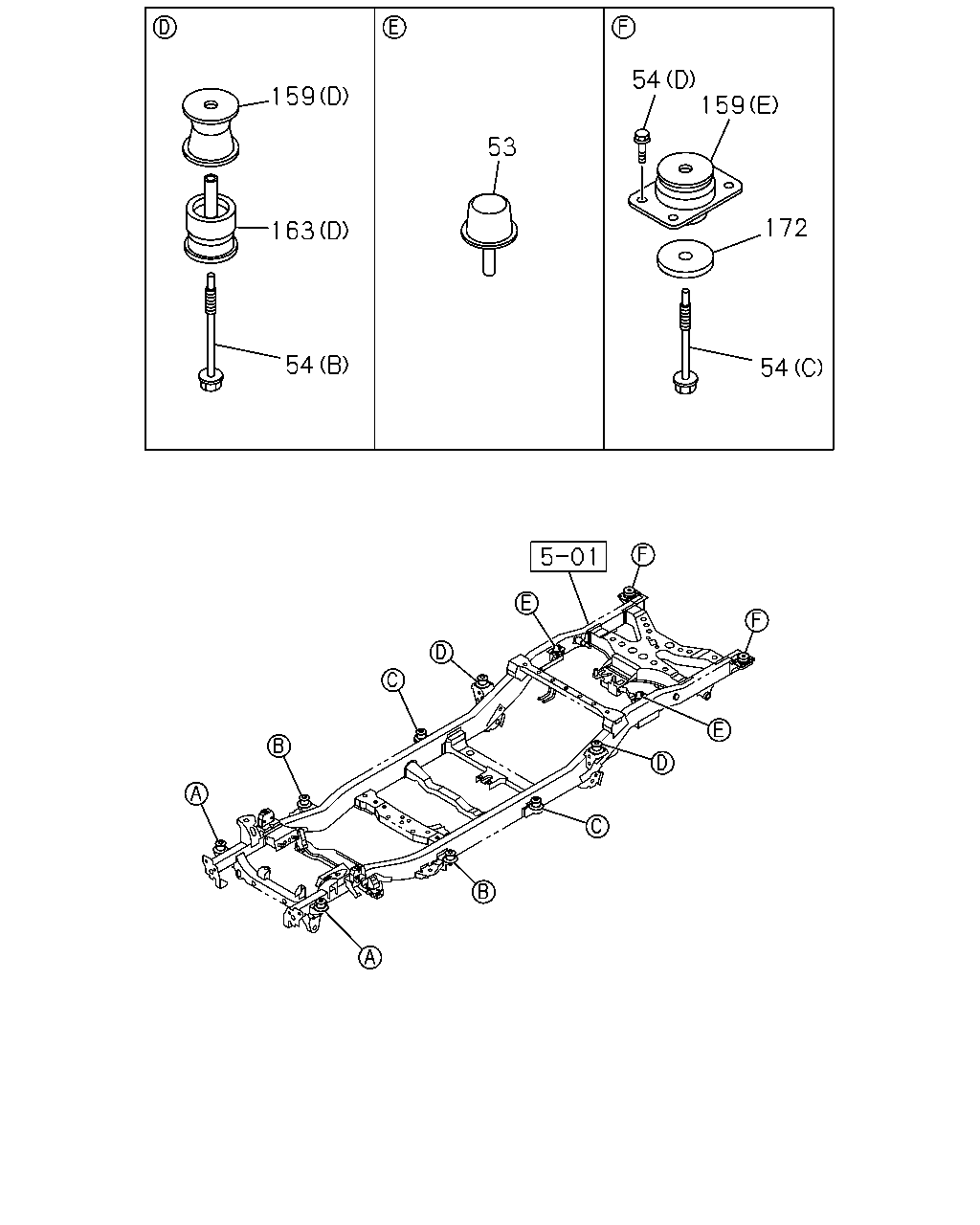

54 159 172 54 53 159 163 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	RUBBER; STOPPER	8-97944-890-0	02	1	0503-	●	●
54	BOLT; RUBBER (D) M10X20 FLANGE	0-28451-020-0	08	1	0503-0508	●
54	BOLT; RUBBER (D) M10X20 FLANGE	0-28451-020-0	08	1	0509-	●	●
54	BOLT; RUBBER (C)	8-97363-591-0	02	1	0503-0508	●
54	BOLT; RUBBER (C)	8-97363-591-0	02	1	0509-	●	●
54	BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0503-0508	●
54	BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0509-	●	●
54	BOLT; RUBBER (B)	8-97365-220-0	06	1	0503-0508	●
54	BOLT; RUBBER (B)	8-97365-220-0	06	1	0509-1009	●	●
54	BOLT; RUBBER (B)	8-98178-536-0	06	1	1010-	●	●
159	RUBBER; CUSHION,CAB MTG (E)	8-97363-552-1	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (E)	8-97363-552-1	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (A)	8-97367-285-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (A)	8-97367-285-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	8-97367-286-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (C)	8-97367-286-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	8-97367-287-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (D)	8-97367-287-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	8-97378-726-2	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (B)	8-97378-726-2	02	1	0509-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-97367-288-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-97367-288-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-98051-326-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97367-290-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97367-290-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-98051-328-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-97367-291-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-97367-291-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-98051-329-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-97378-727-2	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-97378-727-2	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-98051-330-0	02	1	0610-	●	●
172	WASHER; BODY MTG RUBBER ID=11 OD=75 T=6.0	8-94338-455-0	02	1	0503-0508	●
172	WASHER; BODY MTG RUBBER ID=11 OD=75 T=6.0	8-94338-455-0	02	1	0509-	●	●

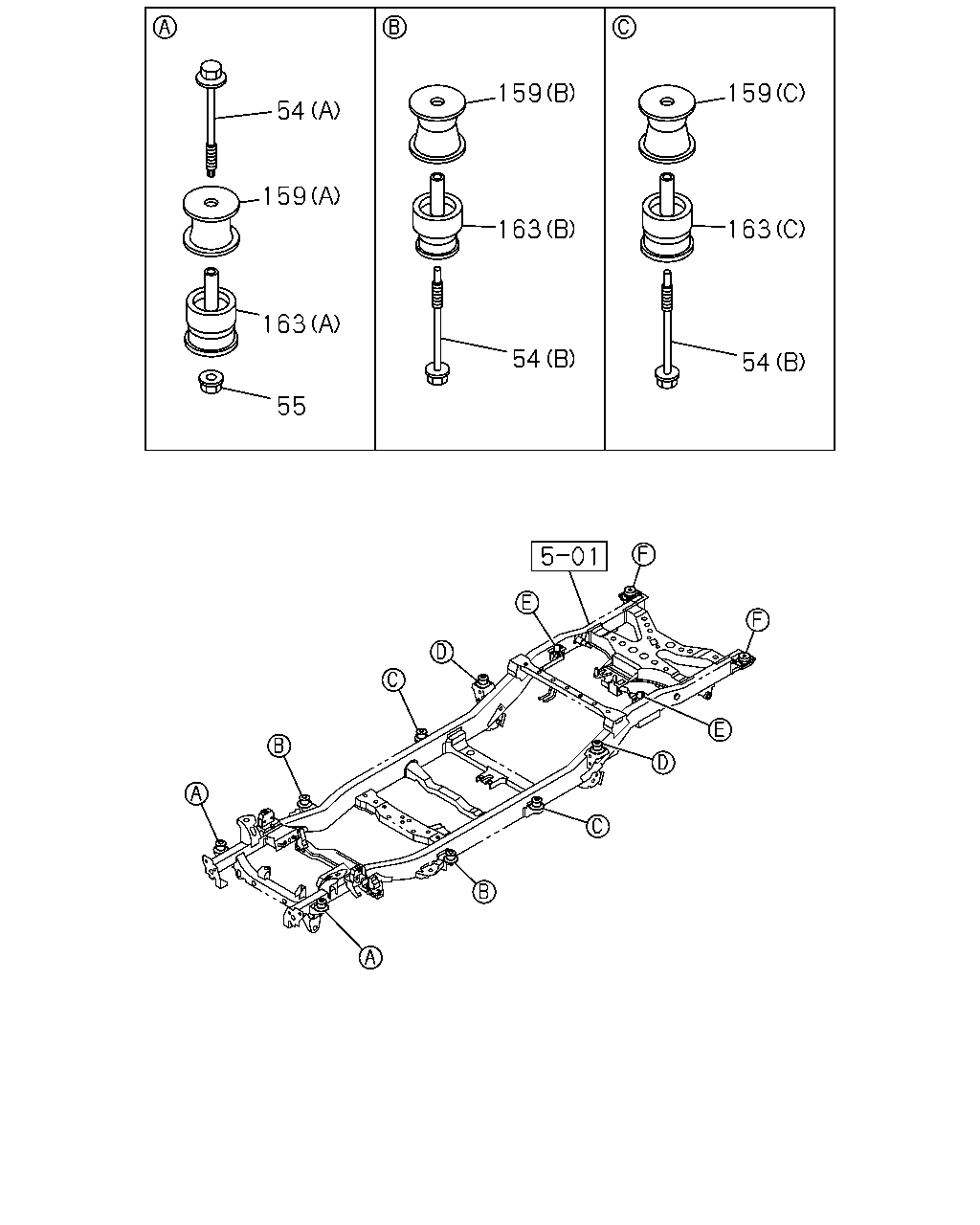

54 159 163 55 159 163 54 159 163 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	BOLT; RUBBER (D) M10X20 FLANGE	0-28451-020-0	08	1	0503-0508	●
54	BOLT; RUBBER (D) M10X20 FLANGE	0-28451-020-0	08	1	0509-	●	●
54	BOLT; RUBBER (C)	8-97363-591-0	02	1	0503-0508	●
54	BOLT; RUBBER (C)	8-97363-591-0	02	1	0509-	●	●
54	BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0503-0508	●
54	BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0509-	●	●
54	BOLT; RUBBER (B)	8-97365-220-0	06	1	0503-0508	●
54	BOLT; RUBBER (B)	8-97365-220-0	06	1	0509-1009	●	●
54	BOLT; RUBBER (B)	8-98178-536-0	06	1	1010-	●	●
55	NUT; RUBBER M10 FLANGE	0-91250-210-0	02	1	0503-0508	●
55	NUT; RUBBER M10 FLANGE	0-91250-210-0	02	1	0509-0603	●	●
55	NUT; RUBBER M10 FLANGE	0-91280-210-0	02	1	0604-	●	●
159	RUBBER; CUSHION,CAB MTG (E)	8-97363-552-1	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (E)	8-97363-552-1	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (A)	8-97367-285-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (A)	8-97367-285-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	8-97367-286-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (C)	8-97367-286-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	8-97367-287-0	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (D)	8-97367-287-0	02	1	0509-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	8-97378-726-2	02	1	0503-0508	●
159	RUBBER; CUSHION,CAB MTG (B)	8-97378-726-2	02	1	0509-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-97367-288-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-97367-288-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A)	8-98051-326-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97367-290-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-97367-290-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C)	8-98051-328-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-97367-291-0	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-97367-291-0	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D)	8-98051-329-0	02	1	0610-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-97378-727-2	02	1	0503-0508	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-97378-727-2	02	1	0509-0609	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B)	8-98051-330-0	02	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
