5-01 — FRAME AND OTHER PARTS (#75034) — 106 parça

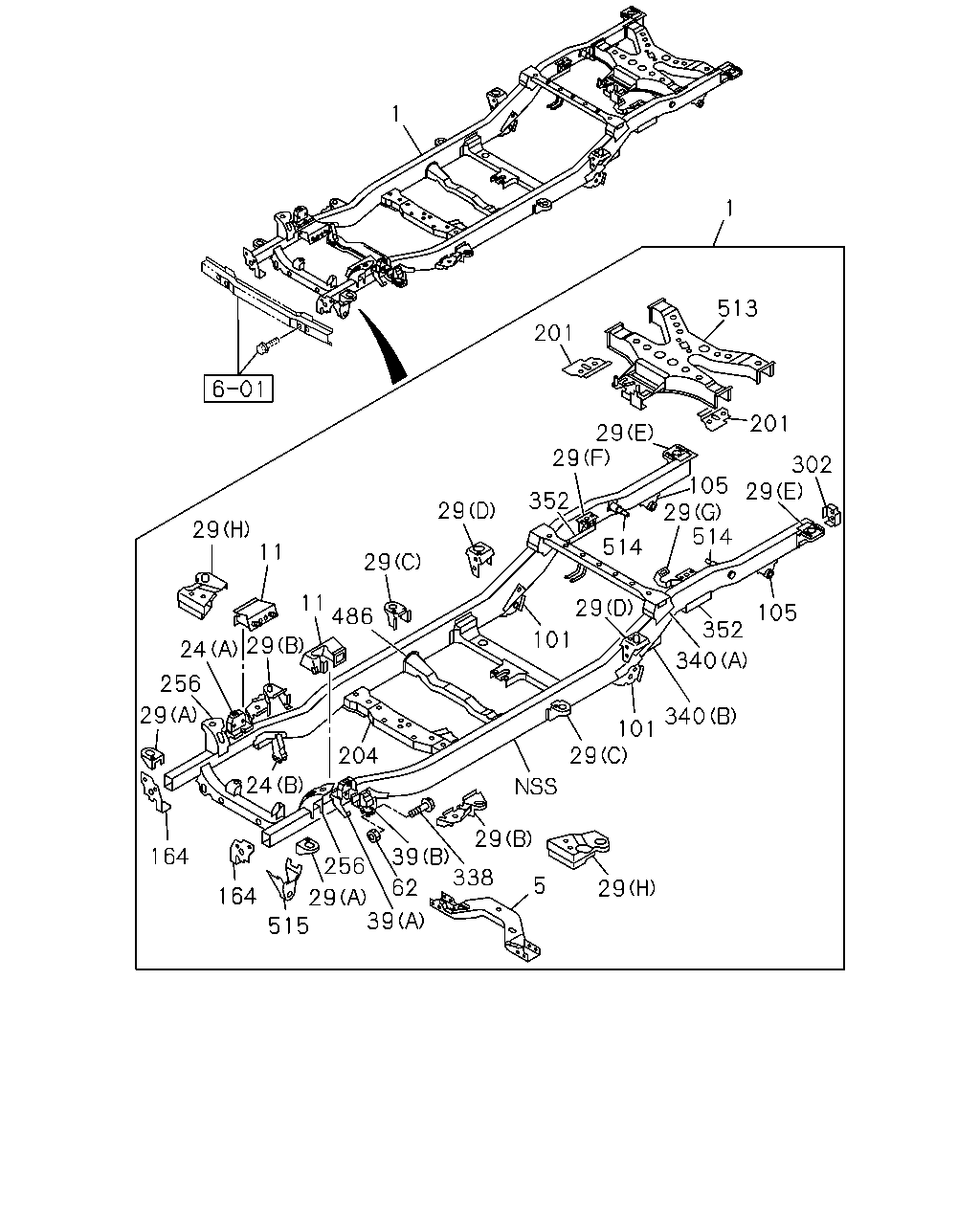

çizim 118606
1 1 513 201 201 29 29 302 29 105 29 514 352 29 29 514 11 29 11 486 29 105 352 101 29 24 340 256 29 340 101 29 204 24 29 256 164 39 338 5 62 29 164 29 39 515
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-97944-187-0 01 1 0503-0606 ●
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-97945-412-1 01 1 0607-0705 ●
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-97946-276-0 01 1 0706-0806 ●
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-98116-520-0 01 1 0807-0808 ●
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-98123-757-0 01 1 0809-0909 ●
1 FRAME ASM
A/T 4 SPEED-JATCO(RMK) 		8-98149-907-0 01 1 0910- ●
1 FRAME ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97944-186-0 01 1 0503-0606 ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-97945-411-0 01 1 0607-0705 ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-97946-275-0 01 1 0706-0806 ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98116-519-0 01 1 0807-0808 ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98123-756-0 01 1 0809-0909 ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98149-906-0 01 1 0910- ●
1 FRAME ASM 8-97945-039-0 01 1 0509-0606 ●
1 FRAME ASM 8-97945-413-0 01 1 0607-0806 ●
1 FRAME ASM 8-98116-518-0 01 1 0807-0808 ●
1 FRAME ASM 8-98123-758-0 01 1 0809-0909 ●
1 FRAME ASM 8-98149-908-0 01 1 0910- ●
5 MEMBER; CROSS,SUSPENSION 8-98116-196-0 01 1 0807- ●
5 MEMBER; CROSS,SUSPENSION 8-97942-423-3 01 1 0503-0508 ●
5 MEMBER; CROSS,SUSPENSION 8-97942-423-3 01 1 0509-0806 ● ●
5 MEMBER; CROSS,SUSPENSION 8-97942-423-3 01 1 0807- ●
11 BRACKET; ENG MTG 8-97943-947-0 01 1 0503-0508 ●
11 BRACKET; ENG MTG 8-97943-947-0 01 1 0509- ● ●
11 BRACKET; ENG MTG 8-97942-345-4 01 1 0503-0508 ●
11 BRACKET; ENG MTG 8-97942-345-4 01 1 0509- ● ●
24 BRACKET; FRT SPR,FRT
(B) 		8-97942-352-2 01 1 0503-0508 ●
24 BRACKET; FRT SPR,FRT
(B) 		8-97942-352-2 01 1 0509-0705 ● ●
24 BRACKET; FRT SPR,FRT
(B) 		8-97942-352-2 01 1 0706- ●
24 BRACKET; FRT SPR,FRT
(A) 		8-97942-356-3 01 1 0503-0508 ●
24 BRACKET; FRT SPR,FRT
(A) 		8-97942-356-3 01 1 0509- ● ●
24 BRACKET; FRT SPR,FRT
(B) 		8-97946-328-0 01 1 0706- ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 0503-0508 ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 0509- ● ●
29 BRACKET; CAB MTG
(C) 		8-97942-372-3 02 1 0503-0506 ●
29 BRACKET; CAB MTG
(C) 		8-97944-956-0 02 1 0507-0508 ●
29 BRACKET; CAB MTG
(C) 		8-97944-956-0 02 1 0509- ● ●
29 BRACKET; CAB MTG
(E) 		8-97943-923-1 02 1 0503-0508 ●
29 BRACKET; CAB MTG
(E) 		8-97943-923-1 02 1 0509- ● ●
29 BRACKET; CAB MTG
(D) 		8-97942-383-3 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(D) 		8-97942-383-3 01 1 0509- ● ●
29 BRACKET; CAB MTG
(B) 		8-97942-603-2 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(B) 		8-97942-603-2 01 1 0509-0909 ● ●
29 BRACKET; CAB MTG
(H) 		8-97941-773-2 01 1 0910- ● ●
29 BRACKET; CAB MTG
(G) 		8-97943-925-1 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(G) 		8-97943-925-1 01 1 0509- ● ●
29 BRACKET; CAB MTG
(D) 		8-97942-382-4 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(D) 		8-97942-382-4 01 1 0509- ● ●
29 BRACKET; CAB MTG
(B) 		8-97942-602-2 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(B) 		8-97942-602-2 01 1 0509-0909 ● ●
29 BRACKET; CAB MTG
(H) 		8-97941-772-2 01 1 0910- ● ●
29 BRACKET; CAB MTG
(F) 		8-97943-924-1 01 1 0503-0508 ●
29 BRACKET; CAB MTG
(F) 		8-97943-924-1 01 1 0509- ● ●
39 BRACKET; FRT SPR,RR
(B) 		8-97942-353-2 01 1 0503-0508 ●
39 BRACKET; FRT SPR,RR
(B) 		8-97942-353-2 01 1 0509-0705 ● ●
39 BRACKET; FRT SPR,RR
(B) 		8-97942-353-2 01 1 0706- ●
39 BRACKET; FRT SPR,RR
(A) 		8-97942-357-3 01 1 0503-0508 ●
39 BRACKET; FRT SPR,RR
(A) 		8-97942-357-3 01 1 0509- ● ●
39 BRACKET; FRT SPR,RR
(B) 		8-97946-329-0 01 1 0706- ●
62 NUT; MBR
M10 FLANGE 		0-91180-210-0 04 1 0503-0508 ●
62 NUT; MBR
M10 FLANGE 		0-91180-210-0 04 1 0509- ● ●
101 BRACKET; RR SPR,FRT 8-97942-392-5 01 1 0503-0508 ●
101 BRACKET; RR SPR,FRT 8-97942-392-6 01 1 0509-0606 ● ●
101 BRACKET; RR SPR,FRT 8-97945-357-0 01 1 0607- ● ●
101 BRACKET; RR SPR,FRT 8-97942-391-5 01 1 0503-0508 ●
101 BRACKET; RR SPR,FRT 8-97942-391-6 01 1 0509-0606 ● ●
101 BRACKET; RR SPR,FRT 8-97945-356-0 01 1 0607- ● ●
105 BRACKET; RR SPR,RR 8-97942-294-0 02 1 0503-0508 ●
105 BRACKET; RR SPR,RR 8-97942-294-0 02 1 0509- ● ●
164 PLATE; FRT 8-97942-827-1 01 1 0503-0508 ●
164 PLATE; FRT 8-97942-827-1 01 1 0509-0808 ● ●
164 PLATE; FRT 8-98123-935-0 01 1 0809- ● ●
164 PLATE; FRT 8-97942-826-1 01 1 0503-0508 ●
164 PLATE; FRT 8-97942-826-1 01 1 0509-0808 ● ●
164 PLATE; FRT 8-98123-934-0 01 1 0809- ● ●
201 GUSSET; C/MBR 8-97942-406-1 01 1 0503-0508 ●
201 GUSSET; C/MBR 8-97942-406-1 01 1 0509- ● ●
201 GUSSET; C/MBR 8-97942-405-1 01 1 0503-0508 ●
201 GUSSET; C/MBR 8-97942-405-1 01 1 0509- ● ●
204 MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO(RMK) 		8-97943-833-2 01 1 0503- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5G(RSP) 		8-97943-832-0 01 1 0503-0606 ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-97943-832-0 01 1 0607- ●
204 MEMBER; CROSS,TRANS MTG 8-97943-830-0 01 1 0509- ●
256 BRACKET; S/ABS 8-97942-349-1 01 1 0503-0504 ●
256 BRACKET; S/ABS 8-97944-314-0 01 1 0505-0508 ●
256 BRACKET; S/ABS 8-97944-314-0 01 1 0509- ● ●
256 BRACKET; S/ABS 8-97942-348-1 01 1 0503-0504 ●
256 BRACKET; S/ABS 8-97944-313-0 01 1 0505-0508 ●
256 BRACKET; S/ABS 8-97944-313-0 01 1 0509- ● ●
302 REINFORCEMENT; S/MBR 8-97944-090-1 01 1 0503-0508 ●
302 REINFORCEMENT; S/MBR 8-97944-090-1 01 1 0509- ● ●
338 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE 		8-97943-909-0 04 1 0503-0508 ●
338 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE 		8-97943-909-0 04 1 0509- ● ●
340 BRACKET; FUEL TANK
(A) 		8-97942-278-3 01 1 0503-0508 ●
340 BRACKET; FUEL TANK
(A) 		8-97942-278-3 01 1 0509- ● ●
340 BRACKET; FUEL TANK
(B) 		8-97942-397-3 01 1 0503-0508 ●
340 BRACKET; FUEL TANK
(B) 		8-97942-397-3 01 1 0509- ● ●
352 BRACKET; BUMPER RUBBER 8-97943-926-1 02 1 0503-0508 ●
352 BRACKET; BUMPER RUBBER 8-97943-926-1 02 1 0509- ● ●
486 MEMBER; CROSS,HIGHT CONT BRKT 8-97942-371-6 01 1 0503-0508 ●
486 MEMBER; CROSS,HIGHT CONT BRKT 8-97942-371-6 01 1 0509- ● ●
513 MEMBER; CROSS,SPEAR TIRE 8-97942-404-7 01 1 0503-0508 ●
513 MEMBER; CROSS,SPEAR TIRE 8-97942-404-9 01 1 0509- ● ●
514 PIN; S/ABS 8-97942-395-1 02 1 0503-0508 ●
514 PIN; S/ABS 8-97942-395-1 02 1 0509- ● ●
515 HOOK 8-97942-363-1 01 1 0503-0508 ●
515 HOOK 8-97942-363-1 01 1 0509- ● ●
