◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#75033) — 22 parça

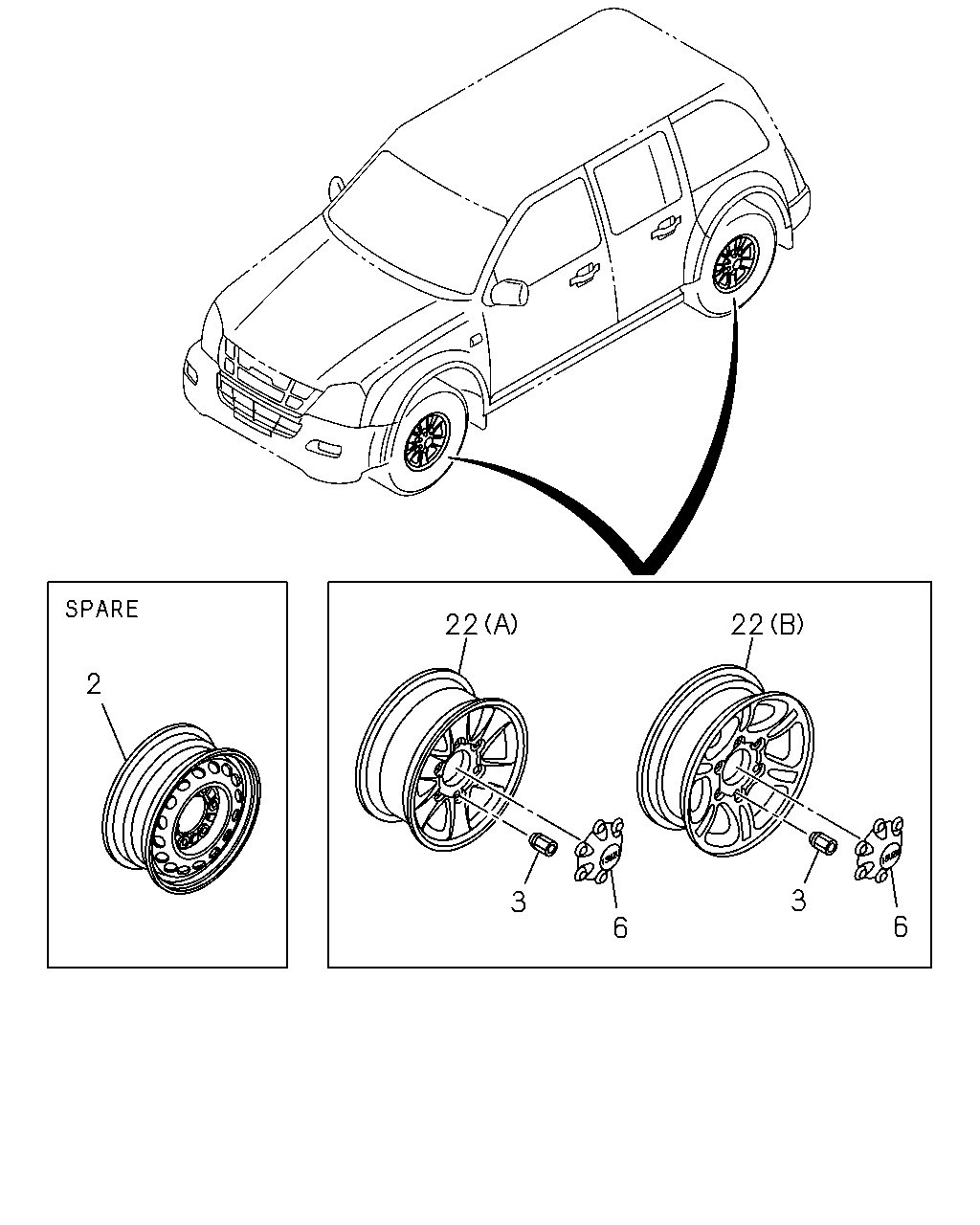

çizim 118599
22 22 2 3 3 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE OFFSET 38 		8-97324-669-1 01 1 0809-1212 ● ●
2 WHEEL; DISC
SPARE OFFSET 38 		8-98218-141-0 01 1 1301- ● ●
3 NUT; WHEEL,FRT AXLE
M12 H=25.5 		8-97365-932-0 24 1 0503-0508 ●
3 NUT; WHEEL,FRT AXLE
M12 H=25.5 		8-97365-932-0 24 1 0509-0908 ● ●
3 NUT; WHEEL,FRT AXLE
M12 H=23 		8-98101-983-0 24 1 0909- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> ISUZU MARK 		8-98116-111-0 04 1 1101- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> ISUZU MARK 		8-97945-399-0 04 1 0909- ● ●
6 CAP; WHEEL
ISUZU MARK 		8-97374-697-0 04 1 0503-0508 ●
6 CAP; WHEEL
ISUZU MARK 		8-97374-697-0 04 1 0509-0908 ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI<PX0> ISUZU MARK 		8-97374-697-0 04 1 0909- ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> (B) 		8-98177-952-0 04 1 1101-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> (B) 		8-98218-157-0 04 1 1301- ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) 		8-98149-136-0 04 1 0909-1006 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) 		8-98172-697-0 04 1 1007-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) 		8-98218-145-0 04 1 1301- ● ●
22 WHEEL; DISC,AL
(A) 		8-97363-556-1 05 1 0503-0508 ●
22 WHEEL; DISC,AL
(A) 		8-98018-194-0 05 1 0509-0606 ● ●
22 WHEEL; DISC,AL
(A) 		8-98009-207-0 05 1 0607-0808 ● ●
22 WHEEL; DISC,AL
(B) 		8-98101-921-0 04 1 0809-0908 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) 		8-98101-921-0 04 1 0909-1006 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) 		8-98172-696-0 04 1 1007-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) 		8-98218-144-0 04 1 1301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
