Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

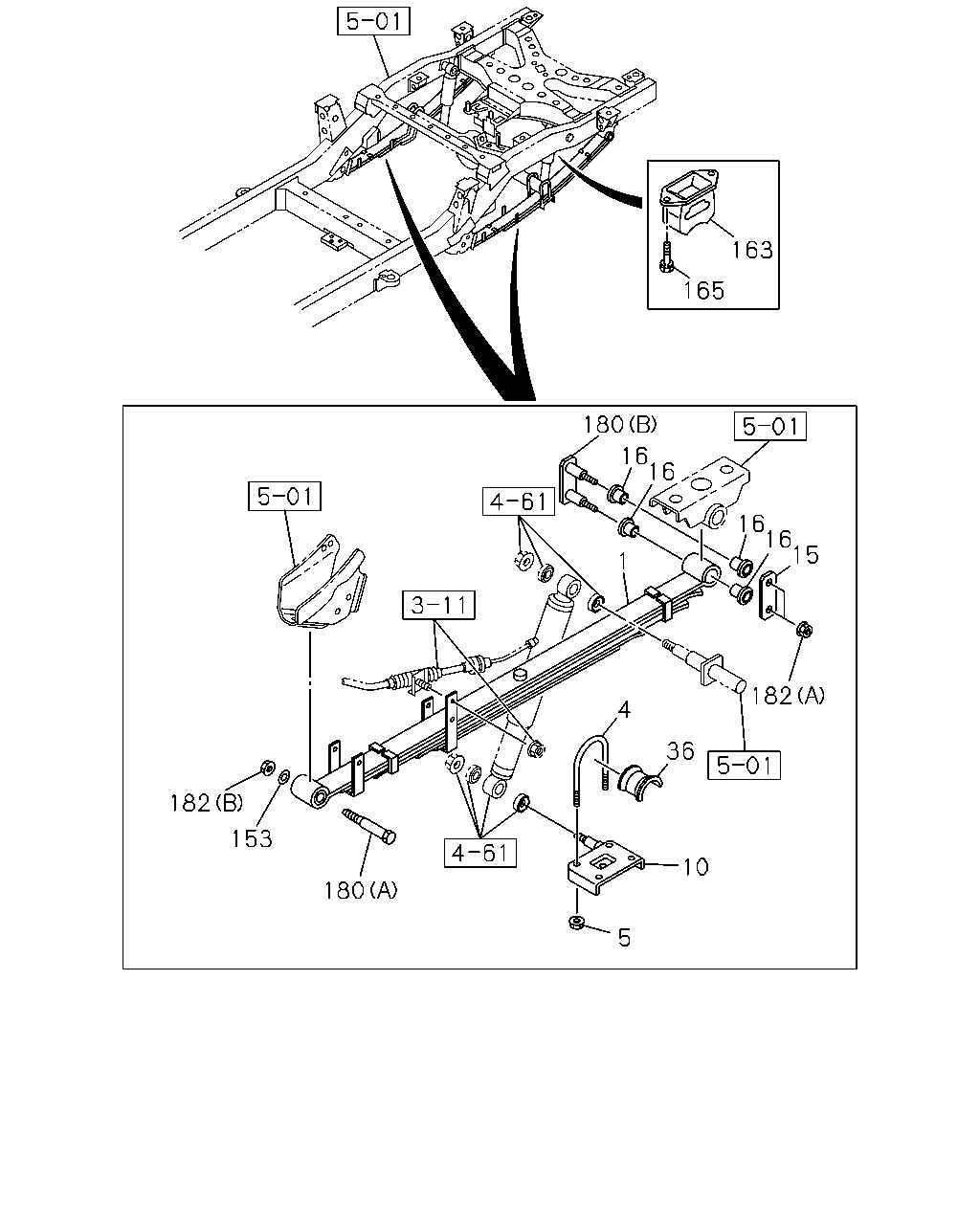

4-60 — REAR SUSPENSION
(#75030) — 39 parça
Tümü
A - UCB6VF
B - UCS6VF
163
165
180
16
16
16
16
15
1
182
4
36
182
153
10
180
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK)
8-97363-519-1
02
1
0503-0508
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK)
8-97363-519-1
02
1
0509-0606
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK)
8-97945-331-0
02
1
0607-0709
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK)
8-97946-827-0
02
1
0710-
●
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5G(RSP)
8-97374-313-1
02
1
0503-0606
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ)
8-97945-332-1
02
1
0607-0709
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ)
8-97946-828-0
02
1
0710-
●
4
U-BOLT; RR SPR
8-97248-620-1
04
1
0503-0508
●
4
U-BOLT; RR SPR
8-97248-620-1
04
1
0509-
●
●
5
NUT; U-BOLT,RR SPR
M14 FLANGE
8-97245-635-0
08
1
0503-0508
●
5
NUT; U-BOLT,RR SPR
M14 FLANGE
8-97245-635-0
08
1
0509-
●
●
10
CLAMP; LWR,RR SPR
8-97365-393-0
01
1
0503-0508
●
10
CLAMP; LWR,RR SPR
8-97365-393-0
01
1
0509-
●
●
10
CLAMP; LWR,RR SPR
8-97365-391-0
01
1
0503-0508
●
10
CLAMP; LWR,RR SPR
8-97365-391-0
01
1
0509-
●
●
15
SHACKLE; RR SPR
8-97245-901-1
02
1
0503-0508
●
15
SHACKLE; RR SPR
8-97245-901-1
02
1
0509-0606
●
●
15
SHACKLE; RR SPR
8-98005-815-0
02
1
0607-
●
●
16
BUSHING; SHACKLE,RR SPR
8-97357-492-0
08
1
0503-0508
●
16
BUSHING; SHACKLE,RR SPR
8-97357-492-0
08
1
0509-
●
●
36
SEAT; HELPER RUBBER,RR SPR
8-97221-355-0
02
1
0503-0508
●
36
SEAT; HELPER RUBBER,RR SPR
8-97221-355-0
02
1
0509-0606
●
●
36
SEAT; HELPER RUBBER,RR SPR
8-98005-878-0
02
1
0607-
●
●
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30
8-94476-635-0
02
1
0503-0508
●
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30
8-94476-635-0
02
1
0509-0606
●
●
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30
8-98005-921-0
02
1
0607-
●
●
163
RUBBER; HELPER,RR SPR
8-97366-990-0
02
1
0503-0508
●
163
RUBBER; HELPER,RR SPR
8-97366-990-0
02
1
0509-
●
●
165
BOLT; HELPER RUBBER
M10X16 FLANGE
0-28051-016-0
04
1
0503-0508
●
165
BOLT; HELPER RUBBER
M10X16 FLANGE
0-28051-016-0
04
1
0509-
●
●
180
PIN; RR SPR
(A) M14X106
8-97245-647-0
02
1
0503-0508
●
180
PIN; RR SPR
(A) M14X106
8-97245-647-0
02
1
0509-
●
●
180
PIN; RR SPR
(B)
8-97245-650-1
02
1
0503-0508
●
180
PIN; RR SPR
(B)
8-97245-650-1
02
1
0509-0606
●
●
180
PIN; RR SPR
(B)
8-98005-814-0
02
1
0607-
●
●
182
NUT; PIN,RR SPR
(A) M14 FLANGE
0-91180-114-0
04
1
0503-0508
●
182
NUT; PIN,RR SPR
(A) M14 FLANGE
0-91180-114-0
04
1
0509-
●
●
182
NUT; PIN,RR SPR
(B) M14 FLANGE
8-97245-651-0
02
1
0503-0508
●
182
NUT; PIN,RR SPR
(B) M14 FLANGE
8-97245-651-0
02
1
0509-
●
●
