Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#7503) — 285 parça

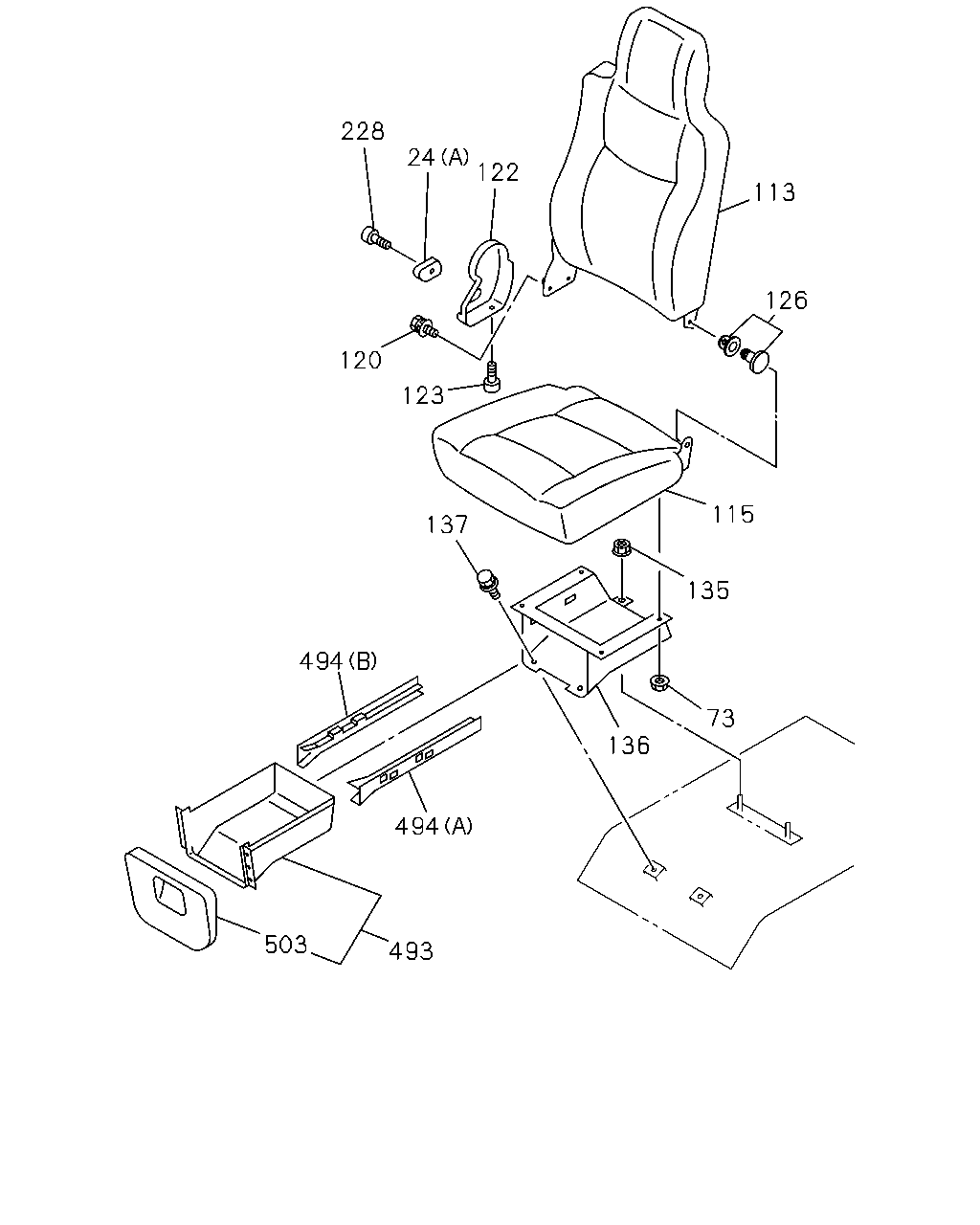

228 24 122 113 126 120 123 115 137 135 494 73 136 494 503 493

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B) TAI	1-75418-056-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-018-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-019-0	01	1	0611-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) TAI	1-75418-059-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-020-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-021-0	01	1	0611-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	8-94279-518-0	12	1	9811-0610	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	1-75538-207-0	04	1	0611-	●	●
113	BACK ASM; SEAT TAI	8-97535-112-0	01	1	9811-9906	●	●
113	BACK ASM; SEAT TAI	8-97535-124-0	01	1	9907-0610	●	●
113	BACK ASM; SEAT TAI	1-75208-062-3	01	1	0611-	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	8-97535-111-0	01	1	9811-9906	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	8-97535-121-0	01	1	9907-0610	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	1-75026-698-1	01	1	0611-	●	●
120	BOLT; RECLINING ADJ M8X18 TAI	8-94279-109-1	02	1	9811-0610	●	●
120	BOLT; RECLINING ADJ M8X20 TAI	8-97255-906-0	02	1	0611-	●	●
122	COVER; ADJ,RECLINING TAI	1-75418-050-0	01	1	9811-9906	●	●
122	COVER; ADJ,RECLINING DARK GRAY TAI	8-97867-021-0	01	1	9907-0610	●	●
122	COVER; ADJ,RECLINING DARK GRAY TAI	8-97867-020-0	01	1	0611-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●
126	BUSHING; HINGE,RECLINING TAI	8-97854-087-0	01	1	9811-	●	●
135	NUT; SEAT STAND M10 FLANGE TAI	1-09984-153-0	02	1	9811-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-547-2	01	1	9811-9906	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-582-0	01	1	9907-0610	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-550-7	01	1	0611-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER TAI	8-94279-211-0	02	1	9811-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	02	1	9811-0610	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0711-	●	●
493	BOX; SEAT STAND	1-72537-130-1	01	1	9811-9906	●	●
494	RAIL; GUIDE (A) TAI	1-72537-149-0	01	1	9811-9906	●	●
494	RAIL; GUIDE (B) TAI	1-72537-150-0	01	1	9811-9906	●	●
503	COVER; BOX	1-72537-136-0	01	1	9811-9906	●	●

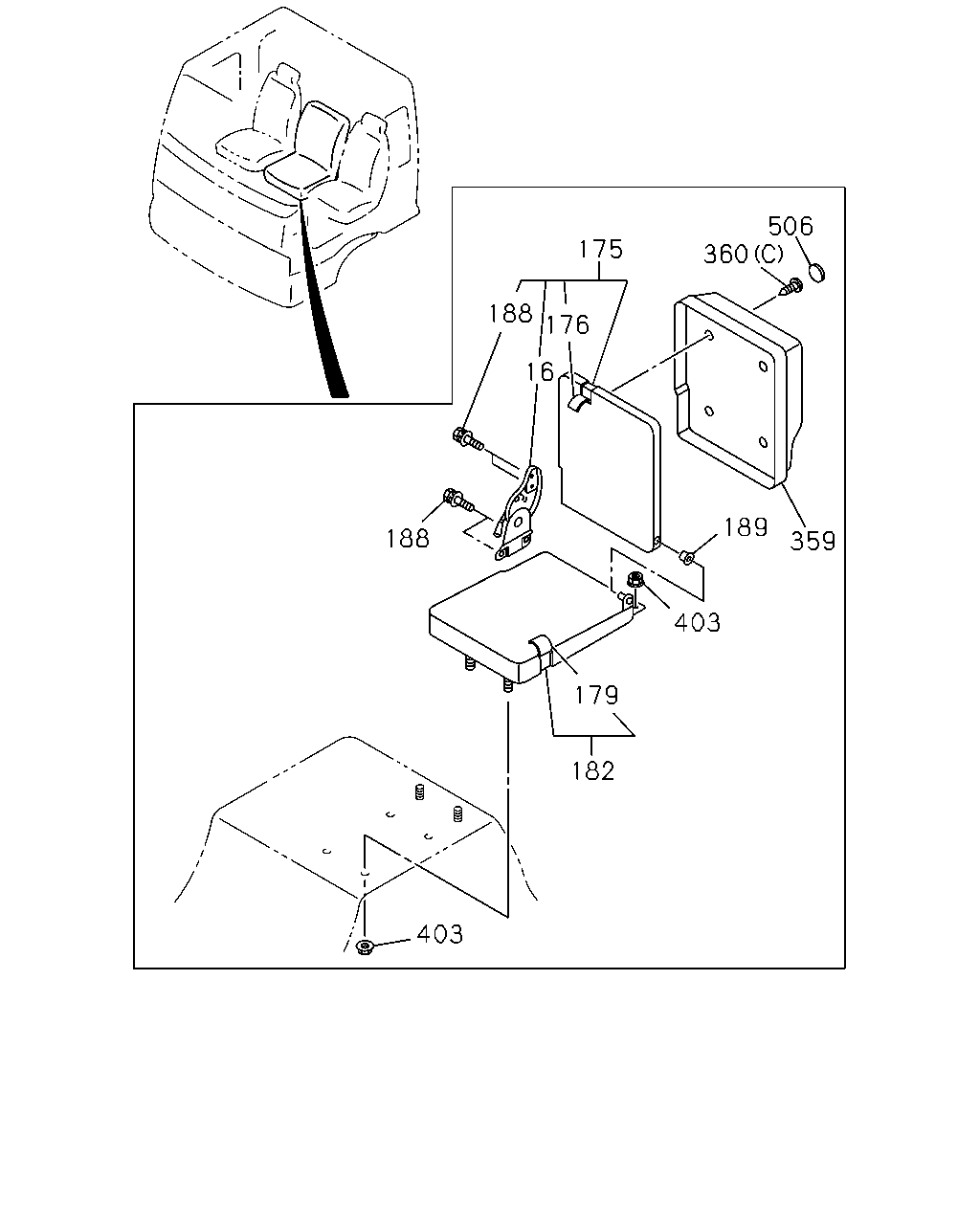

506 360 175 188 189 359 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
175	BACK ASM; PASSENGER CENTER SEAT TAI	8-97535-114-0	01	1	9811-9906	●	●
175	BACK ASM; PASSENGER CENTER SEAT TAI	8-97535-125-0	01	1	9907-0610	●	●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-854-3	01	1	0611-	●	●
182	CUSHION ASM; CENTER SEAT TAI	8-97535-113-0	01	1	9811-9906	●	●
182	CUSHION ASM; CENTER SEAT TAI	8-97535-122-0	01	1	9907-0610	●	●
182	CUSHION ASM; CENTER SEAT	1-75026-842-3	01	1	0611-	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE TAI	1-75198-053-0	02	1	9811-0610	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE TAI	1-75198-053-0	04	1	0611-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK TAI	8-97854-900-0	01	1	9811-	●	●
359	BOX; PARCEL TAI	1-72538-157-2	01	1	9811-9906	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	9907-	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9811-0612	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD TAI	0-70040-310-0	04	1	0701-	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9811-0612	●	●
360	SCREW; PARCEL (B) M4X16 TAI	0-70040-416-0	06	1	0701-	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9811-0610	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0611-	●	●
403	NUT; CENTER SEAT M8 FLANGE TAI	8-94279-518-0	04	1	9811-0312	●	●
403	NUT; CENTER SEAT M8 FLANGE TAI	1-75538-207-0	04	1	0401-0703	●	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-	●	●
506	CAP; PARCEL BOX TAI	1-09983-164-0	04	1	9811-9906	●	●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	9907-	●	●

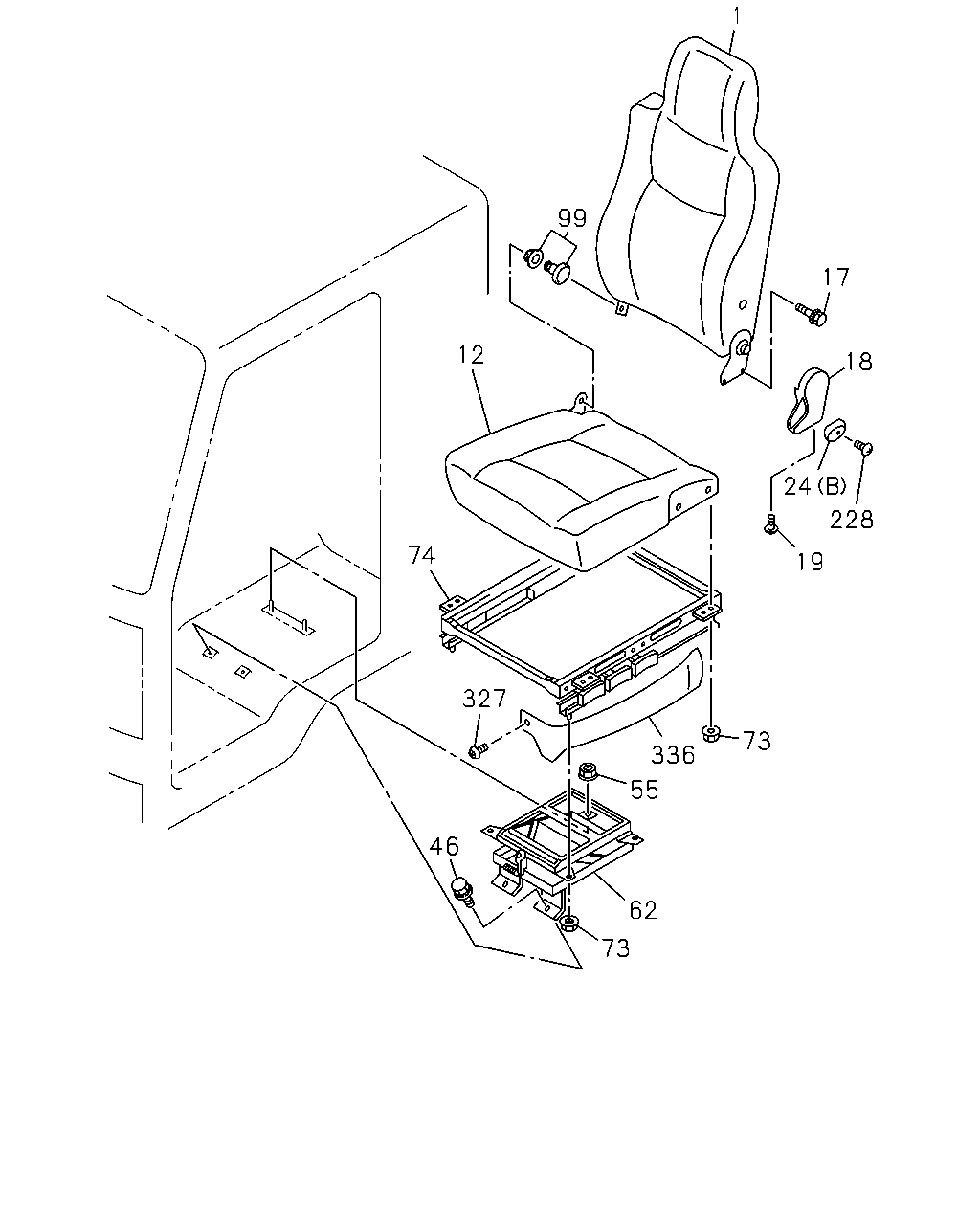

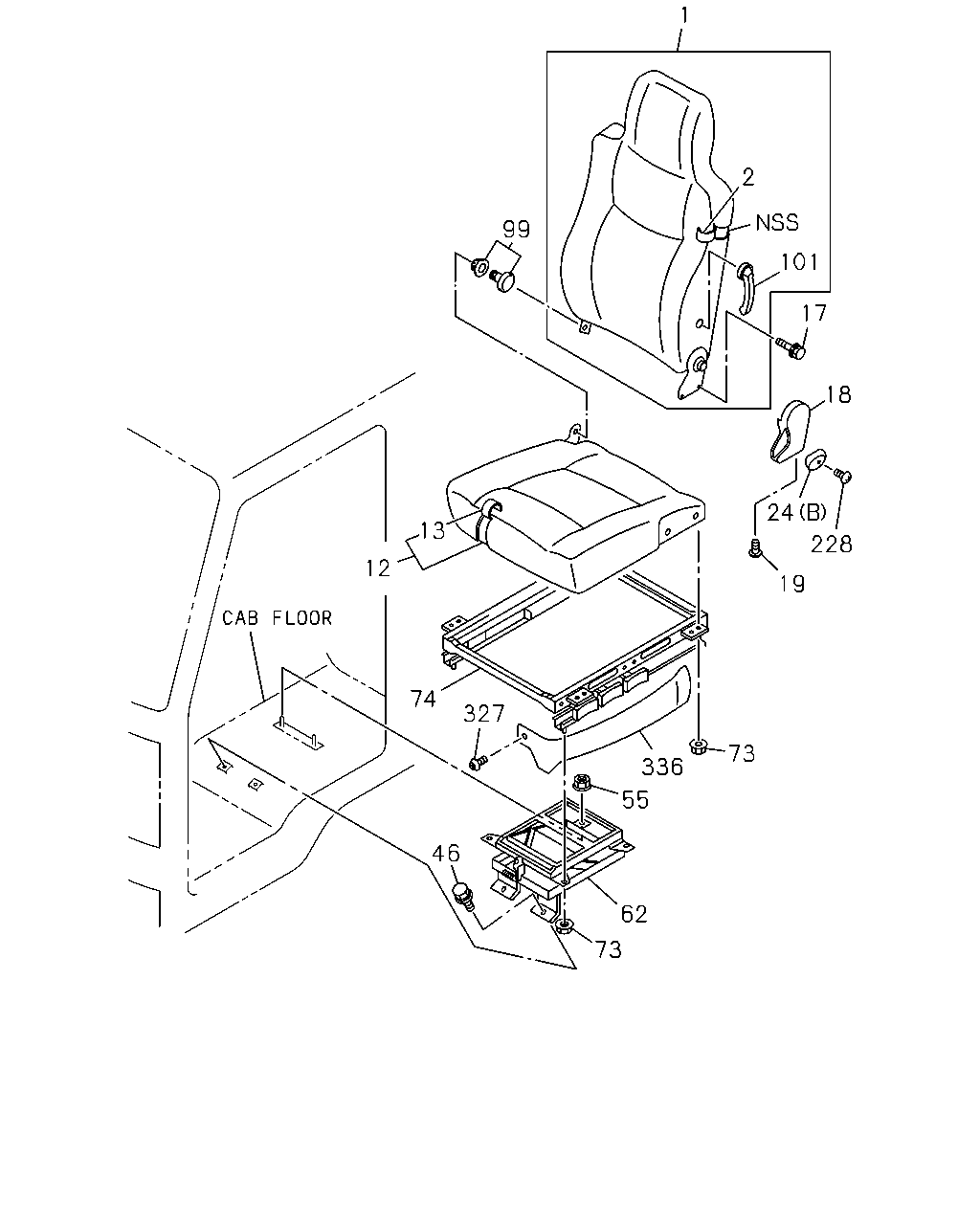

1 2 99 101 17 18 24 13 228 12 19 74 327 73 336 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT TAI	8-97535-110-0	01	1	9811-9906	●	●
1	BACK ASM; SEAT TAI	8-97535-123-0	01	1	9907-0610	●	●
1	BACK ASM; SEAT TAI	1-75208-073-2	01	1	0611-	●	●
2	COVER; TRIM,FRT SEAT,BACK TAI	1-75116-708-1	01	1	0611-	●	●
12	CUSHION; SEAT,FRT TAI	8-97535-109-0	01	1	9811-9906	●	●
12	CUSHION; SEAT,FRT TAI	8-97535-120-0	01	1	9907-0610	●	●
12	CUSHION; SEAT,FRT	1-75026-697-3	01	1	0611-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION TAI	1-75116-685-1	01	1	0611-	●	●
17	BOLT; RECLINING M8X18 TAI	8-94279-109-1	02	1	9811-0610	●	●
17	BOLT; RECLINING M8X20 TAI	8-97255-906-0	02	1	0611-	●	●
18	COVER; RECLINING TAI	1-75418-052-0	01	1	9811-9906	●	●
18	COVER; RECLINING DARK GRAY TAI	8-97859-019-0	01	1	9907-0610	●	●
18	COVER; RECLINING DARK GRAY TAI	8-97859-018-0	01	1	0611-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) TAI	1-75418-056-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-018-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-019-0	01	1	0611-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) TAI	1-75418-059-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-020-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-021-0	01	1	0611-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER TAI	8-94279-211-0	02	1	9811-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE TAI	1-09984-153-0	02	1	9811-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	9811-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	8-94279-518-0	12	1	9811-0610	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	1-75538-207-0	04	1	0611-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-300-0	01	1	9811-9912	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-318-2	01	1	0001-0610	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	0611-	●	●
99	BUSHING; SEAT BACK TAI	8-97854-087-0	01	1	9811-	●	●
101	LEVER ASM; LUMBAR TAI	5-75190-138-0	01	1	0611-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	02	1	9811-0610	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0711-	●	●
327	CLIP; COVER TAI	1-09987-249-0	01	1	9811-9906	●	●
327	CLIP; COVER TAI	1-09987-273-0	01	1	9907-	●	●
336	COVER; DRIVER SEAT TAI	1-75518-194-2	01	1	9811-9906	●	●
336	COVER; DRIVER SEAT TAI	1-75518-313-0	01	1	9907-	●	●

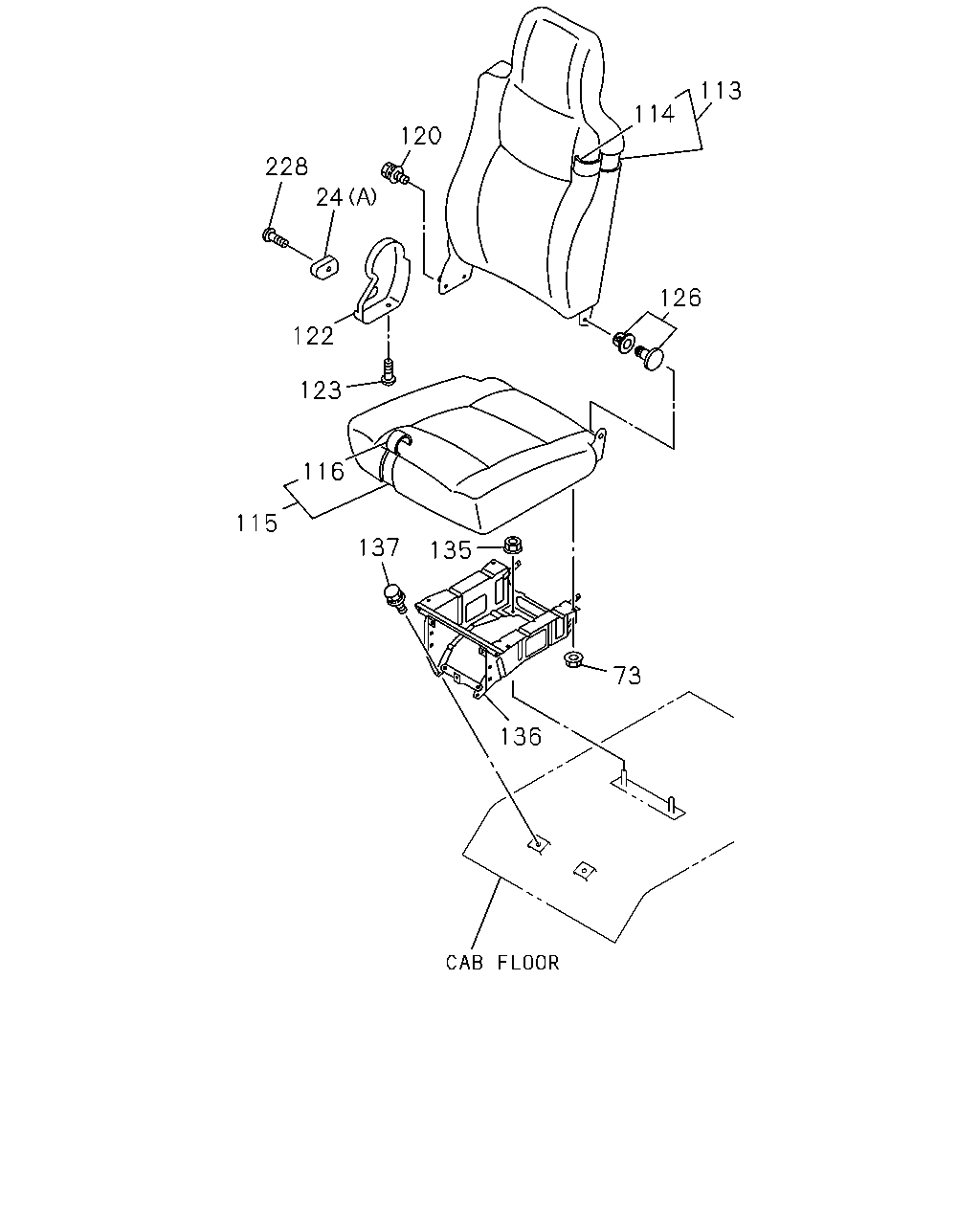

113 114 120 228 24 126 122 123 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B) TAI	1-75418-056-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-018-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-019-0	01	1	0611-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) TAI	1-75418-059-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-020-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-021-0	01	1	0611-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	8-94279-518-0	12	1	9811-0610	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	1-75538-207-0	04	1	0611-	●	●
113	BACK ASM; SEAT TAI	8-97535-112-0	01	1	9811-9906	●	●
113	BACK ASM; SEAT TAI	8-97535-124-0	01	1	9907-0610	●	●
113	BACK ASM; SEAT TAI	1-75208-062-3	01	1	0611-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK TAI	1-75116-602-1	01	1	0611-	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	8-97535-111-0	01	1	9811-9906	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	8-97535-121-0	01	1	9907-0610	●	●
115	CUSHION ASM; PASSENGER SEAT TAI	1-75026-698-1	01	1	0611-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION TAI	1-75116-686-1	01	1	0611-	●	●
120	BOLT; RECLINING ADJ M8X18 TAI	8-94279-109-1	02	1	9811-0610	●	●
120	BOLT; RECLINING ADJ M8X20 TAI	8-97255-906-0	02	1	0611-	●	●
122	COVER; ADJ,RECLINING TAI	1-75418-050-0	01	1	9811-9906	●	●
122	COVER; ADJ,RECLINING DARK GRAY TAI	8-97867-021-0	01	1	9907-0610	●	●
122	COVER; ADJ,RECLINING DARK GRAY TAI	8-97867-020-0	01	1	0611-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●
126	BUSHING; HINGE,RECLINING TAI	8-97854-087-0	01	1	9811-	●	●
135	NUT; SEAT STAND M10 FLANGE TAI	1-09984-153-0	02	1	9811-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-547-2	01	1	9811-9906	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-582-0	01	1	9907-0610	●	●
136	STAND; PASSENGER SEAT TAI	1-75558-550-7	01	1	0611-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER TAI	8-94279-211-0	02	1	9811-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	02	1	9811-0610	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0711-	●	●

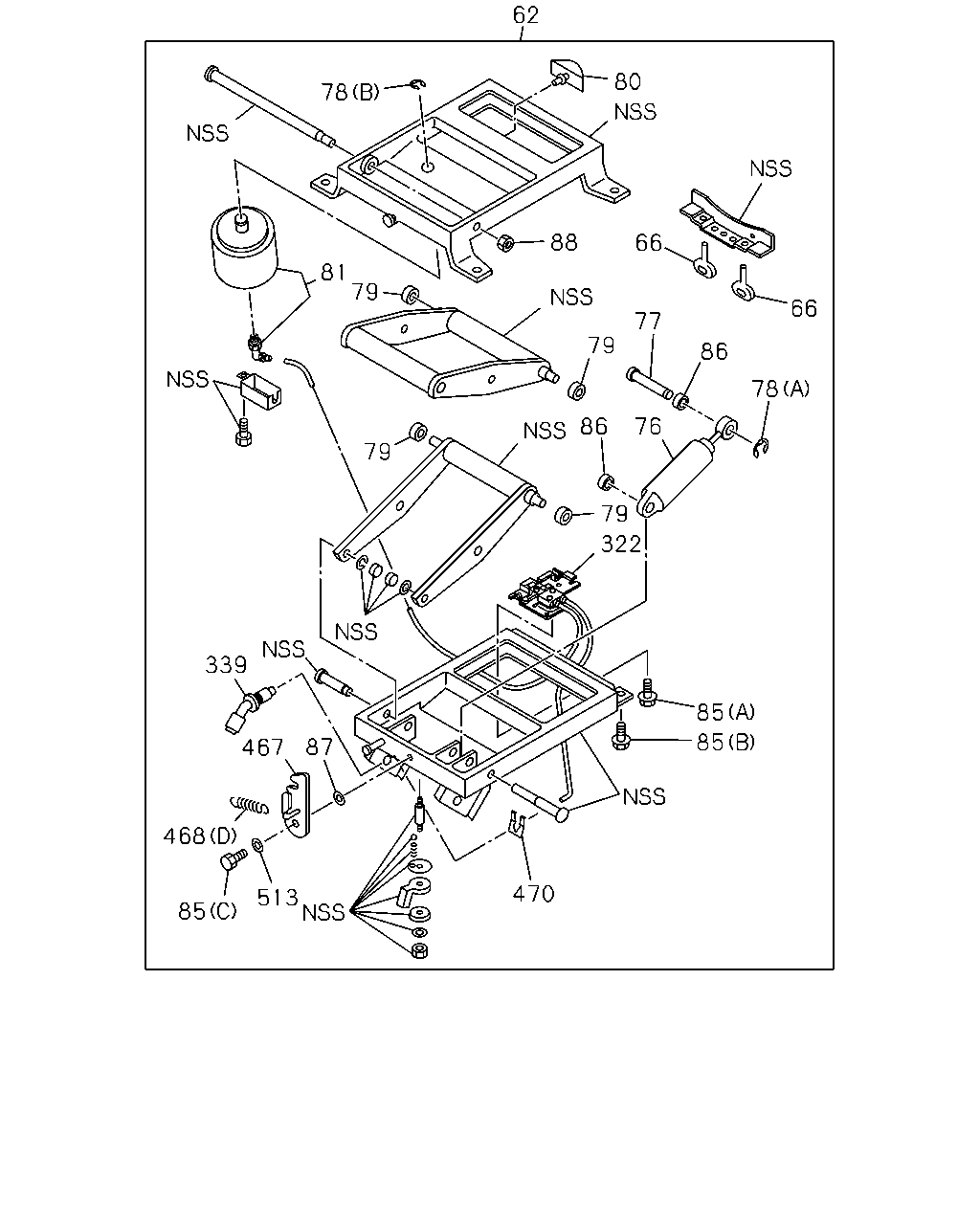

62 80 78 88 66 81 79 66 77 79 86 78 86 76 79 79 322 339 85 85 87 467 468 470 513 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	9811-	●	●
66	RUBBER; LWR STOPPER TAI	1-75538-145-0	02	1	0611-	●	●
76	DAMPER; AIR SUSP TAI	1-75538-139-0	01	1	0611-	●	●
77	PIN; DAMPER TAI	1-75538-138-2	01	1	0611-	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0611-	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0611-	●	●
79	ROLLER ASM; AIR SUSP TAI	1-75538-159-0	04	1	0611-	●	●
80	RUBBER; STOPPER TAI	1-09987-123-0	01	1	0611-	●	●
81	SPRING; AIR TAI	1-75538-151-2	01	1	0611-	●	●
85	BOLT; AIR SUSP (C)	1-09980-577-0	01	1	0611-	●	●
85	BOLT; AIR SUSP (A) TAI	1-75538-208-0	02	1	0611-	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER TAI	1-75538-209-0	03	1	0611-	●	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY TAI	1-09983-173-1	02	1	0611-	●	●
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0611-0710	●	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	0711-	●	●
88	NUT; AIR SUSP TAI	1-75537-273-1	01	1	0611-	●	●
322	VALVE; AIR SPRING TAI	1-75538-187-2	01	1	0611-	●	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	0611-	●	●
467	LEVER; LOCK TAI	1-75538-134-0	01	1	0611-	●	●
468	SPRING; RETURN (D) TAI	1-75538-132-0	01	1	0611-	●	●
468	SPRING; RETURN (A) TAI	1-75518-206-0	01	1	9811-	●	●
468	SPRING; RETURN (B) TAI	1-75518-207-0	01	1	9811-	●	●
468	SPRING; RETURN (C) TAI	1-75518-208-0	02	1	9811-	●	●
470	CLIP; HOSE TAI	1-75538-137-0	01	1	0611-	●	●
513	SPACER; LEVER TAI	1-75538-133-0	01	1	0611-	●	●

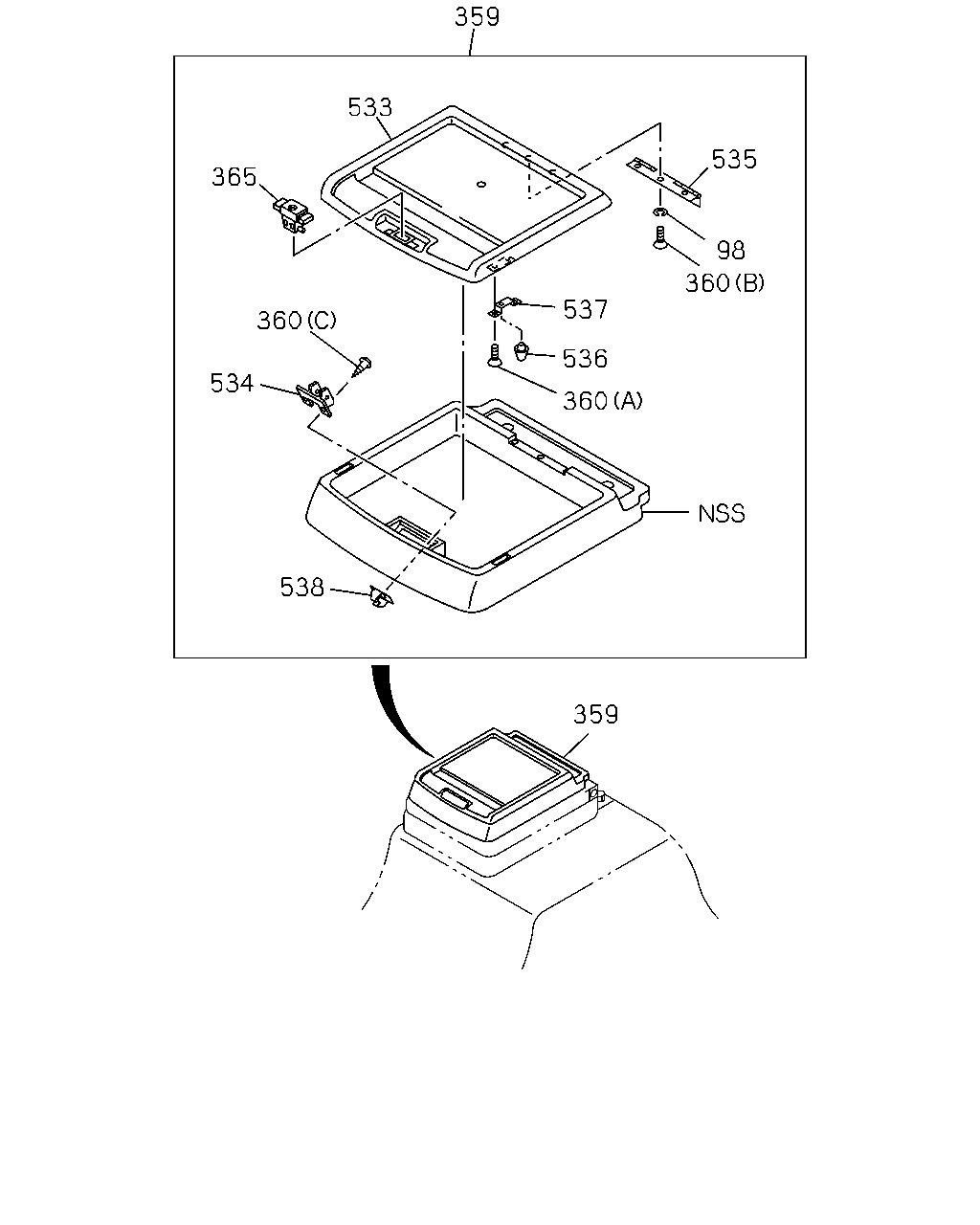

359 533 535 365 98 360 537 360 536 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9811-	●	●
359	BOX; PARCEL TAI	1-72538-157-2	01	1	9811-9906	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	9907-	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9811-0612	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD TAI	0-70040-310-0	04	1	0701-	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9811-0612	●	●
360	SCREW; PARCEL (B) M4X16 TAI	0-70040-416-0	06	1	0701-	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9811-0610	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0611-	●	●
365	LOCK ASM; SEAT TAI	1-72538-180-0	01	1	9811-	●	●
533	LID; PARCEL BOX TAI	1-72538-194-2	01	1	9811-0610	●	●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0611-	●	●
534	STRIKER; PARCEL BOX TAI	1-72538-181-0	01	1	9811-	●	●
535	HINGE; PARCEL BOX TAI	1-72447-391-1	01	1	9811-	●	●
536	RUBBER; CUSHION TAI	5-09983-002-1	02	1	9811-	●	●
537	BRACKET; RUBBER TAI	1-72548-057-1	02	1	9811-	●	●
538	GROMMET; SCREW TAI	1-09983-165-0	02	1	9811-	●	●

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING TAI	1-75418-062-1	01	1	0611-	●	●
175	BACK ASM; PASSENGER CENTER SEAT TAI	8-97535-114-0	01	1	9811-9906	●	●
175	BACK ASM; PASSENGER CENTER SEAT TAI	8-97535-125-0	01	1	9907-0610	●	●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-854-3	01	1	0611-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK TAI	1-75116-650-1	01	1	0611-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH TAI	1-75116-693-1	01	1	0611-	●	●
182	CUSHION ASM; CENTER SEAT TAI	8-97535-113-0	01	1	9811-9906	●	●
182	CUSHION ASM; CENTER SEAT TAI	8-97535-122-0	01	1	9907-0610	●	●
182	CUSHION ASM; CENTER SEAT	1-75026-842-3	01	1	0611-	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE TAI	1-75198-053-0	02	1	9811-0610	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE TAI	1-75198-053-0	04	1	0611-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK TAI	8-97854-900-0	01	1	9811-	●	●
359	BOX; PARCEL TAI	1-72538-157-2	01	1	9811-9906	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	9907-	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9811-0612	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD TAI	0-70040-310-0	04	1	0701-	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9811-0612	●	●
360	SCREW; PARCEL (B) M4X16 TAI	0-70040-416-0	06	1	0701-	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9811-0610	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0611-	●	●
403	NUT; CENTER SEAT M8 FLANGE TAI	8-94279-518-0	04	1	9811-0312	●	●
403	NUT; CENTER SEAT M8 FLANGE TAI	1-75538-207-0	04	1	0401-0703	●	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-	●	●
506	CAP; PARCEL BOX TAI	1-09983-164-0	04	1	9811-9906	●	●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	9907-	●	●

1 99 17 12 18 24 228 74 19 327 73 336 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT TAI	8-97535-110-0	01	1	9811-9906	●	●
1	BACK ASM; SEAT TAI	8-97535-123-0	01	1	9907-0610	●	●
1	BACK ASM; SEAT TAI	1-75208-073-2	01	1	0611-	●	●
12	CUSHION; SEAT,FRT TAI	8-97535-109-0	01	1	9811-9906	●	●
12	CUSHION; SEAT,FRT TAI	8-97535-120-0	01	1	9907-0610	●	●
12	CUSHION; SEAT,FRT	1-75026-697-3	01	1	0611-	●	●
17	BOLT; RECLINING M8X18 TAI	8-94279-109-1	02	1	9811-0610	●	●
17	BOLT; RECLINING M8X20 TAI	8-97255-906-0	02	1	0611-	●	●
18	COVER; RECLINING TAI	1-75418-052-0	01	1	9811-9906	●	●
18	COVER; RECLINING DARK GRAY TAI	8-97859-019-0	01	1	9907-0610	●	●
18	COVER; RECLINING DARK GRAY TAI	8-97859-018-0	01	1	0611-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) TAI	1-75418-056-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-018-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY TAI	8-97859-019-0	01	1	0611-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) TAI	1-75418-059-0	01	1	9811-9906	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-020-0	01	1	9907-0610	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY TAI	8-97867-021-0	01	1	0611-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER TAI	8-94279-211-0	02	1	9811-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE TAI	1-09984-153-0	02	1	9811-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	9811-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	8-94279-518-0	12	1	9811-0610	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE TAI	1-75538-207-0	04	1	0611-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-300-0	01	1	9811-9912	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-318-2	01	1	0001-0610	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	0611-	●	●
99	BUSHING; SEAT BACK TAI	8-97854-087-0	01	1	9811-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	02	1	9811-0610	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0611-0710	●	●
228	SCREW; KNOB M4X6 TAI	8-97042-273-0	01	1	0711-	●	●
327	CLIP; COVER TAI	1-09987-249-0	01	1	9811-9906	●	●
327	CLIP; COVER TAI	1-09987-273-0	01	1	9907-	●	●
336	COVER; DRIVER SEAT TAI	1-75518-194-2	01	1	9811-9906	●	●
336	COVER; DRIVER SEAT TAI	1-75518-313-0	01	1	9907-	●	●

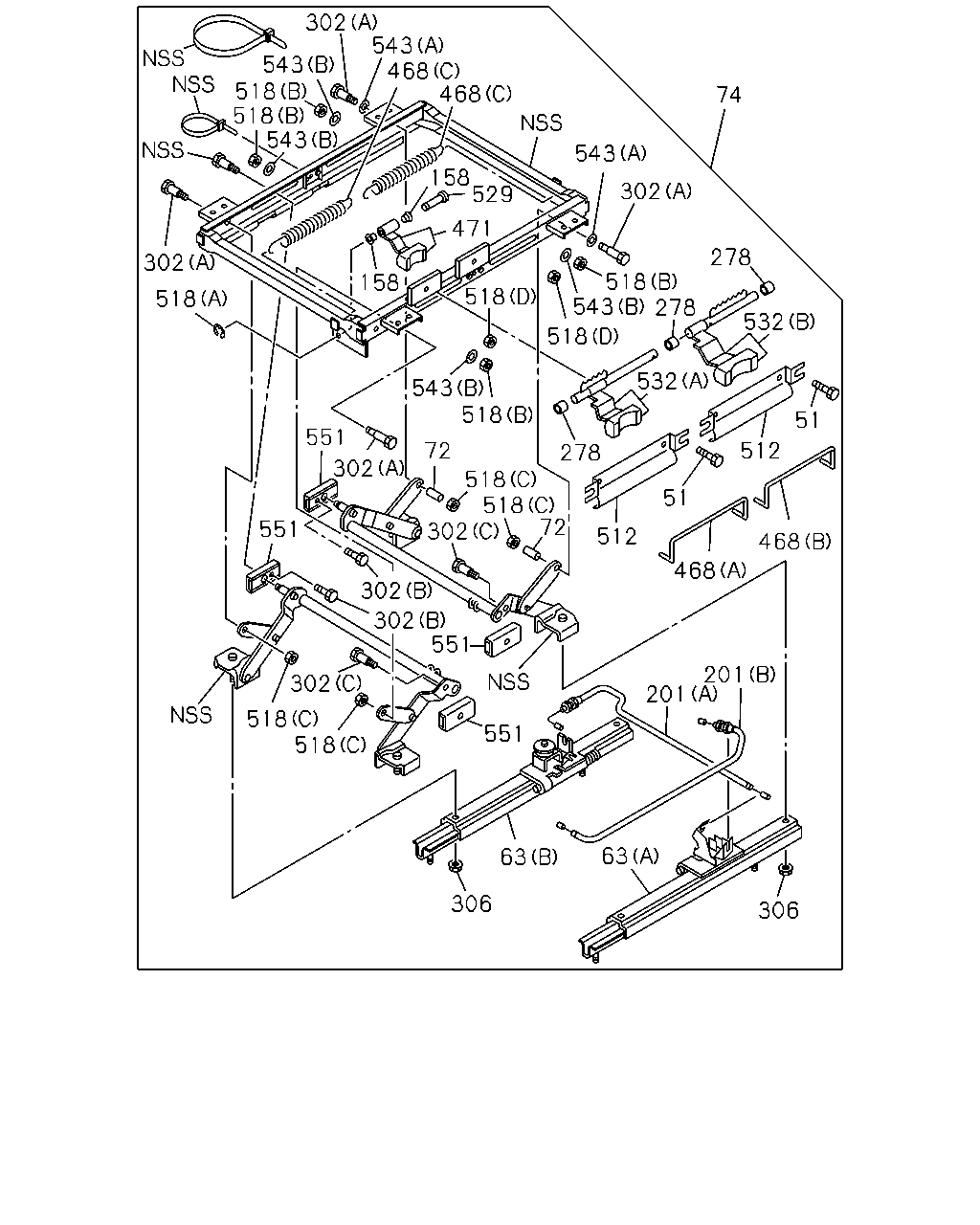

302 543 468 468 543 518 518 543 74 543 158 529 302 471 278 302 518 158 518 518 532 518 543 518 532 51 278 551 512 72 302 518 518 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306 543 278 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER M6X12 W/LK WASHER	9-03910-612-0	04	1	9811-9912	●	●
51	SCREW; COVER TAI	1-75518-325-1	04	1	0001-	●	●
63	ADJUSTER; SEAT SLIDE (B) TAI	1-75518-226-0	01	1	9811-9912	●	●
63	ADJUSTER; SEAT SLIDE (B) TAI	1-75518-227-1	01	1	0001-	●	●
63	ADJUSTER; SEAT SLIDE (A) TAI	1-75518-295-0	01	1	9811-9912	●	●
63	ADJUSTER; SEAT SLIDE (A) TAI	1-75518-324-0	01	1	0001-	●	●
72	SPACER; SEAT ADJ TAI	1-75518-269-0	02	1	9811-0610	●	●
72	SPACER; SEAT ADJ TAI	1-75518-334-1	02	1	0611-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-300-0	01	1	9811-9912	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT TAI	1-75518-318-2	01	1	0001-0610	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	0611-	●	●
158	BUSHING; LINK ARM TAI	1-75518-209-0	02	1	9811-	●	●
201	CABLE; ADJ (A) L=667 TAI	1-75518-288-0	01	1	9811-	●	●
201	CABLE; ADJ (B) L=605 TAI	1-75518-289-1	01	1	9811-	●	●
278	COLLAR; FRT SEAT TAI	1-75518-244-0	03	1	9811-	●	●
302	BOLT; ADJ,HEIGHT CONT (C) TAI	1-75518-266-2	02	1	9811-	●	●
302	BOLT; ADJ,HEIGHT CONT (A) TAI	1-75518-270-1	04	1	9811-	●	●
302	BOLT; ADJ,HEIGHT CONT (B) TAI	1-75518-271-1	02	1	9811-0610	●	●
302	BOLT; ADJ,HEIGHT CONT (B) TAI	1-75518-336-1	02	1	0611-	●	●
306	NUT; SEAT ADJ M8 FLANGE TAI	8-94279-518-0	04	1	9811-9912	●	●
306	NUT; SEAT ADJ M8 FLANGE TAI	1-75538-207-0	06	1	0001-0610	●	●
306	NUT; SEAT ADJ M8 FLANGE TAI	1-75538-207-0	14	1	0611-	●	●
468	SPRING; RETURN (D) TAI	1-75538-132-0	01	1	0611-	●	●
468	SPRING; RETURN (A) TAI	1-75518-206-0	01	1	9811-	●	●
468	SPRING; RETURN (B) TAI	1-75518-207-0	01	1	9811-	●	●
468	SPRING; RETURN (C) TAI	1-75518-208-0	02	1	9811-	●	●
471	LEVER; SEAT ADJ TAI	1-75518-290-0	01	1	9811-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
512	COVER; LEVER TAI	1-75518-245-1	02	1	9811-	●	●
518	NUT; TILT ADJ (A) TAI	1-75518-263-0	01	1	9811-	●	●
518	NUT; TILT ADJ (B) TAI	1-75518-264-0	04	1	9811-	●	●
518	NUT; TILT ADJ (D) TAI	5-09984-020-0	02	1	9811-	●	●
518	NUT; TILT ADJ (C) M8 FLANGE USA	8-94152-886-0	04	1	9811-	●	●
529	PIN; LINK TAI	1-75518-262-0	01	1	9811-	●	●
532	LEVER ASM; TILT (A) TAI	1-75518-221-0	01	1	9811-	●	●
532	LEVER ASM; TILT (B) TAI	1-75518-222-1	01	1	9811-	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	9811-0610	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	0611-	●	●
543	WASHER; HEIGHT ADJUSTER (A) ID=10.5	9-09164-510-0	02	1	9811-0610	●	●
543	WASHER; HEIGHT ADJUSTER (A) TAI	1-75518-335-0	02	1	0611-	●	●
551	SLIDER; HEIGHT ADJ TAI	1-75518-265-0	04	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
