4-50 — FRONT SUSPENSION (#75029) — 144 parça

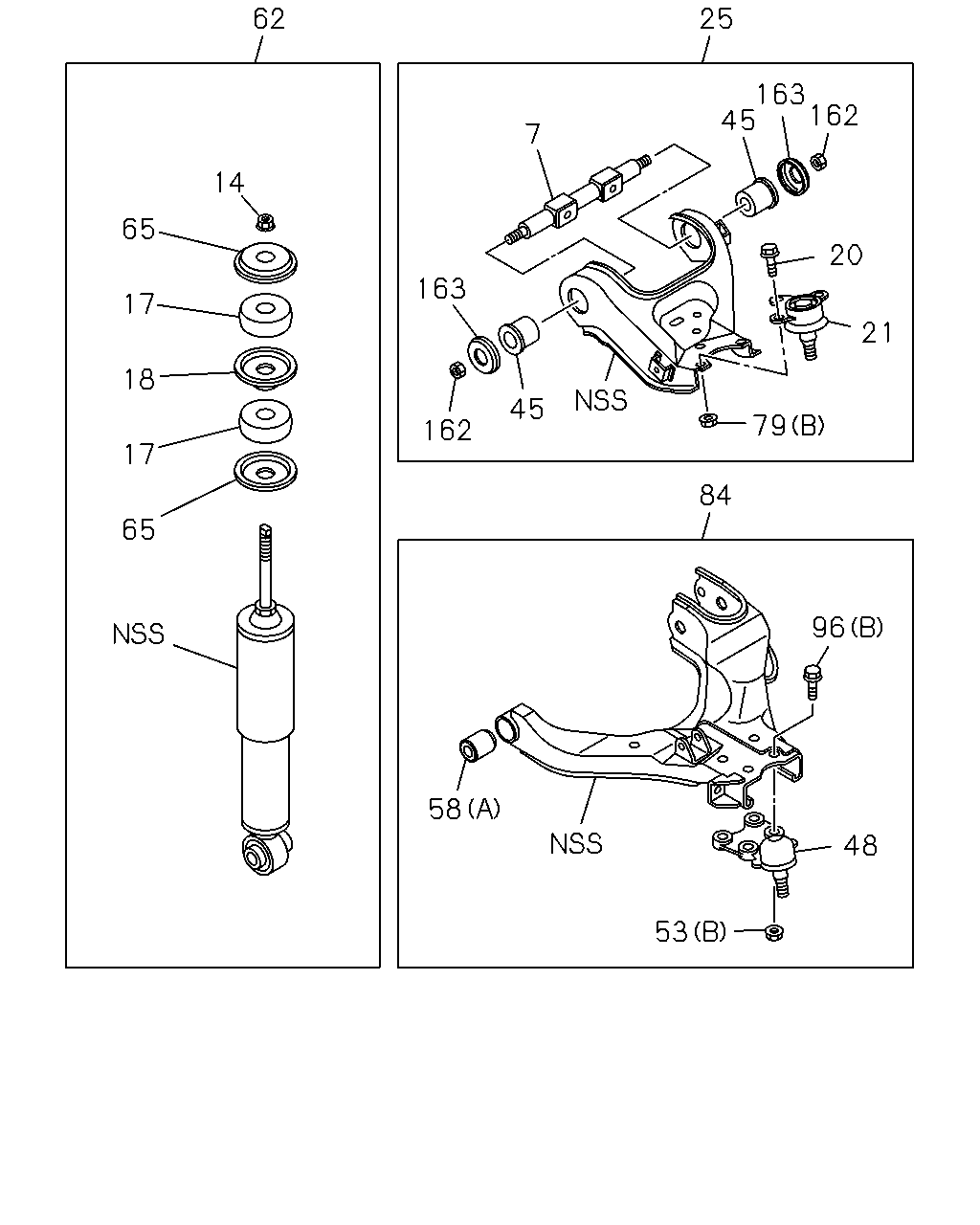

çizim 118590
62 25 163 45 162 7 14 65 20 163 17 21 18 45 79 162 17 84 65 96 58 48 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 PIN; FULCRUM,UPR LINK 8-97245-690-0 02 1 0503-0508 ●
7 PIN; FULCRUM,UPR LINK 8-97245-690-0 02 1 0509-0606 ● ●
7 PIN; FULCRUM,UPR LINK 8-98005-825-0 02 1 0607- ● ●
14 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-110-0 02 1 0503-0508 ●
14 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-110-0 02 1 0509- ● ●
17 BUSHING; RUBBER,S/ABS 8-97120-138-0 04 1 0503-0508 ●
17 BUSHING; RUBBER,S/ABS 8-97120-138-0 04 1 0509- ● ●
18 WASHER; CENTERING,S/ABS 8-97120-137-0 02 1 0503-0508 ●
18 WASHER; CENTERING,S/ABS 8-98005-974-0 02 1 0509- ● ●
20 BOLT; UPR LINK END TO UPR LINK 8-97245-636-0 06 1 0503-0508 ●
20 BOLT; UPR LINK END TO UPR LINK 8-97245-636-0 06 1 0509- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-97365-019-0 02 1 0503-0508 ●
21 JOINT ASM; BALL,UPR CONT ARM 8-97365-019-0 02 1 0509-0606 ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-98005-826-0 02 1 0607- ● ●
25 ARM; UPR CONT 8-97365-013-0 01 1 0503-0508 ●
25 ARM; UPR CONT 8-97365-013-0 01 1 0509-0606 ● ●
25 ARM; UPR CONT 8-98005-839-0 01 1 0607- ● ●
25 ARM; UPR CONT 8-97365-012-0 01 1 0503-0508 ●
25 ARM; UPR CONT 8-97365-012-0 01 1 0509-0606 ● ●
25 ARM; UPR CONT 8-98005-838-0 01 1 0607- ● ●
45 BUSHING; UPR LINK,FRT 8-97364-175-0 04 1 0503-0508 ●
45 BUSHING; UPR LINK,FRT 8-97364-175-0 04 1 0509- ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-97365-021-0 02 1 0503-0508 ●
48 JOINT ASM; BALL,LWR CONT ARM 8-97365-021-0 02 1 0509-0606 ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 0607- ● ●
53 NUT; LWR LINK
(A) M18 SLOTTED 		0-91116-518-0 02 1 0503-0508 ●
53 NUT; LWR LINK
(A) M18 SLOTTED 		0-91116-518-0 02 1 0509- ● ●
53 NUT; LWR LINK
(B) M12 FLANGE 		0-91180-212-0 12 1 0503-0508 ●
53 NUT; LWR LINK
(B) M12 FLANGE 		0-91180-212-0 12 1 0509- ● ●
53 NUT; LWR LINK
(C) M18 FLANGE 		8-97245-634-0 02 1 0503-0508 ●
53 NUT; LWR LINK
(C) M18 FLANGE 		8-97245-634-0 02 1 0509- ● ●
58 BUSHING; LWR LINK
(A) 		8-97364-176-0 02 1 0503-0508 ●
58 BUSHING; LWR LINK
(A) 		8-97364-176-0 02 1 0509- ● ●
58 BUSHING; LWR LINK
(B) 		8-97364-177-0 02 1 0503-0508 ●
58 BUSHING; LWR LINK
(B) 		8-97364-177-0 02 1 0509- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97363-520-1 02 1 0503-0508 ●
62 ABSORBER ASM; SHOCK,FRT 8-97945-201-0 02 1 0509-0705 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98056-025-0 02 1 0706-0706 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97946-657-0 02 1 0707-0910 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98152-217-0 02 1 0911- ● ●
65 WASHER; S/ABS 8-97120-136-1 04 1 0503-0508 ●
65 WASHER; S/ABS 8-98005-973-0 04 1 0509- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0503-0508 ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0509- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE 		8-97245-637-0 06 1 0503-0508 ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE 		8-97245-637-0 06 1 0509- ● ●
84 ARM; LWR CONT 8-97365-017-0 01 1 0503-0508 ●
84 ARM; LWR CONT 8-97365-017-0 01 1 0509-0606 ● ●
84 ARM; LWR CONT 8-98005-835-0 01 1 0607- ● ●
84 ARM; LWR CONT 8-97365-016-0 01 1 0503-0508 ●
84 ARM; LWR CONT 8-97365-016-0 01 1 0509-0606 ● ●
84 ARM; LWR CONT 8-98005-834-0 01 1 0607- ● ●
96 BOLT; LWR LINK
(A) M16X95.4 		8-97214-719-0 02 1 0503-0508 ●
96 BOLT; LWR LINK
(A) M16X95.4 		8-97214-719-0 02 1 0509- ● ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE 		8-97245-639-0 08 1 0503-0508 ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE 		8-97245-639-0 08 1 0509- ● ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-97245-635-0 04 1 0503-0508 ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-97245-635-0 04 1 0509- ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0503-0508 ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0509-0606 ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-98005-932-0 04 1 0607- ● ●

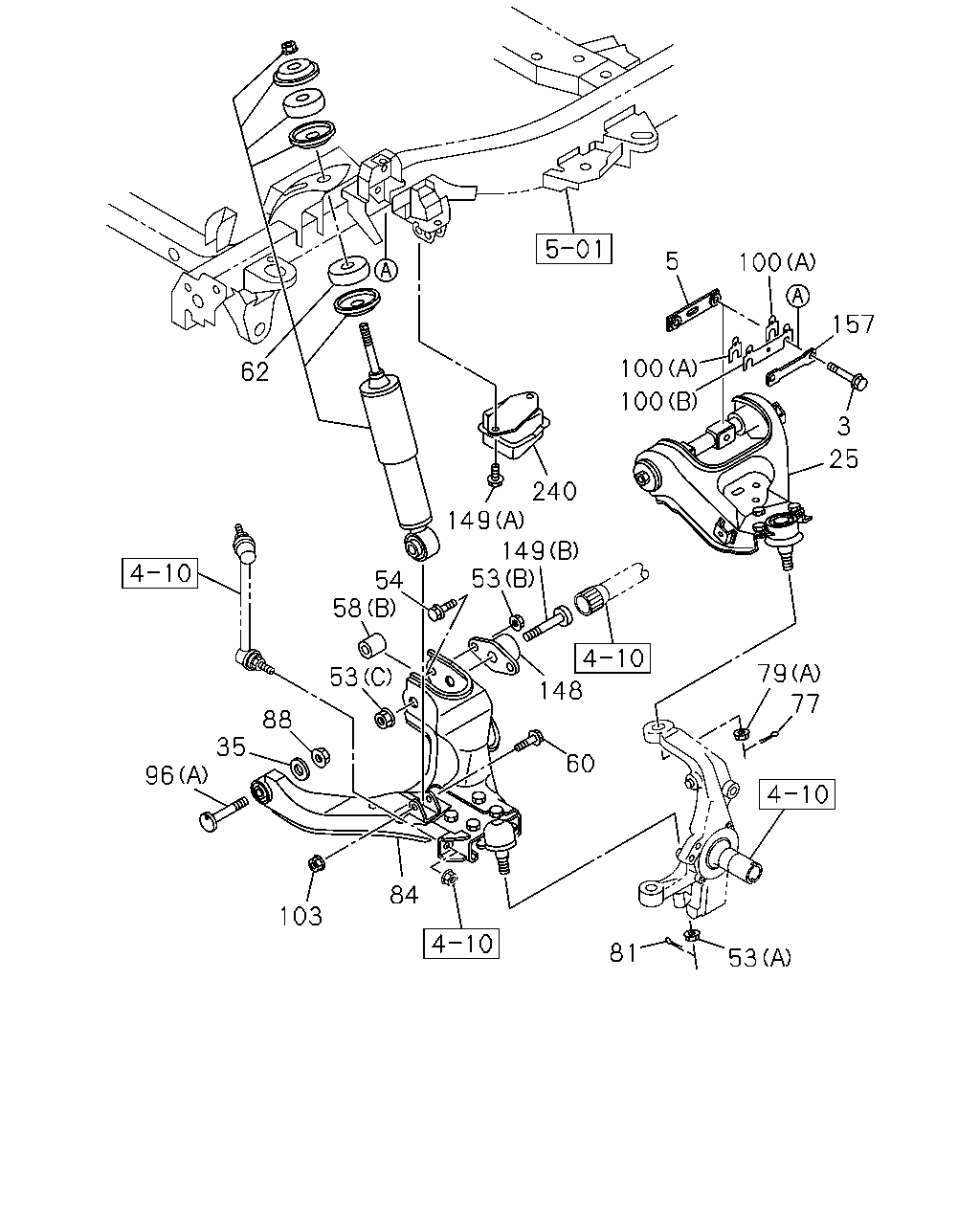

çizim 118595
62 54 58 53 88 35 96 103 84 60 148 53 149 240 149 100 100 5 100 157 3 25 79 77 53 81
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME 8-97245-628-0 04 1 0503-0508 ●
3 BOLT; UPR LINK TO FRAME 8-97245-628-0 04 1 0509- ● ●
5 NUT; UPR LINK TO FRAME 8-97245-629-0 02 1 0503-0508 ●
5 NUT; UPR LINK TO FRAME 8-97245-629-0 02 1 0509- ● ●
25 ARM; UPR CONT 8-97365-013-0 01 1 0503-0508 ●
25 ARM; UPR CONT 8-97365-013-0 01 1 0509-0606 ● ●
25 ARM; UPR CONT 8-98005-839-0 01 1 0607- ● ●
25 ARM; UPR CONT 8-97365-012-0 01 1 0503-0508 ●
25 ARM; UPR CONT 8-97365-012-0 01 1 0509-0606 ● ●
25 ARM; UPR CONT 8-98005-838-0 01 1 0607- ● ●
35 PLATE; BUSHING SUPPORT 8-97214-721-0 02 1 0503-0508 ●
35 PLATE; BUSHING SUPPORT 8-97214-721-0 02 1 0509- ● ●
53 NUT; LWR LINK
(A) M18 SLOTTED 		0-91116-518-0 02 1 0503-0508 ●
53 NUT; LWR LINK
(A) M18 SLOTTED 		0-91116-518-0 02 1 0509- ● ●
53 NUT; LWR LINK
(B) M12 FLANGE 		0-91180-212-0 12 1 0503-0508 ●
53 NUT; LWR LINK
(B) M12 FLANGE 		0-91180-212-0 12 1 0509- ● ●
53 NUT; LWR LINK
(C) M18 FLANGE 		8-97245-634-0 02 1 0503-0508 ●
53 NUT; LWR LINK
(C) M18 FLANGE 		8-97245-634-0 02 1 0509- ● ●
54 PIN; FULCRUM,LWR LINK 8-97245-660-0 04 1 0503-0508 ●
54 PIN; FULCRUM,LWR LINK 8-97245-660-0 04 1 0509- ● ●
58 BUSHING; LWR LINK
(A) 		8-97364-176-0 02 1 0503-0508 ●
58 BUSHING; LWR LINK
(A) 		8-97364-176-0 02 1 0509- ● ●
58 BUSHING; LWR LINK
(B) 		8-97364-177-0 02 1 0503-0508 ●
58 BUSHING; LWR LINK
(B) 		8-97364-177-0 02 1 0509- ● ●
60 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29261-260-0 02 1 0503-0508 ●
60 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29261-260-0 02 1 0509- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97363-520-1 02 1 0503-0508 ●
62 ABSORBER ASM; SHOCK,FRT 8-97945-201-0 02 1 0509-0705 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98056-025-0 02 1 0706-0706 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97946-657-0 02 1 0707-0910 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98152-217-0 02 1 0911- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0503-0508 ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0509-0606 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0607- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0503-0508 ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0509- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE 		8-97245-637-0 06 1 0503-0508 ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE 		8-97245-637-0 06 1 0509- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0503-0508 ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0509-0606 ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0607- ● ●
84 ARM; LWR CONT 8-97365-017-0 01 1 0503-0508 ●
84 ARM; LWR CONT 8-97365-017-0 01 1 0509-0606 ● ●
84 ARM; LWR CONT 8-98005-835-0 01 1 0607- ● ●
84 ARM; LWR CONT 8-97365-016-0 01 1 0503-0508 ●
84 ARM; LWR CONT 8-97365-016-0 01 1 0509-0606 ● ●
84 ARM; LWR CONT 8-98005-834-0 01 1 0607- ● ●
88 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 02 1 0503-0508 ●
88 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 02 1 0509- ● ●
96 BOLT; LWR LINK
(A) M16X95.4 		8-97214-719-0 02 1 0503-0508 ●
96 BOLT; LWR LINK
(A) M16X95.4 		8-97214-719-0 02 1 0509- ● ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE 		8-97245-639-0 08 1 0503-0508 ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE 		8-97245-639-0 08 1 0509- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-94227-053-1 AR 1 0503-0508 ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-94227-053-1 AR 1 0509-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-98005-914-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-94227-054-2 AR 1 0503-0508 ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-94227-054-2 AR 1 0509-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-98005-915-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-94241-885-3 AR 1 0503-0508 ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-94241-885-3 AR 1 0509-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-98005-916-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-94381-376-1 AR 1 0503-0508 ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-94381-376-1 AR 1 0509-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-98005-917-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-94381-377-1 AR 1 0503-0508 ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-94381-377-1 AR 1 0509-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-98005-918-0 AR 1 0607- ● ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91180-212-0 02 1 0503-0508 ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91180-212-0 02 1 0509- ● ●
148 ARM; LWR LINK 8-97235-902-0 02 1 0503-0508 ●
148 ARM; LWR LINK 8-97235-902-0 02 1 0509- ● ●
149 BOLT; ARM TO LWR CONT ARM
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0503-0508 ●
149 BOLT; ARM TO LWR CONT ARM
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0509- ● ●
149 BOLT; ARM TO LWR CONT ARM
(B) 		8-97235-908-0 02 1 0503-0508 ●
149 BOLT; ARM TO LWR CONT ARM
(B) 		8-97235-908-0 02 1 0509- ● ●
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 0503-0508 ●
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 0509-0606 ● ●
157 PLATE; UPR LINK TO FRAME 8-98005-876-0 02 1 0607- ● ●
240 BUMPER; LWR CONT ARM 8-97234-967-0 01 1 0503-0508 ●
240 BUMPER; LWR CONT ARM 8-97234-967-0 01 1 0509- ● ●
240 BUMPER; LWR CONT ARM 8-97234-966-0 01 1 0503-0508 ●
240 BUMPER; LWR CONT ARM 8-97234-966-0 01 1 0509- ● ●
