4-40 — STEERING UNIT (#75027) — 39 parça

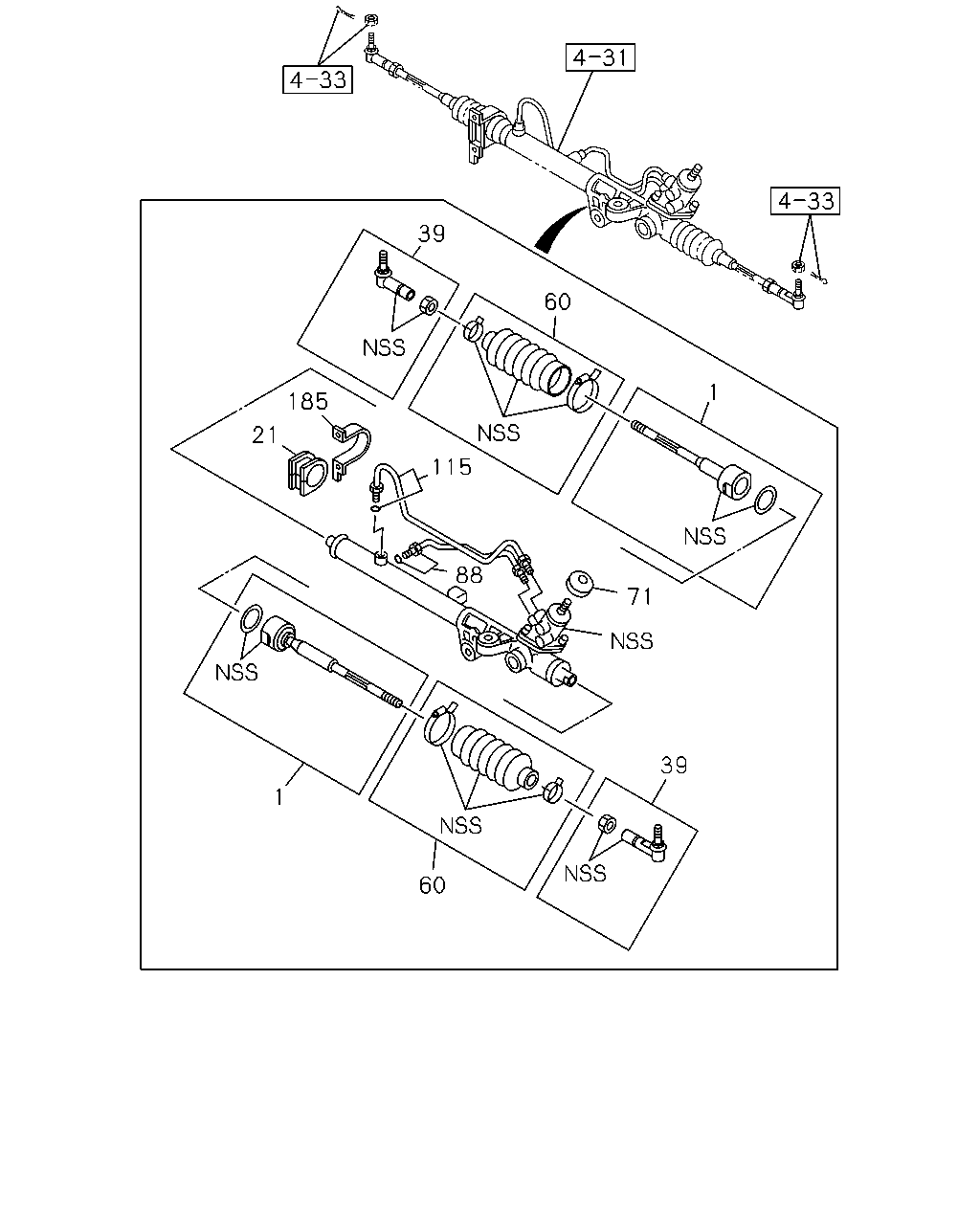

39 60 1 185 21 115 88 71 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97943-519-0	8-97304-853-0	02	1	-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-98056-550-0	01	1	-
21	RUBBER; MTG,PINION SIDE ASM PART: A = 8-97943-519-0	8-97304-923-0	01	1	-
39	ROD END ASM; OUTER ASM PART: A = 8-97943-519-0	8-97304-855-0	02	1	-
39	ROD END ASM; OUTER ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-98056-551-0	01	1	-
60	BOOT KIT; STRG HSG ASM PART: A = 8-97943-519-0	8-97304-854-0	02	1	-
60	BOOT KIT; STRG HSG ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-423-0	02	1	-
71	COVER; DUST,STRG UNIT ASM PART: A = 8-97943-519-0	8-97304-904-0	01	1	-
88	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-102-0	01	1	-
88	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-430-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-103-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-429-0	01	1	-
185	BRACKET; P/S ASM PART: A = 8-97943-519-0	8-97304-891-0	01	1	-
185	BRACKET; P/S ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-425-0	01	1	-

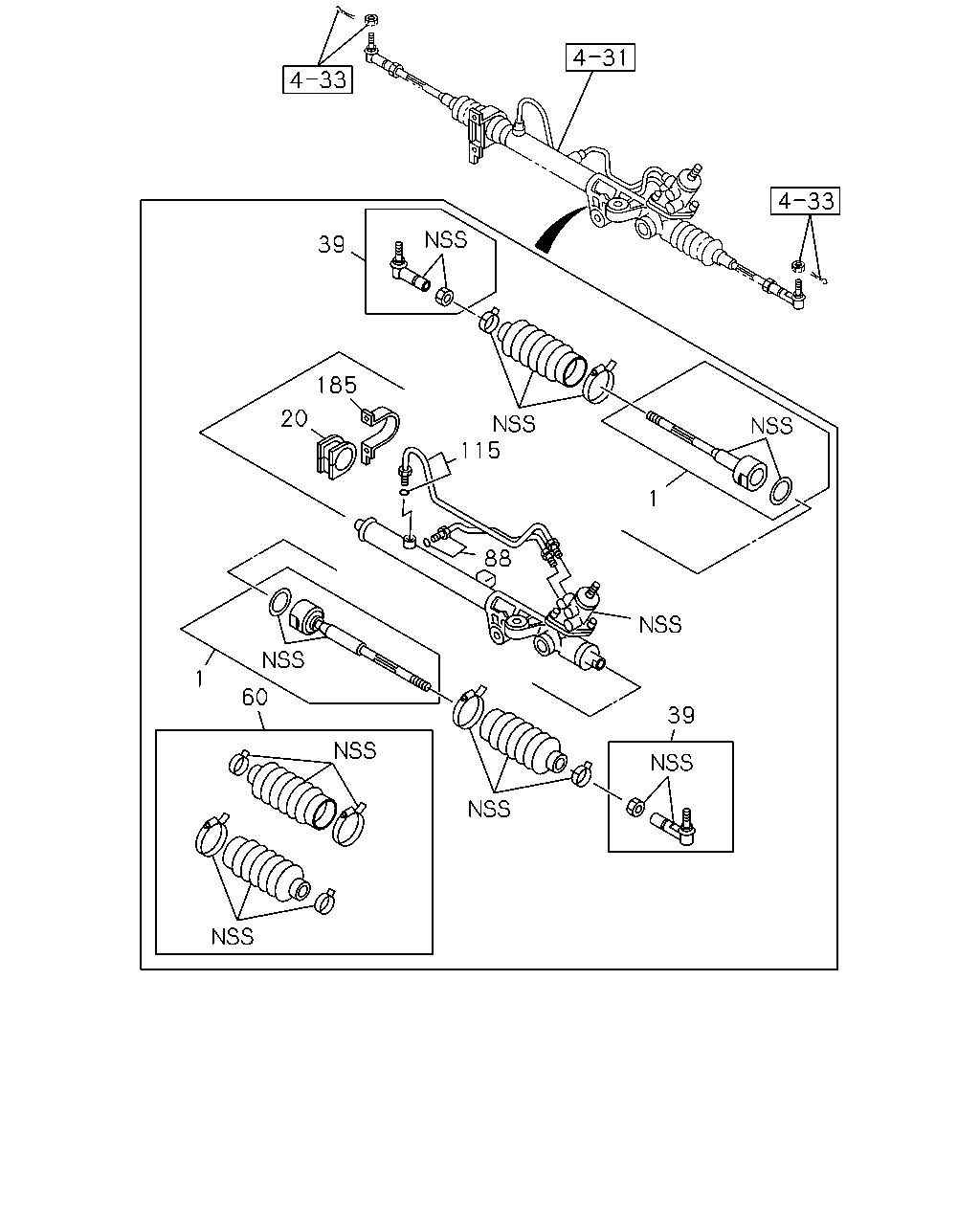

39 185 20 115 1 88 1 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97943-519-0	8-97304-853-0	02	1	-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-98056-550-0	01	1	-
20	RUBBER; MTG ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-426-0	01	1	-
39	ROD END ASM; OUTER ASM PART: A = 8-97943-519-0	8-97304-855-0	02	1	-
39	ROD END ASM; OUTER ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-98056-551-0	01	1	-
60	BOOT KIT; STRG HSG ASM PART: A = 8-97943-519-0	8-97304-854-0	02	1	-
60	BOOT KIT; STRG HSG ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-423-0	02	1	-
88	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-102-0	01	1	-
88	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-430-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-103-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-429-0	01	1	-
185	BRACKET; P/S ASM PART: A = 8-97943-519-0	8-97304-891-0	01	1	-
185	BRACKET; P/S ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-425-0	01	1	-

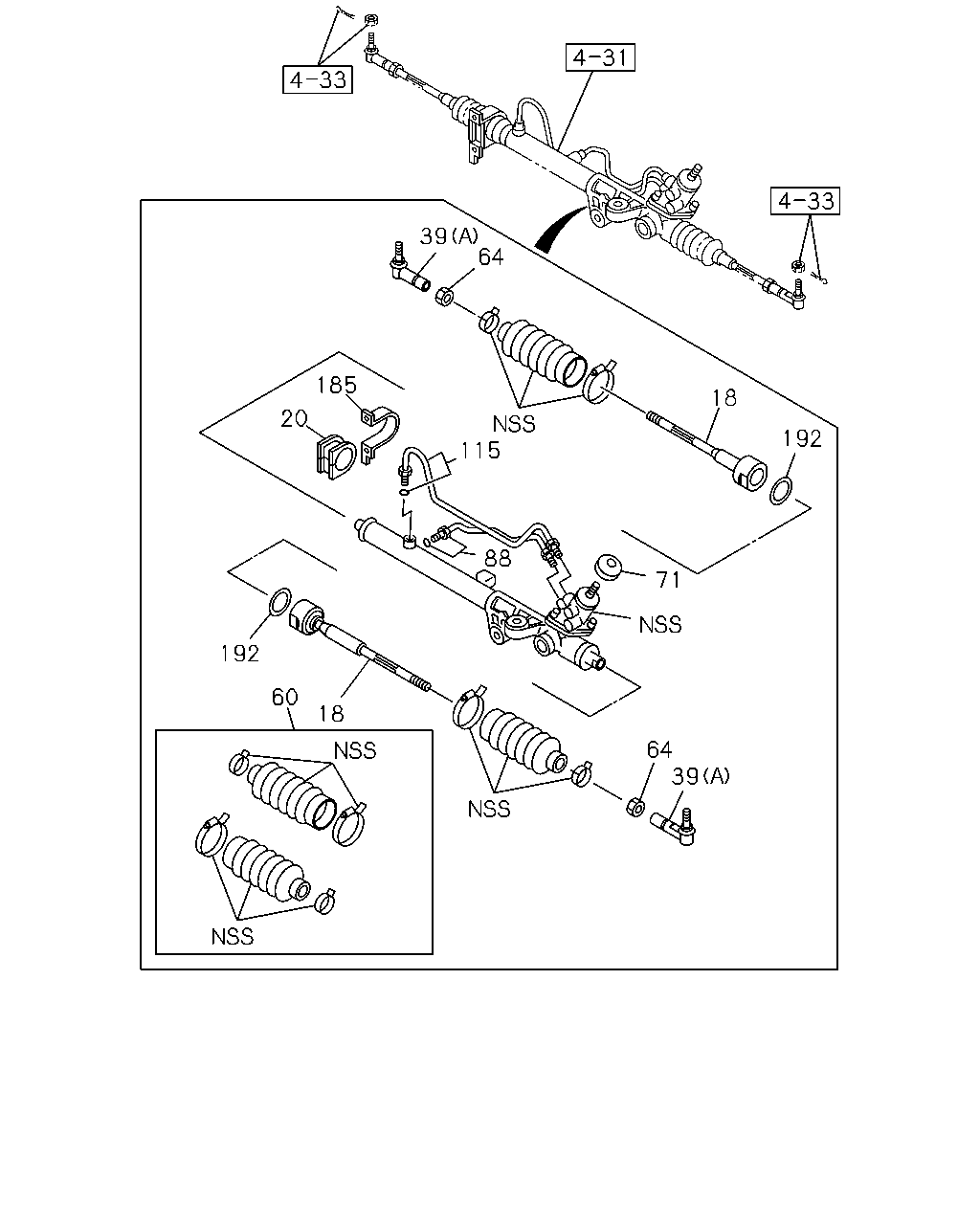

39 64 185 18 20 115 192 88 71 192 60 18 64 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	RUBBER; MTG ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-426-0	01	1	-
39	ROD END ASM; OUTER ASM PART: A = 8-97943-519-0	8-97304-855-0	02	1	-
39	ROD END ASM; OUTER ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-98056-551-0	01	1	-
60	BOOT KIT; STRG HSG ASM PART: A = 8-97943-519-0	8-97304-854-0	02	1	-
60	BOOT KIT; STRG HSG ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-423-0	02	1	-
71	COVER; DUST,STRG UNIT ASM PART: A = 8-97943-519-0	8-97304-904-0	01	1	-
88	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-102-0	01	1	-
88	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-430-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: A = 8-97943-519-0	8-97319-103-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-429-0	01	1	-
185	BRACKET; P/S ASM PART: A = 8-97943-519-0	8-97304-891-0	01	1	-
185	BRACKET; P/S ASM PART: B = 8-97944-519-1, C = 8-98101-780-0	8-97945-425-0	01	1	-
