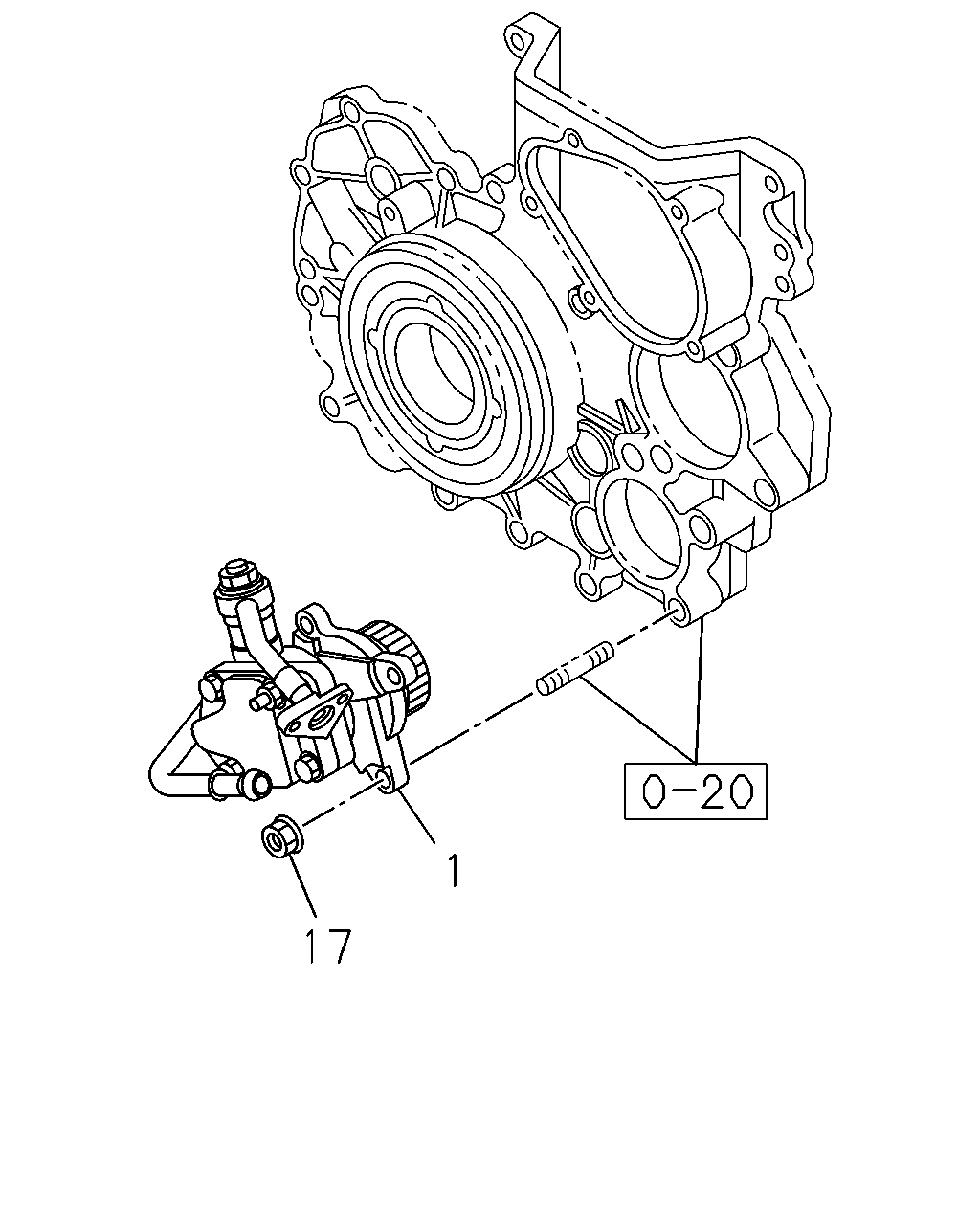

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#75026) — 8 parça

1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97355-980-3	01	1	0503-0508	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97355-980-3	01	1	0509-0606	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97944-829-0	01	1	0607-0610	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-98063-153-0	01	1	0611-0705	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97946-607-0	01	1	0706-0707	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97946-698-0	01	1	0708-	●	●
17	NUT; POWER STRG PUMP M8 FLANGE	0-91180-208-0	03	1	0503-0508	●
17	NUT; POWER STRG PUMP M8 FLANGE	0-91180-208-0	03	1	0509-	●	●
