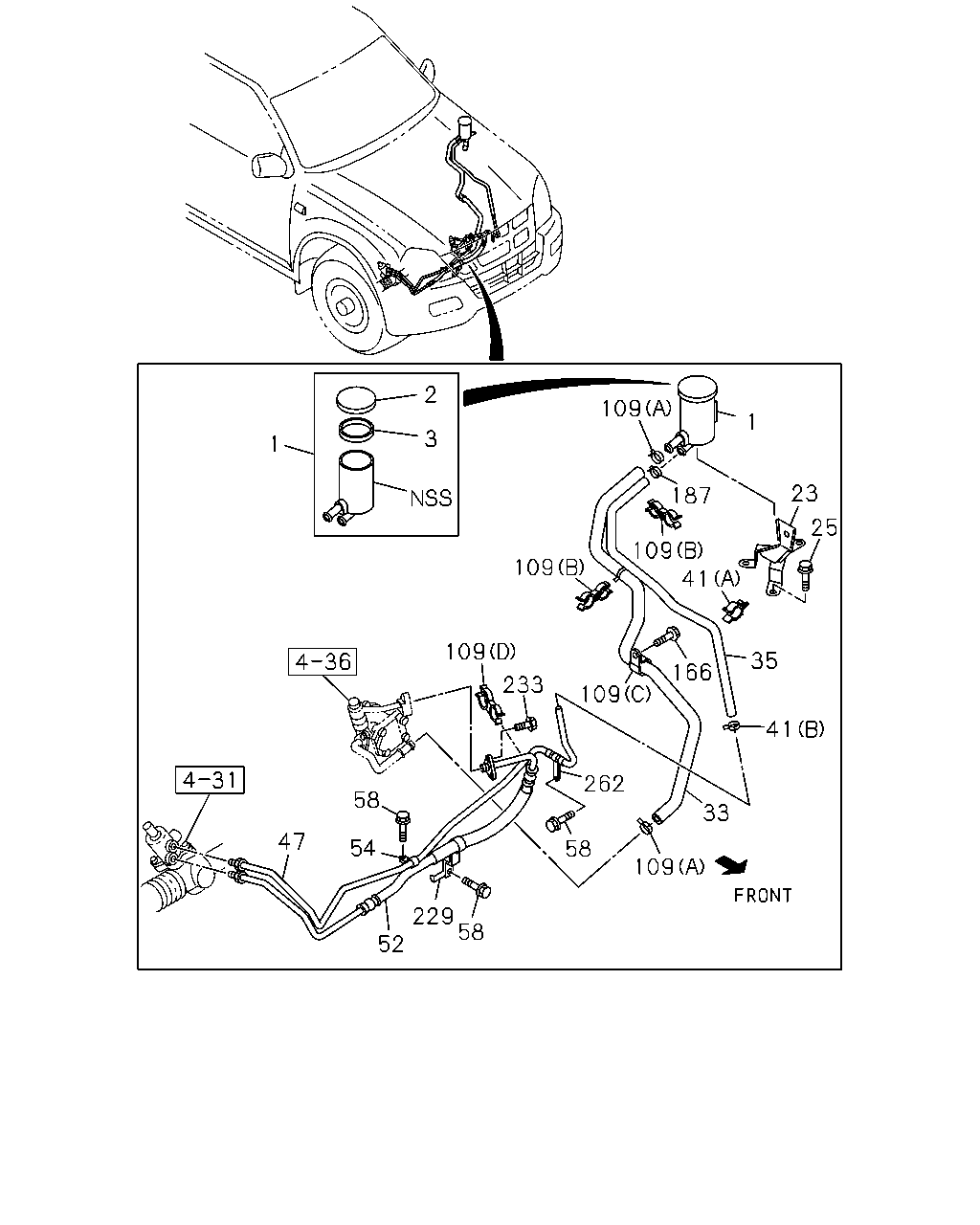

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#75025) — 55 parça

2 109 1 3 1 23 187 25 109 109 41 109 35 166 233 109 41 262 58 33 47 54 58 109 229 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	0503-0508	●
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	0509-	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	0503-0508	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	0509-	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0503-0508	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0509-	●	●
23	BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	0503-0508	●
23	BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	0509-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	03	1	0503-0508	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	03	1	0509-	●	●
33	HOSE; RUBBER,POWER STRG	8-97943-485-1	01	1	0503-0508	●
33	HOSE; RUBBER,POWER STRG	8-97943-485-1	01	1	0509-	●	●
35	HOSE; RETURN,P/S TANK	8-97234-899-2	01	1	0503-0508	●
35	HOSE; RETURN,P/S TANK	8-97234-899-2	01	1	0509-	●	●
41	CLIP; HOSE,P/S (A) ID=17	8-94382-792-1	01	1	0503-0508	●
41	CLIP; HOSE,P/S (A) ID=17	8-94382-792-1	01	1	0509-	●	●
41	CLIP; HOSE,P/S (B) ID=16	8-94392-924-0	01	1	0503-0508	●
41	CLIP; HOSE,P/S (B) ID=16	8-94392-924-0	01	1	0509-0604	●	●
41	CLIP; HOSE,P/S (B) ID=16	8-98030-682-0	01	1	0605-	●	●
47	PIPE; RETURN	8-97944-180-0	01	1	0503-0508	●
47	PIPE; RETURN	8-97944-180-0	01	1	0509-0606	●	●
47	PIPE; RETURN	8-97944-599-0	01	1	0607-	●	●
52	HOSE; FLEX,P/S CONT VLV	8-97944-178-0	01	1	0503-0508	●
52	HOSE; FLEX,P/S CONT VLV	8-97944-178-0	01	1	0509-0606	●	●
52	HOSE; FLEX,P/S CONT VLV	8-97944-579-0	01	1	0607-	●	●
54	CLIP; OIL PIPE ID=11 L=16	9-09525-022-0	01	1	0503-0508	●
54	CLIP; OIL PIPE ID=11 L=16	9-09525-022-0	01	1	0509-0606	●	●
54	CLIP; OIL PIPE ID=11 L=16	0-95235-022-0	01	1	0607-	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	0503-0508	●
58	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	0509-	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	02	1	0503-0508	●
58	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	02	1	0509-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0503-0508	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0509-0606	●	●
109	CLIP; RUBBER HOSE (A) ID=20.8	8-97944-127-0	02	1	0607-	●	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32	1-09700-766-1	01	1	0503-0508	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32	1-09700-766-1	01	1	0509-0606	●	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32	8-98006-816-0	01	1	0607-	●	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	02	1	0503-0508	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	02	1	0509-	●	●
109	CLIP; RUBBER HOSE (D) ID=21 & 9.8	8-97309-945-0	01	1	0503-0508	●
109	CLIP; RUBBER HOSE (D) ID=21 & 9.8	8-97309-945-0	01	1	0509-	●	●
166	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0503-0508	●
166	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0509-	●	●
187	CLIP; P/S OIL PIPE ID=16	8-94392-924-0	01	1	0503-0508	●
187	CLIP; P/S OIL PIPE ID=16	8-94392-924-0	01	1	0509-0604	●	●
187	CLIP; P/S OIL PIPE ID=16	8-98030-682-0	01	1	0605-	●	●
229	BRACKET; HOSE,POWER STRG	8-97943-484-0	01	1	0503-0508	●
229	BRACKET; HOSE,POWER STRG	8-97943-484-0	01	1	0509-0606	●	●
229	BRACKET; HOSE,POWER STRG	8-97944-610-0	01	1	0607-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	0503-0508	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	0509-	●	●
262	CLIP; P/S PIPE ID=11 L=50	9-09525-082-0	01	1	0503-0508	●
262	CLIP; P/S PIPE ID=11 L=50	9-09525-082-0	01	1	0509-0606	●	●
262	CLIP; P/S PIPE ID=11 L=50	0-95235-082-0	01	1	0607-	●	●
