51032 - UCR/UCS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

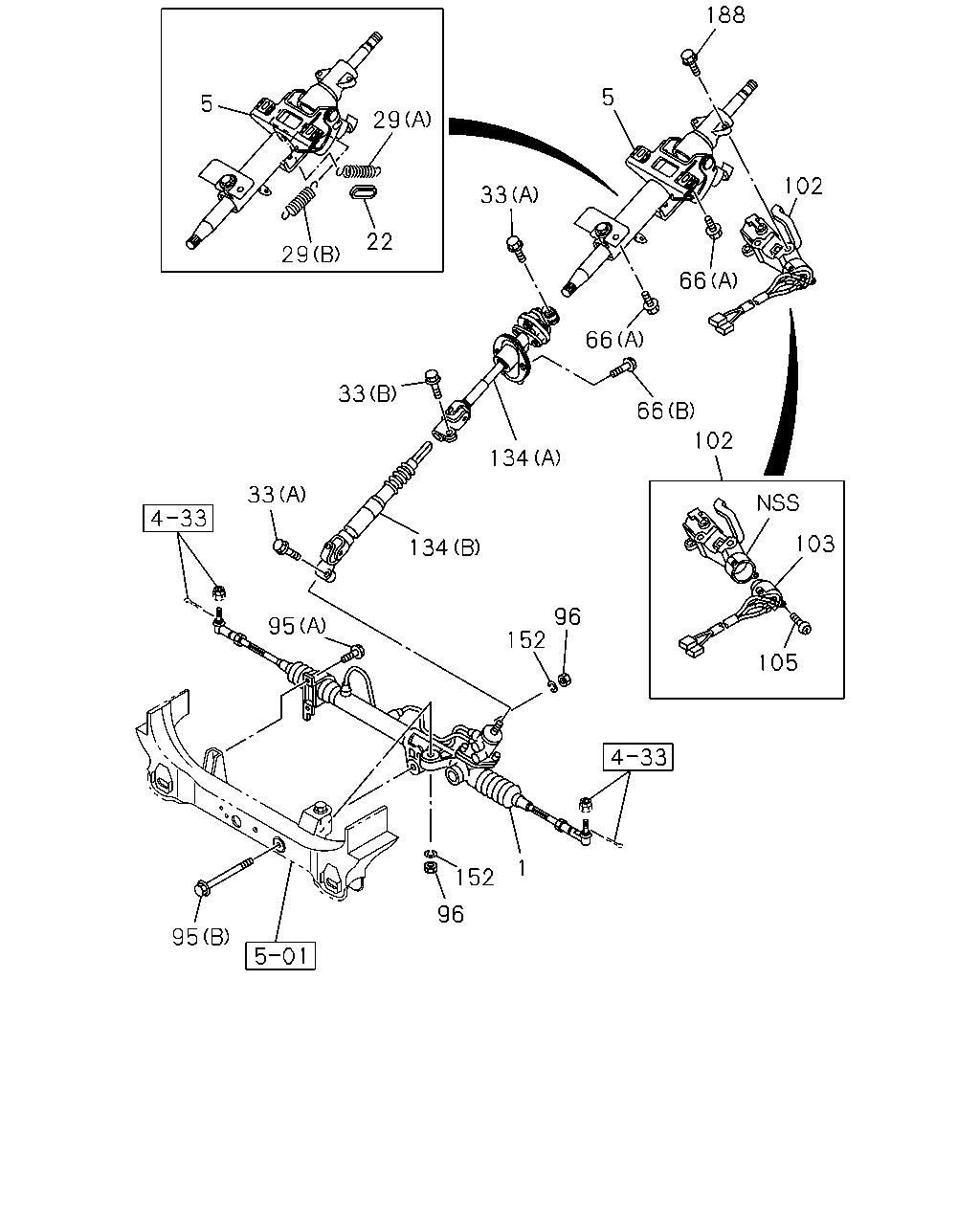

4-31 — STEERING COLUMN AND SHAFT
(#75023) — 50 parça
Tümü
A - UCB6VF
B - UCS6VF
188
5
5
29
102
33
22
29
66
66
33
66
102
134
33
103
134
96
152
95
105
1
152
96
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-97943-519-0
01
1
0503-0508
●
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-97944-519-1
01
1
0509-0709
●
●
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98101-780-0
01
1
0710-
●
●
5
COLUMN; STRG
8-97349-946-0
01
1
0503-0508
●
5
COLUMN; STRG
8-97349-946-0
01
1
0509-0606
●
●
5
COLUMN; STRG
8-97945-772-0
01
1
0607-
●
●
22
BUSHING; STRG COLUMN
8-97349-938-0
01
1
0503-0508
●
22
BUSHING; STRG COLUMN
8-97349-938-0
01
1
0509-
●
●
29
SPRING; COLUMN
(A)
8-97349-937-0
01
1
0503-0508
●
29
SPRING; COLUMN
(A)
8-97349-937-0
01
1
0509-
●
●
29
SPRING; COLUMN
(B)
8-97349-939-0
01
1
0503-0508
●
29
SPRING; COLUMN
(B)
8-97349-939-0
01
1
0509-
●
●
33
BOLT; STRG SHAFT TO UNIT
(A) M8X35 FLANGE
8-97249-320-0
02
1
0503-0508
●
33
BOLT; STRG SHAFT TO UNIT
(A) M8X35 FLANGE
8-97249-320-0
02
1
0509-
●
●
33
BOLT; STRG SHAFT TO UNIT
(B)
8-97322-411-0
01
1
0503-0508
●
33
BOLT; STRG SHAFT TO UNIT
(B)
8-97322-411-0
01
1
0509-0606
●
●
33
BOLT; STRG SHAFT TO UNIT
(B)
8-97944-830-0
01
1
0607-1009
●
●
33
BOLT; STRG SHAFT TO UNIT
(B)
8-98140-802-0
01
1
1010-
●
●
66
BOLT; STRG COLUMN
(A) M8X35 FLANGE
0-28650-835-0
04
1
0503-0508
●
66
BOLT; STRG COLUMN
(A) M8X35 FLANGE
0-28650-835-0
04
1
0509-0606
●
●
66
BOLT; STRG COLUMN
(A) M8X30 FLANGE
0-28650-830-0
04
1
0607-
●
●
66
BOLT; STRG COLUMN
(B)
8-97249-319-1
02
1
0503-0508
●
66
BOLT; STRG COLUMN
(B)
8-97249-319-1
02
1
0509-
●
●
95
BOLT; STRG UNIT
(A) M12X30 FLANGE
0-28661-230-0
02
1
0503-0508
●
95
BOLT; STRG UNIT
(A) M12X30 FLANGE
0-28661-230-0
02
1
0509-
●
●
95
BOLT; STRG UNIT
(B) M16X195 W/PL WASHER
8-97245-661-0
01
1
0503-0508
●
95
BOLT; STRG UNIT
(B) M16X195 W/PL WASHER
8-97245-661-0
01
1
0509-
●
●
96
NUT; STRG UNIT
M16
0-91110-516-0
02
1
0503-0508
●
96
NUT; STRG UNIT
M16
0-91110-516-0
02
1
0509-
●
●
102
LOCK ASM; STRG
8-97349-940-0
01
1
0503-0508
●
102
LOCK ASM; STRG
8-97349-940-0
01
1
0509-0606
●
●
102
LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ)
8-97349-940-0
01
1
0607-
●
102
LOCK ASM; STRG
A/T 4 SPEED-JATCO(RMK)
8-97945-767-0
01
1
0607-
●
●
103
SWITCH; IGNITION
8-97350-071-0
01
1
0503-0508
●
103
SWITCH; IGNITION
8-97350-071-0
01
1
0509-
●
●
105
SCREW; IGN SW
8-97349-945-0
02
1
0503-0508
●
105
SCREW; IGN SW
8-97349-945-0
02
1
0509-
●
●
134
SHAFT; STRG,2ND
(B)
8-97316-341-1
01
1
0503-0508
●
134
SHAFT; STRG,2ND
(B)
8-97316-341-1
01
1
0509-
●
●
134
SHAFT; STRG,2ND
(A)
8-97944-433-0
01
1
0503-0508
●
134
SHAFT; STRG,2ND
(A)
8-97944-433-0
01
1
0509-0606
●
●
134
SHAFT; STRG,2ND
(A)
8-97944-593-0
01
1
0607-0804
●
●
134
SHAFT; STRG,2ND
(A)
8-98108-810-0
01
1
0805-
●
●
152
WASHER; LK,STRG UNIT
ID=16.5 OD=45
8-97249-436-0
02
1
0503-0508
●
152
WASHER; LK,STRG UNIT
ID=16.5 OD=45
8-97249-436-0
02
1
0509-0606
●
●
152
WASHER; LK,STRG UNIT
ID=16.5 OD=45
8-97944-809-0
02
1
0607-
●
●
188
BOLT; TORQUE,STEERING
8-97349-941-0
02
1
0503-0508
●
188
BOLT; TORQUE,STEERING
8-97349-941-0
02
1
0509-0606
●
●
188
BOLT; TORQUE,STEERING
M8X18.5 TWISTED OFF
8-97945-749-0
02
1
0607-0811
●
●
188
BOLT; TORQUE,STEERING
8-98133-262-0
02
1
0812-
●
●
