◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#75021) — 224 parça

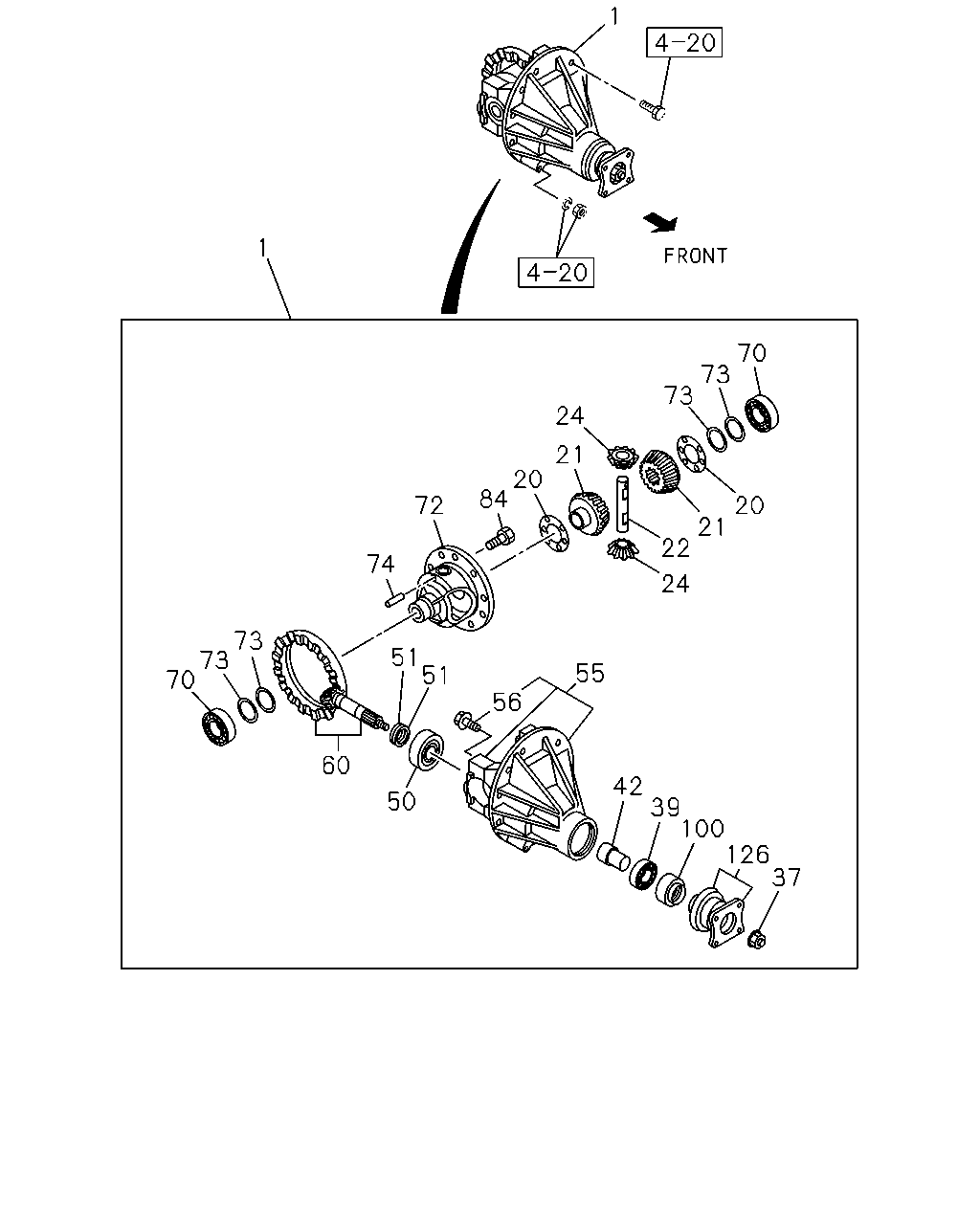

çizim 118580
1 1 70 73 73 24 21 20 84 72 20 21 22 74 24 73 73 70 51 51 55 56 60 42 39 100 126 37 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
43/10 		8-97388-755-0 01 1 0503-0608 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98047-783-0 01 1 0609-1106 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98190-118-0 01 1 1107- ●
1 DRIVE ASM; FINAL,RR
43/10 		8-97388-756-0 01 1 0509-0608 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98047-786-0 01 1 0609-1009 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98167-627-0 01 1 1010- ●
20 WASHER; THRUST,SIDE GEAR
T=0.80 		8-94435-343-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=0.90 		8-94435-344-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.10 		8-94435-345-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.20 		8-94435-346-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.30 		8-94435-347-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.60 		8-94365-187-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.70 		8-94365-188-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.50 		8-94453-935-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.80 		8-97066-412-0 02 1 0509- ●
21 GEAR; SIDE,DIFF
Z=18 		8-97226-763-0 02 1 0503-1106 ●
21 GEAR; SIDE,DIFF
Z=18 		8-98186-828-1 02 1 1107- ●
21 GEAR; SIDE,DIFF 8-97200-286-0 02 1 0509- ●
22 SPIDER; DIFF PINION 8-94435-308-1 01 1 0503- ●
24 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 02 1 0503-1106 ●
24 GEAR; PINION,DIFF
Z=10 		8-98186-829-0 02 1 1107- ●
24 GEAR; PINION,DIFF 8-97200-285-1 04 1 0509- ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0503-0508 ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0509- ● ●
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 0503-0508 ●
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 0509- ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 0503-0508 ●
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 0509- ● ●
50 BEARING; FINAL PINION
JTEKT 		8-94452-448-0 01 1 0809- ● ●
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 0503-0508 ●
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 0509- ● ●
55 CARRIER; DIFF 8-97240-889-0 01 1 0503-0508 ●
55 CARRIER; DIFF 8-97240-889-2 01 1 0509- ● ●
56 BOLT; BRG CAP
M12X75 		8-94435-341-0 04 1 0503-0508 ●
56 BOLT; BRG CAP
M12X75 		8-94435-341-0 04 1 0509-1012 ● ●
56 BOLT; BRG CAP
M12X75 FLANGE 		8-98176-233-0 04 1 1101- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97302-925-0 01 1 0503-0508 ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97302-925-0 01 1 0509-0608 ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-98014-987-1 01 1 0609- ● ●
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 0503-0508 ●
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 0509- ● ●
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 0503-0508 ●
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 0509- ● ●
72 CAGE; DIFF 8-94325-448-0 01 1 0503- ●
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 0509- ● ●
74 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0503- ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 0503-0508 ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 0509- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0503-0508 ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0509- ● ●
126 COUPLING; DRIVING PINION 8-97217-146-0 01 1 0503-0508 ●
126 COUPLING; DRIVING PINION 8-97217-146-0 01 1 0509-1305 ● ●
126 COUPLING; DRIVING PINION 8-98166-552-1 01 1 1306- ● ●

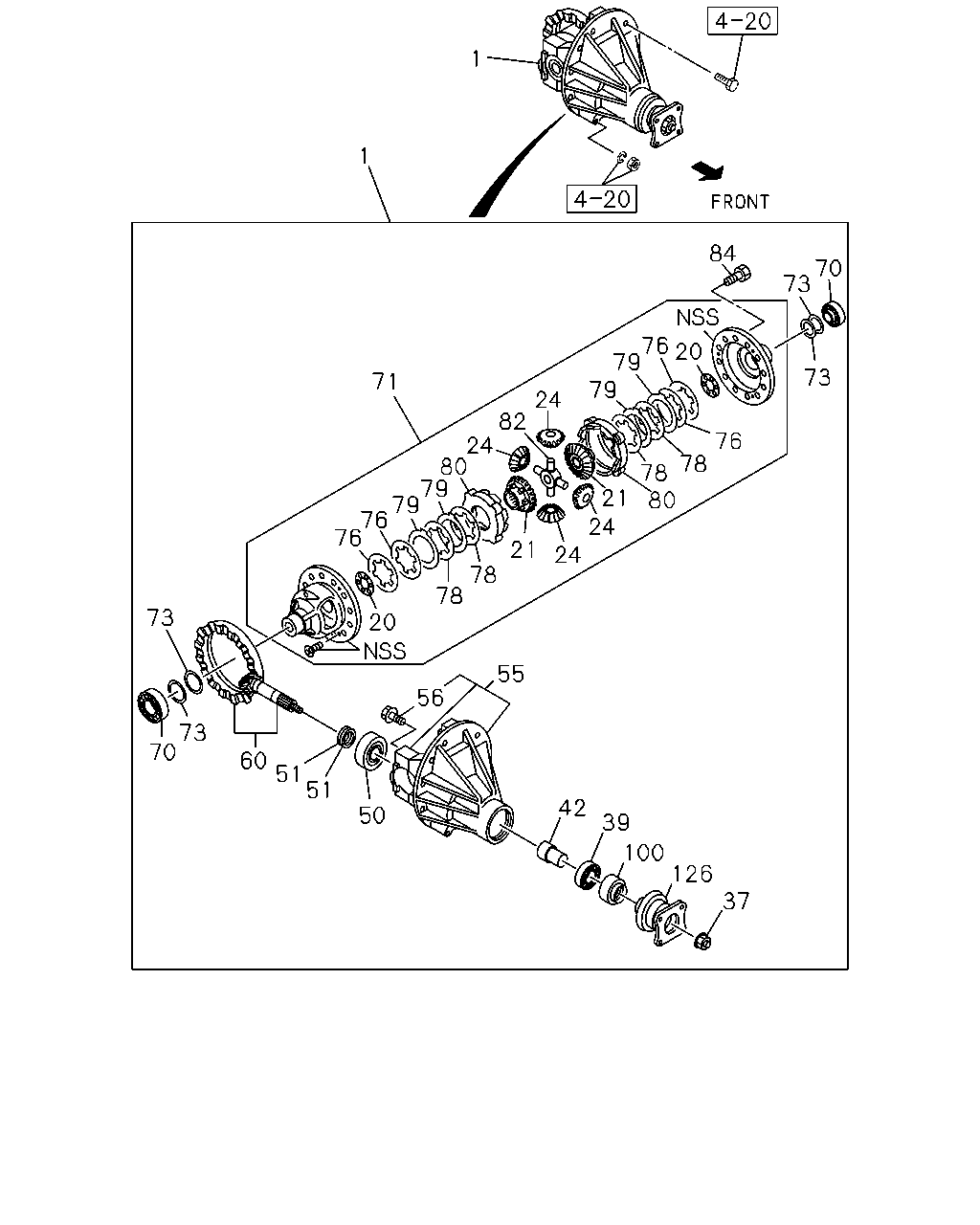

çizim 118740
1 1 84 70 73 76 20 79 79 73 71 24 82 24 80 79 79 76 76 76 78 78 80 21 24 24 21 78 78 73 20 55 56 73 70 60 51 51 42 50 39 100 126 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
43/10 		8-97388-755-0 01 1 0503-0608 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98047-783-0 01 1 0609-1106 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98190-118-0 01 1 1107- ●
1 DRIVE ASM; FINAL,RR
43/10 		8-97388-756-0 01 1 0509-0608 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98047-786-0 01 1 0609-1009 ●
1 DRIVE ASM; FINAL,RR
43/10 		8-98167-627-0 01 1 1010- ●
20 WASHER; THRUST,SIDE GEAR
T=0.80 		8-94435-343-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=0.90 		8-94435-344-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.10 		8-94435-345-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.20 		8-94435-346-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.30 		8-94435-347-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 0503- ●
20 WASHER; THRUST,SIDE GEAR
T=1.60 		8-94365-187-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.70 		8-94365-188-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.50 		8-94453-935-0 02 1 0509- ●
20 WASHER; THRUST,SIDE GEAR
T=1.80 		8-97066-412-0 02 1 0509- ●
21 GEAR; SIDE,DIFF
Z=18 		8-97226-763-0 02 1 0503-1106 ●
21 GEAR; SIDE,DIFF
Z=18 		8-98186-828-1 02 1 1107- ●
21 GEAR; SIDE,DIFF 8-97200-286-0 02 1 0509- ●
24 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 02 1 0503-1106 ●
24 GEAR; PINION,DIFF
Z=10 		8-98186-829-0 02 1 1107- ●
24 GEAR; PINION,DIFF 8-97200-285-1 04 1 0509- ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0503-0508 ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0509- ● ●
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 0503-0508 ●
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 0509- ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 0503-0508 ●
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 0509- ● ●
50 BEARING; FINAL PINION
JTEKT 		8-94452-448-0 01 1 0809- ● ●
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 0503-0508 ●
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 0509- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 0503-0508 ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 0509- ● ●
55 CARRIER; DIFF 8-97240-889-0 01 1 0503-0508 ●
55 CARRIER; DIFF 8-97240-889-2 01 1 0509- ● ●
56 BOLT; BRG CAP
M12X75 		8-94435-341-0 04 1 0503-0508 ●
56 BOLT; BRG CAP
M12X75 		8-94435-341-0 04 1 0509-1012 ● ●
56 BOLT; BRG CAP
M12X75 FLANGE 		8-98176-233-0 04 1 1101- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97302-925-0 01 1 0503-0508 ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97302-925-0 01 1 0509-0608 ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-98014-987-1 01 1 0609- ● ●
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 0503-0508 ●
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 0509- ● ●
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 0503-0508 ●
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 0509- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97062-971-2 01 1 0509-0703 ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-98080-352-0 01 1 0704-1009 ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-98167-619-0 01 1 1010- ●
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 0509- ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 0503-0508 ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 0509- ● ●
76 DISC; BEVEL 8-97096-209-0 04 1 0509- ●
78 DISC; FRICTION 8-94453-937-0 04 1 0509- ●
79 PLATE; FRICTION
T=1.85 		8-94365-189-0 04 1 0509- ●
79 PLATE; FRICTION
T=1.75 		8-94453-936-0 04 1 0509- ●
80 RING; PRESSURE 8-94453-931-0 02 1 0509- ●
82 SPIDER; DIFF PINION 8-94453-932-0 01 1 0509- ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 0503-0508 ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 0509- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0503-0508 ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0509- ● ●
126 COUPLING; DRIVING PINION 8-97217-146-0 01 1 0503-0508 ●
126 COUPLING; DRIVING PINION 8-97217-146-0 01 1 0509-1305 ● ●
126 COUPLING; DRIVING PINION 8-98166-552-1 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
