◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#7502) — 27 parça

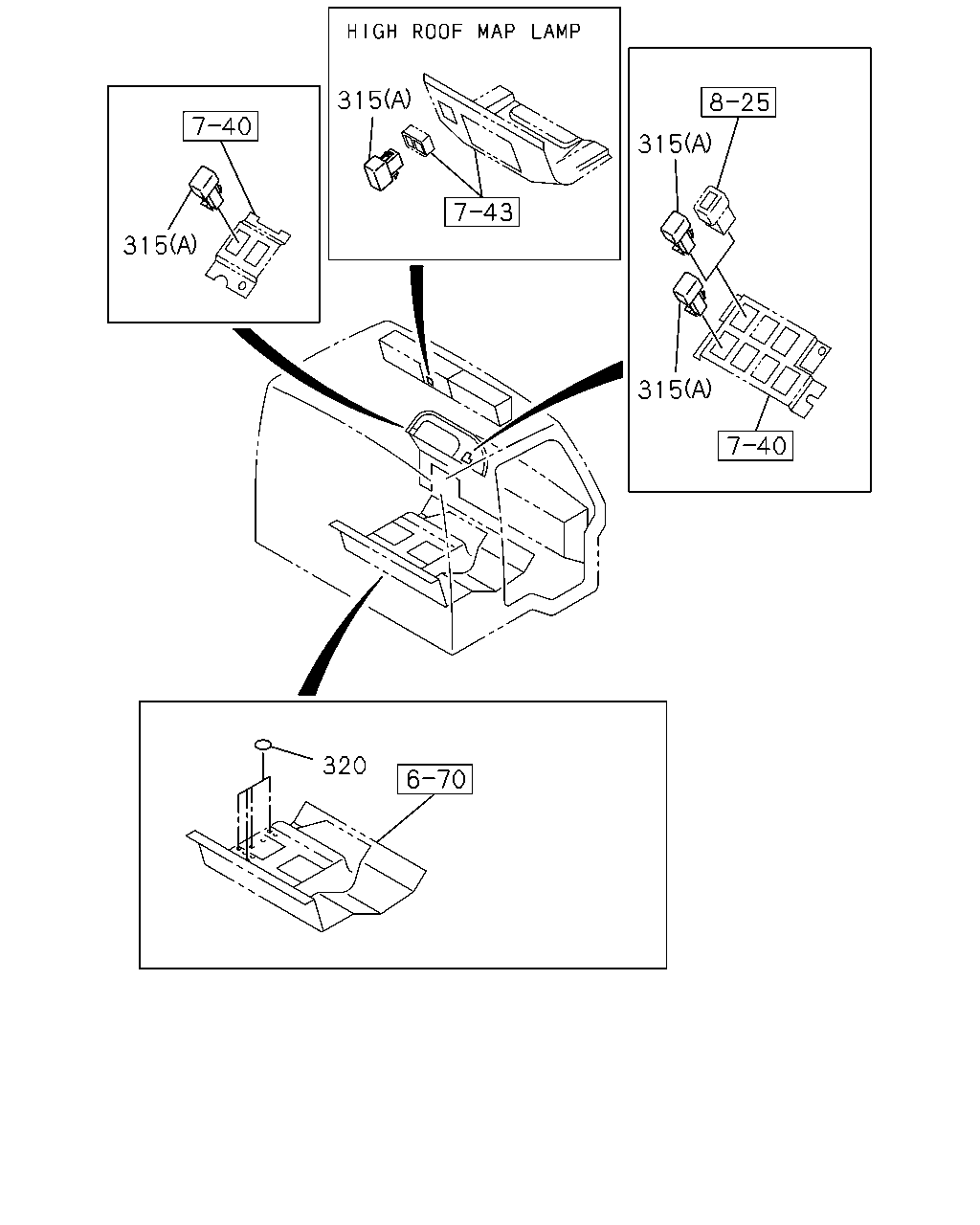

çizim 26130
315 315 315 315 320
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 06 1 0611- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) TAI 		1-82359-069-2 01 1 0611- ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 08 1 0611-0701 ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 07 1 0702- ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 11 1 9811-9906 ● ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 10 1 9907-0610 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) TAI 		1-82359-069-2 02 1 0611- ● ●
315 COVER; HOLE,SW
(B) TAI 		8-97043-732-1 04 1 9811- ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK TAI 		1-76798-019-0 04 1 9811- ● ●

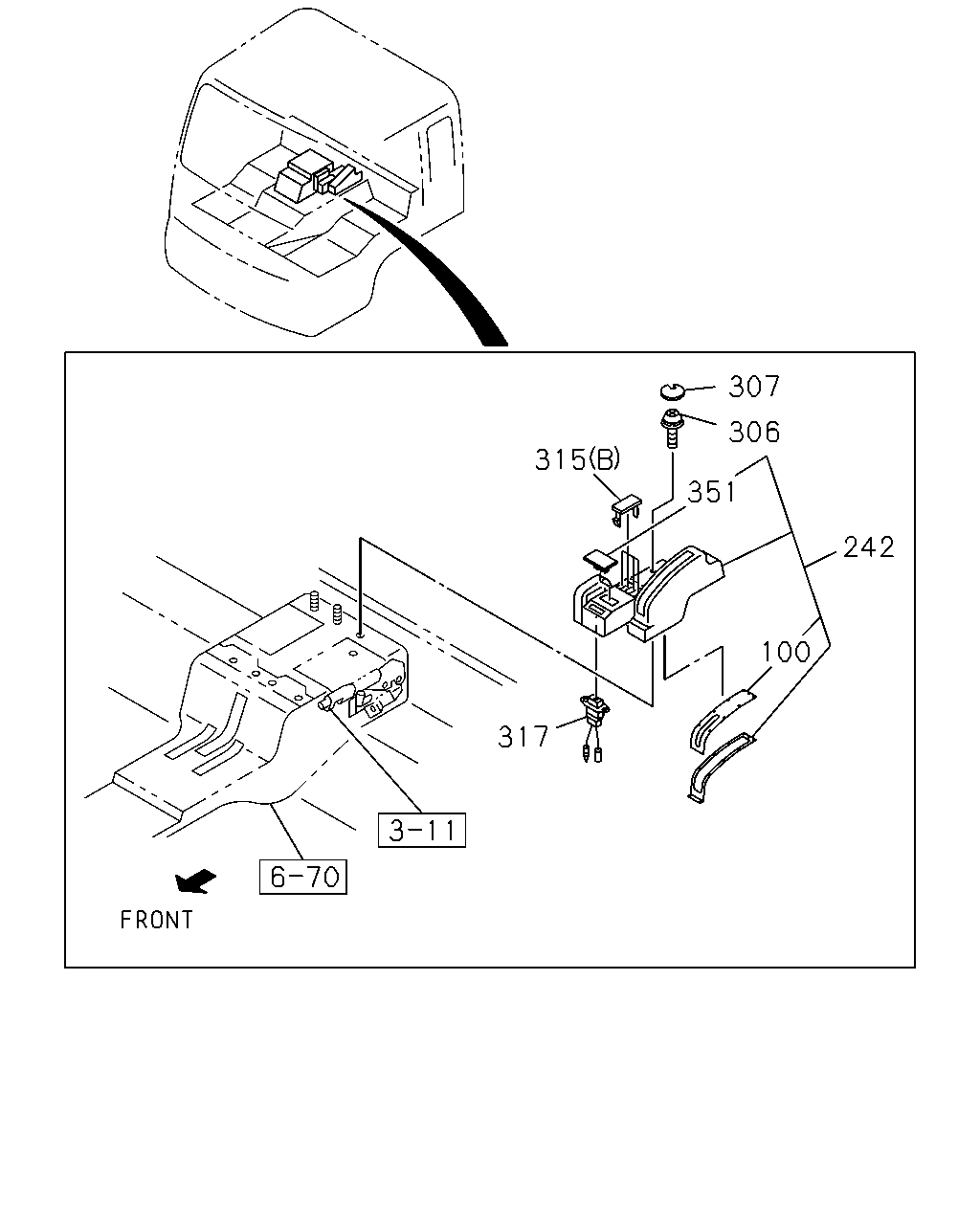

çizim 98785
307 306 315 351 242 100 317
BalonParca AdiParca NoAdetTipApplied Date A B
100 RUBBER; CONSOLE,FRT
TAI 		1-72538-161-3 01 1 9811-9906 ● ●
100 RUBBER; CONSOLE,FRT
TAI 		8-97535-034-0 01 1 9907- ● ●
242 TRAY ASM; CTR CONSOLE 1-72538-198-2 01 1 9811-9906 ● ●
242 TRAY ASM; CTR CONSOLE
TAI 		8-97535-029-0 01 1 9907- ● ●
306 SCREW; TRAY
M6X24 W/LK&PL WASHER TAI 		8-94279-404-0 03 1 9811-0202 ● ●
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0203- ● ●
307 COVER; HOLE,CTR CONSOLE 1-72538-166-0 02 1 9811-9906 ● ●
307 COVER; HOLE,CTR CONSOLE
TAI 		1-76337-461-0 02 1 9907- ● ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 06 1 0611- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) TAI 		1-82359-069-2 01 1 0611- ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 08 1 0611-0701 ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 07 1 0702- ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 11 1 9811-9906 ● ●
315 COVER; HOLE,SW
(A) TAI 		1-82359-069-2 10 1 9907-0610 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) TAI 		1-82359-069-2 02 1 0611- ● ●
315 COVER; HOLE,SW
(B) TAI 		8-97043-732-1 04 1 9811- ● ●
317 CONSENT
TAI 		1-82523-020-2 01 1 9811-9906 ● ●
351 COVER; HOLE CONSENT
TAI 		8-97535-037-0 01 1 9907- ● ●
