4-12 — FRONT DRIVE SHAFT (#75018) — 81 parça

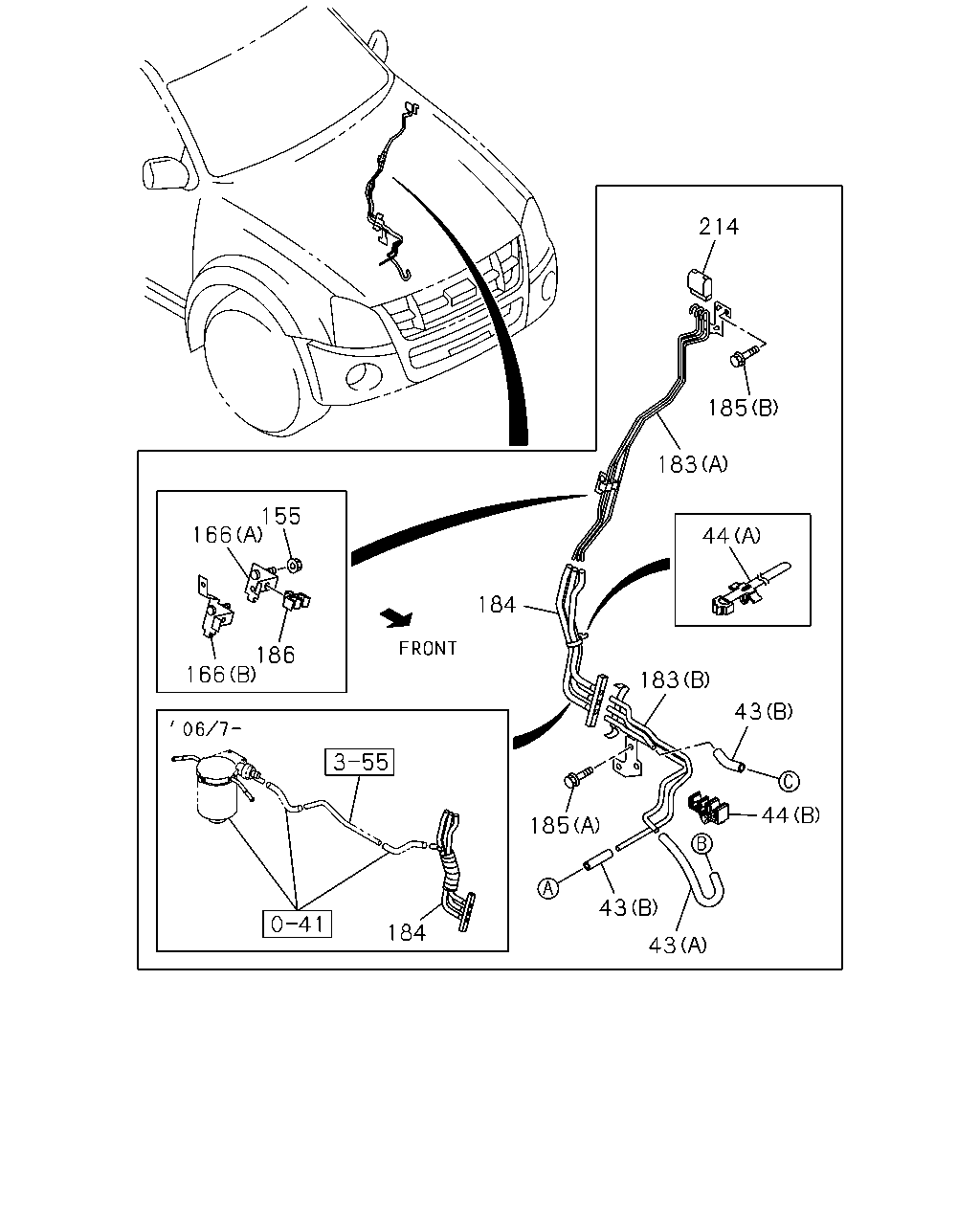

214 185 183 155 166 44 184 186 166 183 43 44 185 43 184 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	HOSE; RUBBER,AIR BREATHER (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	0509-
43	HOSE; RUBBER,AIR BREATHER (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	0509-
44	CLIP; AIR BREATHER HOSE (A) L=170.3	1-09987-182-0	01	1	0509-
44	CLIP; AIR BREATHER HOSE (B)	8-94442-883-1	01	1	0509-
155	NUT; BRKT A/T 4 SPEED-JATCO(RMK) M6 FLANGE	0-91180-106-0	01	1	0509-0606
155	NUT; BRKT A/T 4 SPEED-JATCO(RMK) M6 FLANGE	0-91180-106-0	01	1	0607-
166	BRACKET; CLIP A/T 4 SPEED-JATCO(RMK) (A)	8-97259-780-0	01	1	0509-0606
166	BRACKET; CLIP A/T 4 SPEED-JATCO(RMK) (B)	8-98043-612-0	01	1	0607-
183	PIPE; BREATHER (B)	8-97250-343-1	01	1	0509-0606
183	PIPE; BREATHER (B)	8-98007-999-0	01	1	0607-
183	PIPE; BREATHER (A)	8-97333-080-0	01	1	0509-0606
183	PIPE; BREATHER (A)	8-98007-998-0	01	1	0607-
184	HOSE; BREATHER	8-97250-344-1	01	1	0509-
185	BOLT; PIPE,BREATHER (A) M6X16 FLANGE	0-28650-616-0	01	1	0509-
185	BOLT; PIPE,BREATHER (B) M6X20 FLANGE	0-28650-620-0	01	1	0509-
186	CLIP; HOSE,BREATHER ID=4.76X2	8-97249-905-0	01	1	0509-
214	COVER; BREATHER	8-97261-746-0	01	1	0509-

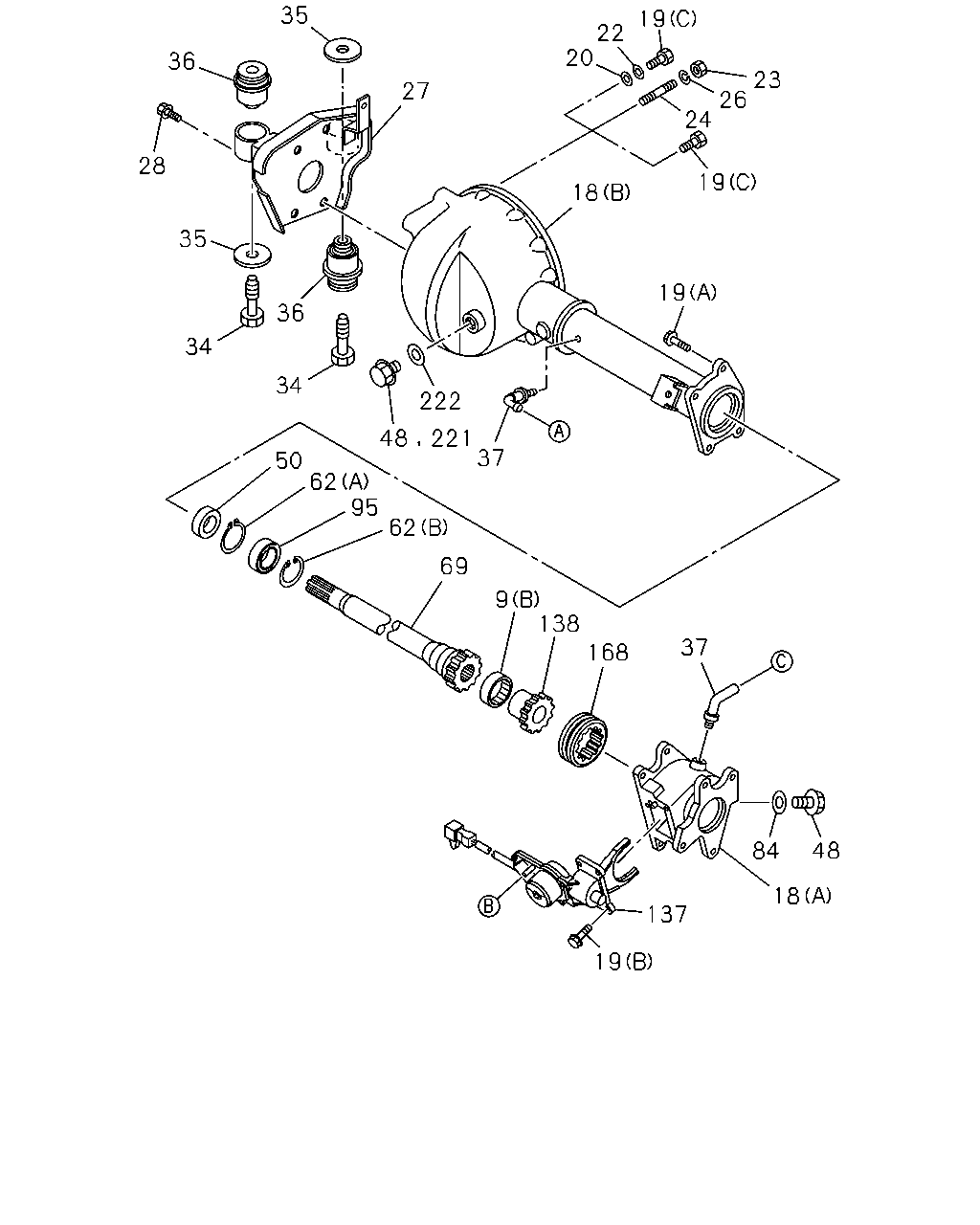

35 19 22 20 36 23 26 24 27 28 19 18 35 19 36 34 34 222 37 50 62 95 62 69 9 138 37 168 84 48 18 137 19 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0509-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0509-
18	CASE; FRT AXLE (A)	8-97081-658-3	01	1	0509-
18	CASE; FRT AXLE (B)	8-97239-627-0	01	1	0509-
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	0509-0606
19	BOLT; FRT AXLE (A) M12X20 FLANGE	0-28051-220-0	04	1	0607-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28680-820-0	01	1	0509-0601
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28650-820-0	01	1	0602-
19	BOLT; FRT AXLE (B) M8X35 FLANGE	0-28680-835-0	03	1	0509-0601
19	BOLT; FRT AXLE (B) M8X35 FLANGE	0-28650-835-0	03	1	0602-
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0509-0608
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-98022-410-0	06	1	0609-
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0509-0608
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-98022-411-0	02	1	0609-
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0509-0608
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-98022-412-0	02	1	0609-
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0509-
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	0509-0606
22	WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0607-
23	NUT; FRT AXLE M8	9-09110-508-0	02	1	0509-0512
23	NUT; FRT AXLE M8	0-91110-508-0	02	1	0601-
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	0509-0605
24	STUD; CASE,FRT AXLE M8X25 L=37	0-41010-825-0	02	1	0606-
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	0509-0604
26	WASHER; LK,CASE,FRT AXLE ID=8.2	0-91510-808-0	02	1	0605-
27	BRACKET; AXLE CASE	8-98005-640-0	01	1	0509-
27	BRACKET; AXLE CASE	8-98005-641-0	01	1	0509-
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0509-0606
28	BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28051-220-0	08	1	0607-
34	BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0509-
35	WASHER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	0509-0606
35	WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	04	1	0607-
36	BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0509-
36	BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0509-
37	BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	0509-
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	02	1	0509-0604
48	PLUG; DRAIN,AXLE CASE M20X10.5	8-98009-333-0	02	1	0605-0908
48	PLUG; DRAIN,AXLE CASE M20X10.5	8-98009-333-0	01	1	0909-
50	SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0509-
62	RING; SNAP,AXLE SHAFT (A) ID=37.0	9-09180-040-0	01	1	0509-
62	RING; SNAP,AXLE SHAFT (B) ID=57.9	9-09180-162-0	01	1	0509-
69	SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0509-
84	GASKET; PLUG,OIL FILLER ID=20 OD=30	8-94462-734-0	01	1	0509-
95	BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0509-
137	ACTUATOR; AXLE	8-97367-959-0	01	1	0509-
138	GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0509-
168	SLEEVE; FRT AXLE	8-97130-567-1	01	1	0509-
221	PLUG; FILLER M20X10.5	8-98009-333-0	01	1	0909-
222	GASKET; FILLER PLUG ID=20 OD=30	8-94462-734-0	01	1	0509-

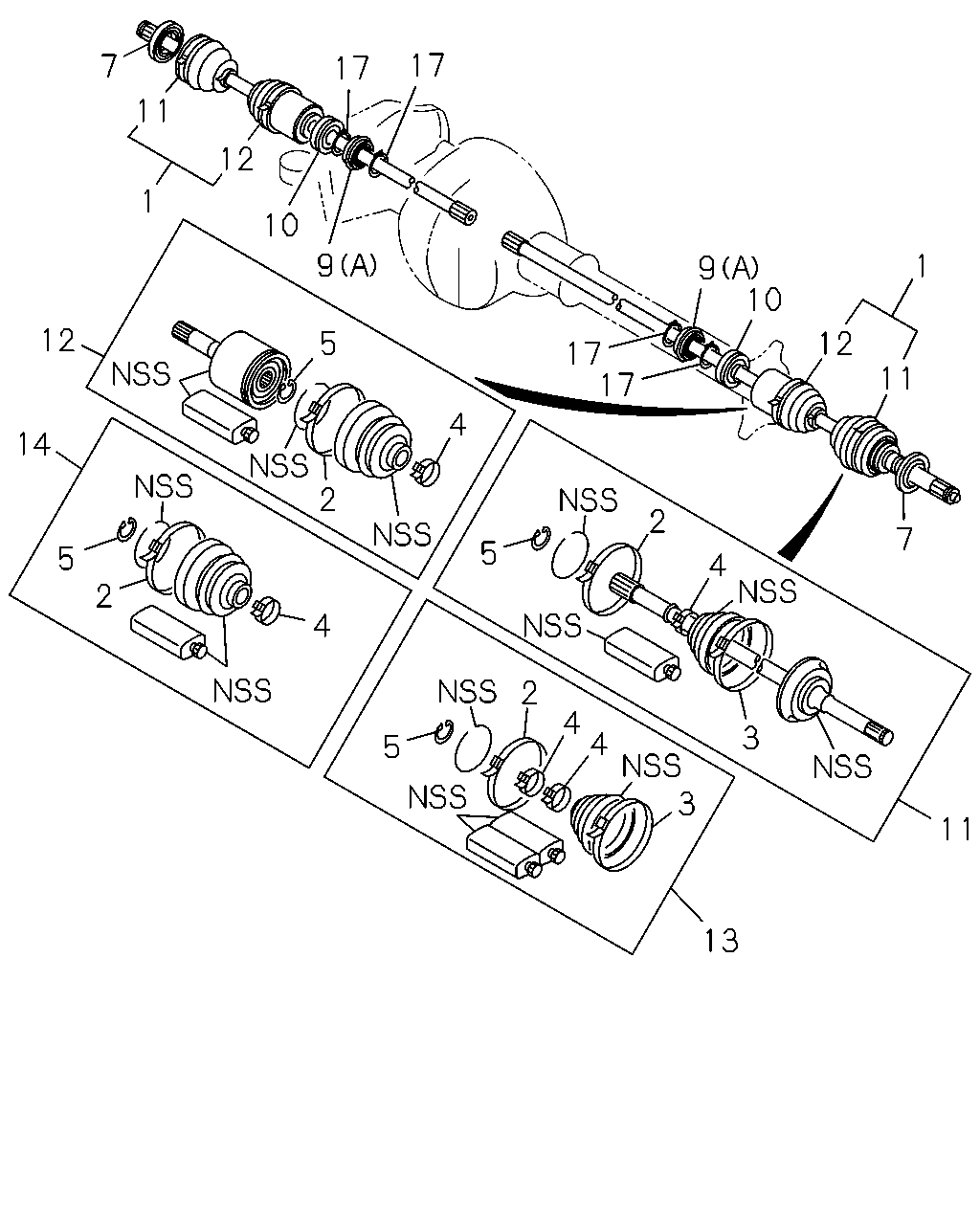

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 2 2 7 5 5 4 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT ASM; FRT DRIVE	8-97387-674-1	02	1	0509-
2	BAND; "A",FRT DRIVE SHAFT	8-97349-960-0	02	1	0509-
3	BAND; "B",FRT DRIVE SHAFT	8-97349-959-0	02	1	0509-
4	BAND; "C",FRT DRIVE SHAFT	8-97222-152-0	04	1	0509-
5	RING; RET,FRT DRIVE SHAFT	8-97131-402-0	02	1	0509-
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0509-0606
7	SEAL; DUST,DRIVE SHAFT	8-98036-560-0	02	1	0607-
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0509-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0509-
10	SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0509-
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97387-664-0	02	1	0509-
12	JOINT ASM	8-97387-663-0	02	1	0509-
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-97387-478-0	02	1	0509-
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-97387-477-0	02	1	0509-
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	0509-
