4-10 — FRONT AXLE (#75016) — 41 parça

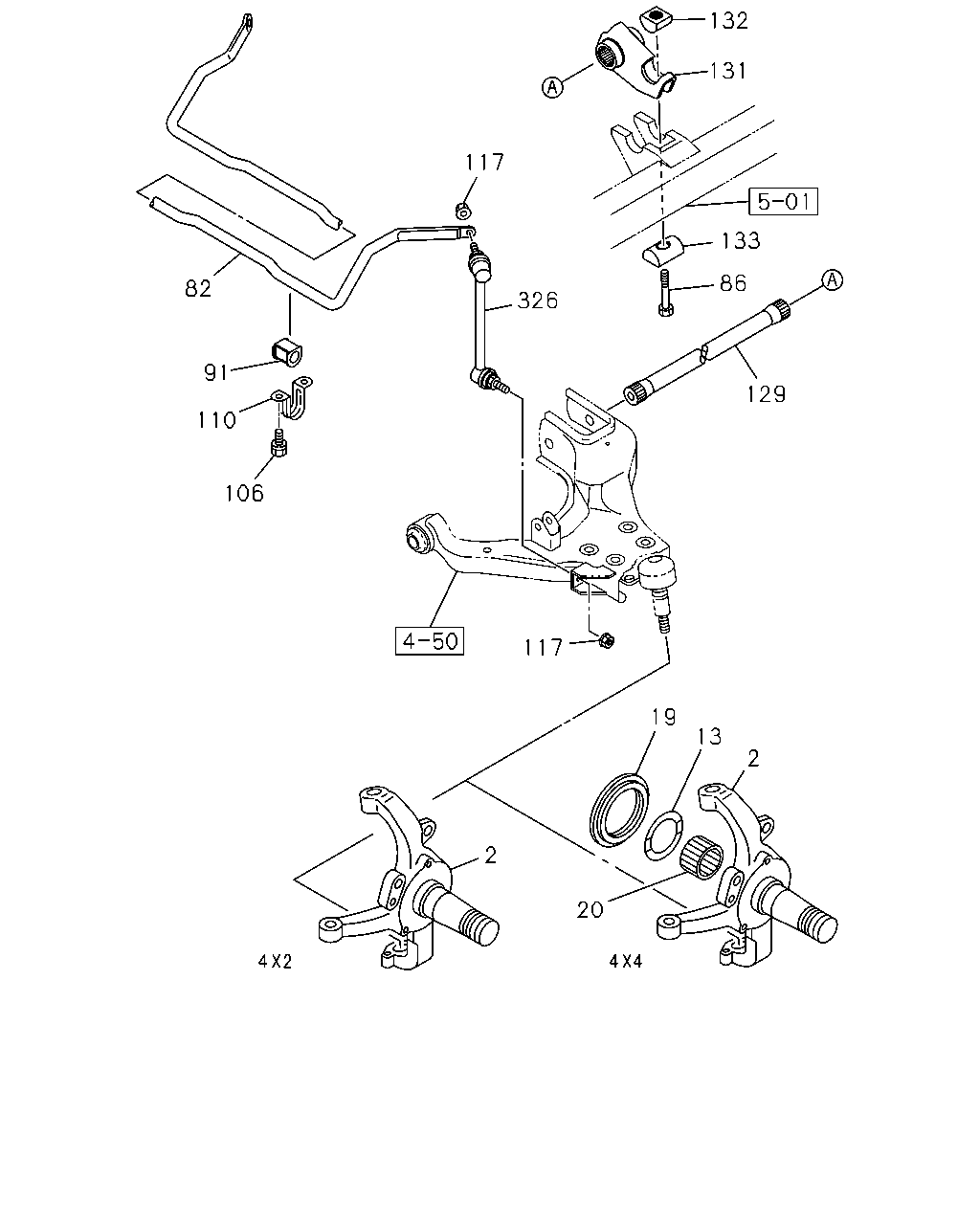

çizim 118582
132 131 117 133 86 82 326 91 129 110 106 117 19 13 2 2 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 8-97943-627-1 01 1 0503- ●
2 KNUCKLE; FRT AXLE 8-97943-626-1 01 1 0503- ●
2 KNUCKLE; FRT AXLE 8-97943-629-1 01 1 0509- ●
2 KNUCKLE; FRT AXLE 8-97943-628-1 01 1 0509- ●
13 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 0509- ●
19 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 0509-0604 ●
19 SEAL; OIL,KNUCKLE 8-98036-595-0 02 1 0605- ●
20 BEARING; KNUCKLE 8-94407-708-0 02 1 0509- ●
82 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0503-0508 ●
82 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0509- ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X160 		8-97354-887-0 02 1 0503-0508 ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X160 		8-97354-887-0 02 1 0509- ● ●
91 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0503-0508 ●
91 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0509- ● ●
106 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0503-0508 ●
106 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0509- ● ●
110 CLAMP; STAB TO ROD 8-97235-780-0 02 1 0503-0508 ●
110 CLAMP; STAB TO ROD 8-97235-780-0 02 1 0509-0606 ● ●
110 CLAMP; STAB TO ROD 8-98005-922-0 02 1 0607- ● ●
117 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 04 1 0503-0508 ●
117 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 04 1 0509- ● ●
129 BAR; TORSION,FRT SUSP 8-97235-865-0 01 1 0503-0508 ●
129 BAR; TORSION,FRT SUSP 8-97235-865-0 01 1 0509- ● ●
129 BAR; TORSION,FRT SUSP 8-97235-864-0 01 1 0503-0508 ●
129 BAR; TORSION,FRT SUSP 8-97235-864-0 01 1 0509- ● ●
131 ARM; HEIGHT CONT 8-97258-540-1 01 1 0503-0508 ●
131 ARM; HEIGHT CONT 8-97258-540-1 01 1 0509-0606 ● ●
131 ARM; HEIGHT CONT 8-98005-920-0 01 1 0607- ● ●
131 ARM; HEIGHT CONT 8-97258-539-1 01 1 0503-0508 ●
131 ARM; HEIGHT CONT 8-97258-539-1 01 1 0509-0606 ● ●
131 ARM; HEIGHT CONT 8-98005-919-0 01 1 0607- ● ●
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 0503-0508 ●
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 0509-0606 ● ●
132 COLLAR; TORSION BAR 8-98005-877-0 02 1 0607- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0503-0508 ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0509-0606 ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-98005-824-0 02 1 0607- ● ●
326 LINK ASM; STABILIZER 8-97235-787-1 01 1 0503-0507 ● ●
326 LINK ASM; STABILIZER 8-97944-569-0 01 1 0508- ● ●
326 LINK ASM; STABILIZER 8-97235-786-1 01 1 0503-0507 ● ●
326 LINK ASM; STABILIZER 8-97944-568-0 01 1 0508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
