Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#75015) — 188 parça

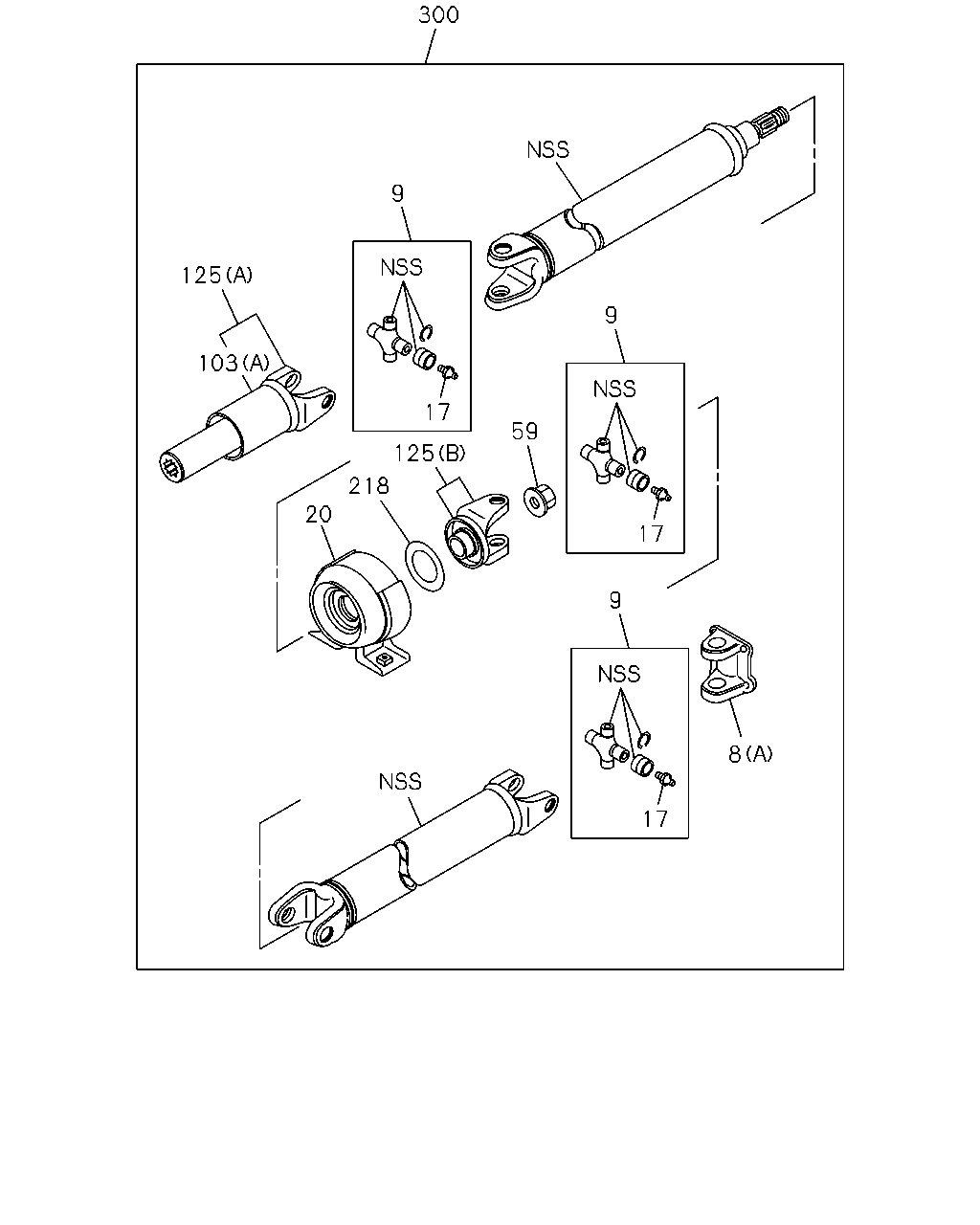

300 9 125 9 103 17 59 125 218 20 17 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0503-0508	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0509-1407	●	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-770-0	01	1	1408-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0503-0606	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97943-048-0	01	1	0607-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97948-771-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97942-850-0	02	1	0509-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-845-1	03	1	0503-1105	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-642-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5G(RSP)	8-97943-041-1	03	1	0503-0606	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97943-041-1	03	1	0607-1105	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97947-643-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-846-1	04	1	0509-0606		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97945-101-0	04	1	0607-1105		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-582-0	04	1	1106-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	9-09031-006-0	03	1	0503-0606	●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	0-90301-406-0	03	1	0607-0607	●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	9-09031-006-0	04	1	0509-0606		●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	0-90301-406-0	04	1	0607-		●
20	BEARING ASM; CTR,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-878-0	01	1	0503-0703	●
20	BEARING ASM; CTR,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97946-254-0	01	1	0704-	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5G(RSP)	8-97942-877-0	01	1	0503-0606	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97942-877-0	01	1	0607-0703	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97946-253-0	01	1	0704-	●
59	NUT; RET TO SUPPORT A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)	8-97332-468-0	01	1	0503-0606	●
59	NUT; RET TO SUPPORT M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-98018-892-0	01	1	0607-1105	●
59	NUT; RET TO SUPPORT M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK)	8-97947-557-0	01	1	1106-	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0503-0508	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0509-0606	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0509-0606		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	0607-	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0607-		●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97943-053-0	01	1	0509-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97942-848-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97945-103-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-722-0	01	1	1106-1212	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-986-0	01	1	1301-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-861-0	01	1	0503-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97947-663-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-037-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97943-037-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-664-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (B)	8-97943-044-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97945-104-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-726-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-843-0	01	1	0509-1105		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-723-0	01	1	1106-1212		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-987-0	01	1	1301-		●
218	WASHER; PL,PROP SHAFT A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) ID=30 H=40 L=35	8-97192-641-0	01	1	0503-0606	●
218	WASHER; PL,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ID=30 H=40 L=35	8-97192-641-0	01	1	0607-	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97943-599-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97945-110-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97946-212-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97947-537-0	01	1	1106-1212	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-016-0	01	1	1301-1407	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-734-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5G(RSP) L=1803.5	8-97943-596-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97945-130-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97946-211-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97947-551-0	01	1	1106-1407	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97948-710-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97943-934-0	01	1	0509-0606		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97945-115-0	01	1	0607-1105		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97947-692-0	01	1	1106-1212		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-021-0	01	1	1301-1407		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-768-0	01	1	1408-		●

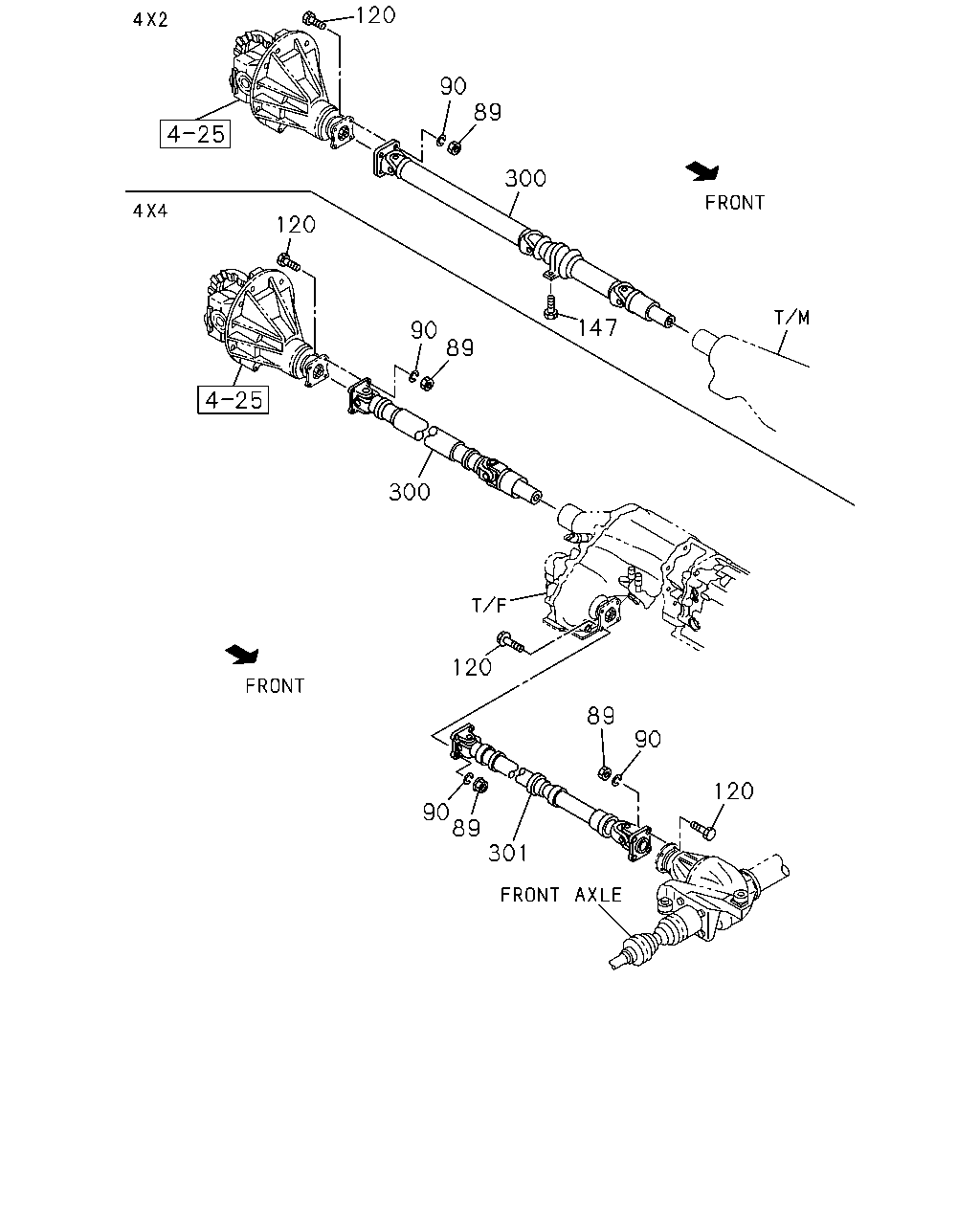

120 90 89 300 120 147 90 89 300 120 89 90 120 90 89 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0503-0508	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0509-	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0509-		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0503-0508	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0509-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	0509-		●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0503-0508	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0509-	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0509-		●
147	BOLT; CENTER BRG MTG M12X25 FLANGE	0-28761-225-0	02	1	0503-	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97943-599-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97945-110-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97946-212-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97947-537-0	01	1	1106-1212	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-016-0	01	1	1301-1407	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-734-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5G(RSP) L=1803.5	8-97943-596-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97945-130-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97946-211-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97947-551-0	01	1	1106-1407	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97948-710-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97943-934-0	01	1	0509-0606		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97945-115-0	01	1	0607-1105		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97947-692-0	01	1	1106-1212		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-021-0	01	1	1301-1407		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-768-0	01	1	1408-		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97943-775-0	01	1	0509-0606		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97945-108-0	01	1	0607-1105		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97947-691-0	01	1	1106-1407		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97948-763-0	01	1	1408-		●

300 125 9 103 17 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0503-0508	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0509-1407	●	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-770-0	01	1	1408-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0503-0606	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97943-048-0	01	1	0607-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97948-771-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97942-850-0	02	1	0509-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-845-1	03	1	0503-1105	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-642-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5G(RSP)	8-97943-041-1	03	1	0503-0606	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97943-041-1	03	1	0607-1105	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97947-643-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-846-1	04	1	0509-0606		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97945-101-0	04	1	0607-1105		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-582-0	04	1	1106-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	9-09031-006-0	03	1	0503-0606	●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	0-90301-406-0	03	1	0607-0607	●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	9-09031-006-0	04	1	0509-0606		●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	0-90301-406-0	04	1	0607-		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0503-0508	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0509-0606	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0509-0606		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	0607-	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0607-		●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97943-053-0	01	1	0509-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97942-848-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97945-103-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-722-0	01	1	1106-1212	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-986-0	01	1	1301-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-861-0	01	1	0503-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97947-663-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-037-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97943-037-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-664-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (B)	8-97943-044-0	01	1	0503-0606	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97945-104-0	01	1	0607-1105	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-726-0	01	1	1106-	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-843-0	01	1	0509-1105		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-723-0	01	1	1106-1212		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97947-987-0	01	1	1301-		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97943-599-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97945-110-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97946-212-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97947-537-0	01	1	1106-1212	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-016-0	01	1	1301-1407	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1725.5	8-97948-734-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5G(RSP) L=1803.5	8-97943-596-0	01	1	0503-0606	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97945-130-0	01	1	0607-0703	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97946-211-0	01	1	0704-1105	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97947-551-0	01	1	1106-1407	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) L=1803.5	8-97948-710-0	01	1	1408-	●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97943-934-0	01	1	0509-0606		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97945-115-0	01	1	0607-1105		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97947-692-0	01	1	1106-1212		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-021-0	01	1	1301-1407		●
300	SHAFT ASM; PROP,RR A/T 4 SPEED-JATCO(RMK) L=1408	8-97948-768-0	01	1	1408-		●

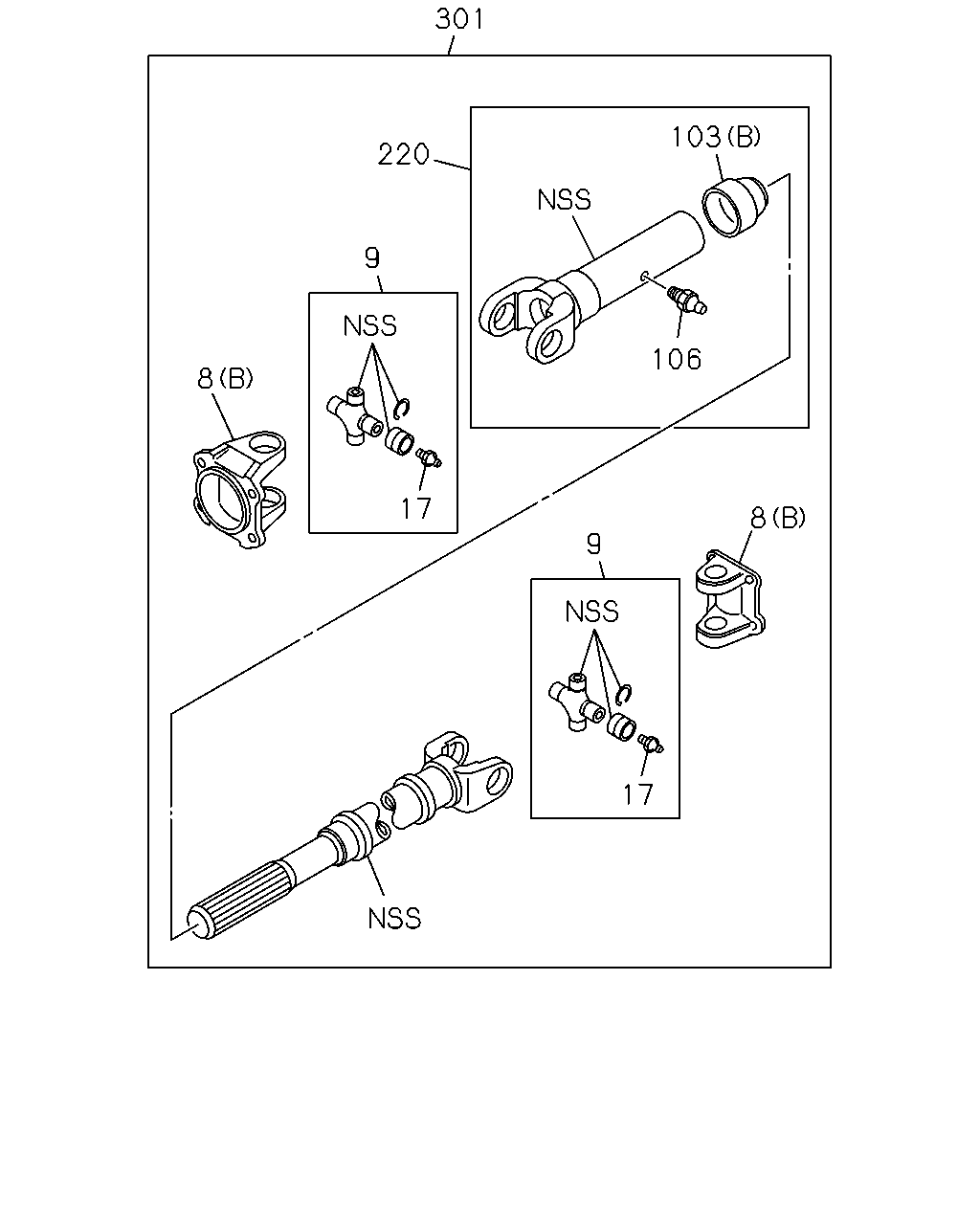

301 103 220 9 106 8 17 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0503-0508	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0509-1407	●	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-770-0	01	1	1408-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0503-0606	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97943-048-0	01	1	0607-1407	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97948-771-0	01	1	1408-	●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97942-850-0	02	1	0509-1407		●
8	YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97948-772-0	02	1	1408-		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-845-1	03	1	0503-1105	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-642-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5G(RSP)	8-97943-041-1	03	1	0503-0606	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97943-041-1	03	1	0607-1105	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ)	8-97947-643-0	03	1	1106-	●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97942-846-1	04	1	0509-0606		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97945-101-0	04	1	0607-1105		●
9	JOURNAL ASM; PROP SHAFT A/T 4 SPEED-JATCO(RMK)	8-97947-582-0	04	1	1106-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	9-09031-006-0	03	1	0503-0606	●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5G(RSP) M6 STRAIGHT	0-90301-406-0	03	1	0607-0607	●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	9-09031-006-0	04	1	0509-0606		●
17	NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	0-90301-406-0	04	1	0607-		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0503-0508	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP) (A)	8-97940-114-0	01	1	0509-0606	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0509-0606		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	0607-	●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (A)	8-97940-114-0	01	1	0607-		●
103	BOOT; PROP SHAFT A/T 4 SPEED-JATCO(RMK) (B)	8-97943-053-0	01	1	0509-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	9-09031-006-0	01	1	0509-0606		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT A/T 4 SPEED-JATCO(RMK) M6 STRAIGHT	0-90301-406-0	01	1	0607-		●
220	YOKE; SPLINED A/T 4 SPEED-JATCO(RMK)	8-97943-050-0	01	1	0509-0606		●
220	YOKE; SPLINED A/T 4 SPEED-JATCO(RMK)	8-97945-105-0	01	1	0607-		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97943-775-0	01	1	0509-0606		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97945-108-0	01	1	0607-1105		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97947-691-0	01	1	1106-1407		●
301	SHAFT ASM; PROP,FRT A/T 4 SPEED-JATCO(RMK) L=768	8-97948-763-0	01	1	1408-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
